CITROEN DS3 CABRIO 2014 Handbook (in English)

219Practical information
Changing main beam headlamp
bulbs
)Remove the protective cover by pulling on
th
e tab. )Disconnect the bulb connector. )Spread the springs to release the bulb.)Remove the bulb and change it.
To r efit, carry out these operations in reverseorder.
Changing sidelamp bulbs
)
Remove the protective cover by pulling on
the tab.
) Pull the bulb holder pressing on the tabs on both sides. )
Pull the bulb and change it.
To r efit, carry out these operations in reverse order.

Changing integrated directionindicator side repeaters
)
Insert a screwdriver towards the centre of
the repeater between the repeater and the
base of the door mirror.) Tilt the screwdriver to extract the repeater and remove it. )
Disconnect the repeater connector.)
Replace the module.
To r efit, carry out these operations in reverse order.
Contact a CITROËN dealer or a qualified workshop to obtain areplacement side repeater module.

To obtain a replacement module,contact your CITROËN dealer or aqualified workshop.If you experience any difficulty in replacing bulbs, contact your CITROËNdealer or a qualified workshop.

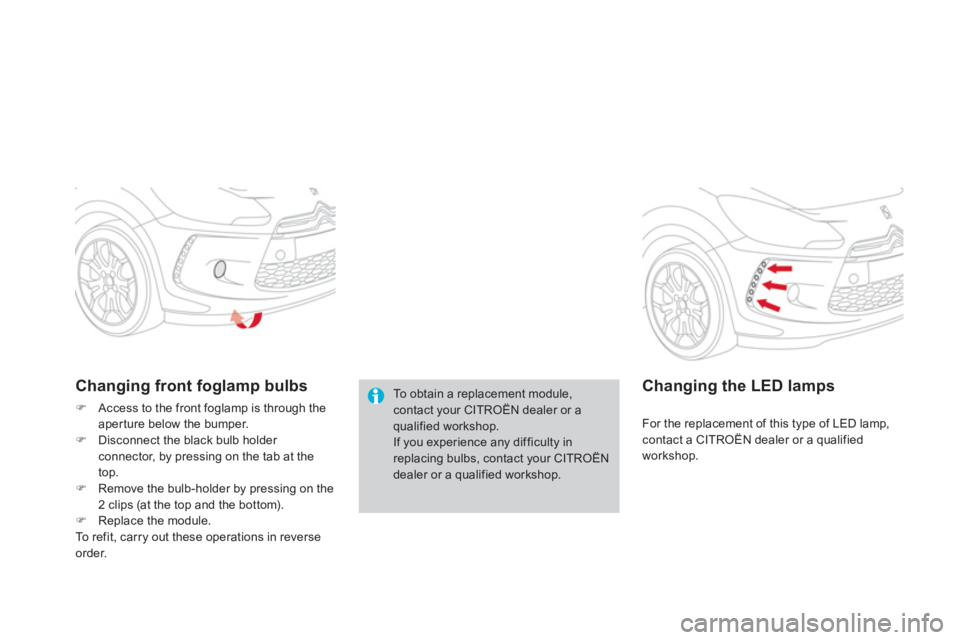

Changing front foglamp bulbs
)Access to the front foglamp is through the aper ture below the bumper.)Disconnect the black bulb holder connector, by pressing on the tab at the
top.
)Remove the bulb-holder by pressing on the
2 clips (at the top and the bottom). )Replace the module.
To r efit, carry out these operations in reverse order.
Changing the LED lamps
For the replacement of this type of LED lamp,contact a CITROËN dealer or a qualified
workshop.

221Practical information
1.Brake lamps / sidelamps (P21/5W).2.Sidelamps (P5W).3.Direction indicators (PY21W amber)4.Foglamp, right hand side (PR21W red)Reversing lamp, left hand side (P21W).
Rear lamps
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.
Changing bulbs
) Open the boot. )
Remove the access flap from the corresponding side trim panel.)
Unscrew the butterfly nut securing thelamp unit.)
Unclip the lamp unit connector.)
Extract the lamp unit carefully pulling in its
middle towards the outside.
) Spread the four tabs and remove the bulbholder. )
Turn the bulb a quar ter of a turn andchange it.
To r efit, carry out these operations in reverseorder.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.

Changing direction indicator (4)and foglamp or reversing lamp(5) bulbs
)Turn the bulb a quar ter turn and change it.


Changing LED sidelamps and
brake lamps (LEDs)
For the replacement of this type of LED lamp,contact a CITROËN dealer or a qualified
workshop.
3D rear lamps

Access to the bulbs
)
Open the boot. )
Remove the access flap from the corresponding side trim panel.
)
Unscrew the butterfly nut securing thelamp unit.)
Unclip the lamp unit connector.)
Extract the lamp unit carefully pulling it in line towards the outside.
To r e f i t , c a r ry out these operations in reverse order.
Ta k e c a r e t o e ngage the lamp unit in its guides,
while keeping it in line with the vehicle.
1.3D LED sidelamps (LEDs).2.LED brake lamps / sidelamps (LEDs).3.LED lateral sidelamps (LEDs).4.Direction indicators (PY21W amber)
5.
Foglamp, right hand (H21W red)
Reversing lamp, left hand (H21W).
Amber or red bulbs, such as thosefor the direction indicators and rear foglamp, must be replaced by bulbs of the same rating and colour.

Practical information
Third brake lamp (4 W5W bulbs)
) Open the boot. )
Remove the plugs Aon the inner panel. )
Push on the centre of the lamp using two screwdrivers to lever it outwards. )
Disconnect the connector and if necessary
the screenwash pipe from the lamp.) Turn the bulb holder for the faulty bulb aquar ter of a turn. )
Pull out the bulb and change it.
To r e f i t , c a r ry out these operations in reverse order.


Third brake lamp (LEDs)

For the replacement of this type of LED lamp, contact a CITROËN dealer or a qualified
workshop.

Changing the number plate lamp
bulbs (W5W)
)Insert a thin screwdriver into one of the
outer holes of the lens. )Push it outwards to unclip. )Remove the lens. )Pull the bulb out and change it.

Interior lighting
Interior lamp (1 / W5W)
Detach the cover of the interior lamp 1
with athin screwdriver, close to the button, to access
the failed bulb.

Map reading lamps (2 / W5W)
Detach the cover of the interior lamp 1
. To access the failed bulb, detach the par tition for
the reading lamp 2 concerned.

Boot lamp (W5W)


Detach the unit by pushing it rear wards.


Footwell and central storageillumination (W5W)

Detach the unit for access to the bulb.

225
Practical information




















Changing a fuse

Installing electricalaccessories
Your vehicle's electrical system is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on your vehicle, contact a CITROËN dealer or aqualified workshop.

CITROËN will not accept responsibility for the cost incurred in repairing your
vehicle or for rectifying malfunctions resulting from the installation of accessories not supplied and not recommended by CITROËN andnot installed in accordance with itsinstructions, in par ticular when the combined consumption of all of the additional equipment connectedexceeds 10 milliamperes. The extraction tweezer and the s
pare fusestorage locations are on the back of thedashboard fuse box cover.
For access to them:)open the glove box lid,)unclip the fusebox cover by pulling on the side,)remove the cover completely,)remove the tweezer.

Access to the tools
Before changing a fuse, the cause of the failure
must be identified and rectified. ) Identify the faulty fuse by checking thecondition of its filament.
Changing a fuse
GoodFailed
)
Use the special tweezer to extract the fuse from its housing.)
Always replace the faulty fuse with a fuse
of the same rating. ) Check that the number marked on thebox, the rating marked on the fuse and the
tables below all agree.

Dashboard fusebox
The fusebox is loacted inside the glove box.
Access to the fuses
)Refer to the paragraph "Access to the tools".

Fuse tables
Fuse N°RatingFunctions
FH3
65 ATr a i l e r r e l ay unit.
FH3
7-Not used.
FH3
820 AHi-Fi amplifier.
FH39
-Not used.
FH4
040 ATr a i l e r r e l ay unit.
Fuse N°RatingFunctions
F115 ARear wiper.
F2-Not used.
F3 5
A Airbags and pretensioners control unit.
F410 A Air conditioning, clutch switch, electrochromatic mirror,particle filter pump (Diesel), diagnostic socket, air flow
sensor (Diesel).
F5
30 AElectric windows panel, passenger's electric window control,front electric window motor.
F6
30 ADriver's electric window motor.
F7 5
ACourtesy lamp.

227Practical information
Fuse N°RatingFunctions
F820 AMultifunction screen, audio system, navigation radio, alarmcontrol unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F10 15
ASteering wheel controls.
F1
115 AIgnition, diagnostic socket, automatic gearbox control unit.
F1
215 ARain / brightness sensor, trailer relay unit.
F1
35 AMain stop switch, engine relay unit.
F1415 AParking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, Hi-Fi amplifier.
F15
30 ALocking.
F1
6-Not used.
F1740 ARear screen and door mirrors demisting/defrosting.
S
H-PA RC shunt.

Engine compartment
fusebox
The fusebox is placed in the engine compartment near the battery (left-hand side).
Access to the fuses
)
Unclip the cover.)
Change the fuse (see correspondingparagraph).)
When you have finished, close the cover carefully to ensure the sealing of thefusebox.
All work on the fuses in this box,located on the battery, must be carried out by a CITROËN dealer or a qualified workshop.
