CD player CITROEN DS3 CABRIO 2014 Handbook (in English)

05

The display and control is via the portable device. First ad
just the volume of your portable device.
Then ad
just the volume of your audio
system.

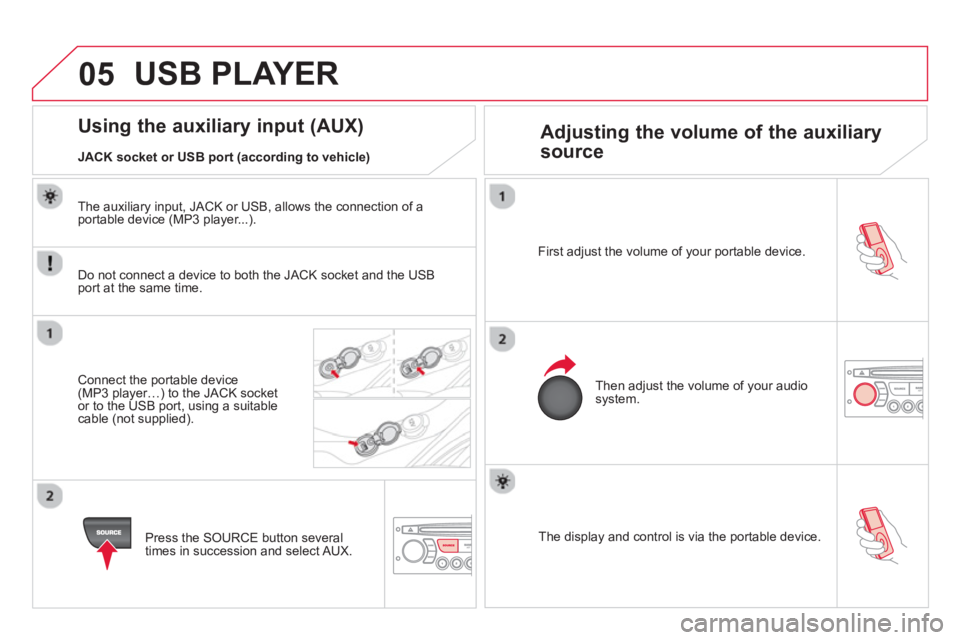

Using the auxiliary input (AUX)

Adjusting the volume of the auxiliary
source

JACK socket or USB port (according to vehicle)
USB PLAYER


Do not connect a device to both the JACK socket and the USB port at the same time.

Connect the
portable device(MP3 player…) to the JACK socket or to the USB port, using a suitable cable (not supplied).

Press the
SOURCE button several
times in succession and select AUX.
The auxiliar
y input, JACK or USB, allows the connection of a portable device (MP3 player...).

335
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.
The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION
I am unable to access my voicemail.
Few telephones or service providers allow the use of this function.

The CD player sound is poor.
The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitableconditions.

The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selecting an ambience.

The stored stations do not function (no sound, 87.5 Mhz is displayed...).
An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.

The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi cinformation.

The quality of receptionof the radio station listened to gradually deteriorates or the stored stations do not function(no sound, 87.5 Mhz isdisplayed...).

The vehicle is too far from the transmitter used by the station listened to or there is no transmitter in the geographical area through which thevehicle is travelling.

Activate the RDS function to enable the systemto check whether there is a more powerfultransmitter in the geographical area.

The environment (hills, buildings, tunnels, basement car parks...) blockreception, including in RDS mode.
This phenomenon is normal and does not indicatea failure of the audio equipment.

The aerial is absent or has been damaged (for example when going through a car wash or into an underground car park).
Have the aerial checked by a CITROÀN dealer.

Main beam ............................................112,219Maintenance....................................................24Maintenance (advice)....................................241Map reading lamps...............................122,224Markings, identification.................................256Mat ................................................................129Menu, main ...................................................320Mini fuel level ................................................106Mirror, rear view ..............................................87
M
Navigation.............................................269, 270Number plate lamps..............................221, 222
N L
Labels, identification.....................................256Lamps, front..................................................217Lamps, rear...................................................r221Lamps, warning and indicator.............r32,36, 37Leather (care)................................................241LED daytime running lamps..................117, 220Level, brake fluid...........................................195Levels and checks..................................193-197Lighting, guide-me home......................115,116Lighting, interior............................r122,123,224Lighting bulbs (replacement).........217,221-223Lighting control stalk .....................................112Lighting dimmer..............................................r46Loading............................................................24Load reduction mode ....................................236Locating your vehicle......................................92Locking from the inside.................................103Luggage retaining strap................................130
Jack...............................................................209JACK socket.................................303, 324, 326
J
Indicators, direction......................................150Inflating accessories (using the kit)..............202Inflating tyres ..................................................24
Inputs for audio system ................303, 324, 326Instrument panel lighting................................ 46Instrument panels .....................................28,30Instrument panel screen ...................28, 30,177Interior fittings.......................................126,127Interior lamp..................................................122Interior mood lighting....................................123ISOFIX...........................................................145ISOFIX child seats........................143, 145,146ISOFIX mountings.................................143,146
IMirrors, door....................................................r86Misfuel prevention.........................................108Motorway function (direction indicators).......150Mountings for ISOFIX seats .................143, 146MP3 CD .........................................................323Music media players .....................................298
K
Keeping children safe.....134-136, 143,145, 159Key in ignition warning ....................................92Key with remote control .....................90,92,95
O
Oil filter..........................................................r198Oil level ....................................................45, 195Opening the bonnet......................................191Opening the boot ....................................90, 105Opening the doors..........................90,102,104Opening the fuel filler flap.............................106Operation indicator lamps.........................32,36

347
Alphabetical index
R P
Paint colour code..........................................256Paintwork, matt.............................................241Parcel shelf, rear...........................................r131Parking brake........................................166, 199Parking sensors, rear....................................r186Particle emission filter..........................r196-198Passenger compartment filter......................r198Player, CD MP3.............................................323Port, USB.............................128, 303, 324,326Priming the fuel system................................192Protecting children........................134-136, 141,143,145, 146, 159Puncture........................................................202
Radio............................................295,296,321Rear foglamp.........................................221, 222Rear screen (demisting)..................................76Recharging the battery.................................232Reduction of electrical load..........................236Regeneration of the particle emissions filter.....r198Reinitialising the electric windows ................ 100Reinitialising the remote control .....................94Remote control..........................................90,95Removing a wheel........................................212Removing the mat.........................................129Repair kit, puncture.......................................202Replacing bulbs .............................217, 221-223
Safety for children.................................141,146Scented air freshener.....................................r77Screen, colour 16/9.........................................61Screen, colour and mapping.................267,306Screen, monochrome ..................320, 330, 332Screen, multifunction (with audio equipment).....................54,57,61Screen-wash reservoir.................................. 196Screen menu map........................306, 330, 332Screenwash..................................................119Screenwash fluid level..................................196Seat, rear bench.............................................84Seat adjustment........................................79, 82Seat belts ......................................140,155,157
S
Replacing fuses............................................225Replacing the air filter...................................r198Replacing the oil filter...................................r198Replacing the passengercompartment filter......................................r198Replacing wiper blades .........................121, 236Resetting the service indicator.......................r44Resetting the trip recorder..............................r46Rev counter...............................................r28, 30Reversing lamp.....................................221,222Risk areas (update).......................................274Routine checks.....................................198,199Running out of fuel (Diesel) ..........................192
Seats, rear.......................................................r84Serial number, vehicle..................................256Ser vice indicator.............................................r43Servicing.........................................................24Setting the clock.................................54, 57, 61Shor t-cut menus ...........................................268Sidelamps ............................. 112, 219, 221, 222Side repeater.................................................219Snow chains..................................................216Spare wheel..................................................209Speed limiter.................................................r182Speedometer............................................r28,30Stability control (ESP) ...................................153Starting the vehicle .........................92,168, 173Steering mounted controls, audio.................319Stopping the vehicle .......................92,168, 173Stop & Start.......50, 73,106,178,191, 198, 232Storage..................................................126,127Storage box...................................................131Stowing rings................................................130Sun visor.......................................................r127Synchronising the remote control...................94Synthesiser, voice .........................................280System, navigation ........................................270Systems, ASR and ESP ................................153
