59Multifunction screens
"Personalisation-
Confi
guration" menu
Once this menu has been selected, you can gain access to the following functions:


- define the vehicle parameters,

- display configuration,

- choice of language.


Defi ne the vehicle parameters
Once this menu has been selected, you can
activate or deactivate the following equipment:


- wiper linked to reverse gear (refer to the
"Visibility"),

- guide-me-home lighting and duration (see
"Visibility"),

- parking sensors (refer to the "Driving" section). Example: settin
g of the duration of the guide-
me-home lighting) Press the " " or "" buttons, then the"OK"
button to select the menu required.
)
Press the "
" or "" buttons, then the"OK"
button to select the "Guide-me-home
headlamps" line.
) Press the " " or " " buttons to set the
value required (15, 30 or 60 seconds), then
press the "OK"button to confirm.
) Press the "
" or "
" buttons, then the "OK"button to select the "OK"
box and confirm or press the "Back"
button to cancel.

Display confi guration
Once this menu has been selected, you can gain access to the following settings:
- brightness-video setting,
- date and time setting,
- selection of units.
Once the fuel consumption units havebeen changed to mpg, the information in the screen relating to speed and distance also changes to mph andmiles respectively.
For safety reasons, configuration by thedriver of the multifunction screen must only be done when stationary.



Choice of language
Once this menu has been selected, you canchange the language used by the display(Deutsch, English, Espanol, Français, Italiano,Nederlands, Portugues, Portugues-Brasil,Türkçe * ).

*
Accordin
g to country of destination. With Audio s
ystem on, once this menu is selected you can configure your Bluetooth
hands-free system (pairing), view the various
telephone directories (list of calls, ser vices...)and manage your calls (call, hang up, secondcall, secret mode...).
For more information on the "Telephone"
function, refer to the "Audio s
ystem" section.


"Telephone" Menu
Setting the date and time)Select the " Set date and time
" function using the "
" or " " button. )Press "OK"
to confirm the selection.)Adjust the settings one by one using the" " or "
" button then confirm with "OK".)Then select the "OK"
box in the screenand confirm.

61Multifunction screens

























16/9 colour screen (eMyWay)

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature
(the value displayedflashes if there is a risk of ice),

- check of the doors,

- warning and vehicle function status messages, displayed temporarily,

- audio functions,

- trip computer information (see the
"Instrument s and controls" section),

- satellite navigation system information.



Displays in the screen
To select one of the applications, from the
eMyWay control panel: ) press the dedicated "RADIO" , "MUSIC","NAV" , "TRAFFIC", "SETUP"or "PHONE"
button for access to thecorresponding menu,)
turn the knob to change the selection, )
press the knob to confirm the selection, or )
press the "Back"button to abandon the current operation and return to the previous
display.
Controls
For more information on these applications, refer to the "eMyWay" section or to the specific user guide given to you with the other owner's documents.
"SETUP" menu
)Press the "SETUP"
button to gain access
to the "SETUP"
menu. This allows you to
select from the following functions:
- "System language",
- "Date and time",
- "Displa
y",
- "Vehicle",
- "Units",
- "S
ystem".

System language
This menu allows you to select the language
used by the display: Deutsch, English,Espanol, Français, Italiano, Nederlands, Polski,
Portugues, Türkçe * .
Date and time
This menu allows you to set the date and time,
the format of the date and the format of the
time:)Press "SETUP".)Select the "Date and time" function andpress the knob to confirm. )Select the "Adjust date and time" function and press the knob to confirm. )Adjust the settings in turn using the
directional arrows, confirming with the knob.)Select the "Date format" function and press
the knob to confirm. )Confirm the desired format using the knob. )Select the "Time format" function andpress the knob to confirm. )Confirm the desired format using the knob.



Display

This menu allows you to set the brightness of
the screen, the screen colour scheme and the
colour of the map (day/night or auto mode).

*
Accordin
g to country.

Vehicle
This menu allows you to activate or deactivate certain driving and comfor t equipment:


- wiper linked with reverse gear (refer to the "Visibility"),

- guide-me-home lighting and duration (refer
to the "Visibility"),

- parking sensors (refer to the "Driving"section).



Units

This menu allows you to select the units:
temperature (°C or °F) and fuel consumption(km/l, l/100 or mpg).

System

This menu allows you to restore the factory configuration, display the software version and
activate scrolling text.

For safety reasons, configuration of the multifunction screen by the driver mustonly be done when stationary.

63Multifunction screens

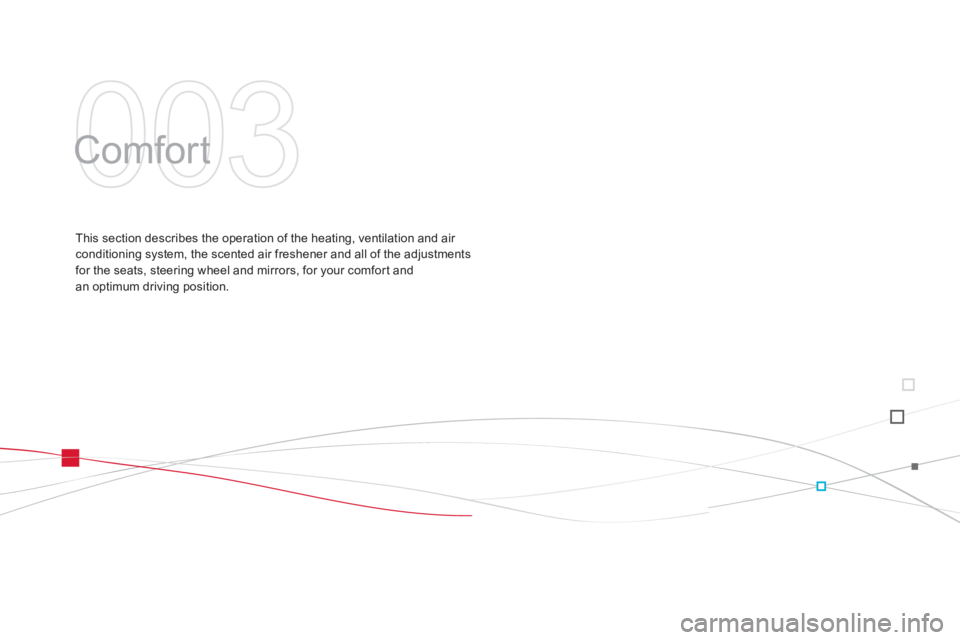

003
Comfort
This section describes the operation of the heating, ventilation and air conditioning system, the scented air freshener and all of the adjustments
for the seats, steering wheel and mirrors, for your comfor t and an optimum driving position.

Vent ilat ion
Air intake
The air circulating in the passenger compar tment
is filtered and originates either from the outside
via the grille located at the base of the windscreen or from the inside in air recirculation mode.
Air treatment
The incoming air follows various routesdepending on the controls selected by thedriver:
- direct arrival in the passenger compartment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning).The temperature control enables you to obtain
the level of comfor t required by mixing the air of
the various circuits.
The air distribution control enables you to
di
ffuse the air in the passenger compar tment combining several air vents.
The air flow control enables you to increase or reduce the speed of the ventilation blower.

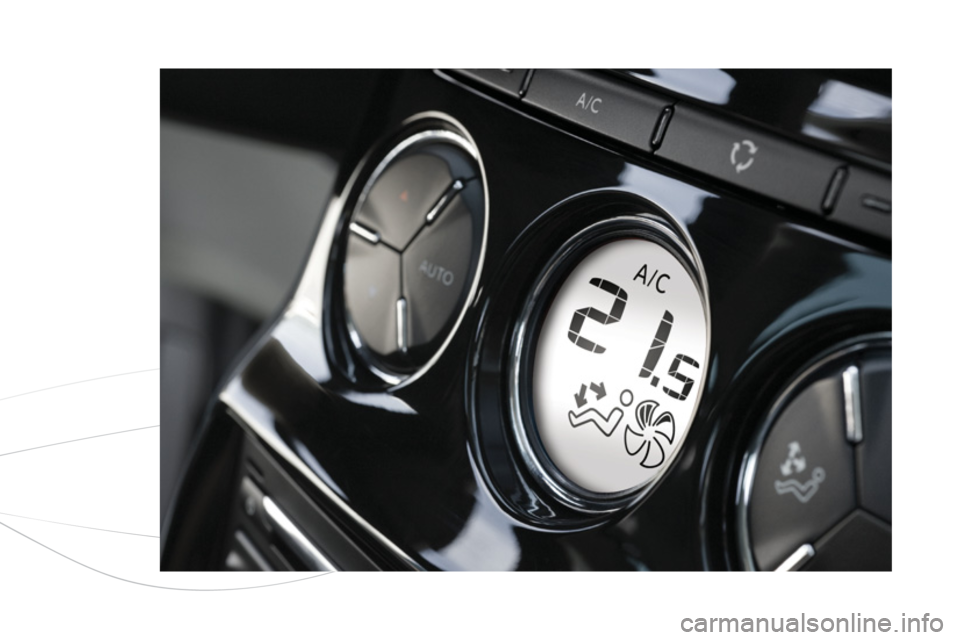

Control panel

The controls of this system are grouped
together on control panel Aon the centre console. Depending on the model, the functionsoffered are:


- the level of comfort required,

- air flow,

- air distribution,

- demistin
g-defrosting,

- manual or digital air conditioning controls.



Air distribution
1.
Windscreen demisting-defrosting vents. 2.Front side window demisting-defrostingvents.3.Side adjustable air vents. 4.
Central adjustable air vents.
5. Air outlets to the front footwells.
6.Air outlets to the rear footwells.

67
Comfort











Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in perfect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly. We recommend the use of a combined passenger compar tment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the maintenance and warranty guide. )
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.

The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.

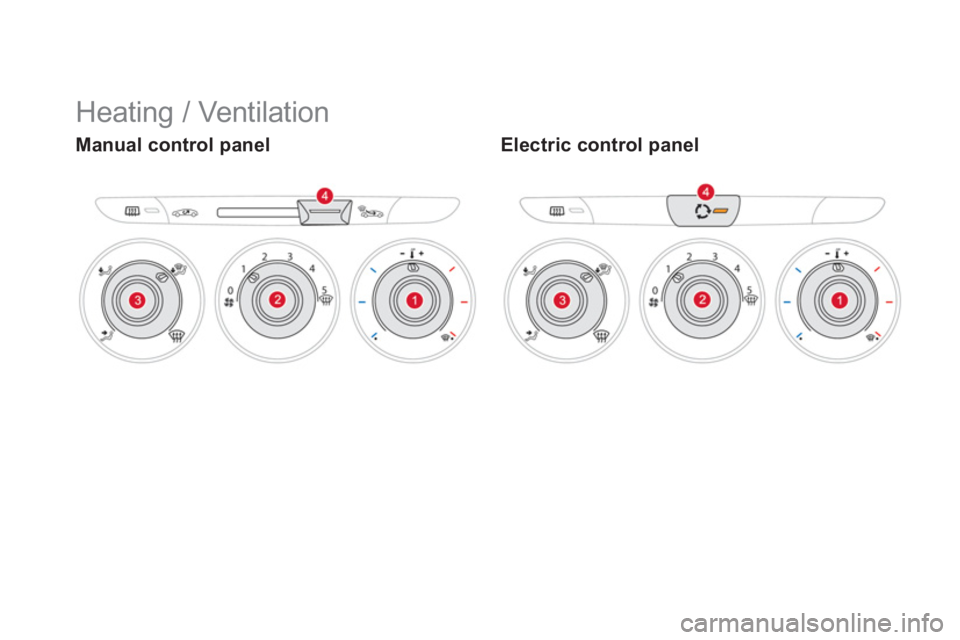

Heating / Ventilation
Manual control panel Electric control panel
