14Practical information

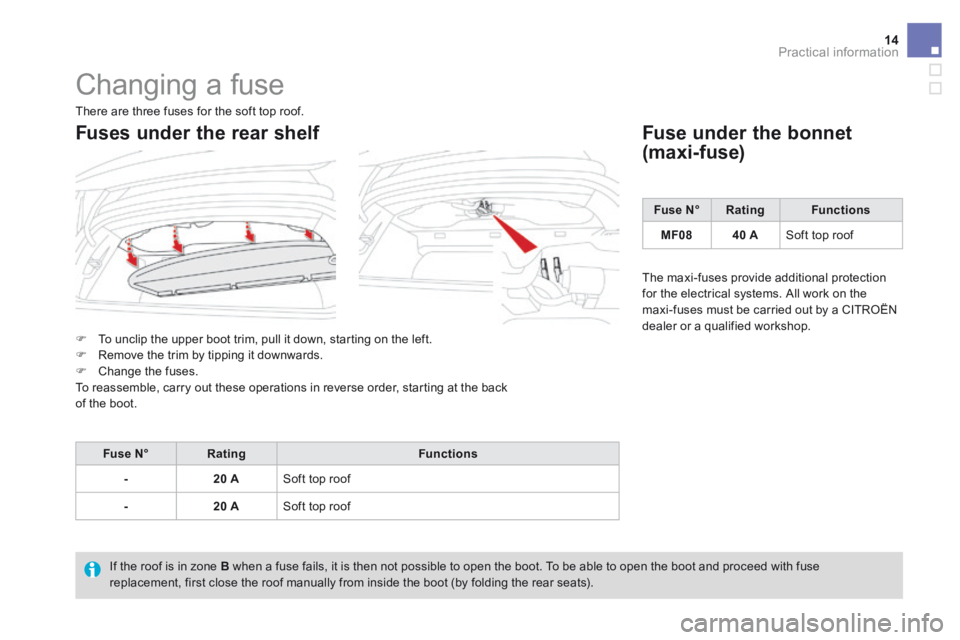

Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.  Remove the trim by tipping it downwards.  Change the fuses. To reassemble, carry out these operations in reverse order, starting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 A Soft top roof
-20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0840 A Soft top roof
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.

Contents
ACCESS
2 Soft top
10 Boot
12 Alarm
002 PR ACTICAL
INFORMATION
13 Rear shelf
010
008
TECHNICAL DATA
14 Changing a fuse
15 Recommendations on care
16 Petrol engines
17 Petrol weights
18 Diesel engine
19 Diesel weights
20 Dimensions
Key
safety warning
additional information
COMFORT 003
corresponds to a left hand drive vehicle.
corresponds to a right hand drive vehicle.

14Practical information
Changing a fuse
 To unclip the upper boot trim, pull it down, starting on the left.  Remove the trim by tipping it downwards.  Change the fuses. To reassemble, carry out these operations in reverse order, starting at the back of the boot.
Fuse under the bonnet
(maxi-fuse)
Fuse N°RatingFunctions
-20 A Soft top roof
-20 A Soft top roof
If the roof is in zone B when a fuse fails, it is then not possible to open the boot. To be able to open the boot and proceed with fuse replacement, first close the roof manually from inside the boot (by folding the rear seats).
There are three fuses for the soft top roof.
Fuses under the rear shelf
Fuse N°RatingFunctions
MF0840 A Soft top roof
The maxi-fuses provide additional protection for the electrical systems. All work on the maxi-fuses must be carried out by a CITROËN dealer or a qualified workshop.
