Page 231 of 421

229Practical information
Matt paint
We recommend the use of a high pressurejet wash, or at least a water hose with a high output.
We recommend that the vehicle be rinsed using de-ionised water.
Use only a microfibre cloth to dry the vehicle.It must be clean and used without heavypressure.
Lightly wipe off any fuel stains present on the
lacquer using a soft cloth, then leave to dry.
From the range of cleaning and maintenance
products recommended and approved by CITROËN, use only products for removing
insects and car shampoo.
Always have paint repairs done by a CITROËN
dealer or a qualified workshop.
Recommendations on the care and maintenance your vehicle are given in the ser vicing booklet.
Never clean the vehicle without water. Never wash your vehicle in anautomatic roller brush car wash.Never polish the vehicle body, nor the alloy wheels. Doing this will make the paintwork shiny. Do not use paint cleaners, abrasive products or paint polishing or preserving products (such as wax, for example) on the paintwork. These products are only suitable for bright finishes. Application of these products on vehicles with a matt finish will seriously damage the paint surface of the vehicle, giving rise to irreversible
shiny or stained areas.Never use a high pressure jet washwith a lance fitted with a brush, this may scratch the paintwork. Never select a wash programme that finishes with a hot wax cycle.

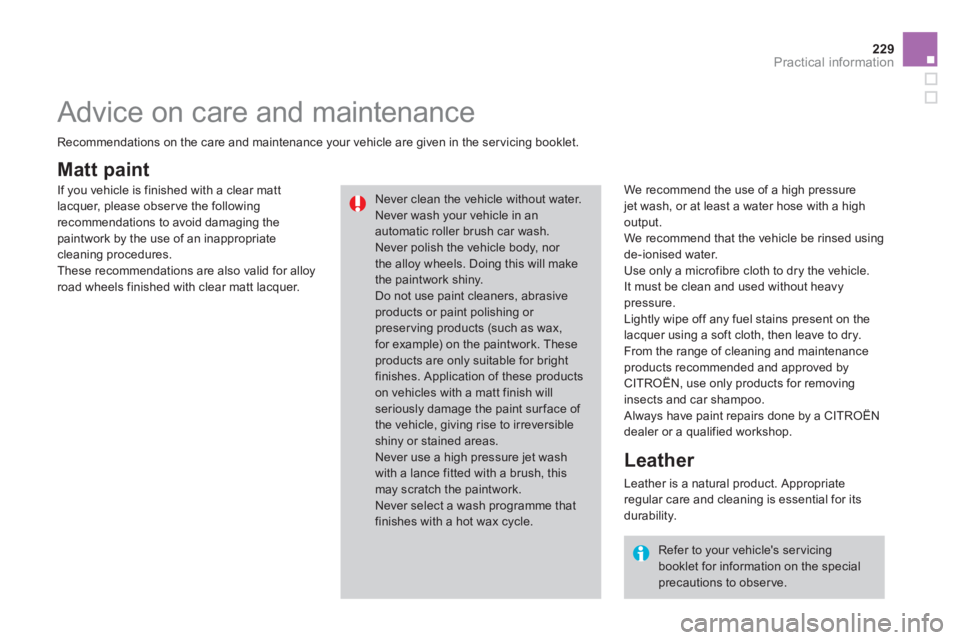

Advice on care and maintenance
If you vehicle is finished with a clear matt
lacquer, please observe the followingrecommendations to avoid damaging the paintwork by the use of an inappropriate cleaning procedures.
These recommendations are also valid for alloy
road wheels finished with clear matt lacquer.
Leather
Leather is a natural product. Appropriate
regular care and cleaning is essential for its
durability.
Refer to your vehicle's ser vicingbooklet for information on the specialprecautions to observe.
Page 232 of 421

A wide range of accessories and genuine par ts is available from the CITROËN dealer network.
These accessories and par ts have been tested and approved for reliability and safety.
The
y are all adapted to your vehicle and benefit from CITROËN's recommendation and warranty.
Accessories
"Comfort":
sun blinds, air deflectors, isotherm module,ashtray, fragrance car tridges, coat hanger fixed
to head restraint, front centre armrest, movable
mirror, reading lamp, front and rear parking sensors...
"Transport solutions":
boot liner, boot spacers, boot carpet, boot net,
transverse roof bars, bicycle carrier, ski carrier, roof boxes, towbars, towbar wiring harnesses...
"Styling":
full grain leather steering wheel, coloured and carbotech dashboards, coloured and leather gear lever knobs, aluminium footrest, spoiler,
alloy wheels, coloured wheel trims, coloured
wheel caps, exterior expressive stickers,
exterior chrome kit...
*
To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and
secured correctly,
- never fit one mat on top of another.
"Security and safety":
anti-intrusion alarm, wheel security devices,
vehicle tracking system, breathalyser, first aid kit, warning triangle, high visibility safety vest,child seats, snow chains, non-skid covers, fire extinguisher...
"Protection":
mats *
, mudflaps, seat covers, vehicle covers,
bumper protectors...
When fitting a towbar outside the CITROËN dealer network, the installation must be done using thevehicle's electrical pre-equipment and following the vehicle manufacturer'srecommendations.
Page 233 of 421

231Practical information
"Multimedia":
hands-free system, audio systems, semi-
integral satellite navigation system, por table
navigation systems, mapping update CD, speed camera warning, DVD player, reversing camera, USB Box, speakers, Hi-Fi module,
230 V socket, WiFi on Board...B
y visiting a CITROËN dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecologicalproducts from the "TECHNATURE" range,products for topping up (screenwash fluid...),
touch-up pens and paint aerosols for the exact
colour of your vehicle, refills (cartridge for the
temporary puncture repair kit...), ...
Installation of radiocommunication transmitters
Before installing any after-market radio communication transmitter, you can contact a CITROËN dealer for the specification of transmitters which canbe fitted (frequency, maximum power, aerial position, specific installationrequirements), in line with the VehicleElectromagnetic Compatibility Directive(2004/104/EC).
The fitting of electrical equipment or accessories which are not recommended by CITROËN may resultin a failure of your vehicle's electronicsystem and excessive electrical consumption. Please note this precaution. Youare advised to contact a CITROËNrepresentative to be shown the rangeof recommended equipment and accessories.
Depending on the legislation in force in the country, it may be compulsoryto have a high visibility safety vest, warning triangle and spare bulbs and fuses available in the vehicle.
Page 234 of 421

012
Technical data
This section contains the specifications of your vehicle depending on itsengine and gearbox, such as the maximum power and torque, unladenand maximum weights, trailer weights, exterior dimensions and all of its
identification markings.
Page 235 of 421

Page 236 of 421

MODELS:ENGINES AND GEARBOXES
Model codes:SA...8FP08FP0/P5FS05FS95FV85FN8 * 5FM8**
PETROL ENGINESVTi 95VTi 120THP 155THP 150
*
THP 160
**
Cubic capacity (cc)
1 397
1 598
1 598
Bore x stroke (mm)
77 x 75
77 x 85.8
77 x 85.8
Max power: EU standard
(kW)
70
88 115
11 0 *
120 **
Max power engine speed
(rpm)
6 000 6 000 6 000
Max torque: EU standard
(Nm) 13 6
160240
Max torque en
gine speed (rpm)
4 000
4 2501 400
Fuel Unleaded
UnleadedUnleaded
Catalytic conver ter yes
yes
yes
GEARBOX
Manual(5-speed)
Electronic
(5-speed)
Manual (5-speed)
Automatic
(4-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)
En
gine (with filter replacement) 4.25
4.25
4.25
4.25
*
For Belgium and Russia.
**
For Brazil.
Page 237 of 421

235
Technical data
ENGINE AND GEARBOX- RACING
MODELS:Model codes: SA...5FF85FD8
PETROL ENGINE
Cubic capacit
y (cc) 1 598
Bore x stroke
(mm) 77 x 85.8
Max power: EU standard (kW)
149 152
Max power en
gine speed (rpm) 6 000
Max torque: EU standard
(Nm)
275
Max torque en
gine speed (rpm)
2 000
F
uel
Unleaded **
Catalytic converter Yes
GEARBO
XManual (6-speed)
OIL CAPACITY (in litres)
En
gine (with filter replacement) 4.25
**
CITROËN recommends the use of 98 RON unleaded petrol to ensure optimum engine per formance.
Page 238 of 421

WEIGHTS AND TOWED LOADS (in kg)
Petrol enginesVTi 95VTi 120THP 155THP 150*THP 160
**
GearboxesManualElectronicManualAutomaticManual
Model codes: SA...8FP08FP0/P5FS05FS95FV85FN8*5FM8**
- Unladen weight
1 075
1 079
1 075
1 089 1 090
-
Kerb weight
1 150
1 154
1 150
1 164
1 165
- Gross vehicle wei
ght (GV W)
1 552
1 558
1 5541 587 1 590
-
Gross train weight (GTW)
on a 12 % gradient
2 452 2 4582 454
2 487 2 490
- Braked trailer
(within the GTW limit)
on a 12 % gradient900900900900 900
- Braked trailer *** (with load transfer within
the GTW limit)
1 150
1 150
1 150
1 150
1 150
-
Unbraked trailer
570570570
570
570
- Recommended nose wei
ght
46
46
46
46
46
* For Belgium and Russia.
** For Brazil.
***
The weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Page 239 of 421

237
Technical data
WEIGHTS (in kg)- RACING
Petrol engine
GearboxManualManual
Model codes: SA...5FF85FD8
- Unladen weight 1 165
- Kerb weight 1 240
-
Gross vehicle weight (GVW)
1 597
-
Gross train weight (GTW)
on a 12% gradient 1 597
- Braked trailer
(within the GTW limit)
on a 12% slop0
- Braked trailer (with transfer of load within
the GTW limit)0
- Unbraked trailer 0
- Recommended nose wei
ght **0
** See "Practical information - § To w i ng a trailer".
Page 240 of 421

MODELS:ENGINE AND GEARBOX
Model codes:SA...8FR0/GPL
LPG ENGINEVTi 95
Cubic capacity (cc)
1 397
Bore x stroke
(mm)77 x 75
Max. power: EU standard
(kW) 70
Max. power speed
(rpm) 6 000
Max torque: EU standard (Nm)
136
Max. torque speed
(rpm) 4 000
Fuel
LPG/Unleaded
Catal
ytic conver ter
Yes
GEARBOX
Manual(5-speed)
OIL CAPACITY
(in litres)
En
gine (with filter replacement)
4.25
For more information on the operation and use of your LPG vehicle, refer to the specific insert attached to the other vehicle documents.
