Page 211 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) 209Practical information
Changing main beam headlamp
bulbs
�)Remove the protective cover by pulling on
the tab. �)Disconnect the bulb connector. �)Spread the springs to release the bulb.�)Remove the b

Page 212 of 421

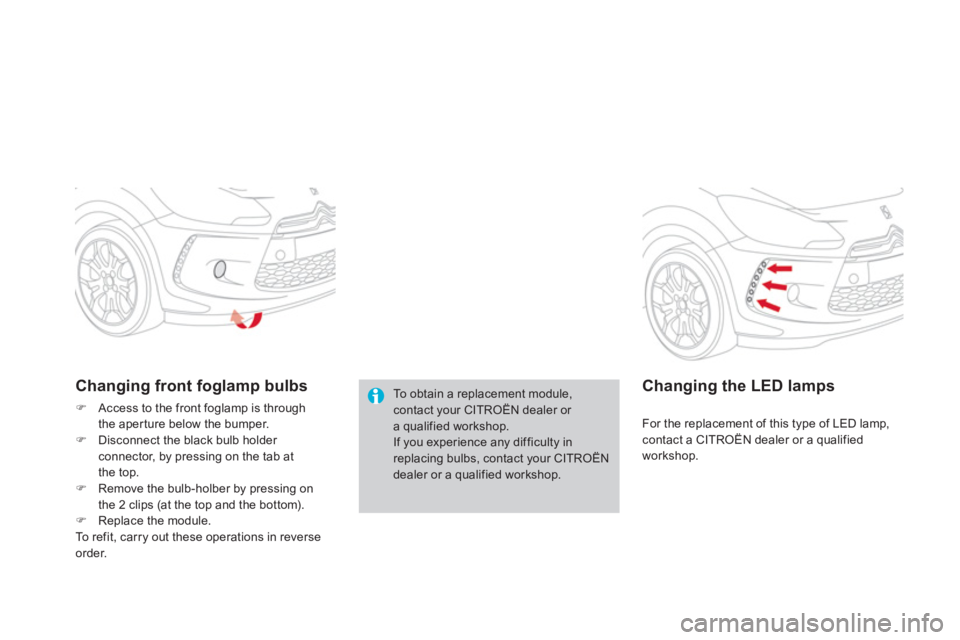

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) To obtain a replacement module,contact your CITROËN dealer or a qualified workshop.If you experience any difficulty in replacing bulbs, contact your CITROËNdealer or a qualified workshop.
Changing f

Page 213 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) 211Practical information

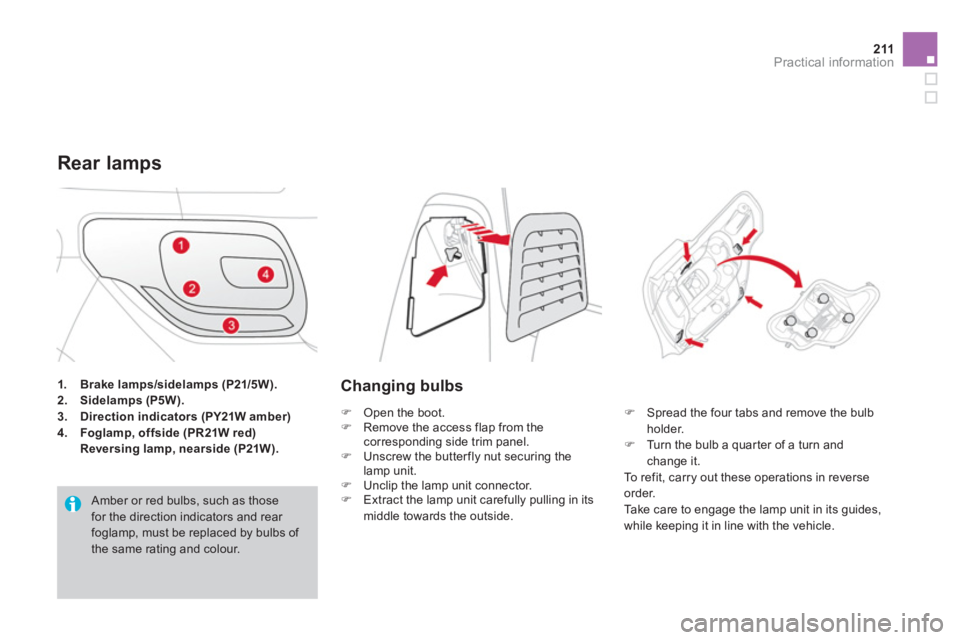

1.Brake lamps/sidelamps (P21/5W).2.Sidelamps (P5W).3.Direction indicators (PY21W amber)
4.Foglamp, offside (PR21W red)Reversing lamp, nearside (P21W).
Rear lamps
 Amber or red

Page 214 of 421

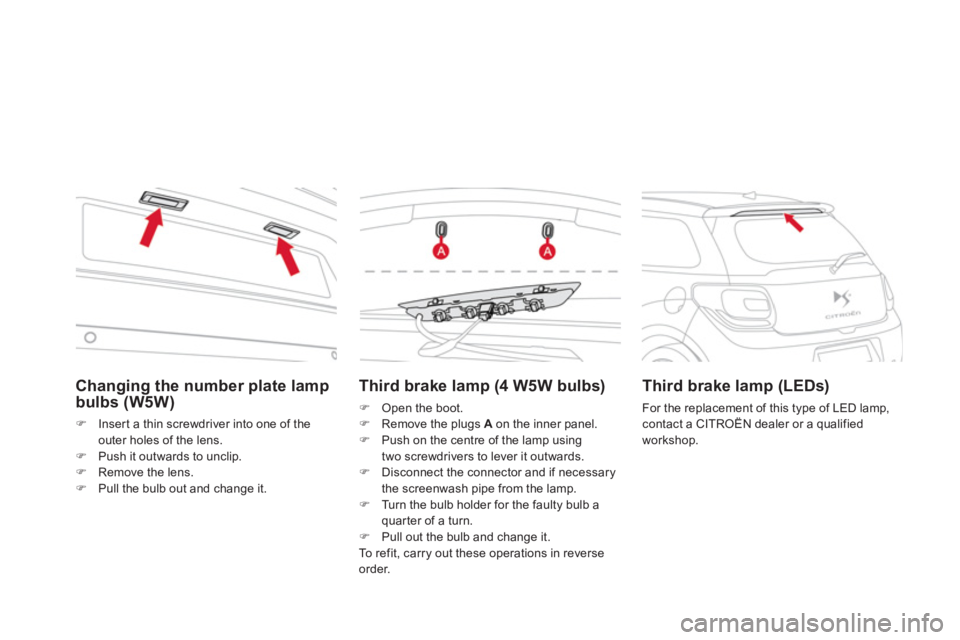

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) Changing the number plate lamp
bulbs (W5W)
�)Insert a thin screwdriver into one of the
outer holes of the lens.�)Push it outwards to unclip. �)Remove the lens.�)Pull the bulb out and change it.
Third

Page 215 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) 213Practical information

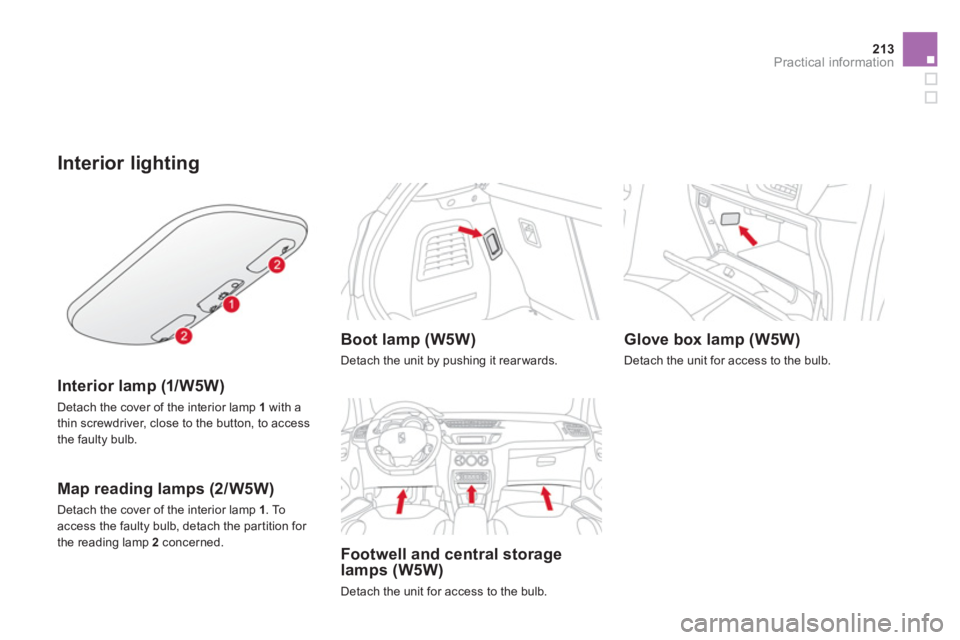

Interior lighting

Interior lamp (1/W5W)


Detach the cover of the interior lamp  1
 with athin screwdriver, close to the button, to access
the faulty bulb.



Ma

Page 216 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English)



















Changing a fuse

 Installing electricalaccessories
 Your vehicles electrical system isdesigned to operate with standard or optional equipment.
Before ins

Page 217 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) 215
Practical information

Dashboard fusebox

The fusebox is located in the lower dashboard(left-hand side).


Access to the fuses
�)Refer to the paragraph "Access to the tools".
Fuse tables
F

Page 218 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) Fuse N°RatingFunctions
F
820 AMultifunction screen, audio system, navigation radio, alarm control unit, alarm siren.
F
930 A12 V socket, portable navigation suppor t supply.
F1
015 ASteering mounte

Page 219 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) 217Practical information

Engine compartment
fusebox

The fusebox is located in the enginecompartment near the battery (left-hand side).Access to the fuses
�)
 Unclip the cover.
�)
 Change the

Page 220 of 421

CITROEN DS3 CABRIO DAG 2013  Handbook (in English) Fuse table
Fuse N°RatingFunctions
F120 A  Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump(Diesel).
F
215 A  Horn.
F
310 A  Front/
