CD player CITROEN DS3 CABRIO DAG 2015 Handbook (in English)

08
DS3_en_Chap13b_RT6-2-8_ed01-2014

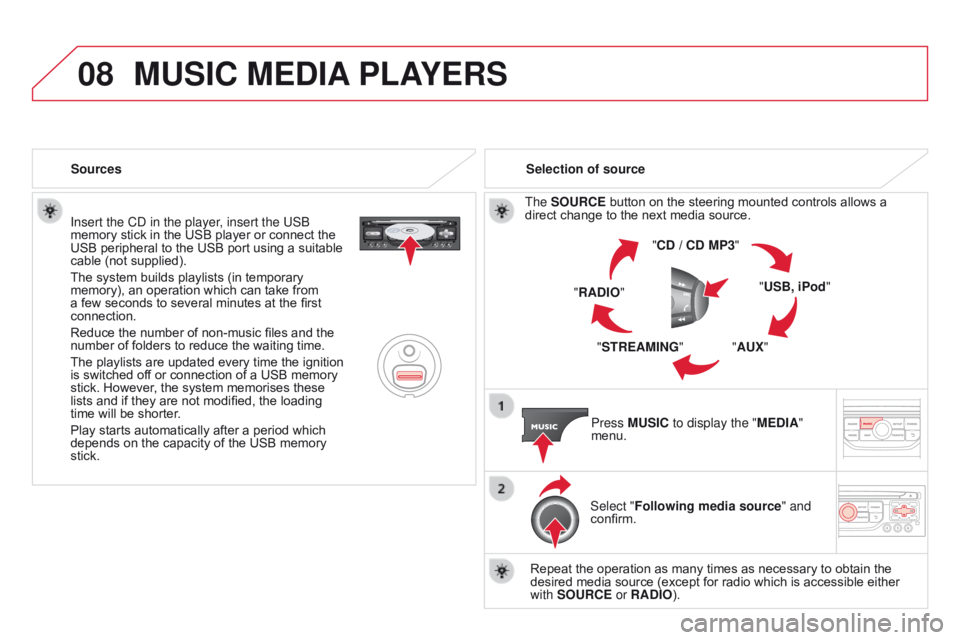

Insert the CD in the player, insert the USb
memory   stick   in   the   USB   player   or   connect   the
USB

  peripheral   to   the   USB   port   using   a   suitable
cable

  (not   supplied).
The
  system   builds   playlists   (in   temporary
memory),

  an   operation   which   can   take   from
a

  few   seconds   to   several   minutes   at   the   first
connection.
Reduce

  the   number   of   non-music   files   and   the
number

  of   folders   to   reduce   the   waiting   time.
The
  playlists   are   updated   every   time   the   ignition
is

  switched   off   or   connection   of   a   USB   memory
stick.

  However,   the   system   memorises   these
lists

  and   if   they   are   not   modified,   the   loading
time

  will   be   shorter.
Play
  starts   automatically   after   a   period   which
depends

  on   the   capacity   of   the   USB   memory
stick. Selection of source
The
SOUR c E   button   on   the   steering   mounted   controls   allows   a  direct
  change   to   the   next   media   source.
" cd / cd MP3"
"USB, iPod "
"AUX"
"STREAMING"
"RA
d IO"
Press MUSI
c to display the "ME d IA"
menu.
Select "Following media source " and
confirm.
Repeat
  the   operation   as   many   times   as   necessary   to   obtain   the
desired

  media   source   (except   for   radio   which   is   accessible   either
with

SOUR c E or RA d IO).
Sources
MUSIc MEdIA
PLAYERS

08
/
// /
/ /
/
+
/
/
/
319
DS3_en_Chap13b_RT6-2-8_ed01-2014

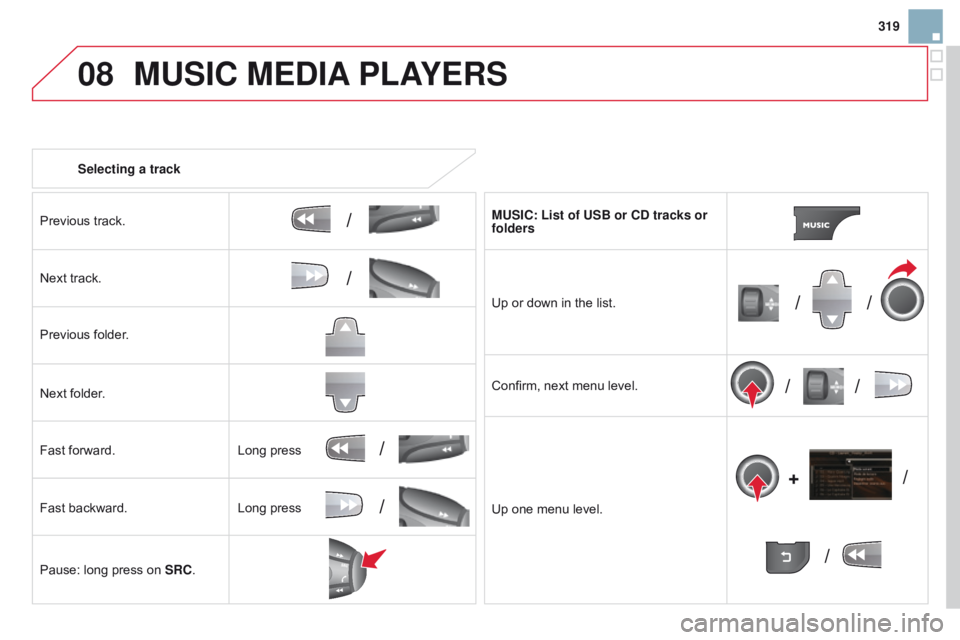

Selecting a track
Previous   track.
Next

track.
Previous
  folder.
Next

folder.
Fast

forward.
Fast

backward.
Pause:
  long   press   on
SR
c . MUSI
c : List of USB or cd tracks or
folders
Up
  or   down   in   the   list.
Confirm,
  next   menu   level.
Up
  one   menu   level.
Long
  press
Long
  press
MUSIc MEdIA PLAYERS

08
DS3_en_Chap13b_RT6-2-8_ed01-2014

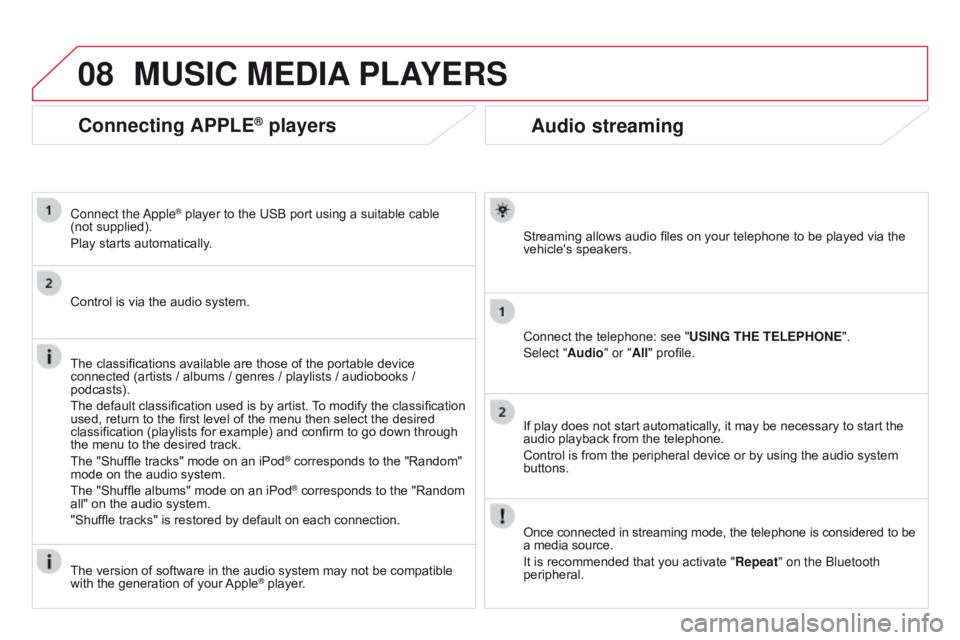

Audio streaming
Streaming allows audio files on your telephone to be played via the vehicle's  speakers.
Connect
  the   telephone:   see   "USING THE TELEPHONE ".
Select "Audio" or "All"
  profile.
If
  play   does   not   start   automatically,   it   may   be   necessary   to   start   the
audio

  playback   from   the   telephone.
Control
  is   from   the   peripheral   device   or   by   using   the   audio   system
buttons.
Once

  connected   in   streaming   mode,   the   telephone   is   considered   to   be
 a

  media   source.
It
  is   recommended   that   you   activate   "Repeat" on the b luetooth
peripheral.
MUSIc MEdIA PLAYERS
connecting APPLE® players
Connect the apple® player to the USB port using a suitable cable (not

supplied).
Play

starts

automatically.
Control

is

via

the

audio   system.
The

classifications

available   are   those   of   the   portable   device
connected


(artists

/
  albums   /   genres   /   playlists   /   audiobooks   /
podcasts).
The


default

classification   used   is   by   artist.
T
o   modify   the   classification
used,


return

to

the

first   level   of   the   menu   then   select   the   desired
classification


(playlists   for   example)   and   confirm   to   go   down   through
the


menu

to

the

desired   track.
The

"Shuffle

tracks"   mode   on   an   iPod
® corresponds to the "Random" mode

on

the

audio

system.
The

"Shuffle

albums"

mode

on

an

iPod
® corresponds to the "Random all"

on

the

audio

system.
"Shuffle

tracks"

is

restored

by

default

on   each   connection.
The

version

of

software

in

the

audio

system   may   not   be   compatible
with


the

generation

of

your

Apple® player.

08
321
DS3_en_Chap13b_RT6-2-8_ed01-2014
MUSIc MEdIA PLAYERS

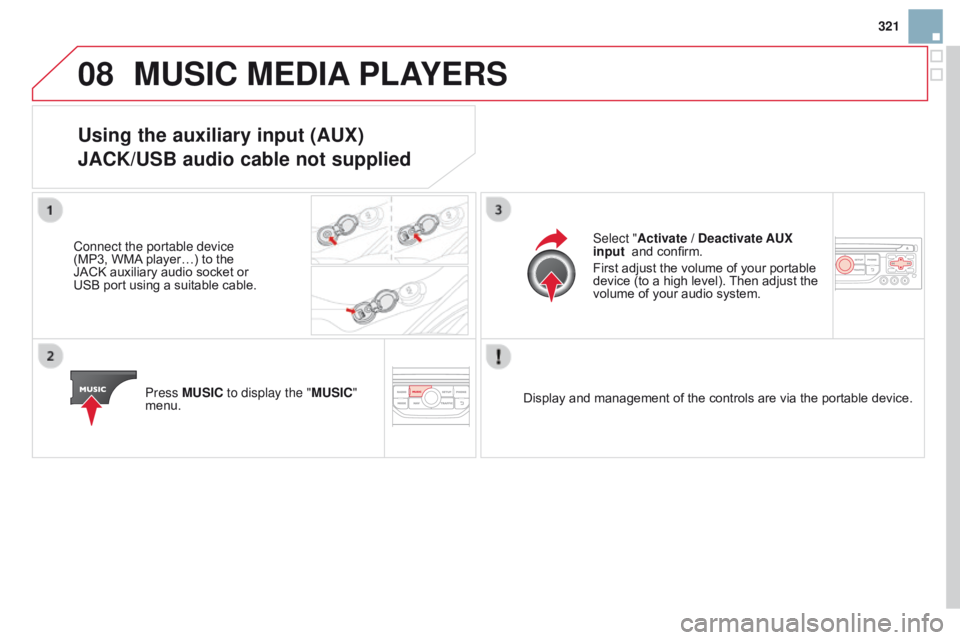

Using the auxiliary input (AUX)
JA
c K/USB audio cable not supplied
Connect the portable device
(MP3,   WMA  player…)   to   the
JACK

  auxiliary   audio   socket   or
USB


port

using

a

suitable

cable.
Press

MUSI c to display the "MUSI c "
menu. Select "Activate /
d eactivate AUX
input   and   confirm.
First
  adjust   the   volume   of   your   portable
device

  (to   a   high   level).
Then
  adjust   the
volume

  of   your   audio   system.
Display
  and   management   of   the   controls   are   via   the   portable   device.

09
DS3_en_Chap13b_RT6-2-8_ed01-2014

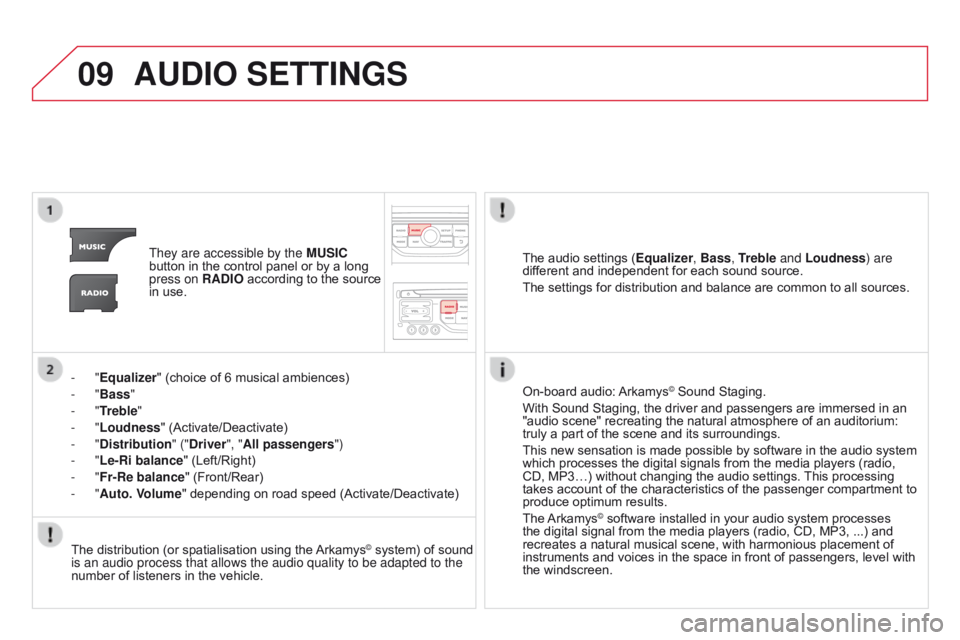

AUdIO SETTINGS
They are accessible by the MUSI c
button   in   the   control   panel   or   by   a   long
press on

RA d IO
according

to

the

source

in

  use.
-

"Equalizer"   (choice   of   6   musical   ambiences)
-

"Bass "
-

"Treble"
-

"Loudness"   (Activate/Deactivate)
-

"
d
istribution " ("
d river", "All passengers")
-

"Le-Ri balance"   (Left/Right)
-

"Fr-Re balance"   (Front/Rear)
-

"Auto. Volume"   depending   on   road   speed   (Activate/Deactivate)The
  audio   settings   (Equalizer, Bass, Treble and Loudness) are
different
  and   independent   for   each   sound   source.
The
  settings   for   distribution   and   balance   are   common   to   all   sources.
The

distribution   (or   spatialisation   using   the
Arkamys© system) of sound is an audio process that allows the audio quality to be adapted to the
number

of

listeners

in

the

vehicle. On-board
  audio:
Arkamys© Sound Staging.
With

Sound

Staging,

the

driver   and   passengers   are   immersed   in   an
"audio


scene"

recreating

the   natural   atmosphere   of   an   auditorium:
truly


a

part

of

the

scene

and   its   surroundings.
This

new

sensation

is

made   possible   by   software   in   the   audio   system
which


processes

the

digital   signals   from   the   media   players   (radio,
CD,


MP3…)

without

changing   the   audio   settings.
This
  processing
takes


account

of

the

characteristics   of   the   passenger   compartment   to
produce


optimum

results.
The

Arkamys© software installed in your audio system processes the

digital

signal   from   the   media   players   (radio,   CD,   MP3,   ...)   and
recreates


a

natural   musical   scene,   with   harmonious   placement   of
instruments


and   voices   in   the   space   in   front   of   passengers,   level   with
the


windscreen.

DS3_en_Chap13b_RT6-2-8_ed01-2014
FREQUENTLY ASKE d QUESTIONS
QUESTION ANSWER SOLUTION
Some

contacts   are
duplicated

  in   the   list. The
  options   for   synchronizing   contacts   are   synchronizing   the   contacts
on

  the   SIM   card,   the   contacts   on   the   telephone,   or   both.   When   both
synchronizations

  are   selected,   some   contacts   may   be   duplicated.Select "Display SIM card contacts" or "Display
telephone
  contacts".
Contacts are not shown
in

alphabetical   order. Some
  telephones   offer   display   options.   Depending   on   the   settings
chosen,

  contacts   can   be   transferred   in   a   specific   order.Modify
  the   display   setting   in   the   telephone
directory

.
The system does  not  receive SMS
  text   messages.The Bluetooth mode does not permit sending SMS text messages to the system.
The

CD

is

ejected

automatically


or

is

not

played


by

the

player. The CD is inserted upside down, is unplayable, does not contain any
audio
  data   or   contains   an   audio   format   which   the   player   cannot   play.-

Check
  that   the   CD   is   inserted   in   the   player   the
right

  way   up.
-

Check
  the   condition   of   the   CD:   the   CD   cannot
be

  played   if   it   is   too   damaged.
-

Check
  the   content   in   the   case   of   a   recorded
CD:

  refer   to   the   information   and   advice   in   the
"MUSIC

  MEDIA

PLAYERS"   section.
-

The audio system's CD player does not play DVDs.
- Some  recorded   CDs   will   not   be   played   by  the
  audio   system   because   they   are   not   of   the
correct

  quality.
The

CD

has

been

recorded

in

a

format

that

is

not

compatible

with

the

player


(udf, ...).
The

CD

is

protected

by

an

anti-pirating

protection

system

which

is

not
 recognised

by

the

audio

system.
There is a long waiting period
  following   the   insertion of a CD or connection of a


USB
  memory   stick.When a new medium is inserted, the system reads a certain amount of data  (directory,   title,   artist,   etc.).  This   may   take   from   a   few   seconds   to   a
few

  minutes. This
  phenomenon   is   normal.
The CD player sound is
poor. The
  CD   used   is   scratched   or   of   poor   quality. Insert
  good   quality   CDs   and   store   them   in   suitable
conditions.
The

  audio   equipment   settings   (bass,   treble,   ambiences)   are   unsuitable. Set   the   treble   or   bass   level   to   0,   without   selecting
an

  ambience.

333
DS3_en_Chap13b_RT6-2-8_ed01-2014

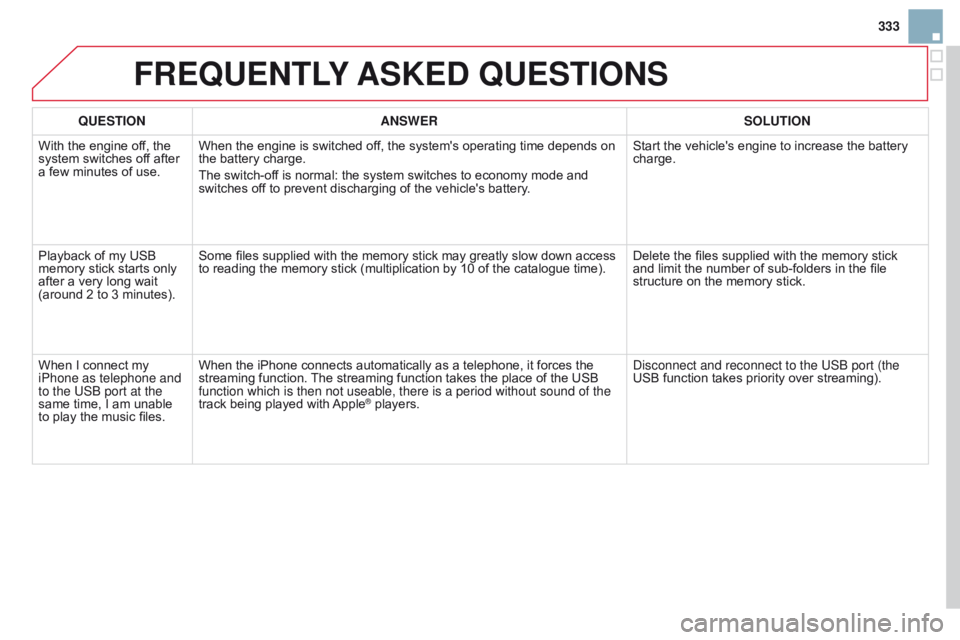

FREQUENTLY ASKE d QUESTIONS
QUESTION ANSWER SOLUTION
With

the   engine   off,   the
system

  switches   off   after
a


few

minutes   of   use. When
  the   engine   is   switched   off,   the   system's   operating   time   depends   on
the

  battery   charge.
The
  switch-off   is   normal:   the   system   switches   to   economy   mode   and
switches

  off   to   prevent   discharging   of   the   vehicle's   battery.Start
  the   vehicle's   engine   to   increase   the   battery
charge.
Playback

  of   my   USB
memory

  stick   starts   only
after


a
  very   long   wait
(around

  2   to   3   minutes). Some
  files   supplied   with   the   memory   stick   may   greatly   slow   down   access
to

  reading   the   memory   stick   (multiplication   by   10   of   the   catalogue   time).Delete
  the   files   supplied   with   the   memory   stick
and

  limit   the   number   of   sub-folders   in   the   file
structure

  on   the   memory   stick.
When

I   connect   my
iPhone as telephone and
to the US

b port at the
same

time,   I   am   unable
to


play
  the   music   files.When
  the   iPhone   connects   automatically   as   a   telephone,   it   forces   the
streaming

  function.
The
  streaming   function   takes   the   place   of   the   USB
function which is then not useable, there is a period without sound of t\
he
track

  being   played   with
Apple® players. Disconnect and reconnect to the US b port (the
USB   function   takes   priority   over   streaming).

04
DS3_en_Chap13c_RD45_ed01-2014
AUdIO

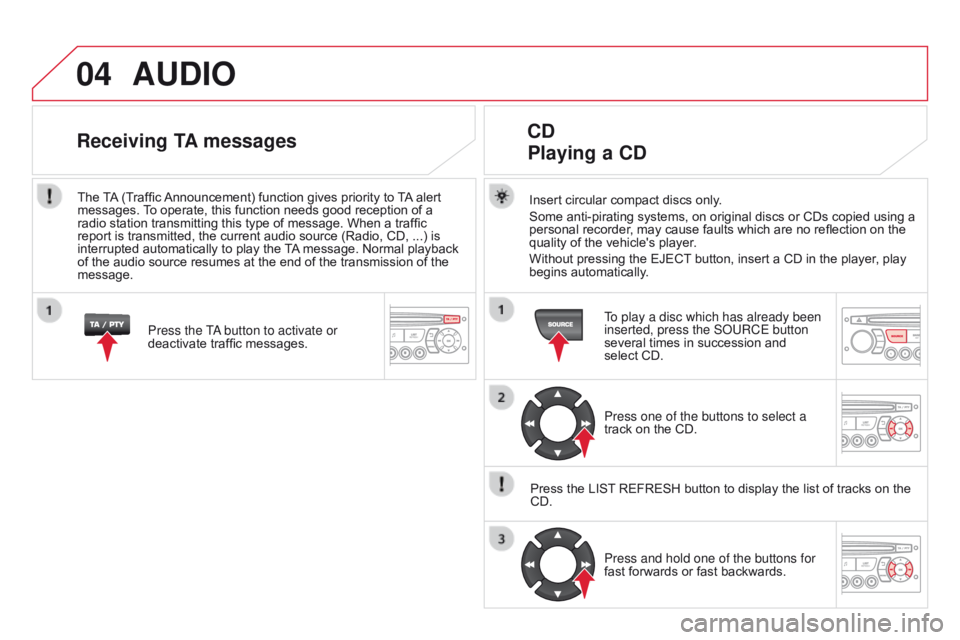

Insert circular compact discs only.
Some   anti-pirating   systems,   on   original   discs   or   CDs   copied   using   a
personal

  recorder,   may   cause   faults   which   are   no   reflection   on   the
quality

  of   the   vehicle's   player.
Without
  pressing   the   EJECT

button,   insert   a   CD   in   the   player,   play
begins

  automatically.
cd
Playing
a cd
To play a disc which has already been
inserted, press the S o URCE button
several
  times   in   succession   and
select

  CD.
Press one of the buttons to select a
track
  on   the   CD.
Press

the

LIST

REFRESH   button   to   display   the   list   of   tracks   on   the
CD.Press and hold one of the buttons for
fast

  forwards   or   fast   backwards.
Receiving TA messages
Press the Ta button to activate or
deactivate   traffic   messages.
The

T

A


(Traffic
Announcement)
  function   gives   priority   to
T
A

alert
messages.


T
o   operate,   this   function   needs   good   reception   of   a
radio


station
  transmitting   this   type   of   message.   When   a   traffic
report


is

transmitted,   the   current   audio   source   (Radio,   CD,   ...)   is
interrupted


automatically   to   play   the
T
A

message.   Normal   playback
of


the

audio
  source   resumes   at   the   end   of   the   transmission   of   the
message.

04
341
DS3_en_Chap13c_RD45_ed01-2014

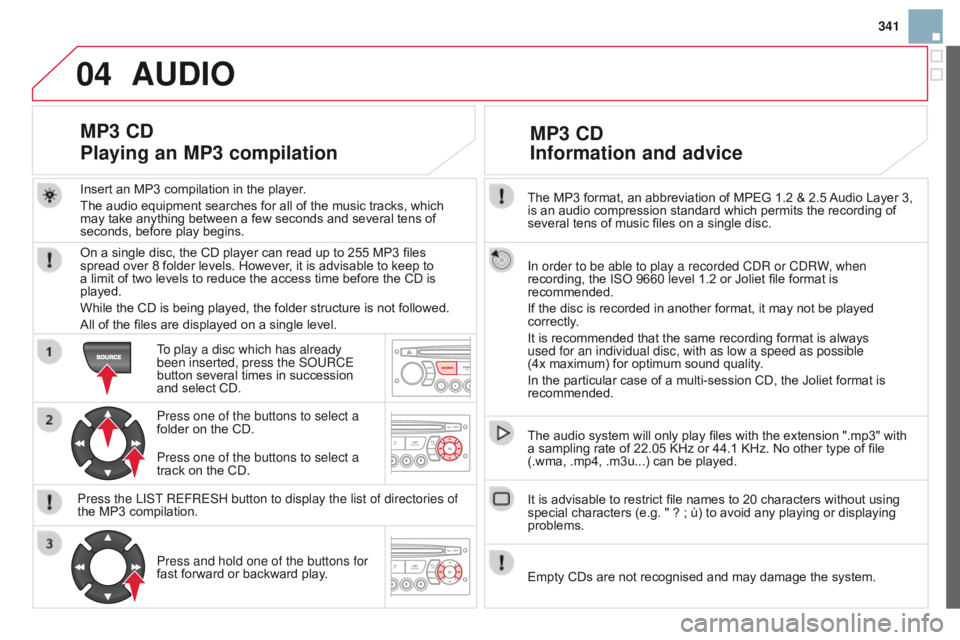

The MP3 format, an abbreviation of MPEG 1.2 & 2.5 Audio  Layer   3,
is   an   audio   compression   standard   which   permits   the   recording   of
several

  tens   of   music   files   on   a   single   disc.
In order to be able to play a recorded CDR or CDRW, when
recording,
  the   ISO   9660   level   1.2   or   Joliet   file   format   is
recommended.
If

  the   disc   is   recorded   in   another   format,   it   may   not   be   played
correctly

.
It
  is   recommended   that   the   same   recording   format   is   always
used for an individual disc, with as low a speed as possible
(4x

  maximum)   for   optimum   sound   quality.
In
  the   particular   case   of   a   multi-session   CD,   the   Joliet   format   is
recommended.
The

  audio   system   will   only   play   files   with   the   extension   ".mp3"   with
a

  sampling   rate   of   22.05   KHz   or   44.1   KHz.   No   other   type   of   file
(.wma,

  .mp4,   .m3u...)   can   be   played.
It
  is   advisable   to   restrict   file   names   to   20   characters   without   using
special

  characters   (e.g.   "   ?   ;   ù)   to   avoid   any   playing   or   displaying
problems.
MP3 cd
Information
and advice
AUdIO
Empty CDs are not recognised and may damage the system.
Insert

an

MP3

compilation

in

the

player.
The

audio

equipment

searches

for

all

of

the

music

tracks,

which

may


take

anything

between

a

few

seconds

and

several

tens

of

seconds,


before

play

begins.
MP3 cd
Playing

an MP3 compilation
On a single disc, the CD player can read up to 255 MP3 files spread  over   8   folder   levels.   However,   it   is   advisable   to   keep   to
a

  limit   of   two   levels   to   reduce   the   access   time   before   the   CD   is
played.
While

  the   CD   is   being   played,   the   folder   structure   is   not   followed.
All
  of   the   files   are   displayed   on   a   single   level.
To play a disc which has already
been inserted, press the S
o URCE
button
  several   times   in   succession
and

  select   CD.
Press one of the buttons to select a
folder
  on   the   CD.
Press the LIST REFRESH button to display the list of directories of
the
  MP3   compilation.Press and hold one of the buttons for
fast
  forward   or   backward   play.
Press one of the buttons to select a
track
  on   the   CD.

05
DS3_en_Chap13c_RD45_ed01-2014
USB PLAYER
The system puts together playlists (temporary memory) created over  a   period   which   depends   on   the   capacity   of   the   USB   device.
The
  other   sources   are   available   during   this   time.
The
  playlists   are   updated   each   time   the   ignition   is   switched   off   or
each

  time   a   USB   memory   stick   is   connected.
When
  connecting   for   the   first   time,   the   classification   suggested
is

  by   folder.   When   you   reconnect,   the   classification   selected
previously

  is   retained.Connect
  the   memory   stick   to   the   port,   directly   or
using

  a   lead.   If   the   audio   equipment   is   switched
on, the US

b source is detected as soon as it
is   connected.   Play   begins   automatically   after   a
delay which depends on the capacity of the US

b
memory   stick.
The   file   formats   supported   are   .mp3   (mpeg1
layer

  3   only)   and   .wma   (standard   9   only,
128 kbits/sec

  compression).
Certain   playlist   formats   are   supported   (.m3u,   ...)
On   reconnection   of   the   previous   memory   stick
used,

  play   is   resumed   automatically   with   the   last
track

  played.
This

unit

consists

of

a

USB

port

and

an

auxiliary

Jack


socket*.

The


audio

files

are

transmitted

from


a

portable

device

-

digital

player

or

a

USB

memory


stick

-

to

your

Audio


system

and

heard

via


the

vehicle's

speakers.
USB

memory

stick

or

Apple® player of
generation

5

or

later:
-

Give


preference

to

multimedia   USB   memory
sticks


(in

general

formatted   FAT

32   File
a
llocation Table),
-

the

a
pple
® player lead is essential,
-

navigation

  through   the   file   database   is   also
possible


by   means   of   the   steering   mounted
controls.
Using the USB BOX
connecting a USB memory stick
o

ther
a
pple
® players of earlier generations and players

using   the   MTP  protocol*:
-

play


via

Jack-Jack   lead   only   (not   supplied),
-

navigation
  through   the   file   database   is   from
the


portable   device. * Depending
  on   vehicle.
