Lighting controlsSystem for selection and control of the various front and rear lamps providing the vehicle's lighting.
T he   various   front   and   rear   lamps   of   the   vehicle
a

re   designed   to   adapt   the   driver's   visibility
p

rogressively   according   to   climatic   conditions:
-

s
idelamps,   to   be   seen,
-

d
ipped   beam   headlamps   to   see   without
d

azzling
 o
ther
 d
rivers,
-

m
ain   beam   headlamps   to   see   clearly   when
t

he   road   is   clear.
Main lighting
Other lamps are installed to fulfil the requirements   of   particular   conditions   of
v

isibility:
-

a
  rear   foglamp   to   be   seen   from   afar,
-

f
ront   foglamps   for   improved   vision,
-

L
ED   lamps   to   be   seen   during   the   daytime.
Additional lighting
Various automatic lighting control modes are   also   available   according   to   the   following
op

tions:
-

g
uide-me-home   lighting,
-

a
utomatic   illumination   of   headlamps.
Programming
In some weather conditions (e.g. low temperature   or   humidity),   the   presence
o

f   misting   on   the   internal   sur face   of   the
g

lass   of   the   headlamps   and   rear   lamps
i

s   normal;   it   disappears   after   the   lamps
h

ave   been   on   for   a   few   minutes.

131
DS3_en_Chap05_visibilite_ed01-2015
Model without AUTO lighting
Model with AUTO lighting
Manual controls
The lighting is controlled directly by the driver by   means   of   the   ring   A   and   the   stalk   B.
Automatic
  illumination   of   headlamps.
B.
 S

talk   for   switching   the   headlamp   beam:
p

ull   the   stalk   to   switch   between   dipped   and
m

ain   beam   headlamps.
In
  the   lamps   off   and   sidelamps   modes,
t

he   driver   can   switch   on   the   main   beam
h

eadlamps   temporarily   ("headlamp   flash")   by
m

aintaining   a   pull   on   the   stalk.
A.
 M

ain   lighting   mode   selection   ring:   turn   it
t

o   position   the   symbol   required   facing   the
ma

rk.Lighting
  off   /   daytime   running   lamps.
Sidelamps
 o

nly.
Dipped headlamps or main beam headlamps.
displays
Lighting of the corresponding indicator lamp on the   instrument   panel   confirms   the   switching   on
o

f   the   lighting   selected.
The
  instrument   panel   has   permanent   back-
lighting.
  Illumination   of   the   instrument   panel   is
t

herefore   not   linked   to   the   exterior   lighting.
Visibility

DS3_en_Chap05_visibilite_ed01-2015
C. Foglamp  selection   ring.
The   foglamps   operate   with   the   dipped   and   main
b

eam
 h
eadlamps.
Rotate
  and   release   the   ring   C:
F

f
or wards   a   first   time   to   switch   on   the   front
fo

glamps,
F

f
or wards   a   second   time   to   switch   on   the
r

ear
 fo
glamp,
F

r
ear wards   a   first   time   to   switch   off   the   rear
fo

glamp,
F

r
ear wards   a   second   time   to   switch   of   the
f

ront   fog   lamps.
Model with front foglamps
and a rear foglamp Lighting on audible warning
When the ignition is switched off, all o
f   the   lamps   switch   off   automatically,
u

nless   guide-me-home   lighting   is
a

ctivated.
If
  the   lighting   is   switched   on   manually
a

fter   switching   off   the   ignition,   there
i

s   an   audible   signal   when   a   front   door
i

s opened to warn the driver that
they
  have   forgotten   to   switch   off   the
v

ehicle's   lighting,   with   the   ignition   off.
In
  good   or   rainy   weather,   by   both   day
a

nd   night,   the   front   foglamps   and   the
r

ear   foglamp   are   prohibited.   In   these
s

ituations,   the   power   of   their   beams
m

ay   dazzle   other   drivers.
Do   not   forget   to   switch   off   the   front
f

oglamps   and   the   rear   foglamp   when
t

hey   are   no   longer   necessary.
Front

and

rear

foglamps
When

the

lighting

is

switched

off

automatically

(

with

AUTO

model)

or

when

the

dipped

h

eadlamps

are

switched

off

manually,

the

f

oglamps

and

sidelamps

will

remain

on.
F

T

urn

the

ring

rear wards

to

switch

off

the
 f

oglamps,

the

sidelamps

will

then

switch

off.

133
DS3_en_Chap05_visibilite_ed01-2015
The temporary illumination of the dipped beam headlamps   after   the   vehicle's   ignition   has   been
s

witched   off   makes   the   driver's   exit   easier
w

hen   the   light   is   poor.
Switching on
F With  the   ignition   off,   "flash"   the   headlamps  u
sing   the   lighting   stalk.
F

A
  further   "headlamp   flash"   switches   the
f

unction   off.
Switching off
The manual guide-me-home lighting switches off   automatically   after   a   set   time.
Manual guide-me-home
lighting
The sidelamps and dipped beam headlamps are   switched   on   automatically,   without   any
a

ction on the part of the driver, when a low level
of
  external   light   is   detected   or   in   certain   cases
o

f   activation   of   the   windscreen   wipers.
As
  soon   as   the   brightness   returns   to   an
a

dequate   level   or   after   the   windscreen   wipers
a

re   switched   off,   these   lamps   are   switched   off
a

utomatically   and   the   daytime   running   lamps
c

ome   on.
Automatic illumination of
headlamps
Activation
F Turn   ring   to   the   "AUTO"  position.   The  a
ctivation   of   the   function   is   confirmed   by
t

he   display   of   a   message.
deactivation
F Turn  ring   to   a   position   other   than   "AUTO".  T
he deactivation of the function is
confirmed
  by   the   display   of   a   message.
Operating fault
In the event of a fault with the
sunshine  sensor,   the   lighting   come
o

n,   this   warning   lamp   is   displayed
o

n   the   instrument   panel   and/or   a
m

essage   appears   in   the   screen,
a

ccompanied   by   an   audible   signal.
Contact

a

CITROËN   or   a   qualified   workshop
w

orkshop.
Visibility

DS3_en_Chap05_visibilite_ed01-2015

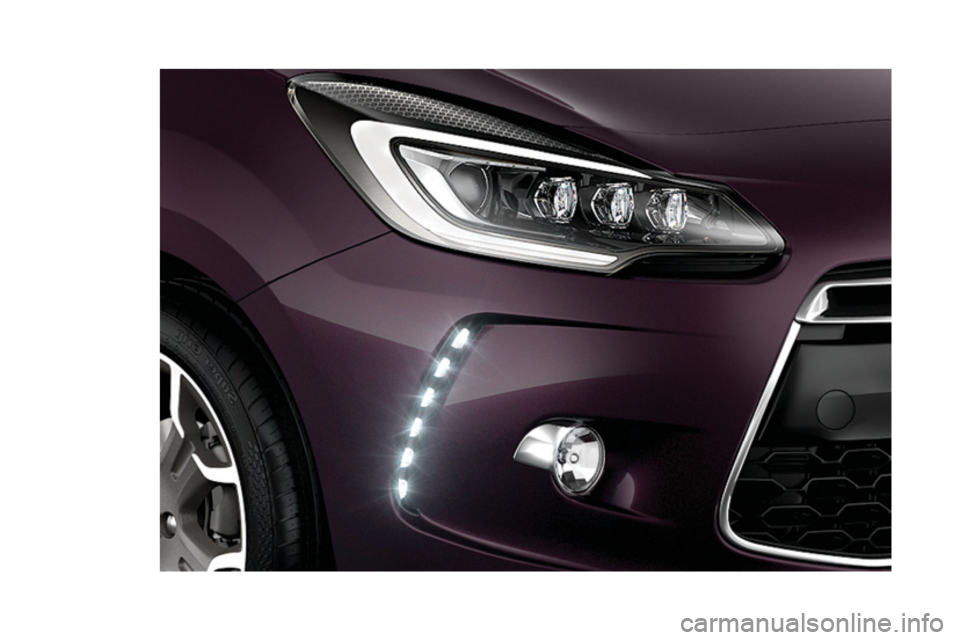

LED daytime running lampsThis daytime lighting, a signature of the vehicle, comprises   two   sets   of   light-emitting   diodes
(

LEDs),   located   in   vertical   housings   below   each
h

eadlamp.
On
  starting   the   vehicle,   in   daylight   the   daytime
r

unning   lamps   come   on   automatically,   if   the
l

ighting   stalk   is   in   position   "0" or "AUTO" .
If
  the   sidelamps   and   headlamps   are   switched
o

n   manually   or   automatically,   the   daytime
r

unning   lamps   go   off.
In

fog

or

snow,

the

sunshine

sensor

m

ay

detect

sufficient

light.

Therefore,

t

he

lighting

will

not

come

on

au

tomatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind

the

rear

view

mirror;

the

a

ssociated

functions

would

no

longer

be c

ontrolled.
Automatic "gu ide-me-
home" lighting
When the automatic illumination of headlamps f
unctions   is   activated,   if   the   ambient   light   level
i

s   low   the   dipped   beam   headlamps   remain   on
w

hen   switching   off   the   ignition.
Settings
Activation and deactivation, as well as the
duration  of   the   guide-me-home   lighting   can   be
s

et   in   the   vehicle   configuration   menu   (except
f

or   the   monochrome   screen   A,   for   which   the
d

uration   is   fixed   at   60   seconds).

135
DS3_en_Chap05_visibilite_ed01-2015
Travelling abroad
LEd / Xenon front lamps
For motoring in countries that drive on the other s
ide   of   the   road,   it   is   necessary   to   adjust   the
d

ipped   beams   so   as   to   not   dazzle   the   drivers   of
a

pproaching
 v
ehicles.
F

R
aise   the   bonnet   for   access   to   the   adjuster
(

one   adjuster   per   headlamp).
F

I
nsert   a   suitable   allen   key   (not   supplied)
i

nto   the   hexagonal   head   of   the   adjuster.
F

T
urn   the   allen   key   half   a   turn   clockwise.
Headlamp adjustment
To avoid causing a nuisance to other road u
sers,   the   height   of   the   headlamps   should   be
a

djusted   in   relation   to   the   load   in   the   vehicle.
0.

D
river   only   or   driver   +   front   passenger.
-.
 I

ntermediate
 s
etting.
1.
 5

  people.
-.

5
  people   +   load   in   the   boot.
2.
 D

river   only   +   maximum   authorised   load   in
t

he   boot.
This
  position   is   sufficient   to   avoid   causing
d

azzle.
Higher
  settings   may   limit   the   spread   of   light
f

rom   the   headlamps.
The
  initial   setting   is   position   "0". On
  your   return,   don't   forget   to
a

djust   your   headlamps   back   to   their
i

nitial   setting,   by   carrying   out   these
o

perations   in   reverse   order.
Visibility

DS3_en_Chap05_visibilite_ed01-2015
The vehicle's front and rear wipers are designed   to   improve   the   driver's   visibility
p

rogressively   according   to   the   climatic
c

onditions.
Wiper controls
Programming
Various automatic wiper control modes are also a vailable   according   to   the   following   options:
-
 a

utomatic
 r
ain
 sen
sitive
 w
indscreen
 w
ipers,
-

r
ear   wiping   on   engaging   reverse   gear.
Model with AUTO wiping
The wiper commands are issued directly by the driver   by   means   of   the   stalk   A   and   the   ring   B.
Manual controls
Windscreen wipers
A. Wiping   speed   selection   stalk.
Single   wipe   (press   down   and
r

elease).Automatic,
  then   single   wipe
(see
  the   corresponding   section).
Fast
  (heavy   rain).
Normal
  (moderate   rain).
Intermittent
  (proportional   to   the
s

peed   of   the   vehicle).
Of f.
or
Model without AUTO wiping

137
DS3_en_Chap05_visibilite_ed01-2015

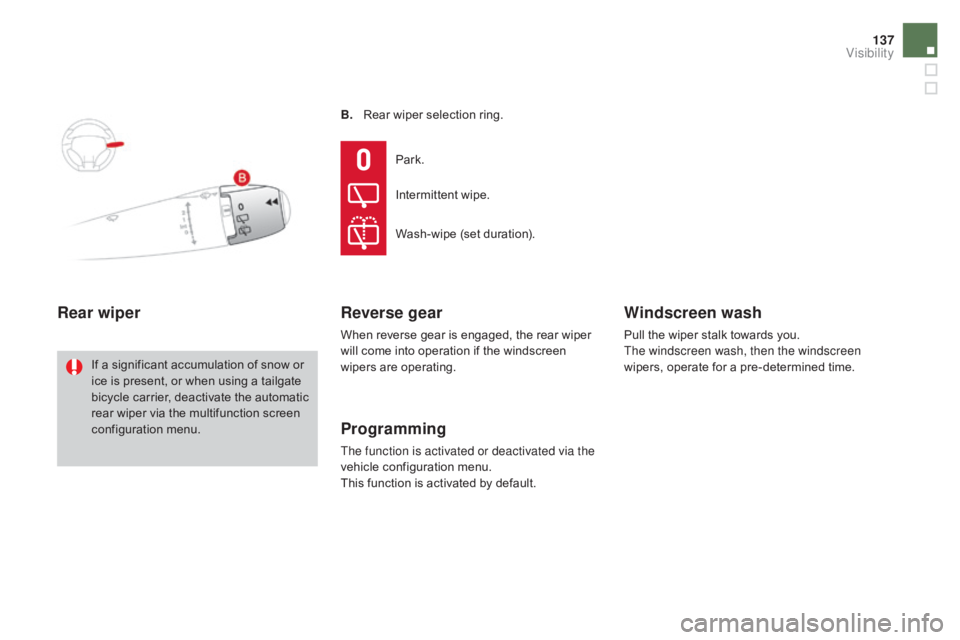

B. Rear  wiper   selection   ring.
Rear wiper
If a significant accumulation of snow or i
ce   is   present,   or   when   using   a   tailgate
b

icycle
c
arrier,
d
eactivate
t
he
a
utomatic
r

ear   wiper   via   the   multifunction   screen
c

onfiguration
 m
enu. Park.
Intermittent
  wipe.
Wash-wipe   (set   duration).
Reverse gear
When reverse gear is engaged, the rear wiper w
ill   come   into   operation   if   the   windscreen
w

ipers   are   operating.
Programming
The function is activated or deactivated via the
vehicle  configuration   menu.
This
  function   is   activated   by   default.
Windscreen wash
Pull the wiper stalk towards you. The windscreen wash, then the windscreen
wipers,
  operate   for   a   pre-determined   time.
Visibility

DS3_en_Chap05_visibilite_ed01-2015
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically, without any action on the part of the driver, if
rain
  is   detected   (sensor   behind   the   rear   view
m

irror),   adapting   their   speed   to   the   intensity   of
t

he   rainfall.
Activation
This is controlled manually by the driver by pushing s talk A to the "AUTO" p osition.
It is accompanied by the illumination of this indicator   lamp   in   the   instrument   panel   and a

  message   in   the   multifunction   screen.
Switching off
This is controlled manually by the driver by   moving   stalk   A   upwards,   returning   it   to
p

osition

"0".
It
  is   accompanied   by   the   indicator   lamp
 i

n   the   instrument   panel   going   off   and   a
 m

essage   in   the   multifunction   screen.The
  automatic   wiping   must   be  r
eactivated   if   the   ignition   has   been   off
f

or   more   than   one   minute,   by   pushing
s

talk   A   downwards.
