Screen
E. Service indicator  (
miles   or   km),   then

T

otal mileage recorder
T

hese two functions are displayed
successively
  when   switching   on   the   ignition.
F.
E

ngine oil level indicator
 A

ppears   a   few   seconds   after   switching   on
t

he   ignition,   then   disappears.
A. S
peed limiter
 (
mph

or

km/h)

or
C

ruise control.
B.
gea

r shift indicator.
C.
E

lectronic or automatic gearbox
information.
d

.
R

ange
 (

miles

or

km)

or
T

rip mileage recorder.
Monitoring

DS3_en_Chap01_controle-de-marche_ed01-2015
RACING petrol instrument panel, manual gearboxProvided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.
1.
R
ev counter.
I

ndicates the speed of rotation of the
engine
  (x   1   000   rpm).
2.
V

ehicle speed.
 I

ndicates   the   current   speed   of   the   moving
v

ehicle   (mph   or   km/h).
3.
E

ngine coolant temperature.
 I

ndicates   the   temperature   of   the   engine
c

oolant
 li
quid.
dials
7. Lighting dimmer button. Adjusts the level of the instrument and controls i
llumination   and   the   interior   mood   lighting.4. display screen.
5. F uel level.
 I

ndicates   the   quantity   of   fuel   remaining   in
t

he   tank.
6.
di

splay management button
 A

lternates   display   between   range   and   trip
mil

eage
 re
corder.
 S

ervicing
 in
formation.
 R

esets   the   selected   function   to   zero   (trip
d

istance   recorder   or   service   indicator).For
  more   information,   refer   to   the
p

aragraph   relating   to   the   button   or
f

unction   and   its   associated   display.

21
DS3_en_Chap01_controle-de-marche_ed01-2015
Screen
C. Service indicator  (
miles   or   km),   then

T

otal mileage recorder
These two functions are displayed
successively
  when   switching   on   the
ig

nition.
d. Engine oil level indicator  A
ppears   a   few   seconds   after   switching   on
t

he   ignition,   then   disappears.
A.
S

peed limiter

 (

mph

or

km/h)

or
C

ruise control.
B.
R

ange

 (

miles

or

km)

or
T

rip mileage recorder.
Monitoring

DS3_en_Chap01_controle-de-marche_ed01-2015
Visual indicators informing the driver that   a   system   is   in   operation   (operation
o

r   deactivation   indicator   lamps)   or   of   the
o

ccurrence   of   a   fault   (warning   lamp).

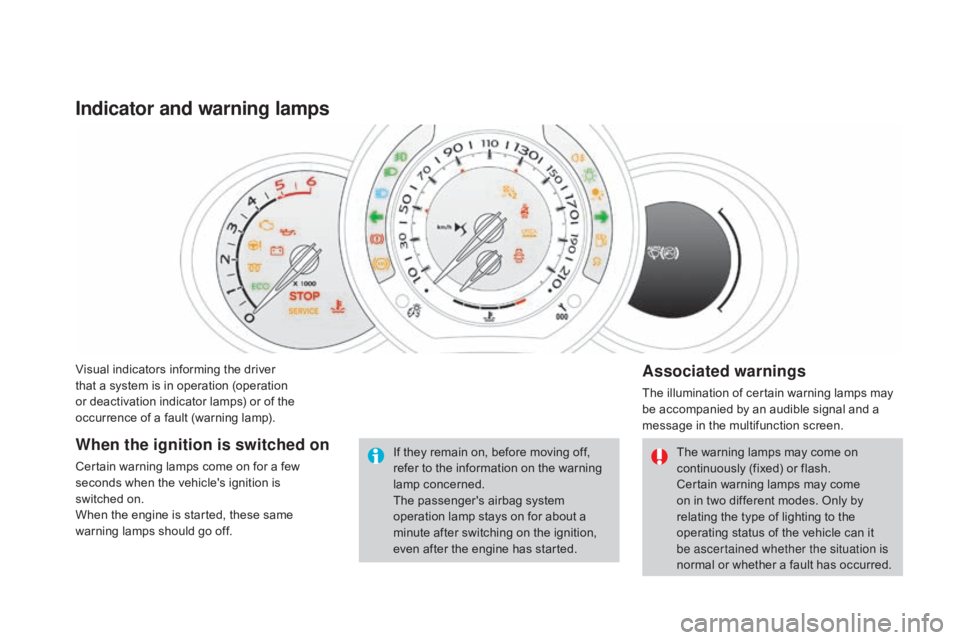

Indicator and warning lamps
Associated warnings
The illumination of certain warning lamps may be   accompanied   by   an   audible   signal   and   a
m

essage   in   the   multifunction   screen.
The
  warning   lamps   may   come   on
c

ontinuously   (fixed)   or   flash.
Certain
  warning   lamps   may   come
o

n   in   two   different   modes.   Only   by
r

elating   the   type   of   lighting   to   the
o

perating   status   of   the   vehicle   can   it
b

e ascertained whether the situation is
normal
  or   whether   a   fault   has   occurred.
If

they

remain

on,

before

moving

off,

r

efer

to

the

information

on

the

warning

lam

p
 c

oncerned.
The

passenger's

airbag

system

o

peration

lamp

stays

on

for

about

a

m

inute

after

switching

on

the

ignition,

e

ven

after

the

engine

has

started.
When the ignition is switched on
Certain warning lamps come on for a few s econds   when   the   vehicle's   ignition   is
switched
  on.
When
  the   engine   is   started,   these   same
w

arning   lamps   should   go   off.

23
DS3_en_Chap01_controle-de-marche_ed01-2015
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
W arning /indicator lampis on Cause Action / Observations
Left-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   down.
Right-hand
direction indicatorflashing with buzzer.The   lighting   stalk   is   pushed   up.
Sidelamps fixed. The
  lighting   stalk   is   in   the   "Sidelamps"
p

osition.
di

pped beam
headlamps fixed.
The
  lighting   stalk   is   in   the   "Dipped
b

eam   headlamps"   position.
Main beam
headlamps fixed.
The
  lighting   stalk   is   pulled   towards
yo

u. Pull
  the   stalk   to   return   to   dipped   beam   headlamps.
Front foglamps fixed. The
  front   foglamps   are   switched   on
u

sing   the   ring   on   the   lighting   control
st

alk. Turn
  the   ring   on   the   lighting   control   stalk   rear ward
t

wice   to   switch   off   the   front   foglamps.
Rear foglamps fixed. The
  rear   foglamps   are   on.Turn
  the   ring   on   the   stalk   rear ward   to   switch   off   the
r

ear
 fo
glamps.
Hazard warning
lamps
flashing
  with   audible
s

ignal. The
  hazard   warning   lamps   switch,
l

ocated on the dashboard, has been
operated. The
  left-hand   and   right-hand   direction   indicators   and
t

heir   associated   indicator   lamps   flash   simultaneously.
Monitoring

DS3_en_Chap01_controle-de-marche_ed01-2015
Warning/indicator lampis on Cause Action / Observations
di

esel engine
pre-heating fixed.
The
  key   is   at   position   2   (ignition   on)   in
t

he   ignition   switch.Wait
  until   the   warning   lamp   goes   off   before   starting.
The
  period   of   illumination   of   the   warning   lamp   is
d

etermined   by   the   climatic   conditions   (up   to   about
t

hirty   seconds   in   extreme   climatic   conditions).
If
  the   engine   does   not   start,   switch   the   ignition   off   and
t

hen   on,   wait   until   the   warning   lamp   goes   off   again,
t

hen   start   the   engine.
Parking brake fixed. The
  parking   brake   is   applied   or   not
p

roperly
 r
eleased.Release
  the   parking   brake   to   switch   off   the   warning
l

amp,   keeping   your   foot   on   the   brake   pedal.
Observe
  the   safety   recommendations.
For
  more   information   on   the   parking   brake,   refer   to   the
c

orresponding
 s
ection.
Stop & Star t fixed. When
  the   vehicle   stops   (red   lights,
 t

raffic   jams,   ...)   the   Stop   &   Start   system
 h

as   put   the   engine   into   STOP   mode.The
  warning   lamp   goes   off   and   the   engine   restarts
a

utomatically   in   START   mode,   as   soon   as   you   want   to
m

ove   off.
flashes for a few
seconds,
  then   goes
o

f f.STOP
  mode   is   temporarily
u

navailable.
or
START
  mode   is   invoked
au

tomatically.For
  more   information   on   special   cases   with   STOP
m

ode   and   START   mode,   refer   to   the   "Stop   &   Start"
s

ection.

25
DS3_en_Chap01_controle-de-marche_ed01-2015
Foot on the
brake pedalfixed.
The   brake   pedal   must   be   pressed. With   an   electronic   gearbox,   press   the   brake   pedal   to  s
tart   the   engine   (lever   in   position  n) .
W

ith   an   automatic   gearbox,   with   the   engine   running,
p

ress   the   brake   pedal   before   releasing   the   parking
b

rake,   to   unlock   the   lever   and   come   out   of   position   P.
If
  you   wish   to   release   the   parking   brake   without
p

ressing   the   brake   pedal,   this   warning   lamp   will
r

emain   on.
flashing. With
  an   electronic   gearbox,   if   you
h

old   the   vehicle   on   an   incline   using
t

he   accelerator   for   too   long,   the
c

lutch   overheats.Use
  the   brake   pedal   and/or   the   parking   brake.
Automatic
wiping fixed.
The wiper control is pushed
downwards. Automatic
  front   wiping   is   activated.
Warning
/indicator lampis on Cause Action / Observations
Monitoring

DS3_en_Chap01_controle-de-marche_ed01-2015
deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
T his   is   may   be   accompanied   by   an   audible   signal   and   a   message   on   the   multifunction   screen.
Warning /indicator lampis on Cause Action / Observations
Passenger's
airbag system fixed.
The
  control,   located   in   the   glove   box,
i

s set to the OFF
 p
osition.
The
  passenger's   front   airbag   is
d

eactivated.
You
  can   install   a   rear ward   facing
c

hild seat, unless there is a fault with
the
  operation   of   the   airbags   (Airbag
w

arning   lamp   on).Set the control to the O
n p

osition to activate the
passenger's
  front   airbag.
In this case, do not fit a child seat in the rear ward
facing
  position.

27
DS3_en_Chap01_controle-de-marche_ed01-2015
Warning lamps
When the engine is running or the vehicle is being   driven,   the   illumination   of   one   of   the
f

ollowing   warning   lamps   indicates   a   fault   which
r

equires   action   on   the   part   of   the   driver.Any
  fault   resulting   in   the   illumination   of   a   warning   lamp   must   be   investigated   further   by  r
eading   the   associated   message   in   the   multifunction   screen.
If
  you   encounter   any   problems,   do   not   hesitate   to   contact   a   CITROËN   dealer   or   a   qualified
w

orkshop.
Warning /indicator lampis on Cause Action / Observations
STOP fixed,
  alone   or
 a

ssociated with
another
 w

arning
 lam
p,
 a

ccompanied   by   an
 a

udible   signal   and   a
 m

essage   on   the   screen.Illumination
  of   the   warning   lamp   is
a

ssociated   with   a   serious   braking
s

ystem   or   engine   coolant   temperature
pro

blem.Stop
  as   soon   as   it   is   safe   to   do   so   as   the   engine   may
c

ut   out   when   driving.
Park,
  switch   off   the   ignition   and   call   a   CITROËN   dealer
o

r   a   qualified   workshop.
Service temporarily. Minor
  problems   have   occurred   for
w

hich   there   is   no   specific   warning
lam

p.Identify
  the   problem   by   reading   the   message   shown   in
t

he   screen,   such   as,   for   example:
-

t
he   engine   oil   level,
-

t
he screenwash level,
-

t
he   remote   control   battery,
-

s
aturation   of   the   particle   emission   filter   on   Diesel
v

ehicles   (refer   to   the   "Particle   emissions   filter
(

Diesel)"
 s
ection).
For any  other  faults,  contact  a  CITROËN  dealer  or  a  qualified  workshop.
fixed.Major   problems   have   occurred   for  w
hich   there   is   no   specific   warning
lam

p. Identify
  the   problem   by   reading   the   message   shown  i
n the screen and contact a CITROËN dealer or a
qualified
 w

orkshop.
Monitoring

DS3_en_Chap01_controle-de-marche_ed01-2015
Brakingfixed,   associated   with  t
he   STOP   warning
lam

p.The
  braking   system   fluid   level   is   too  l
ow.You
  must   stop   as   soon   as   it   is   safe   to   do   so.
Top   up   with   brake   fluid   recommended   by   CITROËN.
If
  the   problem   persists,   have   the   system   checked   by   a
C

ITROËN   dealer   or   a   qualified   workshop.
+ fixed,
  associated   with
t

he STOP and ABS
warning
 lam

p.The
  electronic   brake   force   distribution
(

EBFD)   system   has   a   fault.You
  must   stop   as   soon   as   it   is   safe   to   do   so.
Have
  it   checked   by   a   CITROËN   dealer   or   a   qualified
w

orkshop.
Warning
/indicator lampis on Cause Action / Observations
Anti-lock Braking
System (ABS) fixed.
The
  anti-lock   braking   system   has   a
f

ault.The
  vehicle   retains   conventional   braking.
Drive carefully at reduced speed and contact a
CITROËN
 d

ealer
 o
r
 a q
ualified
 w
orkshop
 w
ithout
 d
elay.
dy

namic stability
control (
dS

C/
ASR) flashing.
Regulation
  by   the   system   is   active. The   system   optimises   traction   and   improves   the
d

irectional   stability   of   the   vehicle.
fixed,
  associated   with
i

llumination   of   the
i

ndicator   lamp   in   the
d

eactivation button,
accompanied
  by   an
a

udible   signal   and   a
m

essage. The
  DSC/ASR   or   hill   start   assist
s

ystem   has   a   fault.Have
  it   checked   by   a   CITROËN   dealer   or   a   qualified
w

orkshop.
