Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0. A. With the ignition on, the fuel gauge bars for the fuel remaining should light up. B. With the engine running, the associated low level warning lamp should switch off. C. With the ignition on, the oil level indicator should display "OIL OK" for a few seconds. If the levels are not correct, top up the level
which is low.
Instrument panel
24
1. With the ignition on, the orange and red warning lamps come on. 2. With the engine running, these warning lamps should switch off. If a warning lamp remains on, refer to the page concerned.
Warning lamps
26
Lighting of the indicator lamp indicates deactivation of the ESP/ASR system.
Switch panel
131

Familiarisation
Passenger safety
1. Open the glove box. 2. Inser t the key. 3. Select position: "ON" (activation), with front passenger or "for wards facing" child seat, "OFF" (deactivation), with "rear facing" child seat. 4. Remove the key keeping the switch in the new position.
Front passenger's airbag
137
A. Front seat belts not fastened or unfastened warning lamp.
Front seat belts and
passenger's front airbag
138
Personalise your vehicle
These styling stickers are treated to give good resistance to ageing and tearing. They have been designed to allow you to personalise your vehicle's bodywork. Available also as accessories, we recommend that you have them fitted by a CITROËN dealer.
Using expressive stickers
When using a high pressure jet wash,
keep the end of the lance at least30 centimetres from the stickers
B. Front passenger's airbag deactivation indicator lamp.
C. Front passenger's airbag activation indicator lamp.
133

Driving safely
1. Selecting/Switching off speed limiter mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Speed limiter on/off. The values must be set with the engine running.
Speed limiter "LIMIT"
151
1. Selecting/Switching off cruise control mode. 2. Decrease the programmed value. 3. Increase the programmed value. 4. Cruise control Off/Resume. In order to be programmed or activated, the vehicle speed must be higher than 25 mph (40 km/h), with at least four th gear engaged on a manual gearbox (second gear on an automatic gearbox).
Cruise control "CRUISE"
153
The cruise control or speed limiter mode appears on the instrument panel when it is selected.
Display in the instrument panel
Cruise control
Speed limiter

Petrol - Diesel instrument panels, manual or automatic gearbox Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indic ator and warning lamps.
1. Rev counter. Indicates the speed of rotation of the engine (x 1 000 rpm).
2. Vehicle speed. Indicates the current speed of the moving vehicle (km/h or mph). 3. Engine coolant temperature. Indicates the temperature of the engine coolant liquid (° Celsius).
Dials
7. Lighting rheostat button. Adjusts the level of the instrument and controls illumination and the interior mood lighting.
4. Display screen.5. Fuel level. Indicates the quantity of fuel remaining in
the tank. 6. Display management button Alternates display between range and trip mileage recorder. Ser vicing information. Resets the selected function to zero (trip distance recorder or ser vice indicator).
For more information, refer to the paragraph relating to the button or function and its associated display.

25Instruments and controls
Screen
E. Ser vice indicator atortor (miles or km), then Total mileage recorder derer These two functions are displayed successively when switching on the ignition F. Engine oil level indicator atortor Appears a few seconds after switching on the ignition, then disappears.

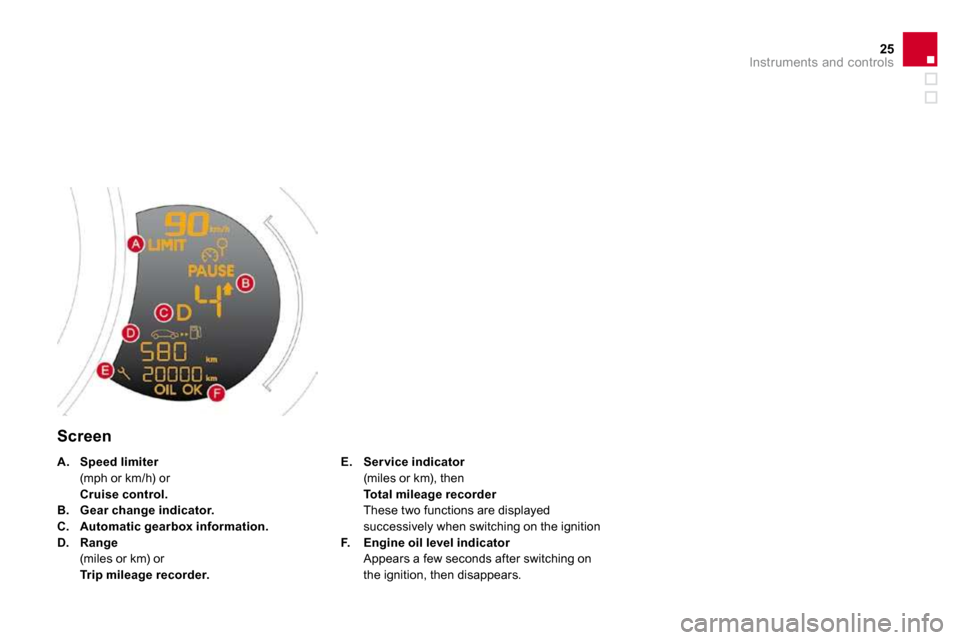

A. Speed limiter iterter (mph or km/h) or Cruise control.B. Gear change indicator.C. Automatic gearbox information.D. Range (miles or km) or Trip mileage recorder.

Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or of the occurrence of a fault (warning lamp).
Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on. When the engine is started, these same warning lamps should switch off. If they remain on, before moving off, refer to the information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps may be accompanied by an audible signal and a message on the multifunction screen.
The warning lamps may come on continuously (fixed) or flash. Cer tain warning lamps may come on in two different modes. Only by relating the type of lighting to the operating status of the vehicle can it
be ascer tained whether the situation is normal or whether a fault has occurred.
The passenger airbag system operation lamp stays on for about a minute after switching on the ignition, even after the engine has star ted.

27Instruments and controls
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into o peration.
Warning lampis onCauseAction/Obser vations
Left-hand direction indicator flashing with buzzer. The lighting stalk is pushed down.
Right-hand direction indicator flashing with buzzer. The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the "Sidelamps" position. Turn the control to the desired position.
Dipped beam headlamps fixed. The lighting stalk is in the "Dipped beam headlamps" position. Turn the control to the desired position.
Main beam headlamps fixed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the rear foglamps.

Warning lampis onCauseAction/Obser vations
Diesel engine pre-heating fixed. The ignition switch is at the 2 nd position (ignition on). Wait until the warning lamp has switched off before starting. The duration for which the warning lamp is on is determined by the climatic conditions.
Parking brake fixed. The parking brake is applied or not properly released. Release the parking brake to switch off the warnin g lamp, keeping your foot on the brake pedal. Obser ve the safety recommendations. For fur ther information on the parking brake, refer t o the "Driving" section.
Engine coolant temperature fixed blue. On star ting the engine, it indicates that the engine is cold. After a few minutes driving, it swiches off to indicate that the engine temperature is normal. In order to protect your engine, avoid driving too hard until the warning lamp has switched off.
Foot on the brake pedal fixed. With an automatic gearbox, you have forgotten to press the brake pedal to come out of the P postion.
With the engine running, before releasing the park ing brake you must press the brake pedal to unlock the the automatic gear selector lever and come out of the P position.
Automatic wiping fixed. The wiper control is pushed downwards. Automatic front wiping is activated.

Passenger's airbag system fixed. The control switch, located in the glove box, is in the " ON " position. The passenger's front airbag is activated. In this case, do not install a rear-facing child seat.
Turn the control switch to the " OFF " position to deactivate the front passenger's airbag. In this case you can install a rear-facing child seat. The passenger's airbag system is automatically put into ser vice on star ting the vehicle (" ON " position).

29Instruments and controls
Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switch ed off intentionally. This is accompanied by an audible signal and a message on the multifunction screen.
Warning lampis onCauseAction/Obser vations
Passenger's
airbag system
fixed. The control, located in the glove box,
is set to the OFF position. The passenger's front airbag is deactivated. In this case you can install a "rear facing" child seat.
Set the control to the ON position to activate the
passenger's front airbag. In this case, do not fit a child seat in the rear-facing position. The passenger's airbag system is put into ser vice automatically when the vehicle is star ted ( ON position).
ESP/ASR fixed. The button, located at the bottom left of the dashboard, is pressed. Its indicator lamp is on. The ESP/ASR is deactivated. ESP: electronic stability programme. ASR: anti-skid regulation.
Press the button again to manually reactivate the ESP/ASR. Its indicator lamp switches off. From approximately 30 mph (50 km/h), the system is reactivated automatically (except for the 1.6 litre THP 150 engine). The ESP/ASR system is activated automatically when the vehicle is star ted.

Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a fault which requires action on the par t of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated fur ther by reading the associated message on the multifunction screen. If you encounter any problems, do not hesitate to contact a CITROËN dealer.
Warning lampis onCauseAction/Obser vations
STOP fixed, associated with another warning lamp and accompanied by an audible signal.
It is associated with the braking system or the engine coolant temperature.
Stop as soon as it is safe to do so. Park, switch off the ignition and call a CITROËN dealer.
Ser vice
temporarily. A minor fault has occurred for which there is no specific warning lamp. Identify the fault by reading the message shown on t he screen, such as, for example: - the engine oil level, - the screenwash level, - the remote control battery, - saturation of the par ticle emission filter (Diesel). For any other faults, contact a CITROËN dealer.
fixed. A major fault has occurred for which
there is no specific warning lamp.
Identify the fault by reading the message shown on t he
screen and contact a CITROËN dealer.
