Following disconnection of the vehicle battery,
replacement of the remote control battery or in the event of a remote control malfunction, you can no longer unlock, lock or locate your vehicle.  First of all, use the key in the lock to unlock or lock your vehicle.  Then, reinitialise the remote control. If the problem persists, contact a CITROËN dealer as soon as possible.
Remote control problem
Reinitialisation
 Switch off the ignition.  Turn the key to position 2 (Ignition) .  Press the closed padlock immediately for a few seconds.  Switch off the ignition and remove the key from the ignition switch. The remote control is fully operational again.
Changing the battery
Battery ref.: CR1620/3 volts. This replacement battery is available from CITROËN dealers.
 Maintain pressure on lug A and remove the chrome finisher by sliding it off at 45°.  Unclip the casing by inser ting a coin at the
notch and rotating.  Slide the flat battery out of its location.  Slide the new battery into its location obser ving the original direction.  Clip the casing in place, then the chrome finisher.  Reinitialise the remote control.
If the battery is flat, you are informed by lighting of this warning lamp in the instrument panel, an audible signal and a message on the multifunction screen.
 Unfold the key.  Release the chrome finisher by pressing on
lug A .

87Access
Do not throw the remote control batteries away, they contain metals which are harmful to the environment. Take them to an approved collection point.

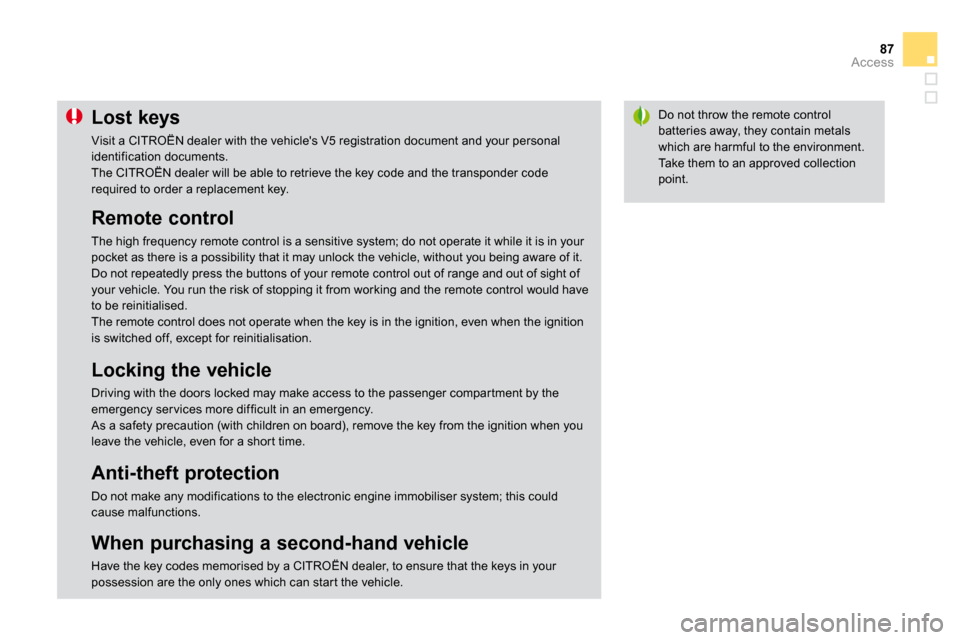

Lost keys
Visit a CITROËN dealer with the vehicle's V5 registration document and your personal identification documents. The CITROËN dealer will be able to retrieve the key code and the transponder code required to order a replacement key.
Remote control
The high frequency remote control is a sensitive syst em; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it. Do not repeatedly press the buttons of your remote con trol out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would have to be reinitialised. The remote control does not operate when the key is i n the ignition, even when the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by the emergency ser vices more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition when you leave the vehicle, even for a shor t time.
Anti-theft protection
Do not make any modifications to the electronic engin e immobiliser system; this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a CITROËN dealer, to ensure that the keys in your possession are the only ones which can star t the vehicle.

89Access
In the event of unwanted opening of the window on closing (for example in the presence of frost):  press the switch until it opens completely,  then pull it immediately until it
closes,  continue to hold the switch for approximately one second after the window has closed. The safety anti-pinch function is not active during these operations.
Safety anti-pinch
On the driver's side, the one-touch front electric window has a safety anti-pinch function. When the window rises and meets an obstacle, it stops and par tially lowers again.
Reinitialisation
Always remove the key from the ignition when leaving the vehicle, even for a shor t time. In the event of contact during operation of the windows, reverse the movement of the window. To do this, press the corresponding switch. When the driver operates the passenger electric window switch, they should ensure that no one is preventing correct closing of the window. The driver should ensure that the passenger uses the electric window correctly. Be aware of children when operating the windows.
In the event of a malfunction you have to
reinitialise the operation of the electric windows:  release the switch and pull it again until the window closes completely,  hold the switch for approximately one second after closing,  press the switch to lower the window automatically. The safety anti-pinch function is not active during these operations.

Doors
From outside
 After unlocking the vehicle using the remote control or the key, pull the door handle.
From inside
 Pull the door lever to open the door; this unlocks this vehicle completely.
Closing
When a door is not closed correctly:
- when the engine is running , this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,
- when the vehicle is moving (speed higher than 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message on the multifunction screen for a few seconds.

91Access
System which provides full manual locking or unlocking of the doors from the inside.
Manual centralised control
Locking
 Press button A to lock the vehicle.
The red indicator lamp on the button comes on.
Unlocking
 Press button A again to unlock the vehicle. The red indicator lamp on the button switches off.
If one of the doors is open, central locking from the inside does not take place.
If the vehicle is locked from the outside, the red indicator lamp flashes and button A is inactive.  In this case, use the remote control or the key to unlock the vehicle.
Automatic centralised
control
System which provides full automatic locking or unlocking of the doors and the boot while driving. You can activate or deactivate this function.
Locking
When the speed exceeds 6 mph (10 km/h), the doors and the boot lock automatically.
Unlocking
 Above 6 mph (10 km/h), press button A to
unlock the doors and the boot temporarily.
If one of the doors is open, the automatic central locking does not take place. If the boot is open, the automatic central locking of the doors is active.

Activation
 Press button A for more than two seconds. A confirmation message appears on the multifunction screen, accompanied by an audible signal.
Deactivation
 Press button A again for more than two seconds. A confirmation message appears on the multifunction screen, accompanied by an audible signal.
To lock or unlock the doors mechanically in the event of a central locking system failure or flat battery.
Emergency control
Locking the driver's door
 Inser t the key in the lock, then turn it to the right.
Unlocking the driver's door
 Inser t the key in the lock, then turn it to the left.
Locking the passenger's door
 Remove the black cap, on the edge of the door, using the key.  Inser t the key in the cavity, then turn it fully.  Remove the key and refit the cap.
Unlocking the passenger's door
 Pull the interior door opening control.
In the event of a fault with the central locking system, you must disconnect the battery to lock the boot and so ensure the complete locking of the vehicle.

93Access
Boot
Opening
 After unlocking the vehicle using the remote control or the key, pull the handle and raise the tailgate.
Closing
 Lower the tailgate using the interior grab handle.
If the tailgate is not closed correctly:
- when the engine is running , this warning lamp comes on, accompanied by a message on the multifunction screen for a few seconds,
- when the vehicle is moving (speed above 6 mph (10 km/h)), this warning lamp comes on, accompanied by an audible signal and a message on the multifunction screen for a few seconds.
System for mechanical unlocking of the boot in the event of a battery or central locking malfunction.
Tailgate release
Unlocking
 Fold back the rear benchseat to gain access to the lock from inside the boot.  Inser t a small screwdriver into hole A of the lock to unlock the tailgate.

Fuel tank Fuel tank capacity: approximately 50 litres (petrol) or 48 litres (Diesel).
Low fuel level
Filling
A label affixed to the inside of the flap reminds you of the type of fuel to be used depending on your engine. Additions of fuel must be of at least 5 litres,
in order to be taken into account by the fuel gauge.
The key cannot be removed from the lock until the cap is refitted. Opening the filler cap may create a noise caused by an inrush of air. This vacuum is entirely normal, resulting from the sealing of the fuel system.
To fill the tank safely:  the engine must be switched off, open the fuel filler flap,  inser t the key in the cap, then turn it to the left,
 remove the cap and hook it onto the clip located on the inside of the flap,  fill the tank, but do not continue after the 3rd cut- off of the pump ; this could cause malfunctions.
When you have filled the tank:  put the cap back in place,  turn the key to the right, then remove it from the cap,  close the flap.
When the fuel tank minimum level is reached this warning lamp comes on
on the instrument panel. When it first comes on there remains approximately 5 litres of fuel in the tank. You must refuel as soon as possible to avoid running out of fuel. If you run out of fuel (Diesel), refer also to the "Checks" section.
With Stop & Star t, never refuel with the system in STOP mode; you must switch off the ignition with the key.

A. Cour tesy lampB. Map reading lamps
Courtesy lamp
In this position, the cour tesy lamp comes on gradually:
Courtesy lamp
- when the vehicle is unlocked, - when the key is removed from the ignition, - when a door is opened, - when the remote control locking button is activated, in order to locate your vehicle.
It switches off gradually: - when the vehicle is locked, - when the ignition is switched on, - 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
With the "permanent lighting" mode, the duration of lighting varies, depending on the circumstances: - with the ignition off, approximately ten minutes, - in energy economy mode, approximately thir ty seconds, - with the engine running, unlimited.
Map reading lamps
 With the ignition on, press the corresponding switch.

Advice on child seats
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident. Remember to fasten the seat belts or the child seat harness keeping the slack in relation to the child's body to a minimum , even for shor t journeys. To install a child seat using the vehicle's seat belt, ensure that the belt is well tightened on the child seat and that it holds the child seat firmly against the vehicle's seat. For optimum installation of the "for ward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that the head restraint does not cause any discomfor t. If the head restraint has to be removed, ensure that it is stored or attached securely to prevent it from being thrown around the vehicle in the event of sharp braking.
Children under the age of 10 must not travel in the "for ward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent. Deactivate the passenger airbag * when a "rear facing" child seat is installed on the front seat. Other wise, the child would risk being seriously injured or killed if the airbag were to inflate.
Installing a booster seat
The chest par t of the seat belt must be positioned on the child's shoulder without touching the neck.
Ensure that the lap par t of the seat belt passes correctly over the child's thighs. CITROËN recommends the use of a booster seat which has a back, fitted with a seat belt guide at shoulder level.
* According to country.
As a safety precaution, do not leave: - one or more children alone and unsuper vised in a vehicle, - a child or an animal in a vehicle which is exposed to the sun, with the windows closed, - the keys within reach of children inside the vehicle. To protect young children from the rays of the sun, fit side blinds on the rear windows.
