Petrol - Diesel instrument panels, manual or automatic gearbox Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indic ator and warning lamps.
1. Rev counter. Indicates the speed of rotation ofthe engine (x 1 000 rpm).
2. Vehicle speed. Indicates the current speed of the moving vehicle (mph or km/h). 3. Engine coolant temperature. Indicates the temperature of the engine coolant liquid.
Dials
7. Lighting rheostat button. Adjusts the level of the instrument and controls illumination and the interior mood
lighting.
4. Display screen.5. Fuel level. Indicates the quantity of fuel remaining in
the tank. 6. Display management button Alternates display between range and trip mileage recorder. Ser vicing information. Resets the selected function to zero(trip distance recorder or ser vice indicator).
For more information, refer to the paragraph relating to the button or function and its associated display.

25Monitoring
Screen

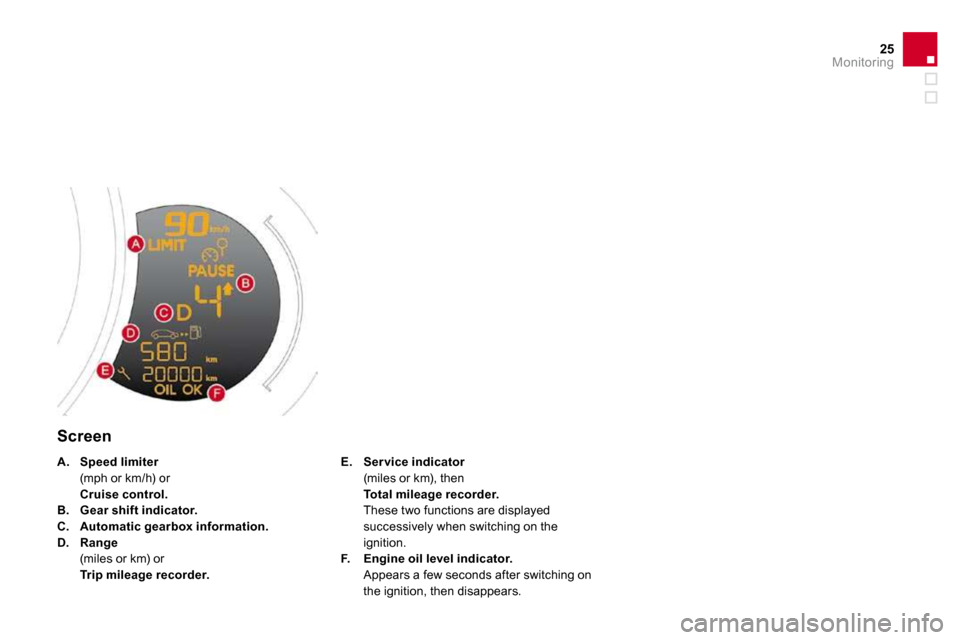

E. Ser vice indicator (miles or km), then Total mileage recorder. These two functions are displayed successively when switching on the ignition. F. Engine oil level indicator. Appears a few seconds after switching on
the ignition, then disappears.
A. Speed limiter (mph or km/h) or Cruise control.B. Gear shift indicator.C. Automatic gearbox information.D. Range (miles or km) or Trip mileage recorder.

Visual indicators informing the driver that a system is in operation (operation or deactivation indicator lamps) or ofthe occurrence of a fault (warning lamp).
Indicator and warning lamps
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on. When the engine is star ted, these same warning lamps should switch off. If they remain on, before moving off, refer tothe information on the warning lamp concerned.
Associated warnings
The switching on of cer tain warning lamps may be accompanied by an audible signal and a message on the multifunction screen.

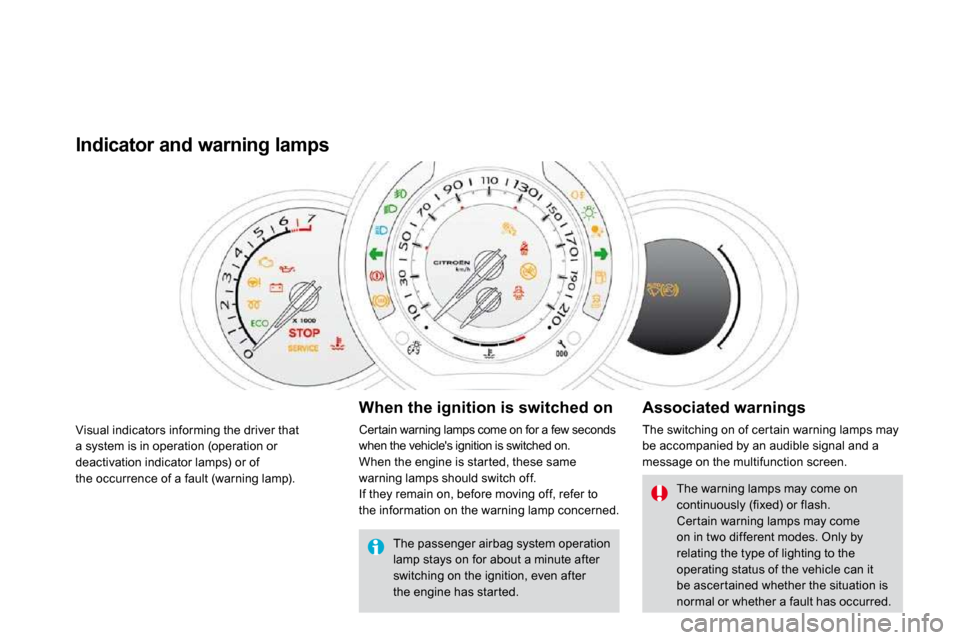

The warning lamps may come on continuously (fixed) or flash. Cer tain warning lamps may come on in two different modes. Only by relating the type of lighting to the operating status of the vehicle can it
be ascer tained whether the situation is normal or whether a fault has occurred.
The passenger airbag system operation lamp stays on for about a minute after switching on the ignition, even afterthe engine has star ted.

27Monitoring

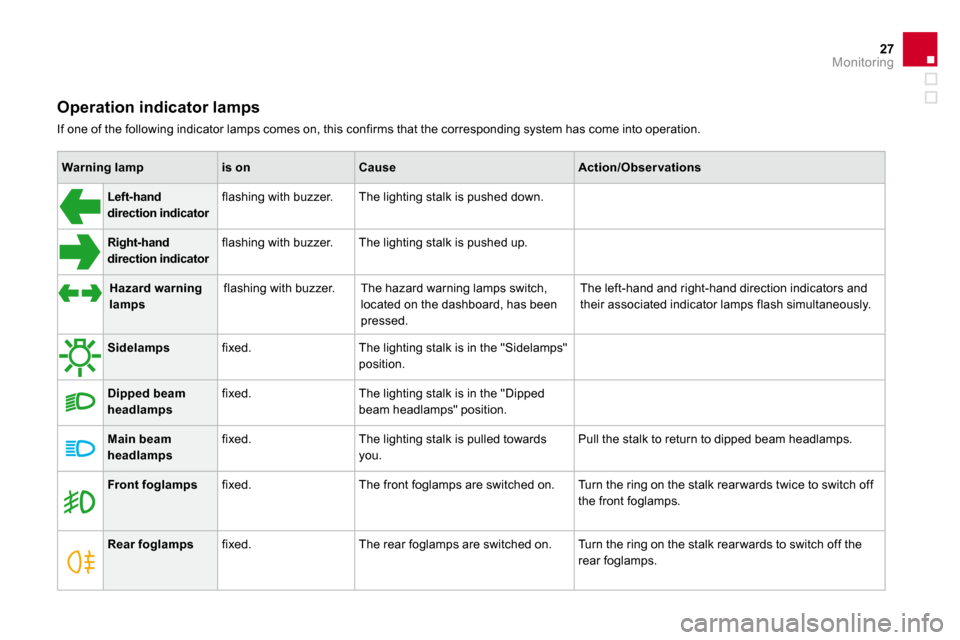

Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into o peration.
Warning lampis onCauseAction/Obser vations
Left-hand direction indicatorrr flashing with buzzer. The lighting stalk is pushed down.
Right-hand direction indicatoratortor flashing with buzzer. The lighting stalk is pushed up.
Sidelamps fixed. The lighting stalk is in the "Sidelamps" position.
Dipped beam headlamps fixed. The lighting stalk is in the "Dipped beam headlamps" position.
Main beam headlamps fixed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.
Front foglamps fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off the front foglamps.
Rear foglamps fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the rear foglamps.

Hazard warning lamps flashing with buzzer. The hazard warning lamps switch, located on the dashboard, has been pressed.
The left-hand and right-hand direction indicators a nd their associated indicator lamps flash simultaneously.

Warning lampis onCauseAction/Obser vations

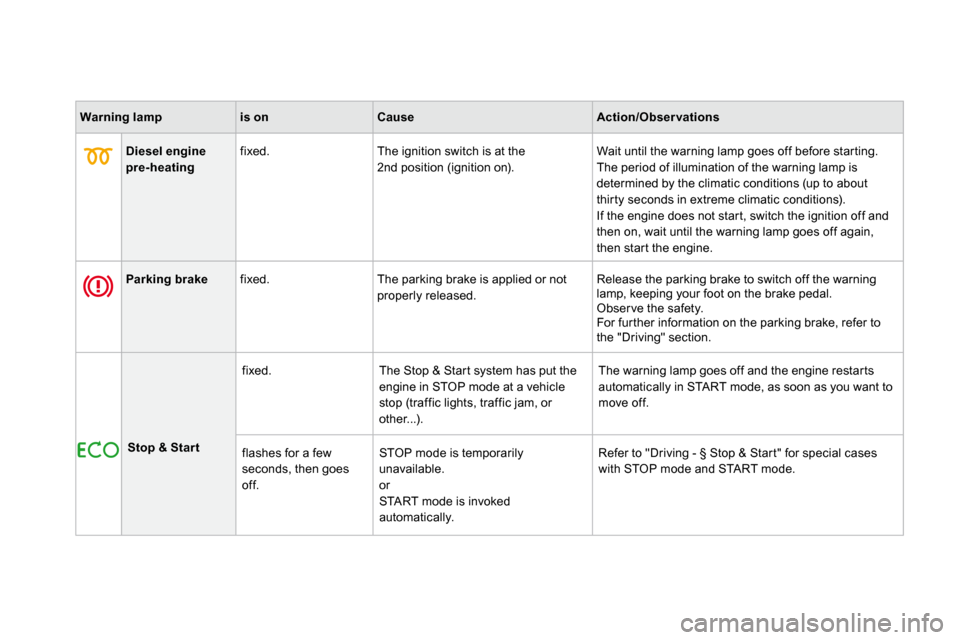

Diesel engine pre-heating fixed. The ignition switch is at the 2nd position (ignition on). Wait until the warning lamp goes off before star ting. The period of illumination of the warning lamp is determined by the climatic conditions (up to about thir ty seconds in extreme climatic conditions). If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again, then star t the engine.
Parking brake fixed. The parking brake is applied or not properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal. Obser ve the safety. For fur ther information on the parking brake, refer t o the "Driving" section.

Stop & Star t
fixed. The Stop & Star t system has put the engine in STOP mode at a vehicle stop (traffic lights, traffic jam, or other...).
The warning lamp goes off and the engine restar ts automatically in START mode, as soon as you want to move off.
flashes for a few seconds, then goes
off.
STOP mode is temporarily unavailable.
or START mode is invoked automatically.
Refer to "Driving - § Stop & Star t" for special cases with STOP mode and START mode.

Monitoring

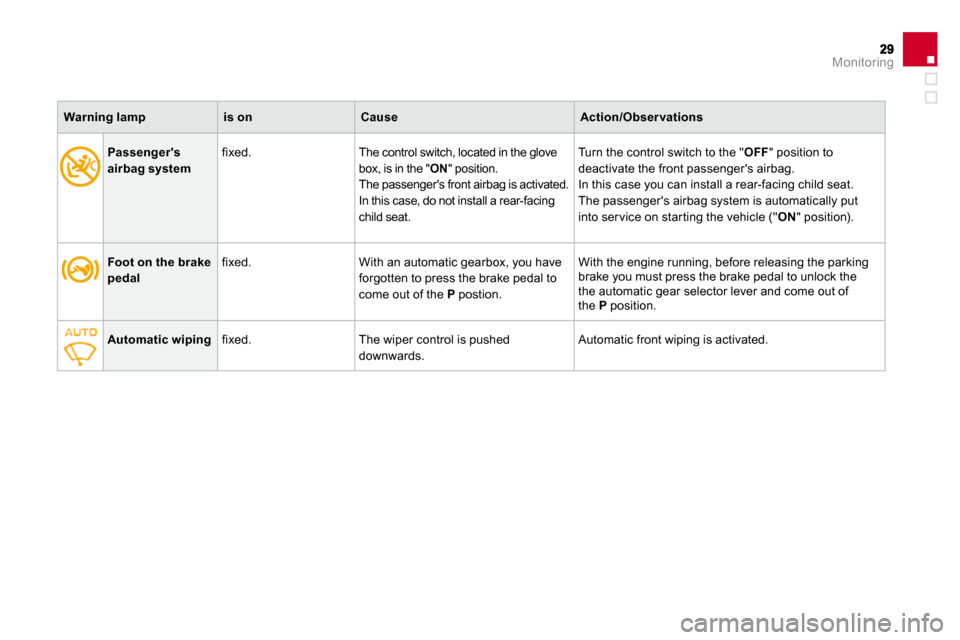

Foot on the brake pedal fixed. With an automatic gearbox, you have forgotten to press the brake pedal to come out of the P postion.
With the engine running, before releasing the parking brake you must press the brake pedal to unlock thethe automatic gear selector lever and come out ofthe P position.
Automatic wiping fixed. The wiper control is pushed downwards. Automatic front wiping is activated.

Passenger's airbag system fixed. The control switch, located in the glove box, is in the " ON " position. The passenger's front airbag is activated. In this case, do not install a rear-facing child seat.
Turn the control switch to the " OFF " position to deactivate the front passenger's airbag. In this case you can install a rear-facing child seat. The passenger's airbag system is automatically put into ser vice on star ting the vehicle (" ON " position).
Warning lampis onCauseAction/Obser vations

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switch ed off intentionally. This is may be accompanied by an audible signal and a message on the multifunction screen.

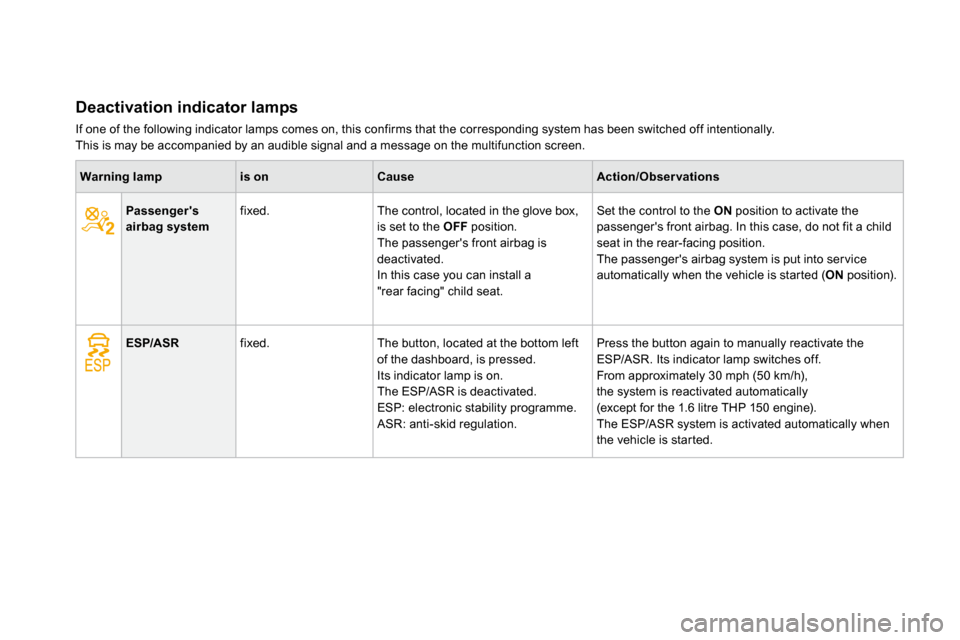

Warning lampis onCauseAction/Obser vations
Passenger's
airbag system
fixed. The control, located in the glove box,
is set to the OFF position. The passenger's front airbag is deactivated. In this case you can install a"rear facing" child seat.
Set the control to the ON position to activate the
passenger's front airbag. In this case, do not fit a child seat in the rear-facing position. The passenger's airbag system is put into ser vice automatically when the vehicle is star ted ( ON position).
ESP/ASR fixed. The button, located at the bottom left of the dashboard, is pressed.Its indicator lamp is on. The ESP/ASR is deactivated. ESP: electronic stability programme. ASR: anti-skid regulation.
Press the button again to manually reactivate the ESP/ASR. Its indicator lamp switches off. From approximately 30 mph (50 km/h),the system is reactivated automatically(except for the 1.6 litre THP 150 engine). The ESP/ASR system is activated automatically when the vehicle is star ted.

31Monitoring
Warning lamps
When the engine is running or the vehicle is being driven, the switching on of one of the following warning lamps indicates a fault which requires action on the par t of the driver.
Any fault resulting in the switching on of a warning lamp must be investigated fur ther by reading the associated message on the multifunction screen. If you encounter any problems, do not hesitate to contact a CITROËN dealer.
Warning lampis onCauseAction/Obser vations

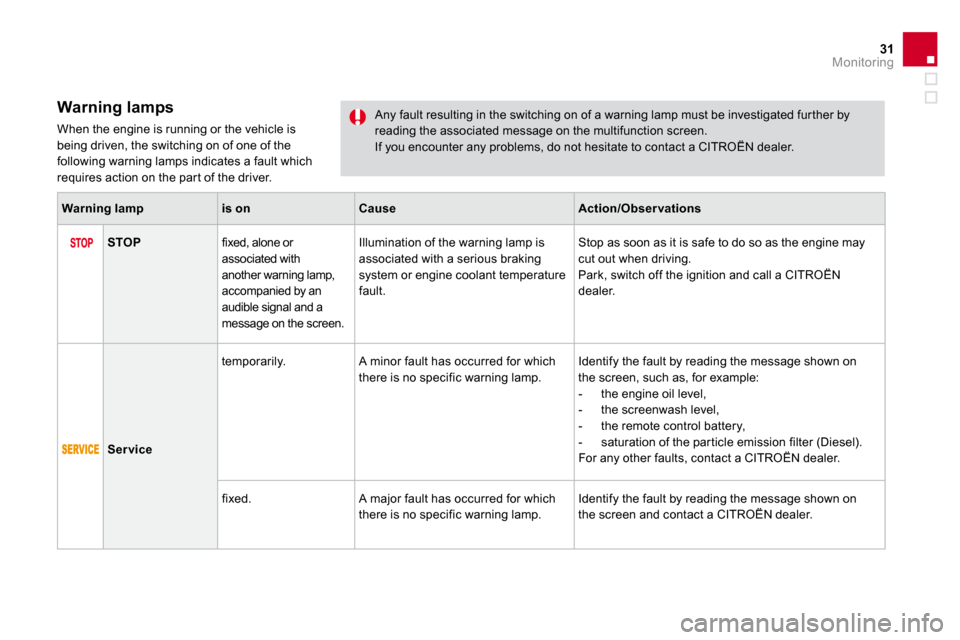

STOP fixed, alone or associated with another warning lamp, accompanied by an audible signal and a message on the screen.
Illumination of the warning lamp is associated with a serious braking system or engine coolant temperature fault.
Stop as soon as it is safe to do so as the engine may cut out when driving. Park, switch off the ignition and call a CITROËN dealer.
Ser vice
temporarily. A minor fault has occurred for which there is no specific warning lamp. Identify the fault by reading the message shown onthe screen, such as, for example:
- the engine oil level, - the screenwash level, - the remote control battery, - saturation of the par ticle emission filter (Diesel). For any other faults, contact a CITROËN dealer.
fixed. A major fault has occurred for which there is no specific warning lamp. Identify the fault by reading the message shown onthe screen and contact a CITROËN dealer.

fixed, associated with
the STOP warning lamp.
The braking system fluid level is too
low.
You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN. If the problem persists, have the system checked by a CITROËN dealer.

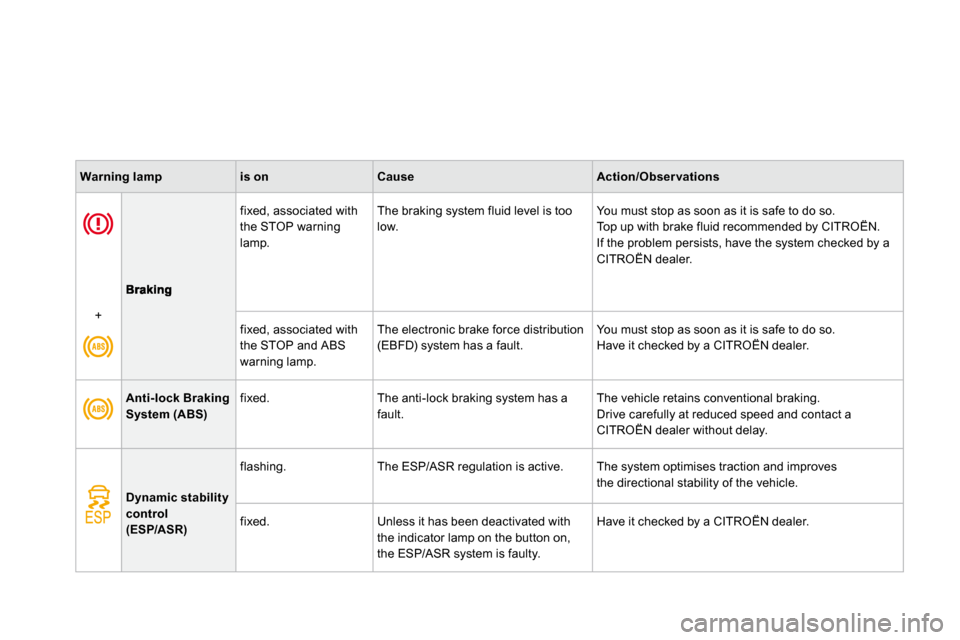

+ fixed, associated with the STOP and ABS warning lamp.
The electronic brake force distribution (EBFD) system has a fault. You must stop as soon as it is safe to do so. Have it checked by a CITROËN dealer.
Warning lampis onCauseAction/Obser vations
Anti-lock Braking System (ABS) fixed. The anti-lock braking system has a fault. The vehicle retains conventional braking. Drive carefully at reduced speed and contact a
CITROËN dealer without delay.
Dynamic stability control (ESP/ASR)
flashing. The ESP/ASR regulation is active. The system optimises traction and improvesthe directional stability of the vehicle.
fixed. Unless it has been deactivated with the indicator lamp on the button on, the ESP/ASR system is faulty.
Have it checked by a CITROËN dealer.

33Monitoring
Warning lampis onCauseAction/Obser vations
Engine autodiagnosis system
fixed. The emission control system has a
fault.
This lamp should switch off when the engine is star ted.
If it does not switch off, contact a CITROËN dealer urgently.
flashing. The engine management system has a fault. Risk of destruction of the catalytic conver tor. Have it checked by a CITROËN dealer.
Low fuel level fixed. When it first comes on there remains approximately 5 litres of fuel in the tank.
You must refuel as soon as possible to avoid running out of fuel. This warning lamp will come on every time the ignition is switched on, until a sufficient addition of fuel is made. Fuel tank capacity: approximately 50 litres (petrol ) or 48 litres (Diesel). Never continue to drive until you run out of fuel a s this could damage the emission control and injection systems.
Maximum coolant temperature fixed red. The temperature of the cooling system is too high. Stop as soon as it is safe to do so. Wait until the engine has cooled down before topping
up the level, if necessary. If the problem persists, contact a CITROËN dealer.
