Citroen DS3 RHD 2013 1.G Owner's Manual

249Technical data
WEIGHTS (in kg)- RACING
Petrol engine
GearboxManualManual
Model codes: SA...5FF85FD8


- Unladen weight 1 165



- Kerb weight 1 240



-
Gross vehicle weight (GVW)
1 597


-
Gross train weight (GTW)
on a 12% gradient 1 597


- Braked trailer
(within the GTW limit)
on a 12% slop0



- Braked trailer (with transfer of load within
the GTW limit)0


- Unbraked trailer 0


- Recommended nose wei
ght *0

*
See the "Towing a trailer" section.

*

The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation(Directive 1999/99/EC).
MODELS:ENGINE AND GEARBOX
Model codes:SA...8FR0/GPL
LPG ENGINEVTi 95
Cubic capacity (cc)

1 397
Bore x stroke
(mm)

77 x 75

Max. power: EU standard
(kW)
* 67
Max. power speed
(rpm) 5 700

Max torque: EU standard (Nm)
133

Max. torque speed
(rpm)
3 900

F
uel LPG / Unleaded
Catal
ytic conver ter

Yes

GEARBO
X
Manual(5-speed)

OIL CAPACITY
(in litres)
Engine (with filter replacement)
4.25
For more information on the operation and use of your LPG vehicle, refer to the specific insert attached to the other vehicle documents.

251Technical data
*


The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
LPG enginesVTi 95
GearboxManual
Model codes:SA...8FR0/GPL


-
Unladen weight 1 152


- Kerb wei
ght 1227



- Gross vehicle weight (GV W)
1 552



-
Gross train weight (GTW)

on a 12 % slope
2 452


- Braked trailer
(within GTW limit) on a 12 % slope 900



- Braked trailer *
(with load transfer within the
GTW limit) 1 15 0



- Unbraked trailer

570


-
Recommended nose weight 46

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

MODELS:ENGINES AND GEARBOXES
Model codes: SA...8HR48HP4/PS9HPK/S9HP8/PS9HD8/S9HR8/S
DIESEL ENGINESHDi 70PEFe- HDi 70 PEFe-HDi 90 PEFe-HDi 115 PEF

Cubic capacity (cc) 1 398
1 560 1 560
Bore x stroke
(mm)

73.7 x 8275 x 88.3

75 x 88.3

Max power: EU standard (kW) * 50
68
84
Max power en
gine speed (rpm)
4 000
4 0003 600

Max torque: EU standard
(Nm) 160
230 270
Max torque en
gine speed (rpm)
2 000
1 7501 750

Fuel Diesel
Diesel
Diesel
Catal
ytic conver ter yes
yes
yes

Particle emissions filter (PEF) yes
yes
yes
GEARBOX
Manual(5-speed)
Manual
(5-speed)
Manual
(5-speed)
Electronic gearbox system (6-speed)
Manual(6-speed)
OIL CAPACITIES (in litres)

Engine (with filter replacement) 3.75 3.75 3.75
.../S
:e-HDi model fitted with Stop & Start
*
The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel enginesHDi 70PEFe-HDi 70 PEFe-HDi 90 PEFe- HDi 115 PEF
GearboxManualElectronicManualElectronicManual
Model codes:SA...8HR48HP4/PS9HPK/S9HP8/PS9HD8/S9HR8/S


- Unladen weight 1 070
1 080
1 085
1 090
1 090



- Kerb wei
ght 1 145 1 155 1 160
1 165 1 165


- Gross vehicle wei
ght (GV W)
1 5531 585
1 602
1 609
1 625



- Gross train wei
ght (GTW) on a 12 % gradient 2 2532 285
2 502 2 509
2 525


- Braked trailer
(within GTW limit)on 12 % gradient
700

700
900
900
900



- Braked trailer
*
(with load transfer with theGTW limit)
950
950

1 150

1 150

1 150



- Unbraked trailer 570
570
570
570
570



- Recommended nose wei
ght
46
46
46
46
46

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit th
e towed load.
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

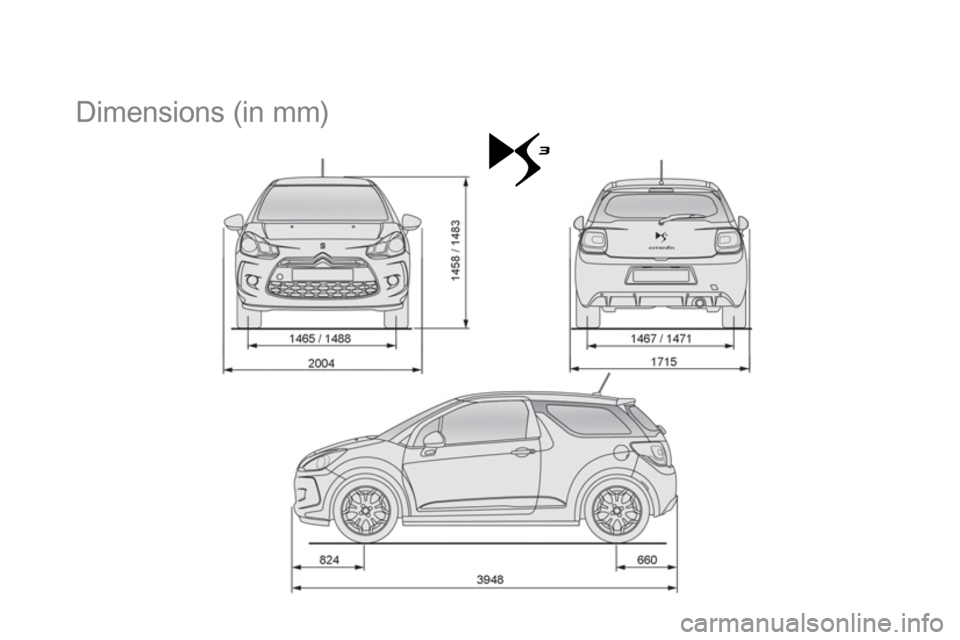

Dimensions (in mm)

255
Technical data


Bumpers and lower body

Your vehicle has reduced groundclearance. Take care when traversing kerbs,
speed humps, access ramps, fords,unmade roads…

Identifi cation markings
A. Vehicle identification number (VIN) under
the bonnet.This number is engraved on the bodywork near
the passenger compar tment filter.
B. Vehicle identification number on the dashboard.This number is indicated on a self-adhesive label which is visible through the windscreen.
D. Tyre/paint label.
This label is affixed to the left hand centrepillar.

Wheels which are fitted with 205/45 R17 tyres cannot be fitted withsnow chains. For more information, contact a CITROËN dealer or a qualifiedworkshop.

Low tyre pressures increase fuelconsumption.

The tyre pressures must be checked when the tyres are cold, at least oncea month.
C. Manufacturer's label.
The VIN is indicated on a self-destroying label
affixed to the left hand centre pillar. It bears the
following information:


- the tyre pressures, for unladen and laden conditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by the manufacturer,

- the spare tyre inflation pressure,

- the paint colour code.

257
Technical data

013
Audio and telematics
This section covers emergency and assistance calls, as well as the
functions of the audio-navigation units, such as MP3 -compatible player, USB player, Bluetooth system, the eMyWay with 16/9 colour screen, auxiliary inputs, Hi-Fi audio system.
