technical data Citroen DS3 RHD 2013 1.G Owner's Manual

CHECKS PRACTICAL
INFORMATIONTECHNICAL DATA AUDIO AND
TELEMATICS
191Bonnet
192Running out of fuel (Diesel)
193Petrol engines
194 Diesel engines
195 Checking levels
198Checks
202Temporary puncture repair kit
209Changing a wheel
216 Snow chains
217 Changing a bulb
225 Changing a fuse
232Battery
235 Energy economy mode
236 Changing a wiper blade
237 Towing the vehicle
239To w i ng a trailer
241 Advice on care andmaintenance
242Accessories
246 Petrol engines
248 Petrol weights
250 LPG engines
251 LPG weights
252Diesel engines
253 Diesel weights
254 Dimensions
256 Identifi cation markings
261Emergency or assistance
263eMyWay
317 Audio system
012012013013010010011011

Practical information








Towing a trailer


Towbar suitable for the attachment of a trailer
with additional lighting and signalling.
We recommend the use of genuineCITROËN towbars and their harnesses that have been tested and approved from the design stage of your vehicle, and that the fitting of the towbar is entrusted to a CITROËN dealer or a qualified workshop.If the towbar is not fitted by a CITROËNdealer, it is imperative that it is fitted in accordance with the vehicle manufacturer's instructions.
Driving with a trailer places greater demands
on the towing vehicle and the driver must take par ticular care.

Driving advice


Distribution of loads
)
Distribute the load in the trailer so that the heaviest items are as close as possible to
the axle and the nose weight approaches the maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced b
y 10 % for every 1 000 metres of altitude.

Side wind
)
Take into account the increased sensitivity
to side wind.
Your vehicle is primaril
y designed for
transporting people and luggage, but it mayalso be used for towing a trailer. R
efer to the "Technical Data" section for detailsof the weights and towed loads which apply to your vehicle.

012
Technical data
This section contains the specifications of your vehicle depending on itsengine and gearbox, such as the maximum power and torque, unladenand maximum weights, trailer weights, exterior dimensions and all of its
identification markings.

247Technical data
ENGINE AND GEARBOX- RACING
MODELS:Model codes: SA...5FF85FD8
PETROL ENGINE
Cubic capacit
y (cc) 1 598

Bore x stroke
(mm) 77 x 85.8

Max power: EU standard (kW) *

149 152
Max power en
gine speed (rpm) 6 000

Max torque: EU standard
(Nm)

275

Max torque en
gine speed (rpm)
2 000

F
uel
Unleaded **

Catalytic converter Yes

GEARBO
XManual (6-speed)

OIL CAPACITY (in litres)
En
gine (with filter replacement) 4.25


**

CITROËN strongly recommends the use of 98 RON unleaded petrol to ensure optimum operation of the engine (refer to the label inside the fuel filler flap).
*

The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

249Technical data
WEIGHTS (in kg)- RACING
Petrol engine
GearboxManualManual
Model codes: SA...5FF85FD8


- Unladen weight 1 165



- Kerb weight 1 240



-
Gross vehicle weight (GVW)
1 597


-
Gross train weight (GTW)
on a 12% gradient 1 597


- Braked trailer
(within the GTW limit)
on a 12% slop0



- Braked trailer (with transfer of load within
the GTW limit)0


- Unbraked trailer 0


- Recommended nose wei
ght *0

*
See the "Towing a trailer" section.

251Technical data
*


The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
WEIGHTS AND TOWED LOADS (in kg)
LPG enginesVTi 95
GearboxManual
Model codes:SA...8FR0/GPL


-
Unladen weight 1 152


- Kerb wei
ght 1227



- Gross vehicle weight (GV W)
1 552



-
Gross train weight (GTW)

on a 12 % slope
2 452


- Braked trailer
(within GTW limit) on a 12 % slope 900



- Braked trailer *
(with load transfer within the
GTW limit) 1 15 0



- Unbraked trailer

570


-
Recommended nose weight 46

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.

Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel enginesHDi 70PEFe-HDi 70 PEFe-HDi 90 PEFe- HDi 115 PEF
GearboxManualElectronicManualElectronicManual
Model codes:SA...8HR48HP4/PS9HPK/S9HP8/PS9HD8/S9HR8/S


- Unladen weight 1 070
1 080
1 085
1 090
1 090



- Kerb wei
ght 1 145 1 155 1 160
1 165 1 165


- Gross vehicle wei
ght (GV W)
1 5531 585
1 602
1 609
1 625



- Gross train wei
ght (GTW) on a 12 % gradient 2 2532 285
2 502 2 509
2 525


- Braked trailer
(within GTW limit)on 12 % gradient
700

700
900
900
900



- Braked trailer
*
(with load transfer with theGTW limit)
950
950

1 150

1 150

1 150



- Unbraked trailer 570
570
570
570
570



- Recommended nose wei
ght
46
46
46
46
46

The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit th
e towed load.
*

The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

255
Technical data

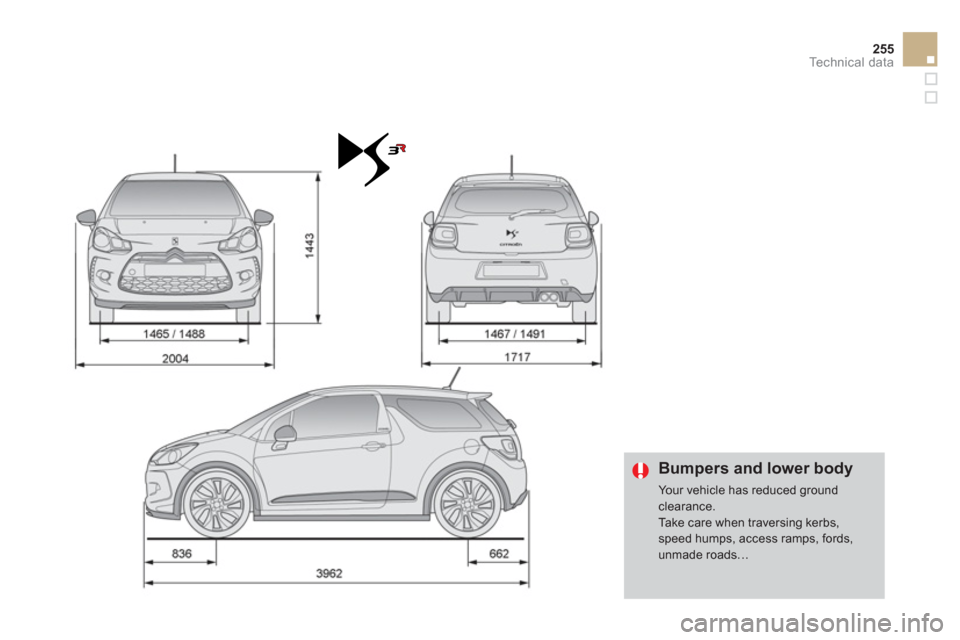

Bumpers and lower body

Your vehicle has reduced groundclearance. Take care when traversing kerbs,
speed humps, access ramps, fords,unmade roads…

257
Technical data

343Visual search
Technical data - Maintenance


Running out of Diesel 192

Checking levels 195 -197


- oil

- brake fluid

- coolant

- screenwash fluid

- additive (Diesel with particleemissions filter)


Changing bulbs 217-224


- front

- rear

- interior

Petrol en
gines 246 -249
LPG engine 250 -251
Diesel engine 252-253
Dimensions 254-255
Identification markings 256

Bonnet
191-192
Under-bonnet layout, petrol 193
Under-bonnet layout, Diesel 194Batter
y 232-234
Energy economy mode 235
Checking components 198 -19 9
- battery- air filter / passenger compartment filter
- oil filter
- particle emissions filter (Diesel)
- brake pads/discs


En
ginecompartment fuses 225, 228 -231
