cruise control Citroen DS3 RHD 2013 1.G Owner's Manual
[x] Cancel search | Manufacturer: CITROEN, Model Year: 2013, Model line: DS3 RHD, Model: Citroen DS3 RHD 2013 1.GPages: 356, PDF Size: 10.28 MB
Page 6 of 356
SAFETY DRIVING FITTINGS CHILD SAFETY
166Parking brake
1676 -speed manual gearbox
168 Electronic gearbox
173 Automatic gearbox
177 Gear effi ciency indicator
178Stop & Start
181Hill start assist
182Speed limiter
184 Cruise control
186Rear parking sensors
150 Direction indicators
150 Hazard warning lamps
151Horn
151Emergency or assistance call
152Brakin
g assistance systems
153Tr ajectory control systems
155 Front seat belts
158Airbags
134Child seats
137 Deactivating the passenger's
front airbag
143 ISOFIX child seats
126 Interior fi ttings
130 Boot fi ttings
008008009009006006007007
Page 14 of 356
Instruments and controls
1.
Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control / speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Glove box / Passenger's airbag
deactivation / Fusebox.12.Bonnet release lever.13.12 V accessory socket
USB por t / auxiliary socket. 14 .Upper and lower storage.15. Audio system or eMyWay.16.
Heating / air conditioning controls.
Page 25 of 356
23Familiarisation
Driving safely
1.
Selecting / Switching off speed limiter mode.2.Decrease the programmed value.3.Increase the programmed value.4.
Speed limiter on / off.
Speed limiter "LIMIT"
182
1.Selecting / Switching off cruise control mode.
2. Decrease the programmed value. 3.
Increase the programmed value. 4.
Cruise control Off / Resume.
Cruise control "CRUISE"
184
The cruise control or speed limiter mode
appears on the instrument panel when it is selected.
Display in the instrument panel
Cruise control
S
peed limiter
The values must be set with the engine running. In order to be programmed or activated, the
vehicle speed must be higher than 25 mph (40 km/h), with at least fourth gear engaged
on a manual gearbox (second gear on an
electronic or automatic gearbox).
Page 26 of 356
Before moving off, if the passenger compar tment is too warm, ventilate it by opening the windows and air vents before using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the air vents open.
Remember to make use of equipment that can help keep the temperature in the passenger compar tment down (sunroof and windowblinds...). Switch off the air conditioning, unless it has automatic regulation, as soon as the desired temperature is attained. Switch off the demisting and defrosting controls, if not automatic.
Switch off the heated seat as soon as possible.
Switch off the headlamps and front foglamps when the level of lightdoes not require their use.
Avoid running the engine before moving off, par ticularly in winter; your vehicle will warm up much faster while driving.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to automatic mode and avoid pressing the accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to change up: as soon as the indication to change up is displayed in the instrument panel, follow it straight away.
With an electronic or automatic gearbox, this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine braking rather than the brake pedal, and press the accelerator progressively. These practices contribute towards a reduction in fuel consumption andCO2emissions and also helps reduce the background traffic noise.
Control the use of your electrical
equipment
If your vehicle has cruise control, make use of the system at speedsabove 25 mph (40 km/h) when the traffic is flowing well.
As a passenger, if you avoid connecting your multimedia devices (film, music, video game...), you will contribute towards limiting theconsumption of electrical energy, and so of fuel.
Disconnect your por table devices before leaving the vehicle.
Page 31 of 356
29Monitoring
Screen
E.Ser vice indicator(miles or km), then Total mileage recorderThese two functions are displayedsuccessively when switching on the ignitionF.Engine oil level indicatorrAppears a few seconds after switching on
the ignition, then disappears.
A
.Speed limiter (mph or km/h) or
Cruise control.B. Gear efficiency indicator.C.Electronicor automatic gearboxinformation.D.Range (miles or km) or Trip mileage recorder.
Page 33 of 356
31Monitoring
Screen
C.Ser vice indicatorr(miles or km), then Total mileage recorderrThese two functions are displayedsuccessively when switching on the ignition .
D.Engine oil level indicatorAppears a few seconds after switching on
the ignition, then disappears.
A.Speed limiterr (mph or km/h) or
Cruise control.B.Range (miles or km) or
Trip mileage recorder.
Page 49 of 356
47Monitoring
Black panel
System allowing cer tain displays to be switched
off for night driving.
The instrument panel remains illuminated with
onl
y the vehicle speed and cruise control or speed limiter information, if in use.
If there is an aler t or a change in a function
or to a setting, the black panel mode isinterrupted.
Activation
) With the lighting on, press the left handbutton of the instrument panel several
times to progressively reduce the
dashboard lighting level. ) Press the button again to reduce the lighting to the minimum level and switch off
the interior mood lighting. ) Press the button again to activate the black
panel.
Page 131 of 356
Fittings
Mats Removable carpet protection.
When
fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
Fitting Removal
To remove the mat on the driver's side: )
move the seat as far back as possible,
)
unclip the fixings, )
remove the mat.
Refitting
To refit the mat on the driver's side: )
position the mat correctly, )
refit the fixings by pressing, )
check that the mat is secured correctly.
To avoid any risk of jamming of the pedals:
- only use mats which are suitedto the fixings already present in the vehicle; these fixings must beused,
- never fit one mat on top of another.
The use of mats not approved byCITROËN may inter fere with access tothe pedals and hinder the operation of the cruise control / speed limiter.
Page 166 of 356
009
Driving
This section describes the use of the parking brake, the manual,electronic or automatic gearbox, the gear efficiency indicator and Stop & Start to help reduce fuel consumption, hill start assist, the speed limiter
to avoid exceeding a programmed speed, cruise control to maintain aprogrammed speed, the rear parking sensors to detect obstacles.
Page 186 of 356

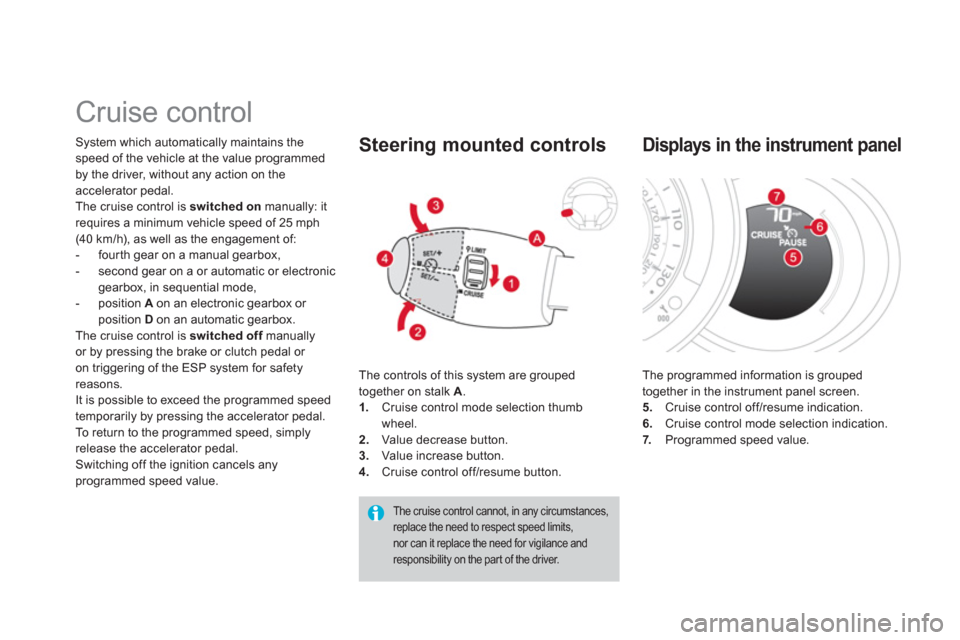

Cruise control
System which automatically maintains the
speed of the vehicle at the value programmed
by the driver, without any action on the accelerator pedal.
The cruise control is switched on
manually: itrequires a minimum vehicle speed of 25 mph
(40 km/h), as well as the engagement of:
- fourth gear on a manual gearbox,
- second gear on a or automatic or electronic
gearbox, in sequential mode,
-
position A
on an electronic gearbox or position D
on an automatic gearbox.
The cruise control is switched offmanuallyfor by pressing the brake or clutch pedal or
on triggering of the ESP system for safety reasons. It is possible to exceed the programmed speed
temporarily by pressing the accelerator pedal.
To return to the programmed speed, simply
release the accelerator pedal.
Switching off the ignition cancels any programmed speed value. The controls o
f this system are grouped
together on stalk A
.
1.Cruise control mode selection thumb
wheel.
2. Value decrease button. 3.
Value increase button. 4.Cruise control off/resume button.
Steering mounted controls
The cruise control cannot, in any circumstances, replace the need to respect speed limits, nor can it replace the need for vigilance and responsibility on the par t of the driver.
The programmed information is grouped
together in the instrument panel screen.
5. Cruise control off/resume indication.
6. Cruise control mode selection indication.
7. Programmed speed value.
Displays in the instrument panel
