Exterior
Customising kits
These expressive stickers form par t of a range
of kits, very different one from another, whichallow you to create a unique and attractive exterior for your vehicle
Guide-me-home lighting
After switching off the ignition, under lowlighting conditions the headlamps remain on for a few seconds to help you leave the vehicle.

Rear parking sensors

This system provides a warning when reversingby detecting obstacles located behind the
vehicle.
115
puncture repair kit
plete system consisting of a compressor and sealant car tridge, for the
temporary repair of a tyre.
202
Stop & Start
This system puts the engine
temporarily on standby during
stops in the traffic (red lights, trafficjams, etc...). The engine restartsautomatically as soon as you want tomove off. Stop & Star t reduces fuel consumption, exhaust emissions andnoise levels when stationary.
17
8

Instruments and controls
1.
Steering wheel adjustment. 2.
Headlamp height adjustment. 3.
Cruise control / speed limiter controls. 4.
Lighting and direction indicator stalk5.
Central locking button.
6.Multifunction screen.
7. Hazard warning lamp switch.8.Central adjustable air vents.9.
Sunshine sensor
Hi-Fi audio system central speaker. 10.Passenger's airbag. 11.
Glove box / Passenger's airbag
deactivation / Fusebox.12.Bonnet release lever.13.12 V accessory socket
USB por t / auxiliary socket. 14 .Upper and lower storage.15. Audio system or eMyWay.16.
Heating / air conditioning controls.

Monitoring
On switching on, the dial needles go to theextent of their travel then return to 0. A.
With the ignition on, the fuel gauge bars for
the fuel remaining should light up. B.With the engine running, the associated low level warning lamp should switch off.C.With the ignition on, the oil level indicator
should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the level
whi
ch is low.
Instrument panels
28, 30
1.With the ignition on, the orange and red
warning lamps come on.
2
. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to the pageconcerned.


Warning lamps
32, 37 Li
ghting of the indicator lamp indicates the state
of the corresponding system.
A.Deactivation of alarm interior volumetricprotection.


Switch panel
98
B.Deactivation of the ESP/ASR system.
154
C.Deactivation of the Stop & Start system.
179

Petrol - Diesel instrument panels, manual, electronic
or automatic gearbox
Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.
1.Rev counter.Indicates the speed of rotation of the
engine (x 1 000 rpm).2.Vehicle speed.Indicates the current speed of the moving
vehicle (mph or km/h).3.Engine coolant temperature.Indicates the temperature of the engine coolant liquid.
Dials
7.Lighting dimmer button.Adjusts the level of the instrument and controls
illumination and the interior mood lighting.
4.Display screen.5.Fuel level. Indicates the quantity of fuel remaining in
the tank.
6.Display management button. Alternates display between range and trip
mileage recorder.

Servicing information.
Resets the selected function to zero (trip
distance recorder or ser vice indicator
).
For more information, refer to the
paragraph relating to the button or function and its associated display.

RACING petrol instrument panel, manual gearbox Provided with permanent back-lighting, the instrument panel groups together the vehicle's dials and indicator and warning lamps.
1.Rev counter.Indicates the speed of rotation of the
engine (x 1 000 rpm).2.Vehicle speed.Indicates the current speed of the moving
vehicle (mph or km/h).3.Engine coolant temperature.Indicates the temperature of the engine coolant liquid.
Dials
7.Lighting dimmer button.Adjusts the level of the instrument and controls
illumination and the interior mood lighting.
4.Display screen.5.Fuel level. Indicates the quantity of fuel remaining in
the tank.
6.Display management button
Alternates display between range and trip
mileage recorder.
Servicing information.
Resets the selected function to zero (trip
distance recorder or ser vice indicator).
For more information, refer to the
paragraph relating to the button or function and its associated display.

Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamp).
Indicator and warning lamps

Associated warnings

The illumination of cer tain warning lamps maybe accompanied by an audible signal and a message in the multifunction screen.
The warning lamps may come on continuously (fixed) or flash. Certain warning lamps may comeon in two different modes. Only byrelating the type of lighting to the operating status of the vehicle can it
be ascertained whether the situation isnormal or whether a fault has occurred.
If they remain on, before moving off, refer to the information on the warninglamp concerned.The passenger's airbag system operation lamp stays on for about a minute after switching on the ignition,
even after the engine has started.
When the ignition is switched on
Certain warning lamps come on for a fewseconds when the vehicle's ignition isswitched on.
When the engine is started, these same
warning lamps should go off.

33Monitoring

Operation indicator lamps

If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
Warning lampis onCauseAction / Observations
Left-hand direction indicatorflashing with buzzer. The lighting stalk is pushed down.
Right-handdirection indicatorflashing with buzzer. The lighting stalk is pushed up.
Sidelampsfixed. The lighting stalk is in the "Sidelamps"
position.
Dipped beam headlampsfixed. The lighting stalk is in the "Dippedbeam headlamps" position.
Main beamheadlampsfixed. The lighting stalk is pulled towards you. Pull the stalk to return to dipped beam headlamps.
Front foglampsfixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglampsfixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the rear foglamps.




Hazard warning lamps
flashing with audiblesignal.The hazard warning lamps switch, located on the dashboard, has been
operated. The le
ft-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.

Warning lampis onCauseAction / Observations
Diesel enginepre-heating fixed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp goes off before star ting.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about thir ty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then star t the engine.
Parking brake
fixed. The parking brake is applied or not
properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Observe the safety recommendations.
For further information on the parking brake, refer to
the "Parking brake" section.

Stop & Startfixed. When the vehicle stops (red lights,
traffic jams, ...) the Stop & Start systemhas put the engine into STOP mode.The warnin
g lamp goes off and the engine restarts
automatically in START mode, as soon as you want tomove off.
flashes for a few seconds, then goesoff.
STOP mode is temporarily unavailable. or STA R T m o d e i s i n v o ke d
automatically. For more in
formation on special cases with STOP mode and START mode, refer to the "Stop & Start"section.

This is indicated by lighting of the cour tesylamps and flashing of the direction indicators for a few seconds.
Locating your vehicle
)
Press the closed padlock to locate your locked vehicle in acar park.
Anti-theft protection

Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switchedon, this code must be recognised in order for
star ting to be possible.
This electronic en
gine immobiliser locks theengine management system a few minutes
after the ignition is switched off and prevents
starting of the engine by anyone who does not
have the key.
In the event o
f a fault, you are
informed by illumination of this
warning lamp, an audible signal and a message
in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.

- P
osition 1: Stop

- Position 2: Ignition

- Position 3: Starting
Ignition switch
Keep safely the label attached to thekeys given to you on acquisition of the vehicle.

Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a remote control malfunction, you can no longer unlock, lock or locate your
vehicle.)First of all, use the key in the lock to unlock
or lock your vehicle.
)Then, reinitialise the remote control.
If the problem persists, contact a CITROËN
dealer as soon as possible.

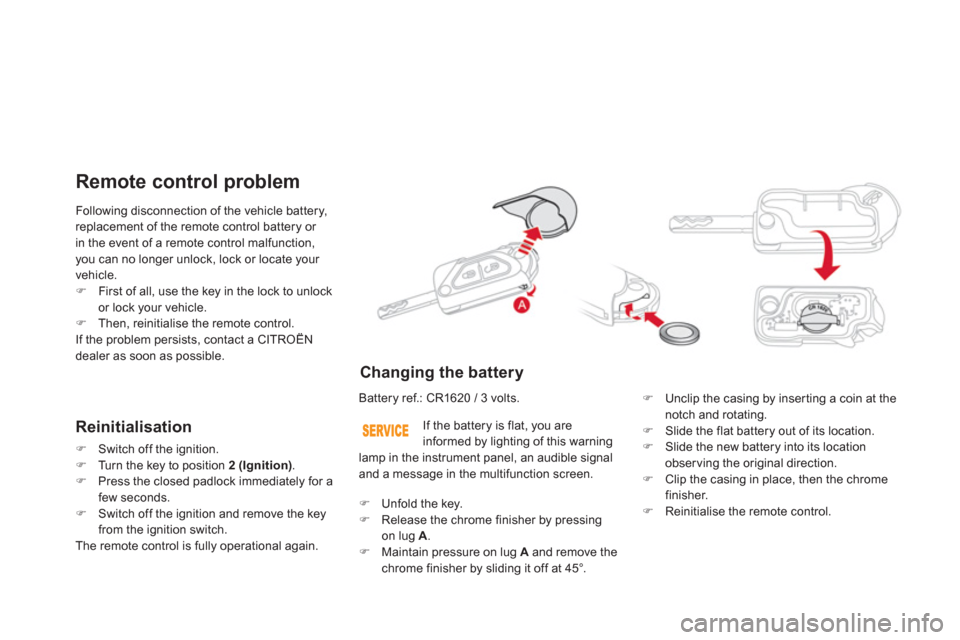

Remote control problem
Reinitialisation
)Switch off the ignition.)Turn the key to position 2 (Ignition).)Press the closed padlock immediately for afew seconds.)Switch off the ignition and remove the keyfrom the ignition switch.
The remote control is fully operational again.

Changing the battery

Battery ref.: CR1620 / 3 volts. )Unclip the casing by inserting a coin at the notch and rotating.
)Slide the flat battery out of its location.)Slide the new battery into its location
observing the original direction.
)Clip the casing in place, then the chrome
finisher. )Reinitialise the remote control.

If the batter
y is flat, you are
informed by lighting of this warninglamp in the instrument panel, an audible signal
and a message in the multifunction screen.
) Unfold the key.)
Release the chrome finisher by pressingon lug A.)
Maintain pressure on lug A
and remove thechrome finisher by sliding it off at 45°.
