CITROEN DS4 2010 Owners Manual

399
Search for a device Connections management
BLUETOOTH CONNECTION
Define the vehicle
parameters*
Choice of sounds Choice of language
Display configuration
* Depending on vehicle equipment.Choice of units
Date and time adjustment
Display parameters
Brightness
1
11
1
1
1
2
2
2
2
PERSONALISATION -
CONFIGURATION
Audio and Telematics

400
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different audio sources
(radio, CD...). For optimum sound quality, the audio settings (Volume, Bass,
Treble, Ambience, Loudness) can be adapted to the different sound
sources, which may result in audible differences when changing
source (radio, CD...). Check that the audio settings (Volume, Bass,
Treble, Ambience, Loudness) are adapted to
the sources listened to. It is advisable to set
the AUDIO functions (Bass, Treble, Front-Rear
Fader, Left-Right Balance) to the middle position,
select the musical ambience "None" and set the
loudness correction to the "Active" position in CD
mode or to the "Inactive" position in radio mode.
If the bass and treble
settings are modified,
the ambience selected is
cancelled. The selection of an ambience imposes specific bass and treble
settings.
To obtain the desired sound quality, modify the
treble and bass settings or select a pre-defined
ambience setting.
If the ambience setting
is changed, the previous
settings for treble and bass
are cancelled.
If the "Driver" / "All
passengers" distribution
is modified, the balance
settings are cancelled. Choosing a distribution setting imposes a specific balance setting.
Modifying one without the other is not possible.
Modify the balance setting or the distribution
setting to obtain the desired sound quality.
When changing the
balance setting, the
"Driver" / "All passengers"
distribution is cancelled.
Frequently asked questions
The following tables contain answers to the most frequently asked questions.
Audio and Telematics

401
QUESTIONANSWER SOLUTION
The quality of reception of
the radio station listened
to gradually deteriorates
or the stored stations do
not function (no sound,
87.5

MHz is displayed...). The vehicle is too far from the transmitter used by the station
listened to or there is no transmitter in the geographical area
through which the vehicle is travelling.
Activate the RDS function to enable the system
to check whether there is a more power ful
transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...)
block reception, including in RDS mode. This phenomenon is normal and does not indicate
a failure of the audio equipment.
The aerial is absent or has been damaged (for example when going
through an automatic car wash or in an underground car park). Have the aerial checked by a CITROËN dealer.
Sound cut-outs of 1 to
2

seconds in radio mode. During this brief sound cut-out, the RDS searches for another
frequency giving better reception of the station. Deactivate the RDS function if the phenomenon is
too frequent and always on the same route.
The traffic announcement
(TA) is displayed. I do
not receive any traffic
information. The radio station does not broadcast traffic information.
Tune to a radio station which broadcasts traffic
information.
The stored stations are not
found (no sound, 87.5 MHz
is displayed...). An incorrect waveband is selected.
Press the BAND button to return to the waveband
on which the stations are stored.
Audio and Telematics

402

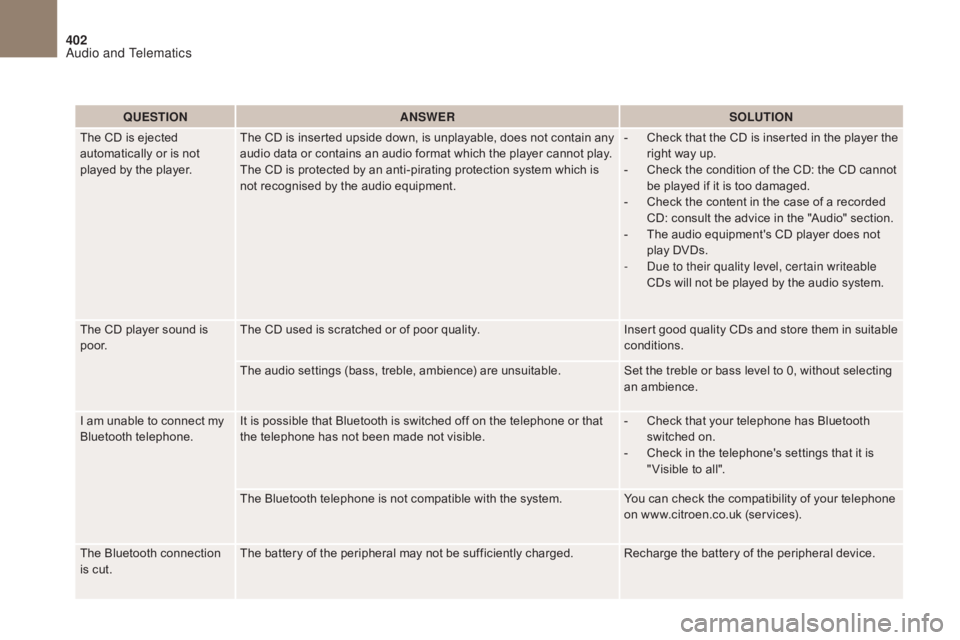

QUESTIONANSWER SOLUTION
The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is
not recognised by the audio equipment. -

C
heck that the CD is inserted in the player the
right way up.
-

C
heck the condition of the CD: the CD cannot
be played if it is too damaged.
-

C
heck the content in the case of a recorded
CD: consult the advice in the "Audio" section.
-

T
he audio equipment's CD player does not
play DVDs.
-

D
ue to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
p o o r. The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
I am unable to connect my
Bluetooth telephone. It is possible that Bluetooth is switched off on the telephone or that
the telephone has not been made not visible. -

C
heck that your telephone has Bluetooth
switched on.
-

C
heck in the telephone's settings that it is
" Visible to all".
The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone
on www.citroen.co.uk (services).
The Bluetooth connection
is cut. The battery of the peripheral may not be sufficiently charged. Recharge the battery of the peripheral device.
Audio and Telematics

403
QUESTIONANSWER SOLUTION
The message "USB
peripheral error" or
"Peripheral not recognised"
is displayed in the screen. The USB memory stick is not recognised.
The memory stick may be corrupt.
Reformat the memory stick (FAT32).
A telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection.
Modify the telephone settings to remove
automatic connection.
The Apple
® player is
not recognised when
connecting to the USB
port. The Apple® player is of a generation that is not compatible with a
USB connection. Connect the Apple® player to the AUX Jack socket
using a suitable cable (not supplied).
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system.
Connect the device to the 230 V socket, the 12 V
socket or an external power supply.
Caution
: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).
When streaming, the sound
cuts momentarily. Some models of telephone prioritise connection with the "hands-
free" profile. Delete the "hands-free" connection profile to
improve streaming.
In "Random all" play, not all
of the tracks are played. In "Random all" play, the system can only take into account up to
999 tracks.
Audio and Telematics

404
QUESTIONANSWER SOLUTION
With the engine off, the
audio system switches off
after a few minutes of use. When the engine is switched off, the audio system operating time
depends on the state of charge of the battery.
The switch-off is normal: energy economy mode is activated
automatically to preserve the state of charge of the vehicle's battery.
(See the "Energy Economy Mode" section). Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature
is too high, the audio system switches to an automatic thermal
protection mode leading to a reduction of the volume or stopping of
the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.
Audio and Telematics

406
A
ABS and EBFD systems ...............................15 4
Accessories .............................. ............ 148, 191
Accessory position
....................................... 19

1
AdBlue
® ............................... ...... 24, 37, 253, 254
Adjusting headlamps .................................... 13
4
Adjusting head restraints

................................ 94
A

djusting seat
........................................... 9
2, 93
Adjusting the date

..................................... 4
7, 55
Adjusting the height and reach of the steering wheel

.................................... 99
A

djusting the seat belt height
...............15

7, 15 8
Adjusting the time

..................................... 4
7, 55
Advice on driving

..............................
....18 4, 185
Airbags
...............

..................................... 23, 161
Airbags, curtain
..................................... 16

4, 165
Airbags, front......................................... 162, 165
Airbags, lateral
...................................... 16

4, 165
Air conditioning
...............................

................10
Air conditioning, automatic

...................10

3, 10 6
Air conditioning, manual
....................... 10

3, 104
Alarm
............................................................... 83
A

nti-lock braking system (ABS)
....................15

4
Anti-pinch
........................................................ 87
A

nti-theft
..............................
.........................18 6
Armrest, front

......................................... 11

6 , 117
Armrest, rear

................................................. 12

1
Assistance call
...............................

.......150, 152
Audible warning
............................................ 14

9
Audio streaming (Bluetooth)
......................... 3

42, 345, 388, 391
Audio system

...............................
............ 47, 377
Auxiliary
........................................................ 3

42Back-up key.....................................................
74
Battery
...............................
............ 250, 292-295
Battery, charging ............................... ............
294
Battery, remote control ........................6 9, 75 -77
Black panel ...................................................... 46
Blanking screen (snow shield)

......................2

32
Blind
.............................................................. 11

4
Blind spot sensors

........................................2

10
Blue HDi

...............
...........................................43
BlueHDi
...............................

.................... 37, 253
Bluetooth (hands-free)

................. 3
64, 365, 390
Bluetooth (telephone)
............................3

64, 365
Bonnet
...............

............................................242
Boot
........

.........................................................81
Bottle holder

...............................
...................115
Brake discs

............................................ 2
51, 252
Brake lamps

...............................
...................285
Brakes
................................................... 2

51, 252
Braking assistance system

...........................15

4
Braking, dynamic emergency
....................... 19

3
Bulbs (changing)
...............................

.... 279, 285
Cable, audio

..................................................3

42
Cable, jack

..............................
......................342
Capacity, fuel tank

..............................
..........227
CarPlay connection ....................................... 359
CD
..............................

...........................342, 385
CD, MP3

....................................... 3
42, 385, 386
Central locking

.............................. 6
5, 71, 72, 78
Centre console
.............................................. 11

5
Changing a bulb
.................................... 2

79, 285
Changing a fuse
............................................ 28

8
Changing a wheel

...............................
..........271 Changing a wiper blade

........................ 1
40, 241
Changing the remote control battery ............................................... 6 9, 75, 76
CHECK ................ ...................................... 15, 43
Checking the engine oil level
..........................33
C
hecking the levels
........................24

5 -247, 249
Checking tyre pressures (using the kit)

..............................
........ 260, 267
Checks
...............

................... 243, 244, 250 -252
Checks, routine

.....................................2

50-252
Child lock

...............................
................180, 181
Children
...............................

...........173 , 175 -178
Children (safety)
...............................

.....180, 181
Child seats

..............................
......................172
Child seats

.............1
60, 166, 167, 171-173, 179
Child seats, conventional

..............................17

2
Child seats, ISOFIX

...............................17

5 -178
Cigar lighter

...............................
....................112
C
ITROËN
L
ocalised Emergency Call...150, 152
Closing the boot

...............................
......... 65, 81
Closing the doors

.......................... 6
5, 71, 72, 80
Configuration, vehicle
......................... 1

6, 47, 53
Connection, Bluetooth
..........................3

64, 365
Connection, MirrorLink
.........................3

54, 356
Control, electric windows

................................ 87
C

ontrol, emergency boot release
...................8

2
Control, emergency door
.......................... 6

8, 74
Control, heated seats

......................................95
C

ontrols, steering mounted
.................. 3
16, 379
Control stalk, lighting

............................ 1
28, 131
Control stalk, wipers

...................... 1
37, 138, 141
Courtesy lamps

..................................... 1
33, 142
Cruise control
........................................ 21

3, 218
Cup holder

...............................
......................115
C B
Alphabetical index

407
DAB (Digital Audio Broadcasting) - Digital radio .........................3 40, 341, 383, 384
Date (setting)

...............................
.............. 47, 55
Daytime running lamps

................. 1
31, 280, 283
Deactivating the passenger airbag
............... 16

2
Deadlocking
...............................

............... 66, 72
Defrosting
...............................

...............1 0 0 , 111
Dimensions
..............................

.....................307
Dipstick
................

.................................... 33, 245
Direction indicators
....... 1

30, 131, 280, 281, 285
Display screen, instrument panel
............................................... 1

4, 15, 203
Display screen, multifunction (with audio system)

....................................... 47
D

oors
..............................................................
.80
Doors, rear

...............................
.....................181
Drawer, storage
...............................

..............120
Driving economically ....................................... 10
Driving positions (storing)

...............................97
D

ynamic stability control (DSC)
....................15

5Filling the fuel tank

........................ 2
27, 229, 230
Filter, air
...............

.........................................250
Filter, oil
......................................................... 25

0
Filter, particle
........................................ 2

49, 250
Filter, passenger compartment
..................... 25

0
Fitting a wheel

...............................
................275
Fitting roof bars

.............................................24

0
Fittings, boot

.................................................12

2
Fittings, interior
............................................. 11

2
Fittings, rear
...............................

...................121
Flap, fuel filler

...............................
......... 227, 229
Flashing indicators
................ 1

30, 131, 281, 283
Foglamps, front
.....................1

29, 136, 280, 284
Foglamps, rear
.............................. 1

29, 285, 287
Frequency (radio)

..................................33

8, 339
Fuel .......................................................... 10, 230
Fuel consumption
............................................ 10
F

uel tank................................................ 227, 229
Fusebox, dashboard
..................................... 28

8
Fusebox, engine compartment
..................... 28

8
Fuses
................

.............................................288
EF
DEco-driving ...............................
......................10
Eco-driving (advice) ........................................ 10
E
conomy mode
...............................
..............239
Electronic brake force distribution (EBFD)
...............................

.........................15 4
Emergency braking assistance (EBA)
..............................

....................15 4, 155
Emergency braking system

..........................15

5
Emergency call
..................................... 15

0, 152
Emergency warning lamps
........................... 14

9
Emissions control system, SCR

.....................25
E

nergy economy mode
.................................23

9 Gauge, fuel....................................................
227
Gearbox, automatic
........ 1
0, 198, 206, 251, 292
Gearbox, manual
.................... 1
0, 197, 206, 251
Gear efficiency indicator
...............................
20
3
Gear lever
..............................
.........................
10
Gear lever, automatic gearbox
.....................
19
8
Gear lever, manual gearbox
.........................
19
7
Glove box
......................................................
11
2
Guide-me-home
...............................
.............
132
H G
Hazard warning lamps .................................. 14 9
Hazard warning lamps, automatic operation
...............................

......................149
Headlamp adjustment
................................... 13

4
Headlamps, automatic illumination

...... 1
28, 132
Headlamps, dipped beam

..................... 2
80, 282
Headlamps, directional
................. 1

34, 135, 280
Headlamps, halogen
..................................... 28

0
Headlamps, main beam

........................ 2
80, 282
Headlamps, Xenon

....................................... 28

0
Headlamp wash
............................................ 13

9
Head restraints, front

...................................... 94
H

ead restraints, rear
....................................... 98
H

eating
................
.................................... 10, 104
Hill start assist

............................................... 2

02
Hooks
...............................

.............................12 2
Engine compartment
............................ 2

43, 244
Engine, Diesel

...................... 2

30, 244, 298, 305
Engine, petrol

................................2

30, 243, 303
Engines
..............................

.......... 302, 303, 305
Environment
...............................

............... 10, 77
Alphabetical index

408
Key ................................................ 70, 72, 76, 77
Key, electronic .............................. 70 -72, 74, 190
Keyless Entry and Starting

................. 7
0, 73, 77
Key not recognised

....................................... 19

0
Key with remote control

.................... 6
4, 65, 186
Kit, hands-free
............................. 3

64, 365, 390
Kit, puncture repair
....................................... 26

0
Kit, temporary puncture repair

.............. 2
60, 267
KM
Maintenance, routine ...................................... 10
M ap reading lamps ....................................... 14
2
Markings, identification
................................. 3

08
Massage function

...............................
............96
Mat
.......

......................................................... 11 9Memorising a speed

............................... 5
3, 213
Menu
............................3
18, 320, 324, 332, 334,

336, 346, 348, 350, 360, 362
Menu, main
..............................
.....................
380
Menus (audio)
.............................. 3
32, 334, 336
Menus (Touch screen tablet)
................
31
3, 317
Mirror, rear view
............................................
10
2
Mirrors, door.................................. 100, 101, 210
Misfuel prevention
...............................
..........
229
Mountings, Isofix
...............................
............
175
MP3 CD
................
.................................385, 386
Labels, identification
.....................................
3
08
Lamp, boot
...............................
............. 123, 144
Lamps, parking
............................................. 13
1
Lane Departure Warning System (LDWS)
....................................................... 20
9
Level, brake fluid
...........................................
24
6
Level, Diesel additive
....................................
24
9
Level, engine coolant
....................................
2
47
Level, engine oil
...............................
....... 33, 245
Level, power steering fluid
............................
24
6
Levels and checks
.........................
24
3-247, 249
Lighting, cornering
...............................
.........
13 6
Lighting, dashboard
........................................ 45
L
ighting dimmer
..............................
.... 14, 15, 45
Lighting, directional
....................................... 13
5
Lighting, guide-me home
......................
13
1, 132
Lighting, interior
.................................... 14
2, 143
Lighting, mood
..............................
................
143
Lighting, welcome
.........................................
13
3
Loading
..............................
..................... 10, 240
Load reduction mode
....................................
23
9
Localised Assistance Call
.....................
15
0, 152
Locating your vehicle
................................ 6
7, 73
Locking
............................................................ 77
L
ocking from the inside
...................................
78
L
ong objects, transporting
............................
12
1
Low fuel level
..............................
..................
227
L
I
J
Jack ....................................................... 271, 342
Jump starting .............................. ..................293
Ignition
................

................................... 188, 191
Ignition on...................................................... 191
Immobiliser, electronic
............................ 7
7, 186
Indicator, AdBlue
® range ................................. 37
I
ndicator, engine oil level .......................... 3 3, 43
Indicator lamps, operation

........................ 1
7, 26
Indicator lamps, status

.................................... 26
I

ndicators, direction
.............................. 1
30, 281
Inflating tyres

..............................
............ 10, 308
Inflating tyres and accessories (using the kit)

..............................
........ 260, 267
Input, auxiliary
...............................

................388
Instrument panels
..........................1

4-16, 43, 46
Intelligent Traction Control
............................ 15

5
ISOFIX
...............

................................... 176 , 17 7
Isofix mountings
...............................

.............175
Navigation
...............................

...... 318, 320, 324
Number plate lamps

......................................28

6
Oil change

...............................
......................245
Oil consumption

............................................24

5
OIl, engine
...............................

......................245
Opening the bonnet

......................................2

42
Opening the boot

..............................
........ 70, 81
Opening the doors

...............................
..... 70, 80
N
O
Alphabetical index
