USB Citroen DS4 2011 1.G Owner's Guide

355
7
6
8
9
2
1
04

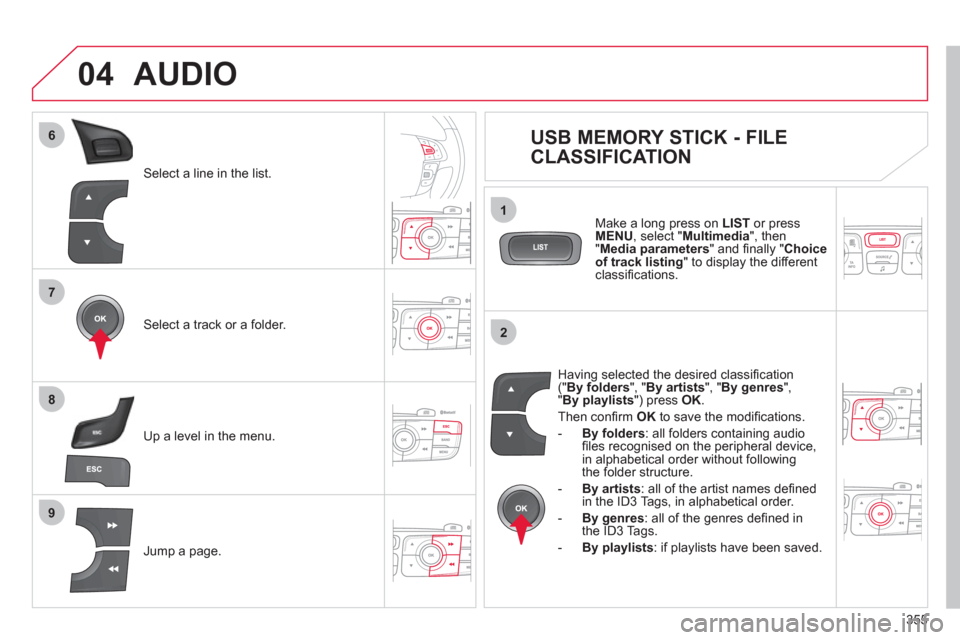

Select a line in the list.

Select a track or a folder.

Jump a page.

Up a level in the menu.

AUDIO










USB MEMORY STICK - FILE
CLASSIFICATION

Having selected the desired classifi cation
(" By folders
", " By artists
", " By genres
",
" By playlists
") press OK
.
Then confi rm OK
to save the modifi cations.


- By folders
: all folders containing audio
fi les recognised on the peripheral device,
in alphabetical order without following
the folder structure.

- By artists
: all of the artist names defi ned
in the ID3 Tags, in alphabetical order.

- By genres
: all of the genres defi ned in
the ID3 Tags.

- By playlists
: if playlists have been saved.


Make a long press on LIST
or press
MENU
, select " Multimedia
", then
" Media parameters
" and fi nally " Choice
of track listing
" to display the different
classifi cations.

356
04 AUDIO

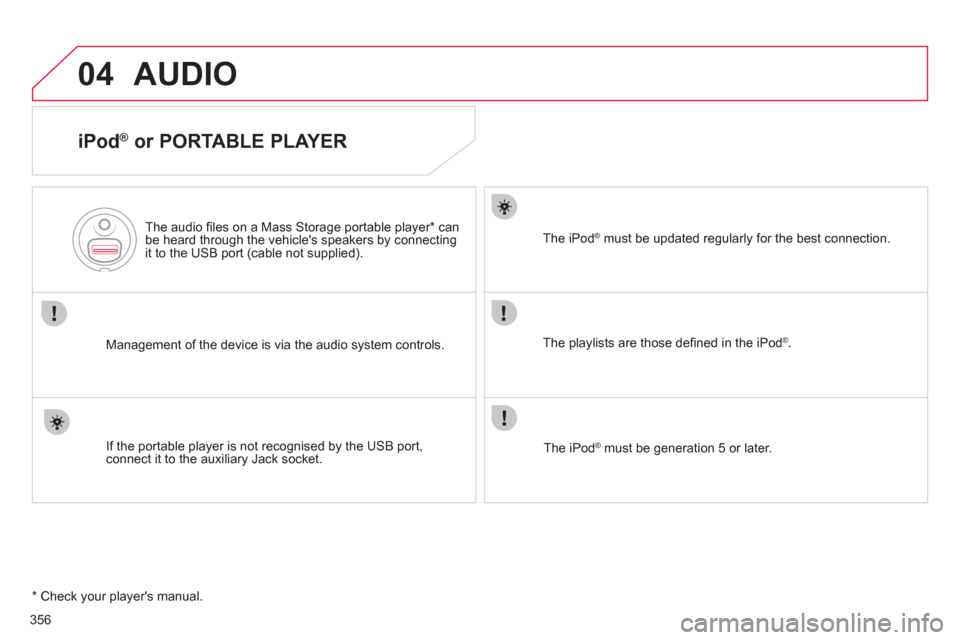

iPod ®
or PORTABLE PLAYER


Management of the device is via the audio system controls.
The audio fi les on a Mass Storage portable player * can
be heard through the vehicle's speakers by connecting
it to the USB port (cable not supplied).

If the portable player is not recognised by the USB port,
connect it to the auxiliary Jack socket.
The iPod
®
must be updated regularly for the best connection.

The playlists are those defi ned in the iPod
®
.

The iPod
®
must be generation 5 or later.


* Check your player's manual.

357
3
2
4
04
1
AUDIO

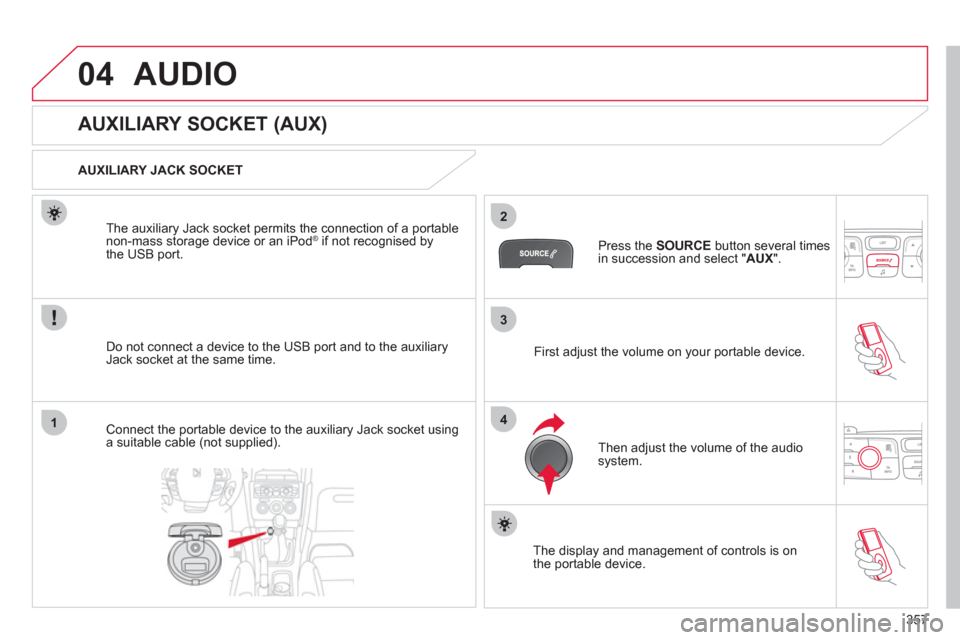

AUXILIARY SOCKET (AUX)


AUXILIARY JACK SOCKET

Do not connect a device to the USB port and to the auxiliary
Jack socket at the same time.
The auxiliary Jack socket permits the connection of a portable
non-mass storage device or an iPod
® if not recognised by
the USB port.

Connect the portable device to the auxiliary Jack socket using
a suitable cable (not supplied).
Press the SOURCE
button several times
in succession and select " AUX
".

First adjust the volume on your portable device.

Then adjust the volume of the audio
system.

The display and management of controls is on
the portable device.

375

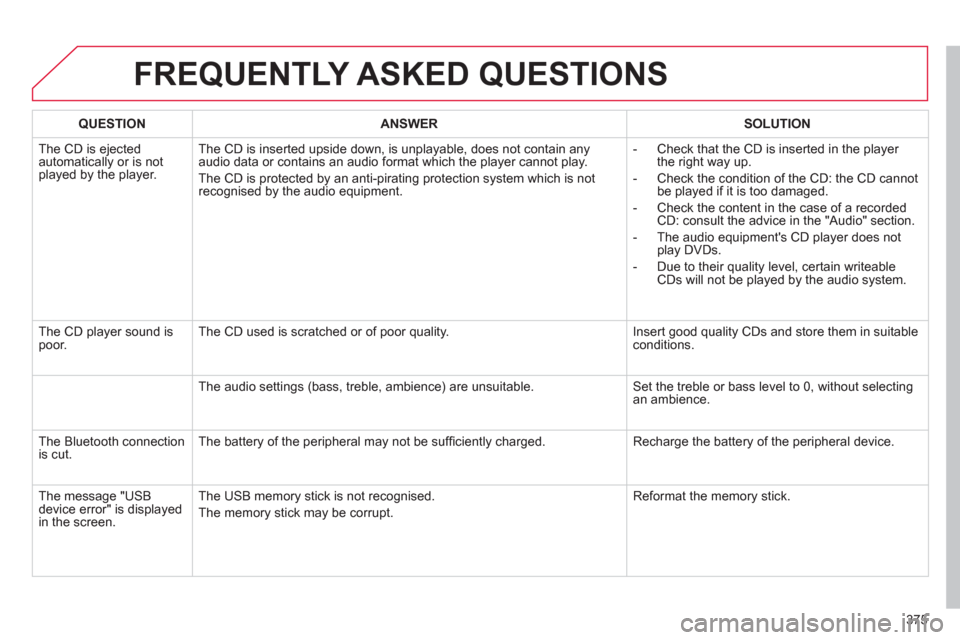

FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


The CD is ejected
automatically or is not
played by the player. The CD is inserted upside down, is unplayable, does not contain any
audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not
recognised by the audio equipment.

- Check that the CD is inserted in the player
the right way up.

- Check the condition of the CD: the CD cannot
be played if it is too damaged.

- Check the content in the case of a recorded
CD: consult the advice in the "Audio" section.

- The audio equipment's CD player does not
play DVDs.

- Due to their quality level, certain writeable
CDs will not be played by the audio system.
The CD player sound is
poor. The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable
conditions.
The audio settings (bass, treble, ambience) are unsuitable. Set the treble or bass level to 0, without selecting
an ambience.
The Bluetooth connection
is cut. The battery of the peripheral may not be suffi ciently charged. Recharge the battery of the peripheral device.
The message "USB
device error" is displayed
in the screen. The USB memory stick is not recognised.
The memory stick may be corrupt. Reformat the memory stick.

376
FREQUENTLY ASKED QUESTIONS



QUESTION



ANSWER



SOLUTION


A telephone connects
automatically,
disconnecting another
telephone. Automatic connection overrides manual connection. Modify the telephone settings to remove automatic
connection.
An iPod is not recognised
when connecting to the
USB port. The iPod is of a generation that is not compatible with the USB. Connect the iPod to the AUX Jack socket using a
suitable cable (not supplied).
The hard disk or device
is not recognised when
connecting to the USB
port. Some hard disks and devices need a power supply greater than is
provided by the audio system. Connect the device to the 230 V socket, the 12 V
socket or an external power supply.

Caution
: ensure that the device does not transmit
a voltage greater than 5 V (risk of destruction of
the system).

When streaming, the sound
cuts momentarily. Some telephones prioritise connection of the "hands-free" profi le. Delete the "hands-free" connection profi le
to improve streaming.
In "Random all" play,
not all of the tracks are
played. In "Random all" play, the system can only take into account up
to 999 tracks.
With the engine off, the
audio system switches
off after a few minutes
of use. When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio system off for a few minutes
to allow the system to cool.

381Visual search
Interior


Boot f it tings 15 3 -15 6


- rear parcel shelf

- hooks

- 12 V socket

- torch

- lashing eyes

- storage compartment


Rear seats 93 -94
Rear armrest /Ski flap 152
ISOFIX mountings 166 -168

Child seats 160 -165
Front seats 88-92
Seat belts 179 -182
Airbags 183 -18 8

Glove box 143
Deactivating the passenger's airbag 185
Interior fittings 142-152


- auxiliary socket /USB port

- cigarette lighter/12 V socket

- portable ashtray

- front armrest

- 230 V/50 Hz socket

- mats

Panoramic windscreen 12


- blind

- sun visor

387Alphabetical index
Parking brake, electric ......................... 192-199
Parking lamps ............................................. 125
Parking sensors, front ................................. 227
Parking sensors, rear .................................. 226
Parking space sensor ................................. 224
Par ticle emission filter ........................ 237, 239
Passenger compar tment filter .................... 238
Personalisation ............................................. 58
Player, CD MP3 ...................................329, 354
Port, USB ....................................144, 329, 355
Priming the fuel system .............................. 232
Protecting children ...............158 -169, 182, 185
Puncture ...................................................... 244
Radio ...................................................325, 349
Rear screen (demisting) ................................ 87
Recharging the battery ............................... 270
Reduction of electrical load ........................ 271
Reinitialising the electric windows .............. 115
Reinitialising the remote control ................. 105
Remote control .................................... 100 -106
Removable screen (snow shield) ................ 273
Removing a wheel ...................................... 252
Removing the mat ....................................... 150
Repair kit, puncture ..................................... 244
Replacing bulbs .................................. 256 -263
Replacing fuses .................................. 263 -268
Replacing the air filter ................................. 238
Replacing the oil filter ................................. 238Replacing the particle emission filter ......... 239
Replacing the passenger
compar tment filter .................................... 238
Replacing wiper blades ....................... 134, 273
Resetting the ser vice indicator ..................... 54
Resetting the trip recorder ............................ 56
Rev counter ............................................. 38 - 40
Reversing lamps ......................................... 261
Routine checks ................................... 238 -240
Running out of fuel (Diesel) ........................ 232
R
Sidelamps ........................... 122, 125, 257, 261
Side repeater............................................... 259
Ski flap ........................................................ 152
Spare wheel ................................................ 249
Speed limiter ....................................... 219, 220
Speedometer ..........................................38, 39
Spotlamps, side .................................. 127, 260
Star ting the vehicle .....................104, 203, 207
Stopping the vehicle ...................104, 203, 207
Stop & Star t .............................. 74, 83, 86, 117,
212, 231, 238, 269, 370
Storage ................ 142, 143, 145, 147, 148, 153
Storage compar tments ............................... 145
Storage drawer............................................ 151
Storage net .................................................. 153
Storing driving positions ............................... 92
Stowing rings .............................................. 153
Steering mounted controls ..................296, 347
Synchronising the remote control ............... 105
Synthesiser, voice ....................................... 310
System, navigation ......................................299 Safety for children ................158 -169, 182, 185
Satellite navigation system .........................299
Screen, colour and mapping ......... 66, 297, 336
Screen, monochrome ........................... 62, 371
Screen, multifunction
(with audio equipment) ................ 62, 66, 348
Screen menu map ....................... 336, 371, 372
Screenwash, front ....................................... 133
Seat, rear bench ........................................... 93
Seat adjustment ......................................88, 89
Seat belts ............................................. 179 -182
Seats, electric ............................................... 89
Seats, rear ..................................................... 93
Serial number, vehicle ................................ 287
Ser vice indicator ..................................... 53 -55
Ser vicing ...................................................... 34
Setting the clock ................................ 335, 369
Shor t-cut menus .........................................298
S
Table of weights ..................................283, 285
Tables of engines ................................282, 284
Tables of fuses ............................................ 263
Tank, fuel ..................................................... 119
Technical data ......................................282-287
Telephone ........................................... 316, 359
Temperature control for heated seats .......... 90
T

Temporary puncture repair kit .................... 244
Ticket holder ................................................ 142
Time ................................................... 335, 369
TMC (Traffic info) ........................................ 313
Tools ............................................................ 249
Torch ........................................................... 155
Total distance recorder ................................. 56
To w b a r ......................................................... 276
Towed loads ........................................283, 285
Towing another vehicle ............................... 274
Traction control (ASR) ................................ 177
Traffic information (TA) ....................... 314, 350
Traffic information (TMC) .................... 313, 314
Trajectory control systems .......................... 177
Trip computer ........................................... 70 -74
Trip distance recorder ................................... 56
Tyre pressures ............................................ 287
Ty r e s ............................................................. 34
Tyre under-inflation
detection ............................................. 55, 174
Under-inflation (detection) .......................... 174
Under floor storage ..................................... 156
Unlocking from the inside ........................... 107
Unlocking the boot .............................. 100, 114
Unlocking the doors .................................... 100
USB por t...................................................... 144
U
Vehicle configuration ..............................64, 69
Ventilation ............................................... 78 - 80
V
Warning lamps ......................................... 41-51
Wash-wipe, rear .......................................... 135
Weights ...............................................283, 285
Welcome lighting ......................................... 127
Window controls.......................................... 115
Wiper, rear ................................................... 135
Wiper control stalk ...................... 131, 132, 135
Wipers ........................................... 50, 131, 132
W
Xenon headlamps ....................................... 257
X
