Temporary puncture repair kit

Complete system consisting of a compressor
and a sealant car tridge which permits
temporary repair
of a tyre so that you can
drive to the nearest garage.
It is designed to repair most punctures which
could affect the tyre, located on the tyre tread
or shoulder.



Access to the kit


The speed limit sticker I
must be affixed
to the vehicle's steering wheel to remind
you that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre
repaired using this type of kit.



Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/of f "O"
switch.

C.
Deflation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compar tment housing:


- a cable with adaptor for 12 V socket,

- various inflation adaptors for
accessories, such as balls, bicycle
tyres...
F.
Sealant car tridge.

G.
White pipe with cap for repair.

H.
Black pipe for inflation.

I.
Speed limit sticker.
This kit is installed in the storage box, under the
boot floor.

Towing the vehicle
Procedure for having your vehicle towed or for towing another vehicle using a removable towing eye.
The towing eye is installed in the boot under
the floor.
To gain access to it:


)
open the boot,

)
raise the floor,

)
secure it by hooking its cord on the hook on
the rear parcel shelf suppor t,

)
remove the towing eye from the holder.



Access to the tools

General
recommendations
Obser ve the legislation in force in your
country.
Ensure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
The driver must stay at the wheel of the
towed vehicle.
Driving on motor ways and fast roads is
prohibited when towing.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing bar; rope and straps
are prohibited.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering. In the following cases, you must always call
on a professional recovery ser vice:


- vehicle broken down on a motor way or
fast road,

- when it is not possible to put the gearbox
into neutral, unlock the steering, or release
the parking brake,

- towing with only two wheels on the
ground,

- where there is no approved towing bar
available...

275Practical information


)
On the front bumper, unclip the cover by
pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
On the rear bumper, unclip the cover by
pressing at the bottom.

)
Screw the towing eye in fully.

)
Install the towing bar.

)
Switch on the hazard warning lamps on
both vehicles.

)
Move off gently, drive slowly and for a short
distance.



Towing your vehicle
Towing another vehicle


)
Place the gear lever in neutral
(position N
on the electronic gearbox
system or automatic gearbox).
Failure to obser ve this instruction
could result in damage to
certain components (braking,
transmission...) and the absence of
braking assistance the next time the
engine is started.

)
Unlock the steering by turning the key
in the ignition one notch and release the
parking brake.

)
Switch on the hazard warning lamps on
both vehicles.

)
Move off gently, drive slowly and for a short
distance.

279Practical information

"Multimedia":

audio systems, steering mounted audio controls,
speakers, Hi-Fi module, Bluetooth hands-free
system, por table satellite navigation system,
semi-integral support bracket for portable
navigation system, speed camera detector, USB
Box, reversing camera, por table video screen,
por table video suppor t bracket, 230 V/50 Hz
socket, 230 V/12 V adaptor, Wi-Fi on board...
By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact colour
of your vehicle, refills (sealant cartridge for the
temporar y puncture repair kit...), ...



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution.
You are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.

293

The system is protected in such a way that it will only
operate in your vehicle. If it is to be installed in another
vehicle, contact a CITROËN dealer for confi guration of
the system.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
294
296
297
299
312
315
325
328
334
335
336
339

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

296
02 STEERING MOUNTED CONTROLS





- Change the audio source.
Long press: mute.


- Volume increase.


- Volume decrease.


- Radio: display the list of stations.
Media: display the list of tracks.


- Rotation.
Radio -automatic selection of
next/previous frequency.
Media: previous/next track.

- Press then rotation: access to
6 preset stations.





- TEL button:
Access to the telephone menu:
Call list/Contacts/Hands-free
mode/Answer/Hang up.
Accept an incoming call
Long press: reject an incoming call
or end the current call.


- Move in the menus.
Zoom the map in and out
Press: confi rmation.


- Abandon the current operation.

320
1
2
2
3
1
3
4
06 USING THE TELEPHONE


Press PHONE
twice.

Select " Dial
" then confi rm.
Select " Directory of contacts
" then
confi rm.

Dial the telephone number using the
virtual keypad selecting each number
in turn.
Confi rm " OK
" to make the call.

Press TEL
or twice on PHONE
.
CALLING A NEW NUMBER

CALLING A CONTACT

Select the desired contact and confi rm.
If access was via the PHONE
button,
select " Call
" and confi rm.

Select the number and confi rm to start
the call.








MAKING A CALL

Use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.

321
1
2
06
1
USING THE TELEPHONE



CALLING A RECENTLY ENTERED NUMBER

Press TEL
, select " Call list
" and
confi rm,

Select the desired number and confi rm.

To erase the calls log, press PHONE
twice, select " Phone
functions
" and confi rm then select " Delete calls log
" and
confi rm.



ENDING A CALL


Press PHONE
then select " OK
" to end
the call.

Or make a long press on TEL
at the
steering mounted controls.

Or make two short presses on TEL
at
the steering mounted controls.

Or press the MODE
button, as many
times as necessary, until the telephone
screen is displayed. press PHONE
to display the calls log. or
Press " OK
" to display the contextual
menu then select " Hang up
" and
confi rm.

323
06
1
2a
2b
2c
2d
USING THE TELEPHONE


OPTIONS DURING A CALL *


During a call, press the MODE
button
several times to select display of the
telephone screen, then press " OK
" to
open the contextual menu.

Select " Private mode
" and confi rm to
take the call on the handset.
Or select " Hands-free mode
" and
confi rm to take the call via the vehicle's
speakers.

Select " Put call on hold
" and confi rm to
put the current call on hold.
Or select " Resume the call
" and
confi rm to resume the call on hold.
Select " DTMF ring tones
" to use the
numerical keypad, so as to navigate
through the menu of an interactive vocal
server.

Select " Hang up
" to end the call.

*
Depending on the compatibility of the phone and your service plan.
it is possible to hold a 3-way conference call by making 2 calls
in succession. Select " Conference

mode call
" in the contextual
menu accessible using the TEL
button at the steering mounted
controls.

325

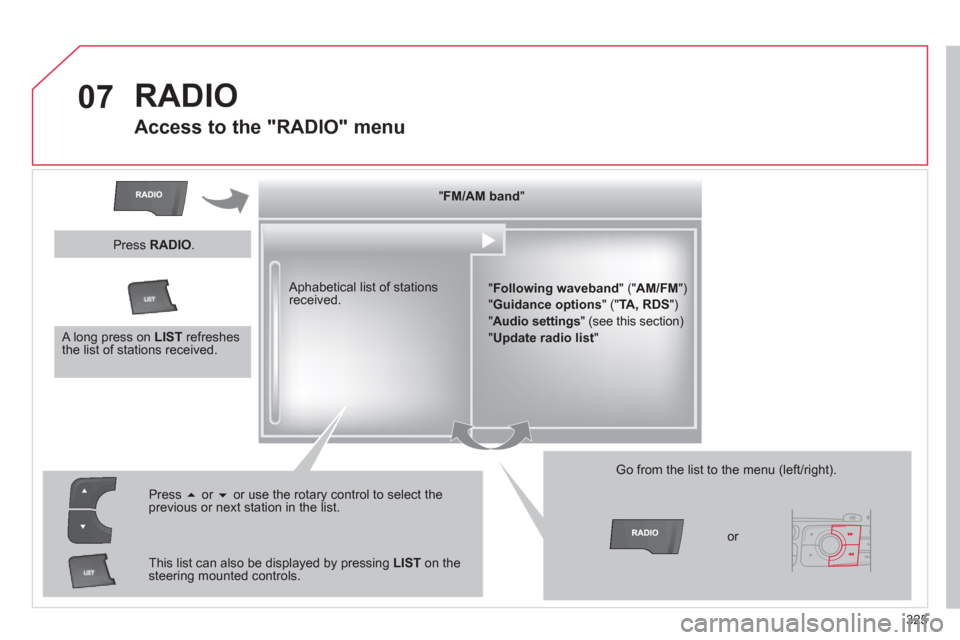

07 RADIO







Access to the "RADIO" menu


" FM/AM band
"

" Following waveband
" (" AM/FM
")
" Guidance options
" (" TA, RDS
")
" Audio settings
" (see this section)
" Update radio list
"
Aphabetical list of stations
received.

Press
or
or use the rotary control to select the
previous or next station in the list.

This list can also be displayed by pressing LIST
on the
steering mounted controls.
Go from the list to the menu (left/right).
or

A long press on LIST
refreshes
the list of stations received.
Press RADIO
.
