With the vehicle stationary, the parking brake
is automatically applied when the engine is
switched off.
Automatic application,
engine off
In the case of towing, a loaded vehicle
or parking on a gradient, turn the front
wheels towards the pavement and
engage a gear when you park.
Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed (not
flashing).
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake.
- illumination of the braking warning
lamp and of the P
warning lamp in
the control lever A
,
- display of the message
"Handbrake on". The application of the parking brake is
confirmed by:
Automatic release
The electric parking brake releases
automatically and progressively
when you
press the accelerator:
)
Manual gearbox:
press down fully on the
clutch pedal, engage first gear or reverse,
press on the accelerator pedal and move
off.
)
6-speed electronic gearbox system
:
select position A
, M
or R
then press on the
accelerator pedal.
)
Automatic gearbox
: select position D
, M
or R
then press the accelerator pedal.
When stationary, with the engine
running, do not press the accelerator
pedal unnecessarily, as you may
release the parking brake.
Full release of the parking brake is confirmed
by:
- the braking warning lamp and
the P
warning lamp in the control
lever A
going off,
- display of the message
"Handbrake off ".
Page 197 of 396
195Driving
With the engine running and the vehicle
stationary, in order to immobilise the vehicle
it is essential to manually
apply the parking
brake by pulling
control lever A
.
Immobilising the vehicle,
engine running
The emergency braking must only be
used in exceptional circumstances.
Before leaving the vehicle, ensure
that parking brake warning lamp in
the instrument panel is on fixed, not
flashing.
The application of the parking brake is
confirmed by:
- illumination of the braking
warning lamp and the P
warning
lamp in the control lever A
,
- display of the message
"Handbrake on".
When the driver’s door is opened, a message is
displayed accompanied by an audible signal, if
the parking brake has not been applied, except
in the case of an automatic gearbox with the
gear lever in position P
.
Particular situations
In cer tain situations (e.g. star ting the engine),
the parking brake can automatically alter its
force. This is normal operation.
To advance your vehicle a few centimetres
without star ting the engine, but with the ignition
on, press on the brake pedal and release the
parking brake by pulling
then releasing
the
control lever A
. The full release of the parking
brake is confirmed by the warning lamps
in the control lever A
and in the instrument
panel going off and display of the message
"Handbrake off".
If the parking brake develops a fault while
applied
or if the battery runs flat, an
emergency release is always possible.
Emergency braking
In the event of failure of the electronic
stability control system, signalled
by the illumination of this warning
lamp, braking stability is then not
guaranteed.
In this event, stability must be assured by the
driver by repeating alternate "pull-release"
actions on the control lever A
. In the event of a failure of the main ser vice
brake or in an exceptional situation (e.g. driver
taken ill, under instruction, etc) a continuous
pull on the control lever A
will stop the vehicle.
The electronic stability control provides stability
during emergency braking.
If the emergency braking malfunctions,
the message "Parking brake faulty" will be
displayed.
Page 198 of 396
In the event of the electric parking brake
malfunctioning or the battery running flat, an
emergency manual device can release the
parking brake.
)
Immobilise the vehicle (or keep it
stationary, if the brake pedal is pressed),
with the engine running, by engaging
first gear (manual gearbox), position P
(automatic gearbox) or position M
or R
(6 -speed electronic gearbox system).
Emergency release
)
Switch off the engine but leave the ignition
on. If it is not possible to immobilise the
vehicle, do not operate the control and
contact a CITROËN dealer or a qualified
workshop without delay.
)
Fetch the two vehicle blocks B
and the
release device C
, located under the boot
carpet.
)
Immobilise the vehicle by placing the blocks
in front or behind the two front wheels,
opposite to the direction of the slope.
)
Remove the storage box under the boot
carpet for access to the emergency release
device.
Page 199 of 396
197Driving
)
Pierce the protective cover D
on the tube E
with the release device.
)
Place the release device in the tube.
)
Turn the release device clockwise .
For
safety reasons
, it is essential
to continue
turning the device until it reaches its stop.
The parking brake is released.
)
Remove the release device and store it
with the blocks in the toolbox under the
boot carpet.
For safety reasons, after this operation
it is essential to contact a CITROËN
dealer or a qualified workshop without
delay to replace the protective cover.
Following an emergency unlocking,
immobilisation of the vehicle is no
longer assured once the manual
emergency release has been deployed
and the manual control does not allow
the re-application of your parking
brake.
Take no action, either on the control
lever A
, or stopping star ting the engine
while the release device is engaged.
Take care not to allow moisture or dust
in the proximity of the protective cover.
- The operation of the parking brake
reinitialises when the ignition is switched
off then on again. If the reinitialisation
of the parking brake proves impossible,
contact a CITROËN dealer or a qualified
workshop.
- The subsequent time required for
application may be longer than during
normal operation.
Page 201 of 396
199Driving
Situations
Consequences
To apply the electric parking brake:
)
immobilise the vehicle and switch off the ignition.
)
pull the control for at least 5 seconds or until application is complete.
)
switch on the ignition and check the switching on of the electric parking brake
warning lamps.
The application is slower than during normal operation.
To release the electric parking brake:
)
switch on the ignition.
)
pull the control and hold it for approximately 3 seconds then release it.
If the braking warning lamp is flashing or if the warning lamps do not come on with
the ignition on, these procedures will not work. Place the vehicle on level ground
and have it checked by a CITROËN dealer or a qualified workshop. and possibly
flashing
Display of the message " Parking brake fault
" and of the
following warning lamps:
- Only the automatic application on switching off the engine and automatic
release on acceleration functions are available.
- The manual application/release of the electric parking brake and the
emergency braking are not available.
and possibly
flashing
Battery fault
- If the battery warning lamp comes on you must stop immediately as soon as
the traffic allows. Stop and immobilise your vehicle (if necessary, place the
two chocks under the wheels).
- Apply the electric parking brake before switching off the engine.
Page 203 of 396
201Driving

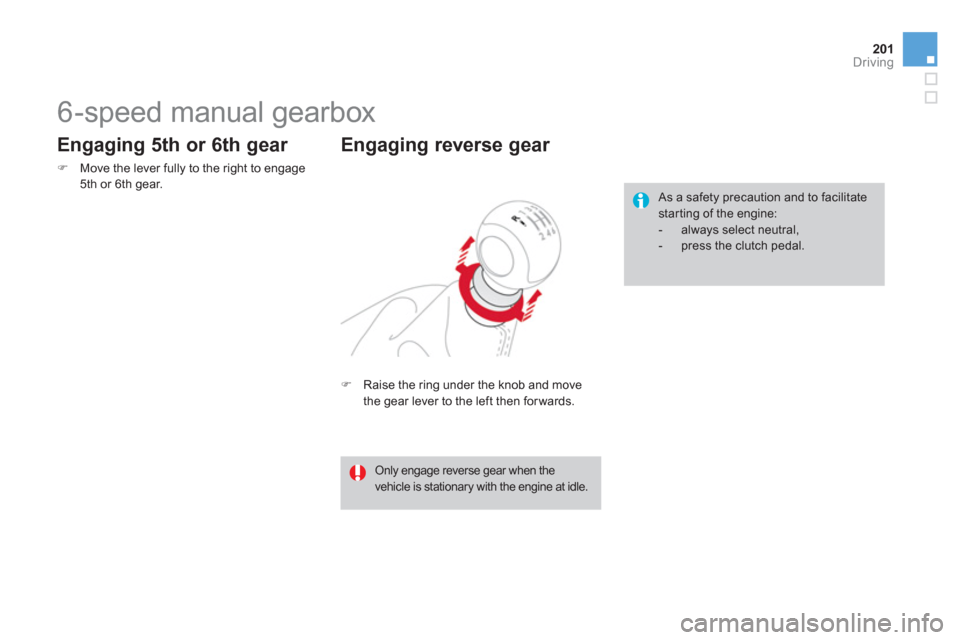

6-speed manual gearbox
)
Raise the ring under the knob and move
the gear lever to the left then for wards.
Engaging reverse gear
As a safety precaution and to facilitate
star ting of the engine:
- always select neutral,
- press the clutch pedal.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
Engaging 5th or 6th gear
)
Move the lever fully to the right to engage
5th or 6th gear.
Page 204 of 396
Gear shift indicator *
System which reduces fuel consumption by advising the driver to change up on vehicles fitted with a manual gearbox.
Operation
The system inter venes only when driving
economically.
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one or more gears. You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated.
- The system may suggest that you engage a
higher gear, if appropriate.
The information appears in the instrument
panel in the form of an arrow accompanied by
the suggested gear.
In the case of driving which makes
particular demands on the performance
of the engine (firm pressure on the
accelerator pedal, for example, when
over taking...), the system will not
recommend a gear change.
The system never suggests:
- engaging first gear,
- engaging reverse gear,
- engaging a lower gear.
*
According to engine.
Example:
- You are in third gear.
- You press the accelerator pedal
moderately.
Page 206 of 396
Gear lever positions
N.
Neutral
R.
Reverse
1, 2, 3, 4, 5, 6.
Gears in manual mode.
AUTO.
This comes on when the automatic
mode is selected. It switches off on
changing to manual mode.
Displays in the instrument panel
)
Place your foot on the brake
when this warning lamp flashes
(e.g.: when starting the engine).
Moving off
N
flashes in the instrument panel,
accompanied by an audible signal and
a message in the multifunction screen,
if the gear lever is not in position N
on
starting.
Foot on brake
flashes on the
instrument panel, accompanied by an
audible signal and a message in the
multifunction screen, if the brake pedal
is not pressed on star ting.
)
Select position N
.
)
Press the brake pedal down fully.
)
Star t the engine.
Engagement of reverse gear is
accompanied by an audible signal.
N
appears in the instrument panel
screen.
)
Select first gear (position M
or A
) or
reverse (position R
).
)
Release the parking brake unless it is
programmed to automatic mode.
)
Take your foot off the brake pedal, then
accelerate.
AUTO
and 1
or R
appear in the
instrument panel screen.
Page 207 of 396
205Driving
For optimum acceleration, for example
when over taking another vehicle, press
the accelerator pedal firmly past the
point of resistance.
Manual gear changing
This selective gear change mode enables you
to over take, for example, while still remaining in
automatic mode.
)
Operate the +
or -
steering mounted control
paddle.
The gearbox engages the gear requested if the
engine speed permits. AUTO
is still displayed
in the instrument panel.
After a few moments without any action on
the controls, the gearbox resumes automatic
control of the gears.
Manual mode
)
After star ting the vehicle, select position A
for enter automatic mode.
Automatic mode
AUTO
and the gear engaged
appear in the instrument panel
screen.
The gearbox is then operating in auto-active
mode, without any action on the par t of the
driver. It continuously selects the most suitable
gear, depending on the:
- style of driving,
- profile of the road.
)
When the vehicle has moved off, select
position M
to change to manual mode.
AUTO
disappears and the gears
engaged appear in succession in
the instrument panel screen. The gear change requests are only carried out
if the engine speed permits.
It is not necessary to release the accelerator
during gear changes.
When braking or slowing down, the gearbox
changes down automatically to allow the
vehicle to accelerate in the correct gear.
At very low speed, if reverse gear is
requested, this will only be taken into
account when the vehicle is immobilised.
The Foot on brake
warning lamp may
flash in the instrument panel to prompt
you to brake.
On sharp acceleration, the gearbox will
not change up unless the driver acts on
the gear lever or the steering mounted
paddles.
Never select neutral N
while the vehicle
is moving.
Only engage reverse gear R
when the
vehicle is immobilised with the brake
pedal pressed.
Page 208 of 396
Stopping the vehicle
Operating fault
With the ignition on, the flashing of AUTO
,
accompanied by an audible signal and a
message in the multifunction screen, indicates
a malfunction of the gearbox.
Have it checked by a CITROËN dealer or a
qualified workshop.
You must press the brake pedal when
starting the engine.
Whatever the circumstances, you must
manually apply the parking brake when
parking, unless the parking brake is
programmed in automatic mode.
When immobilising the vehicle, with
the engine running, you must place the
gear lever in neutral N
.
Before carrying out any work in the
engine compar tment, check that the
gear lever is in neutral N
and that the
parking brake is applied.
Before switching off the engine, you can
choose to:
- move to position N
to engage neutral,
- leave the gear engaged; in this case, it will
not be possible to move the vehicle.
In both cases, you must apply the parking
brake to immobilise the vehicle.
