height adjustment Citroen DS4 2012 1.G User Guide

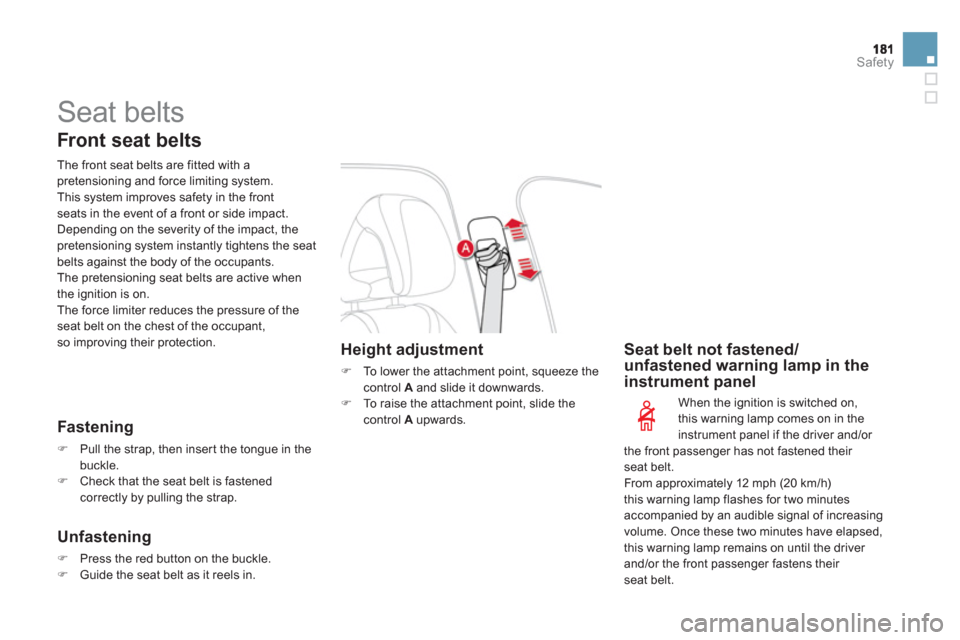

Safety
Seat belts


Front seat belts


The front seat belts are fitted with apretensioning and force limiting system.
This system improves safety in the frontseats in the event of a front or side impact.
Dependin
g on the severity of the impact, thepretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the seat belt on the chest of the occupant, so improving their protection.

Fastening
)Pull the strap, then inser t the tongue in the buckle.)Check that the seat belt is fastenedcorrectly by pulling the strap.



Unfastening
)Press the red button on the buckle.)Guide the seat belt as it reels in.

Seat belt not fastened/unfastened warning lamp in the instrument panel
When the ignition is switched on,
this warning lamp comes on in the
instrument
panel if the driver and/or
the front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h)this warning lamp flashes for two minutes
accompanied by an audible signal of increasingvolume. Once these two minutes have elapsed,
this warning lamp remains on until the driver
and/or the front passenger fastens their seat belt.
Height adjustment
) To lower the attachment point, squeeze thecontrol Aand slide it downwards. )
To raise the attachment point, slide the control Aupwards.

L K
Keeping childrensafe..............................162,166,168-170,186Key in ignition warning ..................................104
Key with remote control........ 100,102,103,106
Labels
, identification.....................................291Lamps, warning and indicator............................................r43,50, 53Lane Depar ture Warning System(LDWS) .......................................................217Level, brake fluid...........................................237Level, power steering fluid............................237Levels and checks..........................235-237,239Lighting, guide-me home.......................127,128Lighting, interior....................................r138,139Lighting bulbs (replacement) ......................................258,263Lighting control stalk .............................124, 127Lighting dimmer..................................r38,39, 59Loading....................................................34,276Load reduction mode....................................274Localised assistance call..............................296Localised emergency call.............................296Locating your vehicle....................................103Locking from the inside.................................107Locking the boot ............................................114
Long objects, transpor ting ............................154
Luggage retaining strap................................155
Oil filter..........................................................r240Oil level ....................................................54,237Opening the bonnet......................................233Opening the boot..........................................114Opening the doors........................................112Operation indicator lamps.............46,50, 51, 53
O M
Jack...............................................................251JACK socket..................................146,337, 361
J
Head restraints, rear.......................................r93Heated seats ...................................................90Heating ......................................................34,80Height and reach adjustment,
steering wheel ..............................................94Hill start assist...............................................213Hooks............................................................156
I
Ignition...........................................................104Indicators, direction..............................174, 260Indicator lamps, status....................................51Inflating accessories (using the kit)..............246Inflating tyres ..................................................34Inputs for audio system .................146,337, 361Instrument panel lighting................................59Instrument panels ..........................38-40,57,61Instrument panel screen...................38, 39,204Intelligent Traction Control............................179Interior fittings.......................................144, 145Interior mood lighting....................................139ISOFIX child seats.................................168-170ISOFIX mountings.........................................168
Main beam ....................................124,259, 260Maintenance....................................................34Map reading lamps .......................................138Markings, identification .................................291Massage function ...........................................91Mat................................................................152Menu, main...................................................352Mini fuel level................................................117Mirror, rear view..............................................97Mirrors, door......................................r95,96,218Misfuel prevention .........................................119Motorway function(direction indicators) ................................... 174Mountings for ISOFIX seats ......................... 168MP3 CD.................................................357,358Music media players.....................................332
Navigation.............................................303, 304Number plate lamps......................................264
N
