key Citroen DS4 2012 1.G User Guide

Remote control key System which permits central unlocking or locking of the vehicle using the door lock or from a distance. It is also used to locate and star t the vehicle, as well as providing protection against theft.
Unlocking the vehicle
Unfolding the key
)Press this button to unfold the key.


Complete unlocking using the
remote control


Selective unlocking using theremote control
)Press the open padlock to unlockthe vehicle completely.
)Press the open padlock once to
unlock the driver's door only.
) Press the open padlock again to unlock the other doors and the boot.


Opening the windows using the
remote contro
l
) Maintain the press on the open
padlock until the desired position
is obtained. The windows stop as soon as you release the button.



Programming the unlocking
The complete or selective door
un
locking parameter is set via the
vehicle configuration menu.

101Access
Unlocking using the key
)Turn the key for wards in the driver's door lock to unlock the vehicle completely.

Selective unlocking of the boot
)
Press the central button on theremote control to unlock the boot. The doors remain locked.
If selective unlockin
g of the boot is deactivated, pressing this button also unlocks the doors.
Programming the unlocking
The complete or selective boot
unlocking parameter is set via the
vehicle configuration menu.
Selective unlocking of the boot is
activated by default.
Each unlockin
g is confirmed by rapid flashingof the direction indicators for approximatelytwo seconds.
According to the version of your vehicle, the door mirrors unfold at the same time.
In low light, unlocking also brings on the
welcome li
ghting, both interior and exterior (see "Visibility").
Don't forget to lock the boot again by pressing the closed padlock button.

Locking the vehicle
Normal locking using the remote
control
Normal locking using the key
)Turn the key towards the rear in the driver's door lock to lock the vehicle.
) Press the closed padlock to lockthe vehicle.If one of the doors or the boot is still open, the central locking does nottake place; the vehicle locks itself then unlocks straight away, identifiable by the sound of the locks rebounding. When the vehicle is locked, if it isunlocked inadvertently, it will lock itself again automatically after thir ty secondsunless a door or the boot is opened.
The folding and unfolding of the door mirrors using the remote control can be deactivated by a CITROËN dealer or aqualified workshop. Lockin
g is confirmed by fixed lighting of the
direction indicators for approximately two seconds.
According to version, the door mirrors fold at
the same time.
In low light, locking also brings on of
the guide-me-home lighting (see "Visibility").


Closing the windows using the
remote contro
l
) Press and hold down the closed padlock until the desired position
is obtained. The windows stop
when you release the button.

When closing the windows using the remote control you must ensure thatnothing prevents them from closingcorrectly.
If you want to leave the windowspartly open, you must deactivate thevolumetric alarm monitoring.

103Access
) Press the closed padlock on the remotecontrol. This will switch on the cour tesy lamps and the direction indicators will flash for a few seconds.
Locating your vehicle

This function allows you to identify
your vehicle from a distance,
particularly in poor light. Your vehicle
must be locked.
Anti-theft protection
Electronic engine immobiliser
The key contains an electronic chip which has
a special code. When the ignition is switched on, this code must be recognised in order for star ting to be possible.
This electronic engine immobiliser locks theengine management system a few minutes
after the ignition is switched off and preventsstarting of the engine by anyone who does not
have the key.
In the event o
f a fault, you are informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle will not start; contact
a CITROËN dealer as soon as possible.
Folding the key
)First press this button to fold the key.

If you do not press the button when folding the key, there is a risk of damage to the mechanism.

Keep safely the label attached to the keys given to you on acquisition of thevehicle.

Starting the vehicle
)Inser t the key in the ignition switch.
The system recognises the star ting code. )Turn the key fully towards the dashboard toposition 3 (Starting).)When the engine starts, release the key.
) Immobilise the vehicle.)
Turn the key fully towards you to
position 1 (Stop).) Remove the key from the ignition switch.



Switching the vehicle off


A heavy object (key fob...), attached tothe key and weighing down on its shaft in the ignition switch, could cause amalfunction.
Key left in the "Ignition on"position
On opening the driver's door, an aler t message is displayed, accompanied by an audible signal, to remind you that the key is still in the ignition switch atposition 1 (Stop)
.
If the key has been left in the ignitionswitch at position 2 (Ignition on),the ignition will be switched off automatically after one hour. To switch the ignition back on, turn the key to position 1 (Stop)
, then back toposition 2 (Ignition on).

105
Access
In the event of a malfunction with the remote control, you can no longer unlock, lock or
locate your vehicle.)First of all, use the key in the lock to unlock
or lock your vehicle. )Then, reinitialise the remote control.
Fault with the remote
control

Reinitialisation
)Switch off the ignition and remove the
ignition key.)Press the closed padlock immediately for a
few seconds. )Turn the key to position 2 (Ignition on).)Switch off the ignition and remove the keyfrom the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR2032/3 volts.
)
Unclip the cover using a small screwdriver at the two cutouts. )
Lift off the cover.)
Remove the flat battery from its location. )
Fit the new battery into its location
observing the original direction of fitment. ) Clip the cover onto the casing.
If the batter
y is flat, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.

If the problem persists, contact a CITROËN dealer as soon as possible.

Do not throw the remote controlbatteries away, they contain metals which are harmful to the environment.
Take them to an approved collectionpoint.
Lost keys

Visit a CITROËN dealer with the vehicle's registration document, your personal identification documents and if possible the key code label.

The CITROËN dealer will be able to find the key code and the transponder code required toorder a new key.


Remote control

The high frequency remote control is a sensitive system; do not operate it while it is in your pocket as there is a possibility that it may unlock the vehicle, without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and out of sight of your vehicle. You run the risk of stopping it from working and the remote control would haveto be reinitialised.
The remote control does not operate when the key is in the ignition switch, even when the ignition is switched off, except for reinitialisation.


Locking the vehicle
Driving with the doors locked may make access to the passenger compar tment by theemergency services more difficult in an emergency. As a safety precaution (with children on board), remove the key from the ignition switchwhen you leave the vehicle, even for a shor t time.


Anti-theft protection

Do not make any modifications to the electronic engine immobiliser system; this couldcause malfunctions.

When purchasing a second-hand vehicle

Have the pairing of all of the keys in your possession checked by a CITROËN dealer, to ensure that only your keys can be used to open and star t the vehicle.

107
Access

Locking
)Press this button to lock the vehicle.
The red indicator lamp in the button comes on.












Central locking control


This control allows the simultaneous locking or unlocking of the doors and boot from inside the
v
ehicle.
If one of the doors is open, central locking from the inside does not take place.
Unlocking
)
Press the button again to unlock the
vehicle.
The red indicator lamp in the button goes off.
If the vehicle is locked from the outside,this button is inactive.)In this case, use the remote control or the key to unlock the vehicle or pull an interior door handle to open a door.

111Access

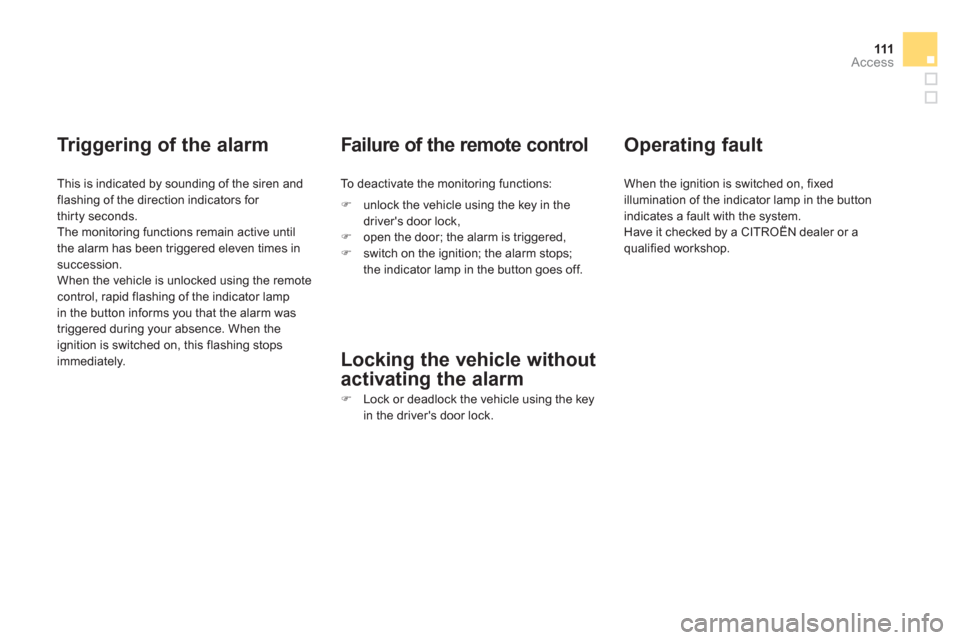

Tr iggering of the alarm


This is indicated by sounding of the siren and
flashing of the direction indicators for
thirty seconds.
The monitoring functions remain active until
the alarm has been triggered eleven times insuccession.
When the vehicle is unlocked using the remote control, rapid flashing of the indicator lamp
in the button informs you that the alarm was
triggered during your absence. When the
ignition is switched on, this flashing stops
immediately.

Failure of the remote control
To deactivate the monitoring functions:
Locking the vehicle without
activating the alarm
)
Lock or deadlock the vehicle using the key
in the driver's door lock.

)
unlock the vehicle using the key in the
driver's door lock,
) open the door; the alarm is triggered,)
switch on the ignition; the alarm stops;the indicator lamp in the button goes off.


Operating fault


When the ignition is switched on, fixed
illumination of the indicator lamp in the button
indicates a fault with the s
ystem.
Have it checked by a CITROËN dealer or a qualified workshop.

Doors
Opening
From out side
)After unlocking the vehicle completely using the remote control or the key, pull the door handle.





From inside
)
Pull the interior control lever of a front door;
this unlocks the vehicle completely.

Closing

When a door is not closed correctly:


-
when the engine is running,this warning lamp comes
on, accompanied by an aler t
message for a few seconds,
-when the vehicle is moving(speedhigher than 6 mph (10 km/h)), this warning lamp comes on, accompanied by an alert message for a few seconds.

When the selective unlocking isactivated, the first press of the remotecontrol unlocking button permitsunlocking of the driver's door only.
With the selective unlocking activated:- opening the the driver's door unlocks the driver's door only (if thevehicle has not already beencompletely unlocked).- opening one of the passenger doors unlocks the rest of thevehicle.
