Technical data
WEIGHTS AND TOWED LOADS (in kg)
Diesel enginesHDi 90 PEFHDi 110 PEFe-HDi 110 PEFHDi 160 PEF
GearboxManualManualManualElectronic gearbox systemManual
Model codes:NX...9HP09HR89HR8/S9HR8/PSRHH8
- Unladen wei
ght 1 205 1 2901 295 1 3001 320
- Kerb weight 1 280 1 365
1 370 1 375
1 395
-
Gross vehicle weight (GVW)
1 765
1 805
1 8101 815
1 880
-
Gross train weight (GTW)
on a 12 % gradient
2 865
3 105
3 110
3 115
3 180
- Braked trailer
(within GTW limit) on 12 % gradient
1 100
1 300
1 300
1 300 1 300
- Braked trailer
*
(with load transfer with the
GTW limit)
1 3501 550
1 550
1 550
1 550
-
Unbraked trailer 640
680
680680695
- Recommended nose weight 75 75 75 75 75
*
The wei
ght of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount. Warning:
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The
GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (10 0 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
291Technical data
Identifi cation markings
Various visible markings for the identification of your vehicle.
A.
Vehicle identification number (VIN) under the bonnet. This number is engraved on the bodywork near
the engine mounting.
B. Vehicle identification number on the
dashboard.
This number is indicated on a self-adhesive
label which is visible through the windscreen.
D. Tyre/paint label.This label is affixed to the driver's front pillar.
Wheels which are fitted with 225/40 R18tyres cannot be fitted with snow chains.For more information, contact a CITROËNdealer or a qualified workshop.
Low tyre pressures increase fuelconsumption.
The tyre pressures must be checked when the tyres are cold, at least oncea month. C. Manufacturer's label
.The VIN is indicated on a self-destroying labelaffixed to the driver's centre pillar. It bears the
following information:
- the tyre pressures, for unladen and ladenconditions,
- the wheel rim and tyre sizes,
- the brands of tyre recommended by themanufacturer,
- the spare tyre inflation pressure,
- the paint colour code.

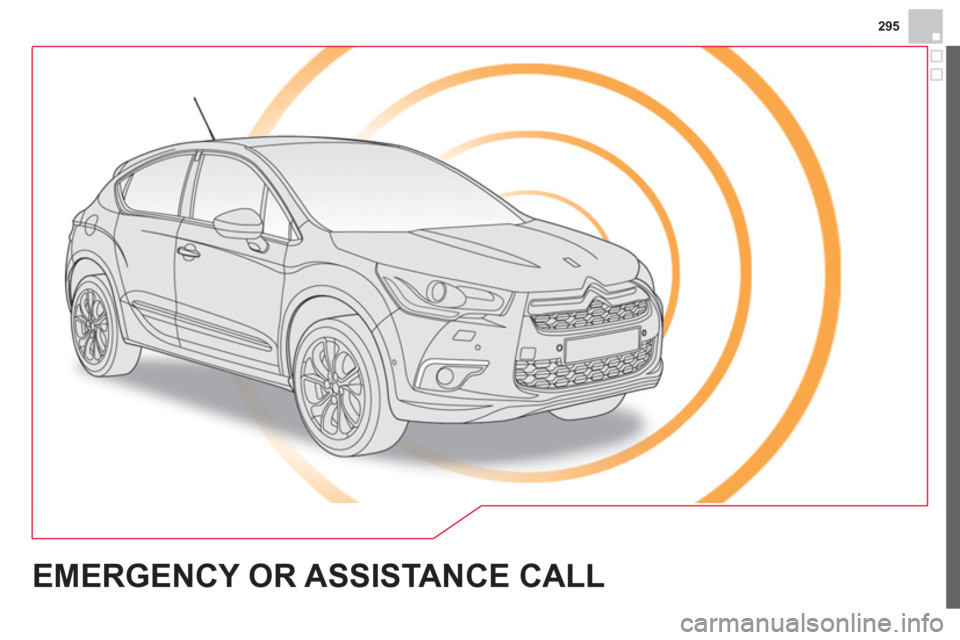

EMERGENCY OR ASSISTANCE CALL
CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the CITROËN Emergency team * .gg
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.
CITROËN LOCALISED ASSISTANCE CALL
When the ignition is switched on, thegreen LED comes on for 3 seconds
indicating that the system is operating correctly.
If the oran
ge LED fl ashes: there is asystem fault.
If the oran
ge LED is on continuously: thebackup battery must be replaced.
In either case, contact a CITRO
ËN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.
OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without the
vehicle location.
If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.
*
These services are subject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.
For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.
297
The system is protected in such a way that it will onlyoperate in your vehicle.
eMyWay
01 First steps - Control panel
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.
CONTENTS
02 Steering mounted controls
03 General operation
04 Navigation - Guidance
05 Traffic information
06 Using the telephone
07 Radio
08 Music media players
09 Audio settings
10 Configuration
11 Screen menu map
Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
298
300
30
1
303
316
319
329
332
338
339
340
3
43
SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

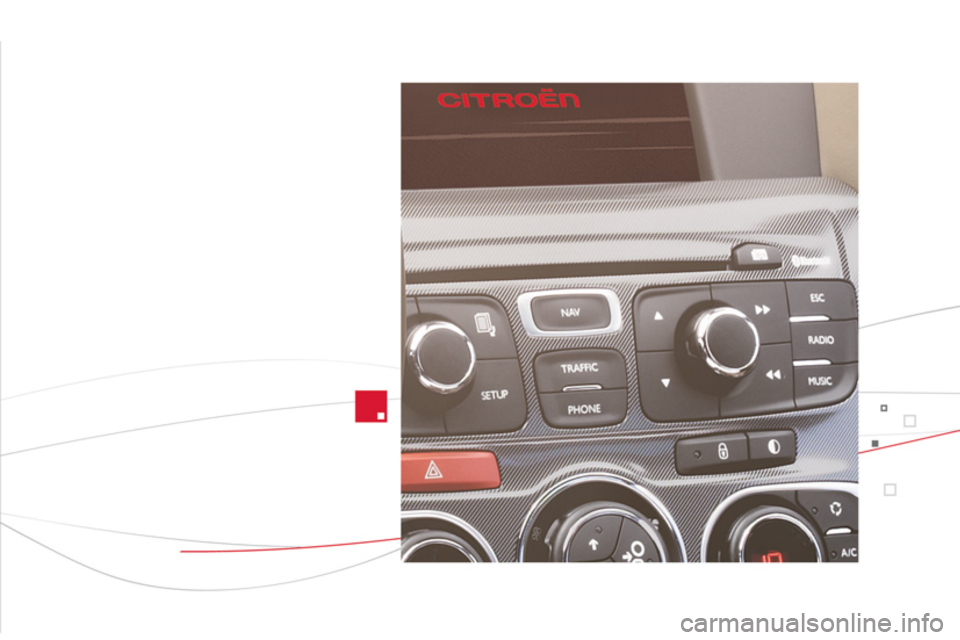

01 FIRST STEPS
Access to the "Navigation - guidance" menu and displaythe recent destinations.
Rotating control:
Short press with engine not running: on/off.
Short press with engine running: audio source off/resume.
Rotation: ad
just volume (each source is
independent, including TA messages and
navigation instructions).
Continuous press:
reinitialisation of the system.
Short press: select pre-set
r
adio station.
Long press: pre-set thecurrent station.
MODE
button: Selection of
the type of permanent display.
Long press: black screen(DARK).
Open the "Telephone " menuand display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration" menu.
Lon
g press: access
to the GPS coverage
and the navigationdemonstration mode.
Open the "Traffi c information " menu and display thecurrent traffi c alerts.
