reset Citroen DS4 2012 1.G Owner's Manual

Customisable colour instrument panel - Type 1
1.
Rev counter (x 1 000 rpm or tr/min). 2.
Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system.3.Analogue speedometer (mph or km/h). 4. Cruise control or speed limiter setting. 5.
Digital speedometer (mph or km/h).
6
.Engine oil level indicator.
Dials and screens
Control buttons
7.Ser vice indicator
(miles or km) then,
total mileage recorder.
These two functions are displayed successively on switching on the ignition.
Lighting dimmer setting (when making an
adjustment).
8. Tr i p m i l e age recorder (miles or km).9.Fuel gauge and associated low fuel
warning lamp.
10. Range (miles or km).
A.Dial COLOUR: customisation of the
background colour of the dials. B.Screen COLOUR: customisation of thebackground colour of the screens.
C.Lighting dimmer (available in night mode).D. Reminder of the ser vicing information
Reset the service indicator or the trip
mileage recorder.

39Monitoring
1. Rev counter (x 1 000 rpm or tr/min). 2.Gear shift indicator with manual gearbox
or gear lever position and gear for the electronic gearbox system or automatic gearbox. 3.Speedometer (mph or km/h).4. Central screen.
5. Fuel gauge and associated low fuel level
warning lamp.
Dials and screens
6.
Tr i p m i l e age recorder (miles or km).7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder. (miles or km)




Control buttons




















Customisable colour instrument panel - Type 2
A.Dial COLOUR: customisation of the
background colour of the dials. B. Screen COLOUR: customisation of the
background colour of the screens.C. Dashboard lighting dimmer (in night mode).D.Star t a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.

55
Monitoring
This information is displayed for a few seconds
after switching on the ignition. It informs the
driver when the next ser vice is due,
in
accordance with the manufacturer'sservicing schedule.
The point at which the ser vice is due is calculated from the last service indicator zero
reset. It is determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.
Service indicator
Between 600 miles (1 000 km)and 1 800 miles (3 000 km) remainbefore the next service is due
For a few seconds after the ignition is switched
on, the spanner symbolising the ser vice
operations comes on. The distance recorder
display line or a specific message in the instrument panel central screen indicates the
distance remaining before the next ser vice is due.
For example:1 700 miles (2 800 km) remainbefore the next service is due.
For a few seconds after the ignition is switched
on, the screen indicates:

Less than 600 miles (1 000 km) remain
before the next service is due
Example:560 miles (900 km) remain before
the next service is due.
For a few seconds after the ignition is switched on, the screen indicates:

A few seconds after the ignition is switched on, the distance recorder resumes its normaloperation. The spanner remains on
toindicate that a service must be carried out
soon.
A
few seconds after the ignition is switched on, the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.


More than 1 800 miles (3 000 km) remain before the next service is due

When the ignition is switched on, no ser vice information
appears in the instrument panel central screen.

A few seconds after the ignition is switched
on, the distance recorder resumes its normal
operation.
The spanner remains on.
The distance remaining may be weighted by the time factor, depending on the type of driving.
Therefore, the spanner may also comeon if you have exceeded the two year service interval.
Service indicator zero reset

After each ser vice, the ser vice indicator mustbe reset to zero.
The procedure for resetting to zero is as
follows: ) switch off the ignition,)
press and hold the ".../000"
trip distance
recorder zero reset button, ) switch on the ignition; the distance recorder
display begins a countdown,
) when the screen indicates "=/0"and thespanner disappears, release the button.

This operation cannot be carried out while a reminder of the ser vicing information is being displayed.
Following this operation, if you wish todisconnect the battery, lock the vehicleand wait at least five minutes for thezero reset to be registered.


Recalling the service information

You can recall the ser vice information at anytime. )Briefly press the ".../000"
trip distance recorder zero reset button.
The ser vice information is displayed for afew seconds, in the total distance recorder
line or in the type 2 instrument panel central screen.
Service overdue
For a few seconds after the ignition is switched on,
the spanner flashes
to indicate that the servicemust be carried out as soon as possible. Example:
the ser vice is overdue by 180 miles(300 km).
For a few seconds after the ignition is switched on,
the screen indicates:

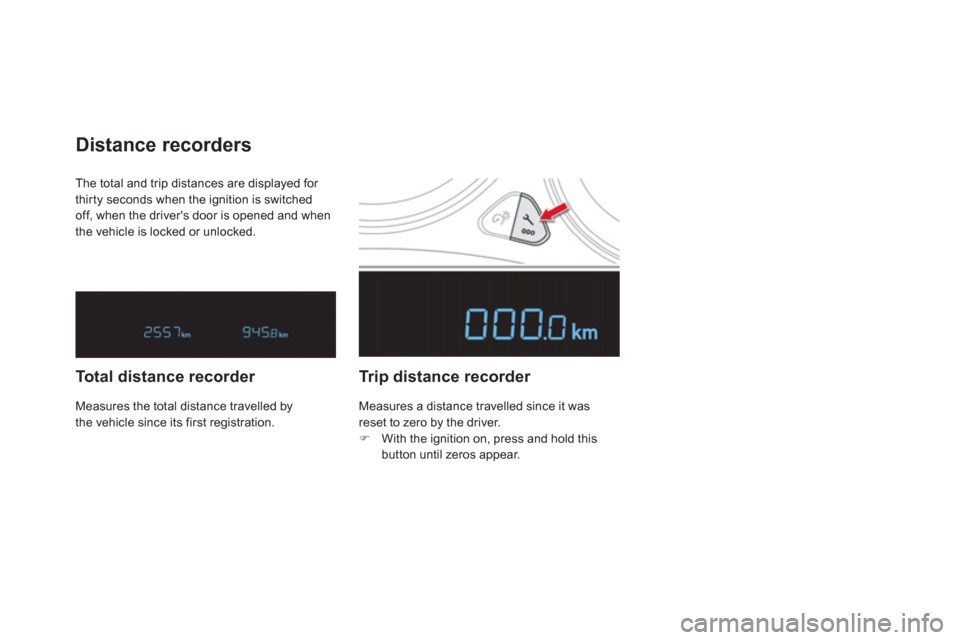

The total and trip distances are displayed for
thirty seconds when the ignition is switchedoff, when the driver's door is opened and when
the vehicle is locked or unlocked.
Distance recorders
Total distance recorder
Trip distance recorder
Measures a distance travelled since it wasreset to zero by the driver.
)
With the ignition on, press and hold this
button until zeros appear.
Measures the total distance travelled bythe vehicle since its first registration.

71Multifunction screens


- the current information tab with:
●
the range,
●
the current fuel consumption,
●
the Stop & Star t time counter.



- t
he trip "1"
tab with:
●
the distance travelled,
●
the avera
ge fuel consumption,
●
the average speed,
for the first trip.



- the trip
"2"tab with:
●
the distance travelled,
●
the avera
ge fuel consumption,
●
the average speed,
for the second trip.



Trip zero reset
)
When the trip required is displayed, press
the button on the end of the wiper stalk for
m
ore than two seconds.
Tr i p s "1"and "2"
are independent but their use is identical. For example, trip "1"
can be used for dailyfigures, and trip "2"
for monthly figures.

73Multifunction screens

Tr ip zero reset
)When the required trip is displayed, press
th
e thumb wheel located on the left of the
steering wheel
or the button on the end of
the wiper stalk
for more than two seconds.
Trips "1"
and "2"are independent but their use
is identical.
For example, trip "1"
can be used for daily figures and trip "2"
for monthly figures.

A few definitions…
This value may vary following a changein the style of driving or the relief,resulting in a significant change in thecurrent fuel consumption.

If dashes are displayed continuously while driving in place of the digits, contact a CITROËN dealer or a qualified workshop.
This function is only displayed from 20 mph (30 km/h).
The fuel consumption of your vehicle will be higher than the official figures obtainedby CITROËN during the first 3 000 miles(5 000 km) of the vehicle's life.
Range
(miles or km)This indicates the distancewhich can still be travelled with the fuelremaining in the tank in relation to the average
fuel consumption over the last few miles(kilometres) travelled.
When the ran
ge falls below 20 miles (30 km),
dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (10 0 km).

Current fuelconsumption
(mpg or l/100 km or km/l)
This is the average fuel consumption during the last few seconds.


Average fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the last trip computer zero reset.
Average speed
(mph or km/h)This is the average speed calculatedsince the last trip computer zero reset (ignition on).
Distance travelled
(miles or km)This indicates the distancetravelled since the last trip computer zero reset.
Stop & Start time counter
(minutes/seconds or hours/minutes)
If your vehicle is fitted with Stop & Star t, a timecounter calculates the time spent in STOP mode during a journey.
It resets to zero every time the ignition isswitched on with the key.

Stop & Start The Stop & Start system puts the engine temporarily into standby - STOP mode - during stops in the traffic (red lights, traffic jams, or other...). The engine restar ts automatically - START mode - as soon as you want to move off. The restar t takes place instantly, quickly and silently.
Per
fect for urban use, the Stop & Star t system reduces fuel consumption and exhaust emissions as well as the noise level when stationary.
Operation
Going into engine STOP mode
With the electronic gearbox system, for your comfor t during parking maoeuvres, STOP mode is not available for a few seconds after coming out of reverse gear.STOP mode does not affect the functionality of the vehicle, such asbraking, power steering, for example.
Never refuel with the engine in STOPmode; you must switch off the ignition with the key. Th
e "ECO"warning lamp comes on
in the instrument panel and the engine goes into standby automatically:
-with a manual gearbox , at speeds below
12 mph (20 km/h), when you put the gear lever into neutral and release the clutchpedal,
- with the 6-speed electronic gearbox
system, at a speed below 5 mph (8 km/h),
when you press the brake pedal or put thegear lever into position N.
If your vehicle is fitted with the system, a time counter calculates
the sum o
f the periods in STOP
mode during a journey. It resets
itself to zero every time the ignition
is switched on with the key.
STOP mode is not invoked when:


- the driver's door is open,

- the driver's seat belt is not
fastened,

- the vehicle has not exceeded 6 mph (10 km/h)since the last engine star t using the key,

- the electric parking brake is applied or
bein
g applied,

- the engine is needed to maintain acomfortable temperature in the passenger compartment,

- demisting is active,

- some special conditions (battery charge, engine temperature, braking assistance,ambient temperature...) where the engine isneeded to assure control of a system.


Special cases: STOP modeunavailable

In this case, the "ECO"warning lamp
flashes for a few seconds, then goes off.
This operation is per fectly normal.

02STEERING MOUNTED CONTROLS



- Change the audio source.
Long press: mute.


-
Volume increase.


- V
olume decrease.


- Radio: displa
y the list of stations.
Media: display the list o
f tracks.


- R
otation
R
adio -automatic selection of next/previous frequency.
Media: previous/next track.

-
Press then rotation: access to 6 preset stations.





- TEL button:
Access to the telephone menu:

Call list/Contacts/Hands-freemode/Answer/Hang up.
Accept an incomin
g call.

Long press: reject an incoming callor end the current call.


-
Move in the menus.

Zoom the map in and out.
Pr
ess: confi rmation.


-
Abandon the current operation.
