Opening
F Raise the front of the drawer and pull it open.
Storage drawers
Located under each front seat, except for the driver's seat on versions with electric seat.
Removal
Avoid removing the drawer completely, as
refitting it is not easy.
F
O
pen the drawer fully.
F

P
ull the drawer upwards to disengage it.
Refitting
However, if it has been completely removed, to
refit it:
F
u
se the torch to illuminate the area under
the seat,
F

e
ngage the drawer in its runners,
F

l
ift the retaining tongues and slide the
drawer under these tongues,
F

a
t the end of its travel, press down on the
drawer to engage it.
Do not place heavy objects in the
drawer.
Fittings

DS4_en_Chap04_amenagement_ed03-2015
Opening
F Lower the rear armrest.
F P ull the flap handle downwards.
F

L
ower the flap.
F

L
oad the objects from inside the boot.
Ski flap
Arrangement for storing and transporting long
objects.
F

L

ower the rear armrest for a more
comfortable position.
This also gives access to the ski flap.
Rear armrest
Comfort system for the rear passengers.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), lift the cover and
connect a suitable adaptor.
Rear fittings

121
DS4_en_Chap04_amenagement_ed03-2015
1. Rear parcel shelf (see details on a following page)
2.
Hoo

ks
(

see details on a following page)
3.
1

2 V accessory socket
(

see details on a following page)
4.
T

o r c h
(

see details on following pages)
5.
L

ashing rings
6.
Sto

rage box
(

see details on following pages)
7.
R

etaining strap
8.
Sto

rage net
Boot fittings
Fittings

DS4_en_Chap04_amenagement_ed03-2015
To remove the shelf:
F u nhook the two cords,
F

r
aise the shelf slightly, then remove it.
There are several options for storing the shelf:
-

e
ither upright behind the front seats,
-

o
r flat at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shopping
bags.
Hooks
Access to the storage
box
An additional hook under the shelf is
used to hold up the boot floor using its
cord, to facilitate access to the tools
and spare wheel or the temporary
puncture repair kit...

123
DS4_en_Chap04_amenagement_ed03-2015
F To connect a 12 V accessory (max power: 120 W), remove the cap and
connect an appropriate adaptor.
F

T
urn the key to the ignition on position.
12 V accessory socket
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For the boot lamp function, refer to the
" Visibility - Boot lamp" section.
To r c h
Operation
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.
Fittings

DS4_en_Chap04_amenagement_ed03-2015
Use
F Extract the torch from its location pulling it upwards.
F

P
ress the switch, located on the back, to
switch the torch on or off.
F

U
nfold the support, located on the back, to
set down and raise the torch; for example,
when changing a wheel.
Storing
F Put the torch back in place in its location starting with the lower part.
I

f you have forgotten to switch off the torch,
this switches it off automatically.
Storage box
F Raise the boot carpet for access to the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.

125
DS4_en_Chap04_amenagement_ed03-2015
Fittings

DS4_en_Chap05_visibilite_ed03-2015

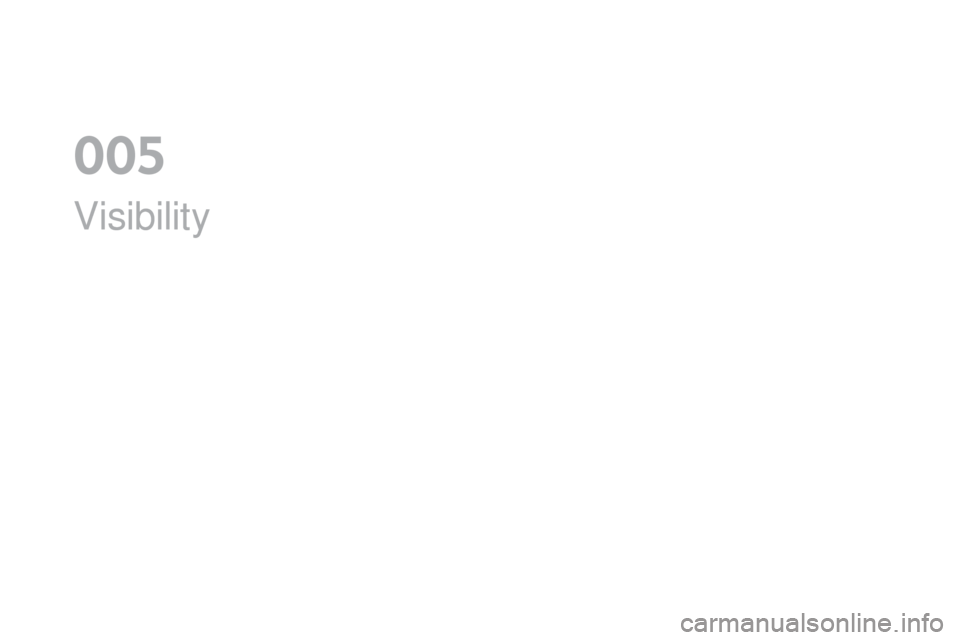

Visibility
005

DS4_en_Chap05_visibilite_ed03-2015

DS4_en_Chap05_visibilite_ed03-2015
Lighting controlsSystem for selection and control of the various front and rear lamps providing the vehicle's lighting.
The various front and rear lamps of the vehicle
are designed to adapt the driver's visibility
progressively according to the climatic
conditions:
-
s
idelamps, to be seen,
-

d
ipped beam headlamps to see without
dazzling other drivers,
-

m
ain beam headlamps to see clearly when
the road is clear.
Main lighting
Other lamps are provided to meet the
requirements of particular driving conditions:
-
r

ear foglamps,
-

f
ront foglamps with cornering lighting,
-

d
irectional headlamps for improved
visibility when cornering,
-

d
aytime running lamps to be more visible
during the day,
-

g
uide-me-home and welcome lighting to
facilitate access to the vehicle,
-

p
arking lamps as vehicle position markers.
Additional lighting
The setting of some functions can be adjusted:
- a utomatic illumination of headlamps,
-

g
uide-me-home lighting,
-

w
elcome lighting,
-
d

irectional lighting.
Programming
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Travelling abroad
Halogen and xenon headlamps
If planning to use your vehicle in a
country that drives on the other side of
the road, the headlamp dipped beams
must be adjusted to avoid dazzling on-
coming drivers.
Contact a CITROËN dealer or a
qualified workshop.
