Citroen DS4 2016 1.G Owner's Manual

139
DS4_en_Chap05_visibilite_ed03-2015
Windscreen and headlamp wash
Windscreen wash
F Pull the windscreen wiper stalk towards you. The windscreen wash then the
windscreen wipers operate for a fixed
period.
It operates only when the headlamps are off or
the vehicle is stationary.
Low screenwash / headlamp
wash fluid level
On vehicle fitted with headlamp washers, the
low level of this fluid is indicated by gauge in
the reservoir filler neck under the bonnet.
Checking and topping up this fluid can should
be done with the engine off.
The level of this fluid should be
checked regularly, particularly during
w i n t e r.
Refer to the "Checks - Screenwash / headlamp
wash level" section for the procedure on
checking the level.
Headlamp wash
Associated with the windscreen wash, the
headlamp washers operate with the vehicle
moving, when the dipped or main beam
headlamps are on .
To reduce the consumption of the fluid
by the headlamp washers, they operate
only with every seventh use of the
screenwash or every 25 miles (40 km)
during a given journey.
Visibility

DS4_en_Chap05_visibilite_ed03-2015
To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-
h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.

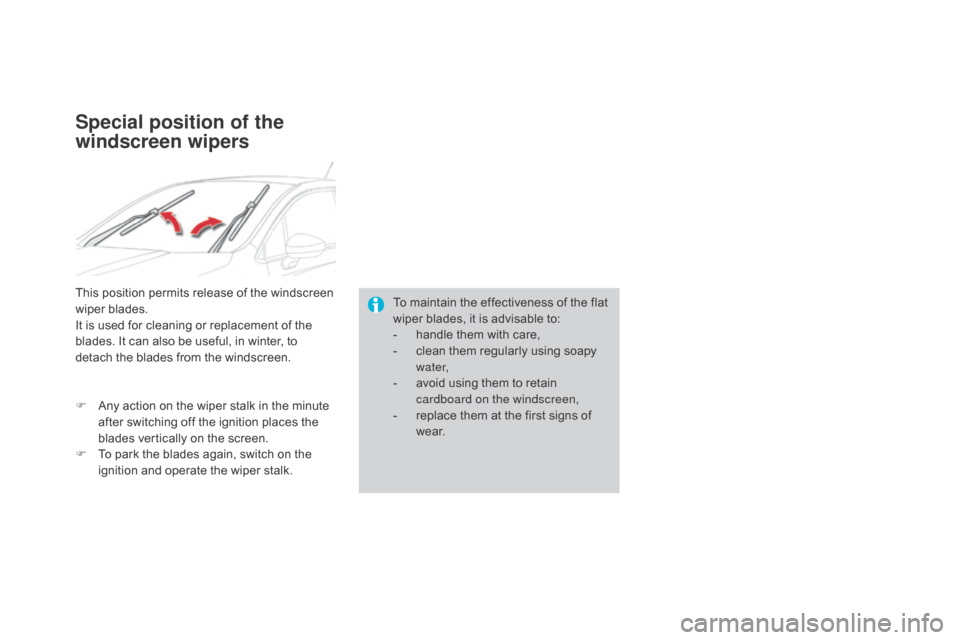

This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
Special position of the
windscreen wipers
F Any action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.

141
DS4_en_Chap05_visibilite_ed03-2015
B. Rear wiper selection ring: turn the ring to place the desired symbol against the
marking.
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle configuration
menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Programming
Rear wiper
The function is activated or
deactivated via the vehicle
configuration menu.
This function is activated by default.
Visibility

DS4_en_Chap05_visibilite_ed03-2015
1. Front courtesy lamp
2. Front map reading lamps
3.
R

ear courtesy lamp
4.
R

ear map reading lamps
Courtesy lamps
In this position, the courtesy
lamp comes on gradually:
Front and rear courtesy lamps
- when the vehicle is unlocked,
- w hen the key is removed from the ignition,
-

o
n opening a door,
-

w
hen the remote control locking button is
used to locate your vehicle.
It switches off gradually:
-

w
hen the vehicle is locked,
-

w
hen the ignition is switched on,
-

3
0 seconds after the last door is closed.Permanently off.
Permanent lighting. In permanent lighting mode, the
lighting time varies according to the
circumstances:
-
w ith the ignition off, approximately
ten minutes,
-

i
n energy economy mode,
approximately thirty seconds,
-

w
ith the engine running, unlimited.
When the courtesy lamp is in the
"permanent lighting" position, the rear
courtesy lamp also comes on, except if
it is in the "permanently off " position.
To switch off the rear courtesy lamp,
put it in the the "permanently off "
position.
Front and rear map reading
lamps
F With the ignition on, press the corresponding switch.
Take care not to put anything in contact
with the courtesy lamps.

143
DS4_en_Chap05_visibilite_ed03-2015
Interior mood lightingThe dimmed passenger compartment lighting improves visibility in the vehicle when
the light is poor.
At night, the audio system and digital air
conditioning illumination, together with the
illumination of the central dashboard storage
box, comes on automatically when the
sidelamps are on.The interior mood lighting switches off
automatically when the sidelamps are
switched off.
It can be switched off manually by adjusting the
instrument panel lighting dimmer button to one
of the lowest settings.
On certain versions, three LEDs, located in the
rail linking the rear view mirror to the roof come
on as well.
Switching on
Switching off
Visibility

DS4_en_Chap05_visibilite_ed03-2015
This comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
Boot lamp
The lighting time varies according to
the circumstances:
-
w
hen the ignition is off, approximately
ten minutes,
-
i

n energy economy mode,
approximately thirty seconds,
-
w

hen the engine is running, no limit.

145
DS4_en_Chap05_visibilite_ed03-2015
Visibility

DS4_en_Chap06_securite enfants_ed03-2015
Child safety
006

DS4_en_Chap06_securite enfants_ed03-2015

DS4_en_Chap06_securite enfants_ed03-2015

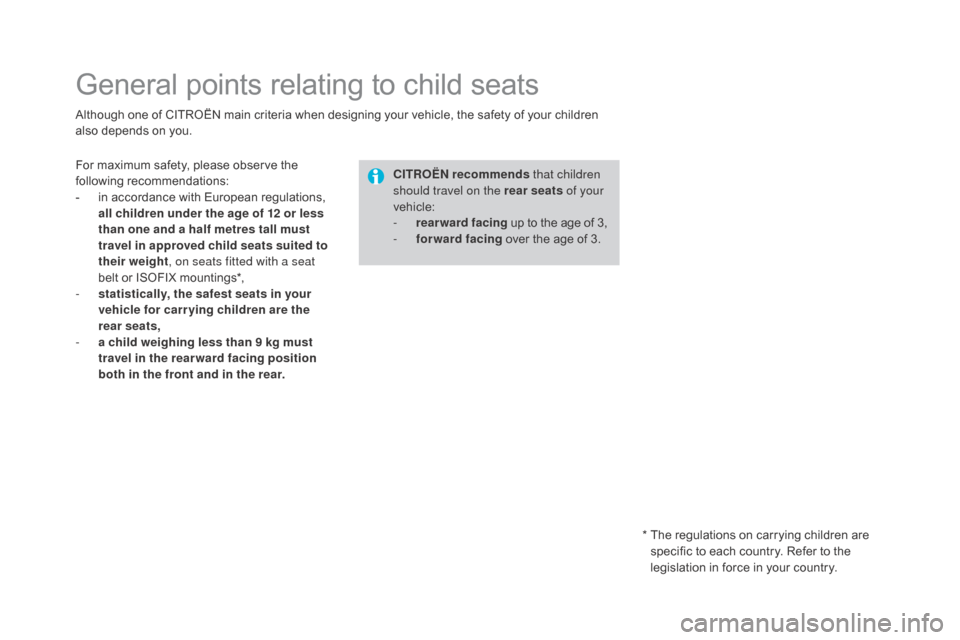

General points relating to child seats
Although one of CITROËN main criteria when designing your vehicle, the safety of your children
also depends on you.CITROËN recommends that children
should travel on the rear seats of your
vehicle:
-

r
earward facing up to the age of 3,
-

fo
rward facing over the age of 3.
For maximum safety, please observe the
following recommendations:
-

i
n accordance with European regulations,
all children under the age of 12 or less
than one and a half metres tall must
travel in approved child seats suited to
their weight , on seats fitted with a seat
belt or ISOFIX mountings*,
-

s
tatistically, the safest seats in your
vehicle for carr ying children are the
rear seats,
-

a c
hild weighing less than 9 kg must
travel in the rear ward facing position
both in the front and in the rear.
*

T
he regulations on carrying children are
specific to each country. Refer to the
legislation in force in your country.
