Changing the side spotlamps
(LEd s)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
Changing foglamp bulbs (on
models with halogen headlamps)
F Introduce a flat screwdriver in the hole in
the finisher.
F

P
ull and lever to unclip the bumper finisher.
F

R
emove the two module fixing screws and
remove it from its housing.
F

D
isconnect the bulb holder connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it. To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
1. Brake lamps (P21/5W).
2. Sidelamps (LE d s)*.
3.
di

rection indicators (PY21W amber).
4.
R

eversing lamp (P21W).
5.
R

ear foglamps (P21W).
Rear lamps
Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
o n l y.
Changing stop lamp, reversing lamp and direction indicator bulbs
These three bulbs are changed from inside the boot:
F
o
pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside, F

r
emove the foam seal,
F

u
nclip the two small secondary connectors,
F

s
pread the two tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the
lamp.
* LED: light-emitting diodes.

251
DS4_en_Chap09_info-pratiques_ed03-2015
Changing the light guides /
sidelampsNumber plate lamps (W5W)
Third brake lamp (LEds )
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
For the replacement of this type of light-
emitting diode lamp, contact a CITROËN dealer
or a qualified workshop. To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F

I

nsert a thin screwdriver into the lens
cutout.
F

P

ush it outwards.
F

R

emove the lens.
F

C

hange the faulty bulb.
To refit, press on the lens to clip it in place.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015

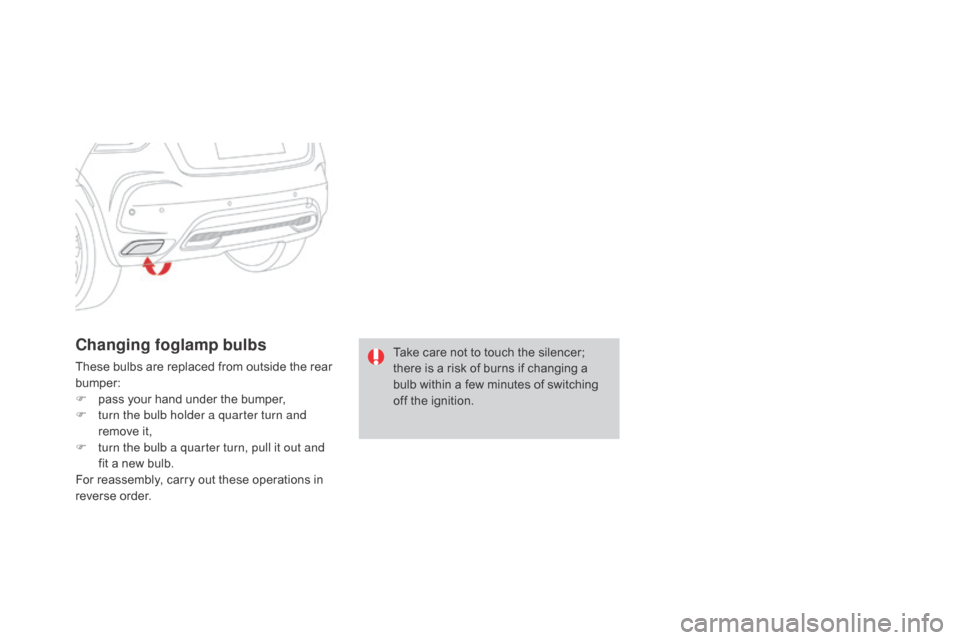

Changing foglamp bulbs
These bulbs are replaced from outside the rear
bumper:
F
p
ass your hand under the bumper,
F

t
urn the bulb holder a quarter turn and
remove it,
F

t
urn the bulb a quarter turn, pull it out and
fit a new bulb.
For reassembly, carry out these operations in
reverse order. Take care not to touch the silencer;
there is a risk of burns if changing a
bulb within a few minutes of switching
off the ignition.

253
DS4_en_Chap09_info-pratiques_ed03-2015
Changing a fuse
The extraction tweezer is fitted to the back of
the dashboard fusebox cover.
For access to it:
F
u
nclip the cover by pulling at the top right,
then left,
F

d
isengage the cover completely and turn it
ove r,
Access to the tools
F remove the carrier on which the tweezer is fitted.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Before changing a fuse:
F

t

he cause of the failure must be identified
and rectified,
F
all electrical consumers must be switched off,F the vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop. Tw e e z e r
To replace a fuse, you must:
F

u

se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a

lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.

255
DS4_en_Chap09_info-pratiques_ed03-2015
dashboard fuses
The fuseboxes are located in the lower
dashboard (left-hand side).Access to the fuses
F Refer to the paragraph "Access to the to o ls".
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Fusebox 1Fuse N° Rating Functions
F8 3 AAlarm siren, alarm ECU.
F13 10 ACigarette lighter / Front 12 V socket.
F14 10 A12 V socket in boot.
F16 3 ALighting for the large multifunctional storage unit, rear map
reading lamps, glove box illumination.
F17 3 ASun visor illumination, front map reading lamps.
F28 15 AAudio system, radio (after-market).
F30 20 ARear wiper.
F32 10 AHi-Fi amplifier.
Fusebox 2 Fuse N° Rating Functions
F36 15 ARear 12 V socket.
F37 -Not used.
F38 -Not used.
F39 -Not used.
F40 25 A230 V / 50 Hz socket.Fuse tables

257
DS4_en_Chap09_info-pratiques_ed03-2015
The fusebox is placed in the engine
compartment near the battery (left-hand side).Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Engine compartment fuses
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Fuse N°Rating Functions
F19 30 AWindscreen wipers slow / fast speed.
F20 15 AFront and rear screenwash pump.
F21 20 AHeadlamp wash pump.
F22 15 AHorn.
F23 15 ARight-hand main beam headlamp.
F24 15 ALeft-hand main beam headlamp.
F27 5 ALeft-hand dipped headlamp.
F28 5 ARight-hand dipped headlamp.
Fuse table
