Key left in the "Ignition on"
position
If the key has been left in the ignition switch
at position 2 (Ignition on), the ignition will
be switched off automatically after one hour.
To switch the ignition back on, turn the
key to position 1 (Stop) , then back to
position
2

(Ignition on) .
F Stop the vehicle.
F
W ith the engine running at idle, turn the key
to position 1 .
F

R
emove the key from the ignition switch.
F

T
o lock the steering column, turn the
steering until it locks.

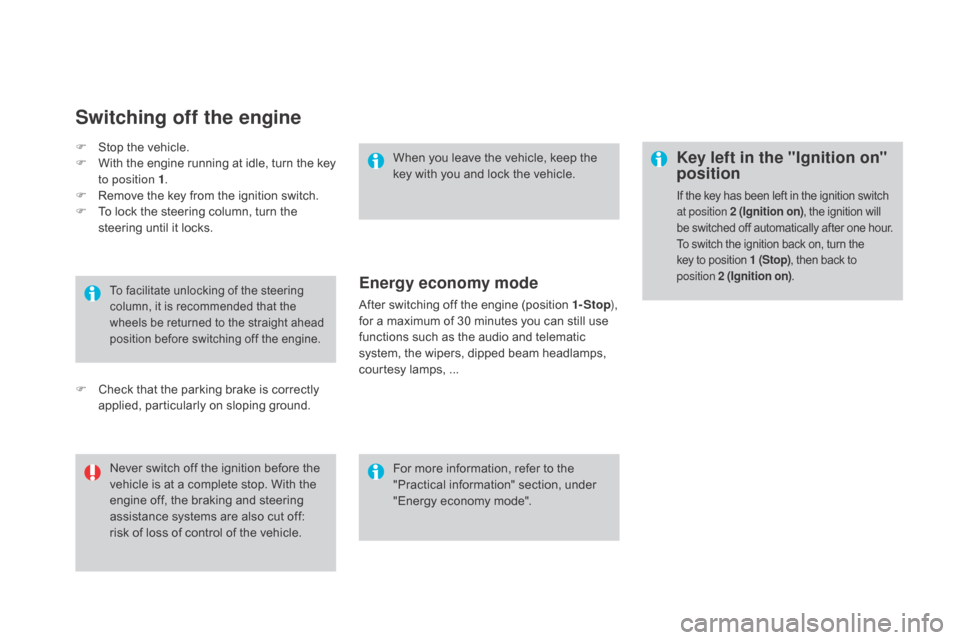

Switching off the engine
To facilitate unlocking of the steering
column, it is recommended that the
wheels be returned to the straight ahead
position before switching off the engine.
When you leave the vehicle, keep the
key with you and lock the vehicle.
For more information, refer to the
"Practical information" section, under
"Energy economy mode".
Never switch off the ignition before the
vehicle is at a complete stop. With the
engine off, the braking and steering
assistance systems are also cut off:
risk of loss of control of the vehicle.
Energy economy mode
After switching off the engine (position 1- Stop
),
for a maximum of 30 minutes you can still use
functions such as the audio and telematic
system, the wipers, dipped beam headlamps,
courtesy lamps,
...
F

C

heck that the parking brake is correctly
applied, particularly on sloping ground.

DS4_en_Chap09_info-pratiques_ed03-2015
Changing a bulb
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se a sponge and soapy water or a
pH neutral product,
F

w
hen using a high pressure
washer on persistent marks, do not
keep the lance directed towards
the lamps or their edges for too
long, so as not to damage their
protective coating and seals. Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.Light-emitting diodes (LEd)
For the replacement of this type of
lamp, go to a CITROËN dealer or a
qualified workshop.
LED (light-emitting diode) replacement
kits are available from CITROËN
dealers.
Risk of electrocution
Xenon bulbs (D1S) must be replaced
by a CITROËN dealer or a qualified
workshop.

245
DS4_en_Chap09_info-pratiques_ed03-2015
Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
Model with directional xenon and
full-LEd h eadlamps
1. daytime running lamps / sidelamps
(LEds ).
2.
di

rectional main beam / dipped beam
headlamps (
d1S

).
3.
di

rection indicators (LE
ds
).
4.
di

rectional foglamps (LE
ds

).
Model with halogen headlamps
(t y p e 1)
1. direction indicators (H21 clear).
2. di
pped beam headlamps (H7).
3.
M

ain beam headlamps (H1).
4.
da

ytime running lamps / sidelamps
(P21/5W XL).
5.
di

rectional front foglamps (H11).
Front lamps
Model with halogen headlamp
and LEd light signature (type 2)*
1. direction indicators (LEds ).
2. da
ytime running lamps / sidelamps
(LE
ds

).
3.
di

pped beam headlamps (H7).
4.
M

ain beam headlamps (H7).
5.
di

rectional front foglamps (H11).
Bulbs with lugs, type H1, H7... take care
to position them correctly to ensure the
best lighting.
*
LED: light emitting diodes.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Changing direction indicator
bulbs
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Model with halogen (type 2) and xenon
headlamps
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.
Model with halogen headlamps (t yp e 1)
F
T
urn the bulb holder a quarter of a turn and
extract it.
F

P

ull out the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Access to bulbs
Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.
F

R
emove the air deflector by unclipping
each of its three attachment points.
F

U
nclip the bonnet release cable at its
two
fixings.
F

M
ove the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).

247
DS4_en_Chap09_info-pratiques_ed03-2015
Changing dipped beam headlamp
bulbs (on models with halogen
headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

S
pread the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Changing main beam headlamp
bulbs (on models with type 1
halogen headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

S
queeze the springs to release the bulb.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs (on models with type 2
halogen headlamps)
F Remove the protective cover by pulling the tab.
F

D
isconnect the connector.
F

P
ull the bulb out and change it.
To reassemble, carry out these operations in
reverse order.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Changing daytime running lamp /
s idelamp bulbs (on models with
type 1 halogen headlamps)
F Remove the protective cover by pulling
the tab.
F

D
isconnect the wiring connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeaters
F Insert a flat screwdriver towards the centre of the repeater between the repeater and
the base of the mirror.
F

T
ilt the flat screwdriver to extract the
repeater and remove it.
F

D
isconnect the repeater connector.
To reassemble, carry out these operations in
reverse order.
Contact a CITROËN dealer or a qualified
workshop to obtain replacement repeaters.
Changing daytime running lamp /
s idelamp bulbs (on models
with type 2 halogen or xenon
headlamps)
For the replacement of this type of LED lamp,
contact a CITROËN dealer or a qualified
workshop.

249
DS4_en_Chap09_info-pratiques_ed03-2015
Changing the side spotlamps
(LEd s)
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
Changing foglamp bulbs (on
models with halogen headlamps)
F Introduce a flat screwdriver in the hole in
the finisher.
F

P
ull and lever to unclip the bumper finisher.
F

R
emove the two module fixing screws and
remove it from its housing.
F

D
isconnect the bulb holder connector.
F

T
urn the bulb holder a quarter of a turn and
extract it.
F

P
ull the bulb and change it. To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Fuse N°Rating Functions
F19 30 AWindscreen wipers slow / fast speed.
F20 15 AFront and rear screenwash pump.
F21 20 AHeadlamp wash pump.
F22 15 AHorn.
F23 15 ARight-hand main beam headlamp.
F24 15 ALeft-hand main beam headlamp.
F27 5 ALeft-hand dipped headlamp.
F28 5 ARight-hand dipped headlamp.
Fuse table

263
DS4_en_Chap09_info-pratiques_ed03-2015
Energy economy modeSystem which manages the period of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of
thirty
m

inutes.
This period may be greatly reduced if
the battery is not fully charged.
A flat battery prevents the engine from
starting (refer to the corresponding
paragraph).
If the telephone is being used at the
same time on the navigation system,
it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven.
F

I
n order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.
Load reduction modeSystem which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Practical information

DS4_en_Chap09_info-pratiques_ed03-2015
Before each use
Check that the towball is correctly fitted by verifying the following points:
- t he towball is correctly locked in place (position A ),
-

t
he security key lock is on and the key removed; the locking wheel can no longer be
operated,
-

t
he towball must no longer move at all in its carrier; try to shake it by hand.
during use
Never unlock the device when a trailer or load carrier is fitted to the towball.
Never exceed the maximum authorised weight for the vehicle plus trailer (Gross Train
Weight - GTW).
Before driving, check the adjustment of the headlamp beam height.
For more information on adjusting the headlamps, refer to the corresponding section.
After use
For journeys made without a trailer or load carrier, the trailer harness socket must be folded
away, the towball removed and the blanking plug inserted in the carrier. This measure
applies particularly if the towball could hinder visibility of the number plate or lighting.
Fitting the towball
Remove the protective plug from the carrier
and check the condition of the fixing system.
If necessary, clean the carrier with a brush or
clean cloth.
Take the towball from the storage bag.
Remove the protective cover from the ball and
the protective cap from the locking wheel.
Stow the plug, cover and cap in the storage
bag.
Check that the towball is unlocked (position B ).
If not, insert the key in the lock and turn the key
anti-clockwise to unlock the mechanism.
