Page 91 of 421
89
DS4_en_Chap02_ouvertures_ed01-2016
02
Access
Page 92 of 421
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
ERGONOMY AND C OMFORT

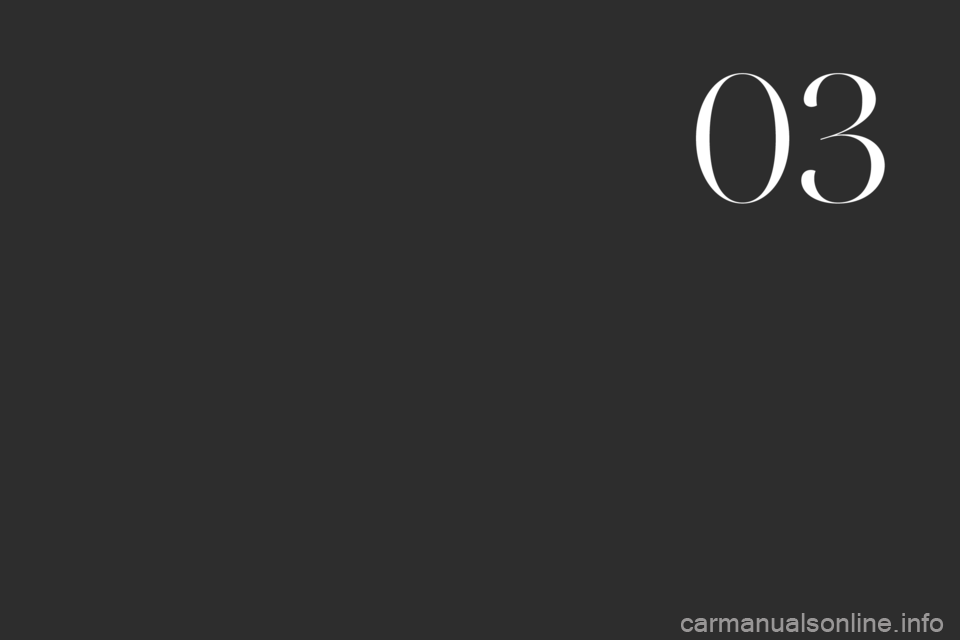

Page 93 of 421
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
03
Page 94 of 421
92
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Front seats
Manual adjustments
F Raise the control and slide the seat for wards or backwards.
F
R
elease the control to lock the position. F
P ull the control upwards to raise or push
it downwards to lower, as many times as
necessary, to obtain the position required. F
T urn the control knob to adjust the seat
backrest angle.
As a safety measure, seat adjustments should only be done when stationary.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat.
There is a risk of trapping or pinching passengers if present in the rear seats or jamming the seat if large objects are placed on the floor behind
the seat.
Forwards-backwards Seat height Seat backrest angle
03
Ease of use and comfort
Page 95 of 421
93
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Driver's seat electric
adjustments
F Push the control for wards or rear wards to slide the seat. F
T ilt the rear part of the control upwards or
downwards to obtain the required height.
F
T
ilt the front part of the control upwards or
downwards to obtain the required angle. F
T ilt the control for wards or rear wards to
adjust the angle of the seat backrest.
The electrical functions of the driver's seat are deactivated approximately one minute after
the ignition is switched off.
To reactivate them, switch on the ignition.
Before moving the seat backwards, ensure that there is nothing that might prevent the full travel of the seat.
There is a risk of trapping or pinching passengers if present in the rear seats or jamming the seat if large objects are placed on the floor behind
the seat.
Forwards-backwards Cushion height and angleSeat backrest angle
03
Ease of use and comfort
Page 96 of 421
94
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Additional adjustments
F To raise a head restraint, pull it upwards.
F T o lower the head restraint, press the lug A
and the head restraint at the same time.
F
T
o adjust the angle of the head restraint, tilt
its lower part for wards or rear wards. The head restraint is fitted with a frame
with notches which prevents it from
lowering; this is a safety device in case
of impact.
The adjustment is correct when the
upper edge of the head restraint is
level with the top of the head.
Removing a head restraint
F To remove the head restraint, press the
lug A and pull the head restraint upwards.
F
T
o put the head restraint back in place,
engage the head restraint stems in the
openings keeping them in line with the seat
back and press the lug A at the same time.
Never drive with the head restraints
removed; they must be in place and
adjusted correctly.
Head restraint height and angle
03
Ease of use and comfort
Page 97 of 421

95
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
With the engine running, the front seats can be
heated separately.
Heated seats control
Do not use the function if the seat is not
occupied.
Reduce the level of heating as soon as
possible.
Once the seat and passenger
compartment are at a comfortable
temperature, you can switch off the
function; reducing electric current
consumption also reduces fuel
consumption.Prolonged use at the highest setting
is not recommended for those with
sensitive skin.
There is a risk of burns for those that
do not have normal perception of heat
(illness, taking medicines,
...).
There is a risk of overheating the
system if material with insulating
properties is used, such as cushions or
seat covers.
Do not use the system:
-
i
f wearing damp clothing,
-
i
f child seats are fitted.
To avoid breaking the heating element
in the seat:
-
d
o not place heavy objects on the
seat,
-
d
o not kneel or stand on the seat,
-
d
o not place sharp objects on the
seat,
-
d
o not spill liquids onto the seat.
To avoid the risk of short-circuit:
-
d
o not use liquid products for
cleaning the seat,
-
n
ever use the heating function
when the seat is damp.
F
U
se the adjustment dial, placed on the side
of each front seat, to switch on and select
the level of heating required:
0 : O
ff.
1 : L
ow.
2 : M
edium.
3 : H
igh.
03
Ease of use and comfort
Page 98 of 421
96
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
F Turn the knob to obtain the desired level of lumbar support. F
P ress the front or rear of the control to
obtain the desired lumbar support. F
P
ress the switch to activate the function.
The warning lamp on the switch comes on and
the massage function is activated for a period
of 60
minutes. During this time, massage is
per formed in 6 cycles of 10 minutes each cycle
(6
minutes of massage followed by 4 minutes
break).
After an hour, the function is automatically
deactivated. The warning lamp in the switch
goes off.
Deactivation
You can deactivate the massage function at
any time by pressing the switch. The movement
in progress continues until the initial non-
massage position is reached.
Massage function
Manual lumbar adjustment Electric lumbar adjustmentThis function provides a back massage; it only
operates when the engine is running.
03
Ease of use and comfort
Page 99 of 421

97
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Storing driving positions
System which registers the electrical settings
of the driver's seat and door mirrors. It enables
you to store and recall two positions using the
buttons on the side of the driver's seat.Storing a position
F Switch on the ignition.
F A djust your seat and the door mirrors.
F
P
ress button M , then press button 1 or 2
within four seconds.
A
n audible signal indicates that the position
has been stored.
Recalling a stored position
Ignition on or engine running
F Press button 1 or 2 to recall the corresponding position.
A
n audible signal confirms that adjustment
is complete.
Storing a new position cancels the
previous position. You can interrupt the current movement
by pressing button M
, 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.
Using buttons M / 1 / 2
03
Ease of use and comfort
Page 100 of 421
98
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Rear seatsBench seat with fixed one-piece cushion and split backrests (1/3 - 2/3) which can be folded individually to adapt the load space in the boot.
F
M
ove the corresponding front seat for ward
if necessary.
F
P
osition the seat belt between the outer
and centre head restraints to avoid
trapping the belt when repositioning the
seat backrest.
F
P
lace the head restraints in the low
position.
Folding the backrest
F Pull control 1 for wards to release the seat back 2 . F
S
traighten the seat back 2 and secure it.
F
C
heck that the red indicator, located next to
the control 1 , is no longer visible.
F
P
ut the seat belt back in place on the side
of the seat backrest.
Repositioning the seat backrest
When repositioning the seat backrest,
take care not to trap the seat belts.
F
F
old the seat back 2 on to the cushion.
03
Ease of use and comfort
