Page 121 of 421
11 9
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Mats
Fitting
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
The other mats are simply placed on the
carpet.
RemovalRefitting
To refit the mat on the driver's side:
F
p osition the mat correctly,
F
r
efit the fixings by pressing,
F
c
heck that the mat is secured correctly.
To avoid any risk of jamming of the
pedals:
-
o
nly use mats which are suited
to the fixings already present in
the vehicle; these fixings must be
used,
-
n
ever fit one mat on top of another.
The use of mats not approved by
CITROËN may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
The mats approved by CITROËN have
two fixings located below the seat.
To remove the mat on the driver's side:
F
m
ove the seat as far back as possible,
F
u
nclip the fixings,
F
r
emove the mat.
03
Ease of use and comfort
Page 122 of 421
120
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
F Raise the front of the drawer and pull it open.
Storage drawers
Located under each front seat, except for the driver's seat on versions with electric seat.
Removal
Avoid removing the drawer completely, as
refitting it is not easy.
F
O
pen the drawer fully.
F
P
ull the drawer upwards to disengage it.
Refitting
However, if it has been completely removed, to
put it back in place:
F
u
se the torch to illuminate the area under
the seat,
F
e
ngage the drawer in its runners,
F
l
ift the retaining tongues and slide the
drawer under these tongues,
F
a
t the end of its travel, press down on the
drawer to engage it.
Do not place heavy objects in the
drawer.
Opening
03
Ease of use and comfort
Page 123 of 421
121
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
F Lower the rear armrest.
F P ull the flap handle downwards.
F
L
ower the flap.
F
L
oad the objects from inside the boot.
Ski flap
Arrangement for storing and transporting long
objects.
F
L
ower the rear armrest for a more
comfortable position.
This also gives access to the ski flap.
Rear armrest
Comfort system for the rear passengers.
12 V accessory socket
F To connect a 12 V accessory (max power: 120 W), lift the cover and
connect a suitable adaptor.
Rear fittings
Opening
03
Ease of use and comfort
Page 124 of 421
122
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Boot fittings
To remove the shelf:
F u nhook the two cords,
F
r
aise the shelf slightly, then remove it.
There are several options for storing the shelf:
-
e
ither upright behind the front seats,
-
o
r flat at the base of the boot.
Rear parcel shelf
The hooks can be used to secure shopping
bags.
Hooks
F To connect a 12 V accessory (max power: 120 W), remove the cap and connect an
appropriate adaptor.
F
S
witch on the ignition.
12 V accessory socket
03
Ease of use and comfort
Page 125 of 421

123
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
This is a removable lamp, fitted in the boot
wall, which can be used to light the boot or as
a torch.
For more information on the Boot lamp, refer
to the corresponding section.
To r c h
This torch operates with NiMH type
rechargeable batteries.
It has a battery life of approximately 45 minutes
and charges while you are driving.
Observe the polarities when fitting the
rechargeable batteries.
Never replace the rechargeable batteries
with normal disposable batteries.
Storing
F Put the torch back in place in its location starting with the lower part.
I
f you have forgotten to switch off the torch,
this switches it off automatically.
If the torch is not engaged correctly, it
may not charge and may not come on
when the boot is opened.
Use
F Extract the torch from its location pulling it upwards.
F
P
ress the switch, located on the back, to
switch the torch on or off.
F
U
nfold the support, located on the back, to
set down and raise the torch; for example,
when changing a wheel.
Operation
03
Ease of use and comfort
Page 126 of 421
124
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Storage box
F Raise the boot carpet for access to the storage box.
This has areas for the storage of a box of spare
bulbs, a first aid kit, two warning triangles...
It also contains the vehicle tools, the temporary
puncture repair kit...
Stowing rings
There are four stowing rings in the boot for
securing luggage:
-
t
wo are located on the boot floor,
-
t
wo are located at the aperture, in the lower
part.
03
Ease of use and comfort
Page 127 of 421
125
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
03
Ease of use and comfort
Page 128 of 421
DS4_en_Chap04_eclairage-et-visibilite_ed01-2016

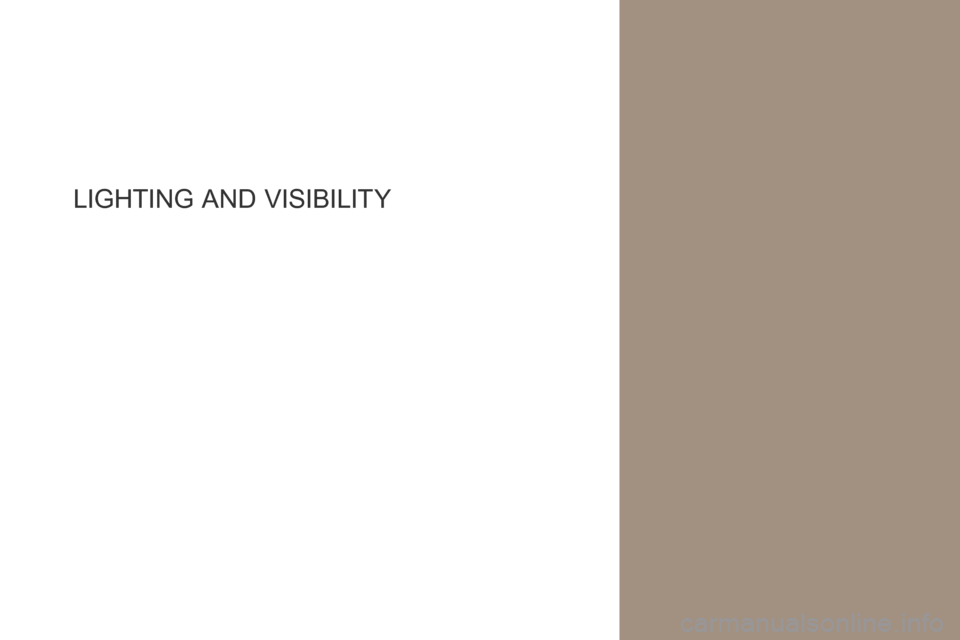

LIGHTING A ND V ISIBILITY
Page 129 of 421
DS4_en_Chap04_eclairage-et-visibilite_ed01-2016

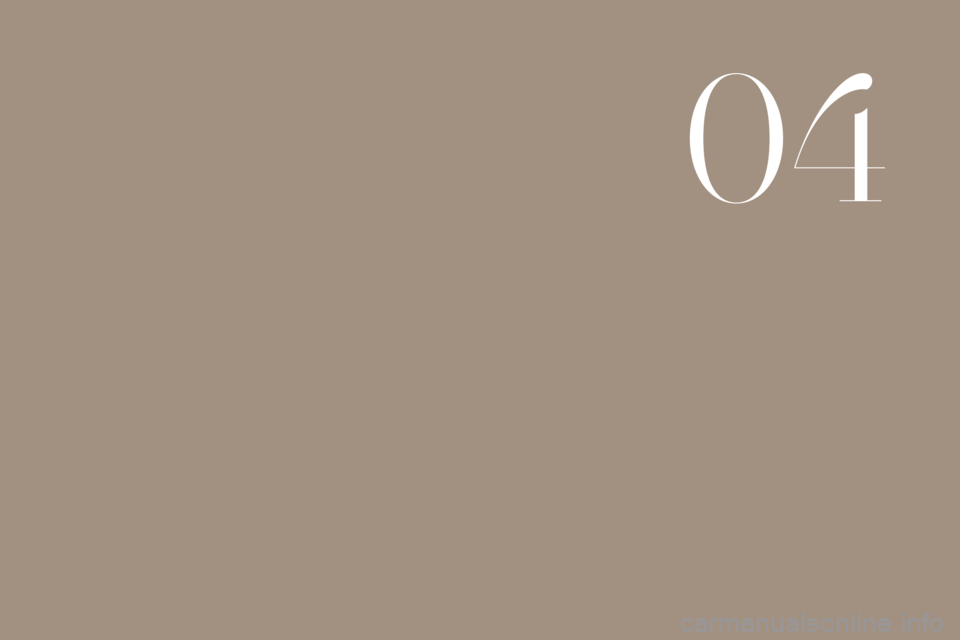

04
Page 130 of 421

128
DS4_en_Chap04_eclairage-et-visibilite_ed01-2016
Lighting controlSystem for selection and control of the various front and rear lamps providing the vehicle's lighting.
Without AUTO lighting
With AUTO lighting
Main lighting
Selection of main lighting mode
Automatic illumination of headlamps.
Dipping the headlamps
Turn the ring to place the desired symbol
against the mark.Sidelamps only.
Dipped or main beam headlamps.
Pull the stalk to switch between dipped and
main beam headlamps.
In the lighting off and sidelamps modes, the
driver can switch on the main beam headlamps
temporarily ("headlamp flash") by maintaining a
pull on the stalk.
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
Travelling abroad
Halogen and xenon headlamps
If planning to use your vehicle in a
country that drives on the other side of
the road, the headlamp dipped beams
must be adjusted to avoid dazzling on-
coming drivers.
Contact a CITROËN dealer or a
qualified workshop.
Lighting off (ignition off) /
Daytime running lamps (engine running).
Operation of the selected lighting is
confirmed by the illumination of the
corresponding indicator lamp.
04
Lighting and visibility
