Screen Citroen DS4 2017 1.G Owner's Guide

52
DS4_en_Chap01_instruments-de-bord_ed01-2016
Menus
Navigation
Telephone Radio Media Driving
Gives access to the trip computer
and, depending on version, allows
settings to be adjusted for certain
functions.Settings
Allows configuration of the display
and the system. Connected services
The connected services are
accessible via Bluetooth, Wi-
Fi, CarPlay™ or MirrorLink™
connections.
Press one of the buttons on the control panel
for direct access to a particular menu.
1.
V
olume / mute.
For more information on the touch screen
tablet, refer to the Audio and telematics
section.
01
Instruments

53
DS4_en_Chap01_instruments-de-bord_ed01-2016
"Driving" menu
The systems with settings that can be adjusted are detailed in the table below.
For more information on one of these functions, refer to the corresponding section.Button Corresponding function Comments
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
Vehicle settings Access to other functions with settings that can be adjusted. The functions are grouped
together under three tabs:
-
"[Driving assistance ]"
-

"
[Automatic parking brake]": activation/deactivation of the electric parking brake
automatic mode,
-

"
[Automatic rear wiper in reverse]": activation/deactivation of rear wiper coupled to
reverse gear.
-
"[Lighting ]"
-

"
[Guide-me-home lighting]": activation/deactivation and configuration of the duration of
the automatic guide me home lighting,
-

"
[Welcome lighting]": activation/deactivation of the exterior welcome lighting,
-

"
[Adaptive lighting]": activation/deactivation of the directional lighting or of the static
intersection lighting,
-
"[Vehicle access ]"
-

"
[Driver plip action]": activation/deactivation of the selective unlocking of the driver's
d o o r,
-

U
nlock boot only": activation/deactivation of the selective unlocking of the boot.
Select or deselect the tabs at the bottom of the screen to filter the functions required.
01
Instruments

54
DS4_en_Chap01_instruments-de-bord_ed01-2016
"Settings" menu
The functions available through this menu are detailed in the table below.Button Corresponding function Comments
Audio settings Adjustment of volume, balance...
Color schemes Choice of colour scheme.
Turn off screen Turns off the display in the the touch screen tablet (black screen).
Pressing the black screen restores the display.
System Settings Choice of units:
-

t
emperature (°Celsius or °Fahrenheit)
-

d
istance and fuel consumption (l/100 km, mpg or km/l).
Time/Date Setting the date and time.
Languages Choice of language used: French, English, Italian, Spanish, German, Dutch, Portuguese,
Polish, Turkish, Russian, Serb, Croat, Hungarian.
Screen settings Adjustment of the display settings (scrolling of text, animations...)
Calculator Display the calculator.
Calendar Display the calendar.
01
Instruments

56
DS4_en_Chap01_instruments-de-bord_ed01-2016

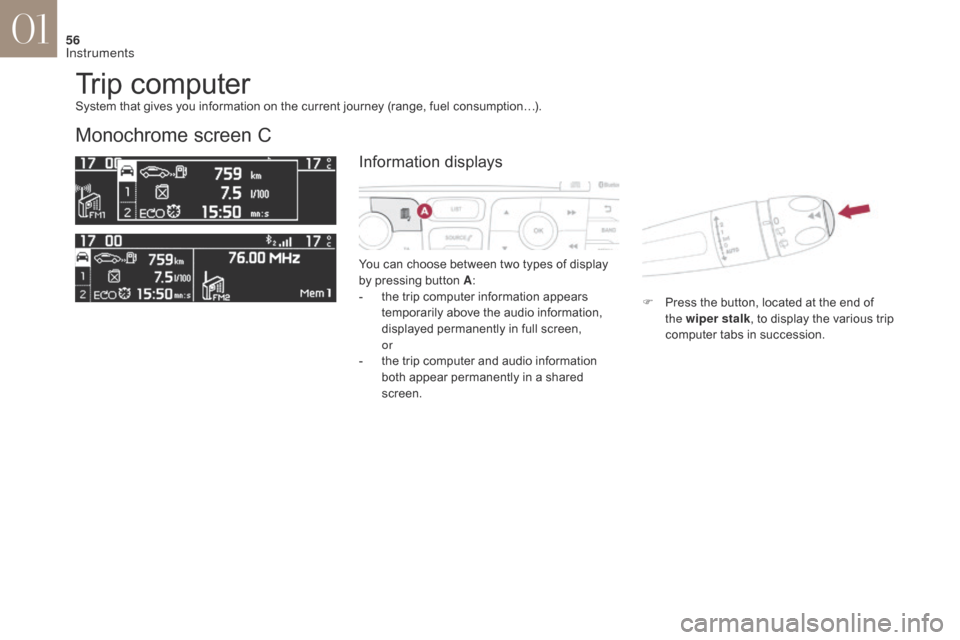

Trip computer
Monochrome screen C
You can choose between two types of display
by pressing button A:
-

t
he trip computer information appears
temporarily above the audio information,
displayed permanently in full screen,


or
-

t
he trip computer and audio information
both appear permanently in a shared
screen. F

P
ress the button, located at the end of
the wiper stalk , to display the various trip
computer tabs in succession.
System that gives you information on the current journey (range, fuel consumption…).
Information displays
01
Instruments

58
DS4_en_Chap01_instruments-de-bord_ed01-2016
Type 2 instrument panel central screen
Information displays
- Display of instantaneous information with:● t he range,
●

t
he current fuel consumption,
●

S
top & Start time counter,
-

D
isplay of trip "1" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the first trip.
-

D
isplay of trip "2" with:
●

t
he distance travelled,
●

t
he average fuel consumption,
●

t
he average speed,
f

or the second trip.
F
P
ress the button, located on the end of
the wiper stalk to display the following
information in turn:
●

r

eminder of the speed,
●
in

stantaneous information,
●

t

rip "1" ,
●

t

rip "2" ,
●

i

nformation on the current audio source,
●

b

lack screen,
●
n

avigation instructions.
Trip zero reset
F When the required trip is displayed, press the button on the end of the wiper stalk for
more than two seconds.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures and trip "2" for monthly figures.
01
Instruments

59
DS4_en_Chap01_instruments-de-bord_ed01-2016
Touch screen tablet
Display of information
Permanent display:Temporary display in a new window:
F

P
ress the end of the wiper control stalk for
access to the information and display the
different tabs.
The current instantaneous fuel consumption tab with:- the range,
- t he current fuel consumption,
-

t
he Stop & Start time counter.
The trip "1" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the first trip.
The trip "2" tab with:
-

t
he distance travelled.
-

t
he average fuel consumption,
-

t
he average speed,
f

or the second trip.
Trip reset
F Select the " Driving" menu.
The trip computer information is displayed in
the primary page of the menu.
F

P

ress one of the buttons to display the
desired tab. F

W
hen the desired trip is
displayed, press the reset button
or press and hold the end of the
wiper control stalk.
Tr i p s "1" and "2" are independent but their use
is identical.
For example, trip "1" can be used for daily
figures, and trip "2" for monthly figures.
1.


"
Instantaneous ".
2.
" T

r i p 1
".
3.


"
Tr i p 2 ".
4.
" 0

0.0 / Reset
".
01
Instruments

69
DS4_en_Chap02_ouvertures_ed01-2016
In the event of a malfunction with the remote
control, you can no longer unlock, lock or
locate your vehicle.
F
F
irst of all, use the key in the lock to unlock
or lock your vehicle.
F

T
hen, reinitialise the remote control.
Fault with the remote control
Reinitialisation
F Switch off the ignition and remove the ignition key.
F

P
ress the closed padlock immediately for a
few seconds.
F

T
urn the key to position 2 (Ignition on) .
F

S
witch off the ignition and remove the key
from the ignition switch.
The remote control is fully operational again.
Changing the battery
Battery ref.: CR2032/3 volts.
F
U
nclip the cover using a small screwdriver
at the two cutouts.
F

L
ift off the cover.
F

R
emove the flat battery from its location.
F

F
it the new battery into its location
observing the original direction of fitment.
F

C
lip the cover onto the casing.
If the battery is flat, you are informed
by illumination of this warning lamp,
an audible signal and a message in
the screen.
If the problem persists, contact a
CITROËN dealer as soon as possible.
02
Access

100
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.
Demisting / Defrosting
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Door mirrors
As a safety measure, the mirrors
should be adjusted to reduce the blind
spots.
Folding
F From outside: lock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rear wards.
If the mirrors are folded using control

A,
t

hey will not unfold when the vehicle is
unlocked. Pull again on control A .
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
The rear screen demist - defrost can only
operate when the engine is running. The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Adjustment
For more information on Demisting and
defrosting the rear screen
, refer to the
corresponding section.
03
Ease of use and comfort

103
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

T

o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D

o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O

perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E

nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T

o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
F

I

f the system does not produce cold air, switch it off and contact a CITROËN dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability. The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily
deactivate the Stop & Start system.
For more information on Stop & Star t
, refer to the corresponding section.
03
Ease of use and comfort

104
DS4_en_Chap03_ergonomie-et-confort_ed01-2016
Manual air conditioning
The air conditioning system operates only with the engine running.
1. Temperature adjustment
F Turn the dial to select a position between blue (cold)
and red (hot) so as to adjust
the temperature to your
requirements.
2. Air flow adjustment
This dial is used to increase or
decrease the speed of the air
booster fan.
3. Air distribution adjustment
This dial is used to arrange the distribution of
air in the passenger compartment by combining
several air outlets.
F

I

f you place the air flow control
in position 0 , the system is
deactivated. However, a slight flow
of air, due to the movement of the
vehicle, can still be felt.
F

T

urn the dial from position 1 to position 5 to
obtain a comfortable air flow. Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Central and side vents.
The air distribution can be
adapted by placing the dial in an
intermediate position.
Avoid driving too long with the
ventilation off (risk of misting and
deterioration of air quality).
03
Ease of use and comfort
