cruise control CITROEN DS4 2018 Owners Manual

5
Multifunction steering wheel1
Lighting controls
Direction indicators
2
Headlamp beam height adjustment
3
Speed limiter
Cruise control
Memorising speeds
4
Instrument panels
Indicator and warning lamps
Indicators
Distance recorders
5
Horn
6
Wiper control stalk
Trip computer
7
Starting – Switching off the engine
8
Steering wheel adjustment
Central switch panel
1
Hazard warning lamps
2
Central locking
3
Black panel (comfortable night driving
display)
Over view

7
Eco-driving
Eco-driving is a range of everyday practices
that allow the motorist to optimise their fuel
consumption and CO
2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently
and change up without waiting. During
acceleration, change up early.
With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear efficiency indicator invites you to
engage the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO
2 emissions and also help reduce the
background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above around 30 mph (50 km/h), close the
windows and leave the air vents open.
Consider using equipment that can help
keep the temperature in the passenger
compartment down (sunroof blind and window
blinds...).
Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached. Switch off the headlamps and front foglamps
when the ambient light level does not require
their use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving. Switch off the demisting and defrosting
controls, if these are not automatically
managed.
Switch off the heated seat as soon as possible.
As a passenger, if you avoid connecting your
multimedia devices (film, music, video game
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.
Eco-driving

10
Customisable colour
instrument panel – Type 1
Dials and display screens
5.Digital speedometer (mph or km/h).
6. Engine oil level indicator*.
7. Ser vice indicator (km or miles) then total
distance recorder.
These two functions are displayed
successively when switching on the
ignition.
Lighting dimmer setting (when making an
adjustment).
8. Trip distance recorder (miles or km).
9. Fuel gauge and associated low fuel level
warning lamp.
10. Range (km or miles) related to the fuel or
the AdBlue additive and the SCR system.Control buttons
A.Dials COLOUR: customisation of the
background colour of the dials.
B. Screens COLOUR: customisation of the
background colour of the screens.
C. Lighting dimmer (in night mode).
D. Reset the ser vice indicator or the trip
mileage recorder.
1. Rev counter (x 1,000 rpm).
2. Gear efficiency indicator or gear selector
position and gear for an automatic
gearbox.
3. Analogue speedometer (km/h or mph).
4. Cruise control or speed limiter settings.
*
D

epending on version.
01
Instruments

11
Customisable colour
instrument panel – Type 2
Dials and display screens
1.Rev counter (x 1,000 rpm).
2. Gear efficiency indicator or gear selector
position and gear for an automatic
gearbox.
3. Speedometer (mph or km/h).
4. Central screen.
Control buttons
A.Dials COLOUR: customisation of the
background colour of the dials.
B. Screens COLOUR: customisation of the
background colour of the screens.
C. Lighting dimmer (in night mode).
D. Start a manual test (procedure for
checking the status of systems and
display of vehicle alerts).
Reset the ser vice indicator or the trip
mileage recorder.
Type 2 instrument panel
central screen and controls
Display zones
5.Fuel gauge and associated low fuel level
warning lamp.
6. Trip distance recorder (miles or km).
7. Ser vice spanner (if a ser vice is due or
missed),
Total distance recorder (miles or km).
1.Cruise control or speed limiter settings.
2. Engine oil level indicator*.
Service indicator.
Range indicators (miles or km) related
to the AdBlue and the SCR system
(BlueHDi).
Trip computer.
Current audio source playing.
Repeat of the navigation instruction.
Repeat of the vehicle's speed.
Alert or information messages can also be
displayed temporarily.
*
D

epending on version.
01
Instruments

37
Monochrome screen C
Displays in the screen
This displays the following information:
- t he time,
-

t
he date,
-

t
he outside temperature (this flashes if there
is a risk of ice),
-
par

king sensor information,
-

t
he audio source being listened to,
-

t
elephone or hands-free kit information,
-

t
he trip computer,
-
a

lert messages,
-

s
ettings menus for the screen and the
vehicle equipment.
Controls
From the control panel of your audio system,
you can press:
F
button A to chooses between the display
of audio information in full screen or the
shared display of audio and trip computer
information,
F

t
he "MENU " button to access the main
menu ,
F

t
he "5" or " 6" buttons to scroll through the
items in the screen,
F

t
he "7" or " 8" buttons to change a setting
value,
F

t
he "OK" button to confirm,
or
F

t
he "Back " button to abandon the operation
in progress.
F

W

ith the exterior lighting on,
press this button to activate the
function.
F

P

ress this button again to
deactivate the function.
The essential driving information, such as
the vehicle speed, warning lamps, automatic
gearbox gear selected, cruise control or speed
limiter information, remains on in the instrument
panel.
Touch screen
You can return to the current display at
any time by pressing the blacked out
screen or one of the menu buttons.
In automatic headlamp illumination mode,
the "Black panel" function is automatically
deactivated once the ambient light
reaches an adequate level.
01
Instruments

82

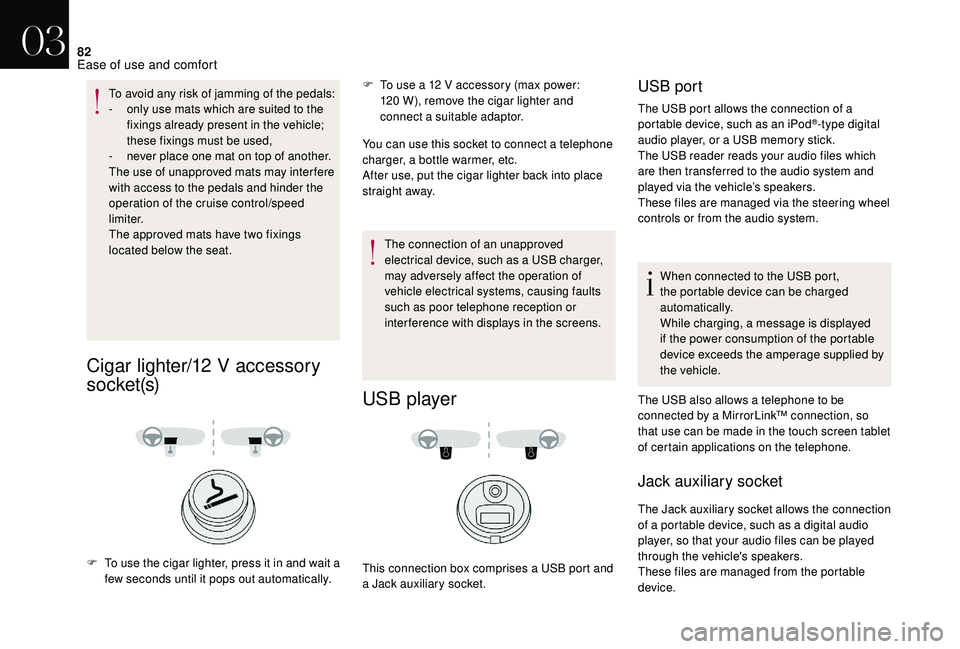

To avoid any risk of jamming of the pedals:
- o nly use mats which are suited to the
fixings already present in the vehicle;
these fixings must be used,
-

n
ever place one mat on top of another.
The use of unapproved mats may inter fere
with access to the pedals and hinder the
operation of the cruise control/speed
limiter.
The approved mats have two fixings
located below the seat.
Cigar lighter/12 V accessory
s o c ket (s)
F To use a 12 V accessory (max power: 120 W), remove the cigar lighter and
connect a suitable adaptor.
You can use this socket to connect a telephone
charger, a bottle warmer, etc.
After use, put the cigar lighter
back into place
straight away.
F

T

o use the cigar lighter, press it in and wait a
few seconds until it pops out automatically. The connection of an unapproved
electrical device, such as a USB charger,
may adversely affect the operation of
vehicle electrical systems, causing faults
such as poor telephone reception or
interference with displays in the screens.
USB player
This connection box comprises a USB port and
a Jack auxiliary socket.
USB port
The USB port allows the connection of a
portable device, such as an iPod®-type digital
audio player, or a USB memory stick.
The USB reader reads your audio files which
are then transferred to the audio system and
played via the vehicle’s speakers.
These files are managed via the steering wheel
controls or from the audio system.
When connected to the USB port,
the portable device can be charged
automatically.
While charging, a message is displayed
if the power consumption of the portable
device exceeds the amperage supplied by
the vehicle.
The USB also allows a telephone to be
connected by a MirrorLink™ connection, so
that use can be made in the touch screen tablet
of certain applications on the telephone.
Jack auxiliary socket
The Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be played
through the vehicle's speakers.
These files are managed from the portable
device.
03
Ease of use and comfort

150

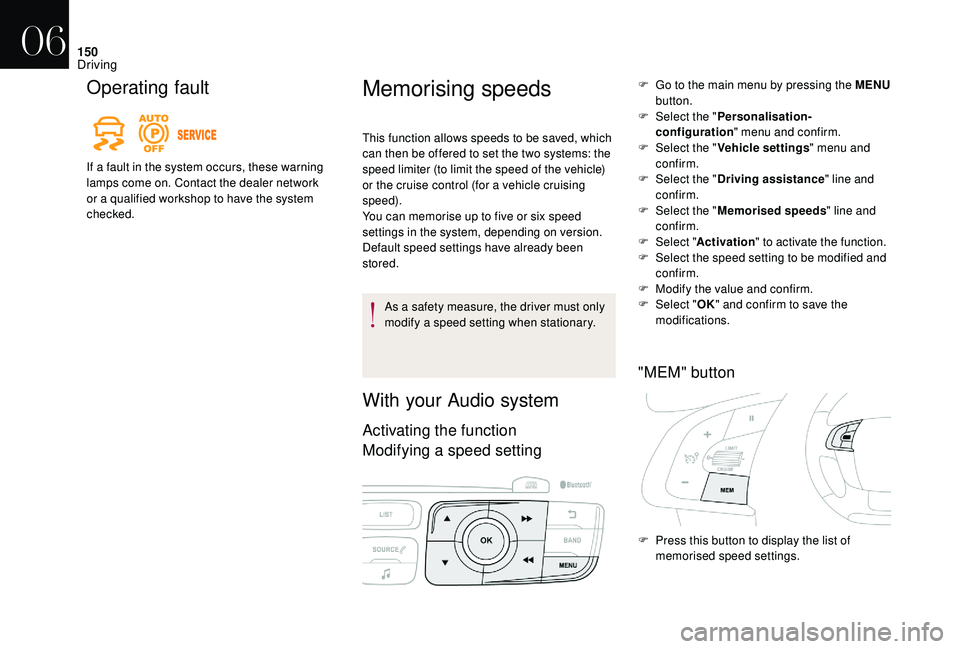

Operating fault
If a fault in the system occurs, these warning
lamps come on. Contact the dealer network
or a qualified workshop to have the system
checked.
Memorising speeds
This function allows speeds to be saved, which
can then be offered to set the two systems: the
speed limiter (to limit the speed of the vehicle)
or the cruise control (for a vehicle cruising
speed).
You can memorise up to five or six speed
settings in the system, depending on version.
Default speed settings have already been
stored.As a safety measure, the driver must only
modify a speed setting when stationary.
With your Audio system
Activating the function
Modifying a speed setting
F Go to the main menu by pressing the MENU
button.
F

Sel
ect the " Personalisation-
configuration " menu and confirm.
F

Sel
ect the " Vehicle settings " menu and
confirm.
F

Sel
ect the " Driving assistance " line and
confirm.
F

Sel
ect the " Memorised speeds " line and
confirm.
F

Sel
ect "Activation " to activate the function.
F

Sel
ect the speed setting to be modified and
confirm.
F

M
odify the value and confirm.
F

Sel
ect "OK" and confirm to save the
modifications.
"MEM" button
F Press this button to display the list of memorised speed settings.
06
Driving

151

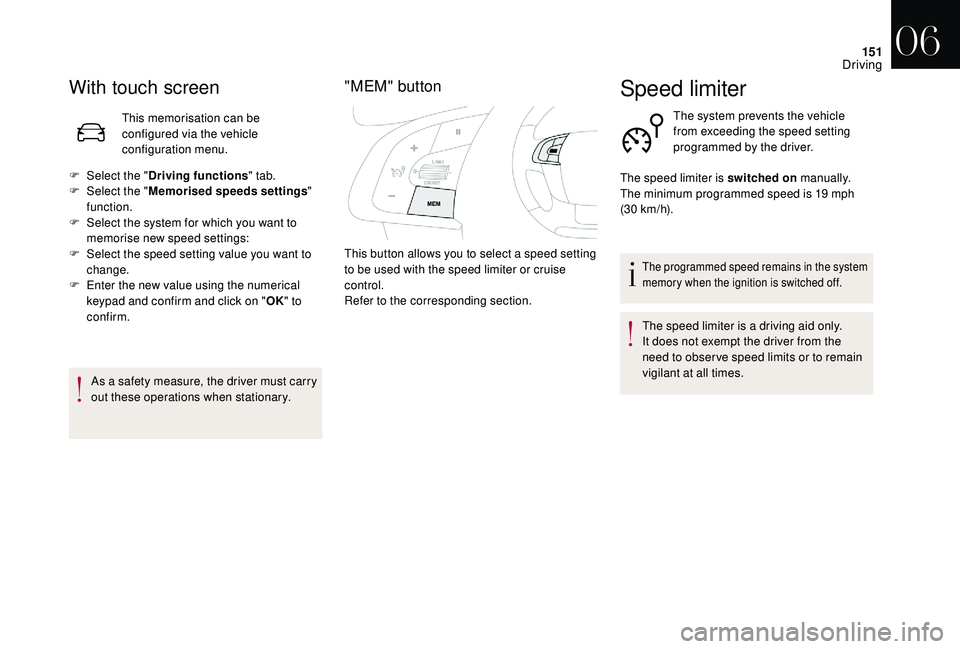

With touch screen
This memorisation can be
configured via the vehicle
configuration menu.
F

Sel

ect the " Driving functions " tab.
F

Sel

ect the " Memorised speeds settings "
function.
F

S

elect the system for which you want to
memorise new speed settings:
F

S

elect the speed setting value you want to
change.
F

E

nter the new value using the numerical
keypad and confirm and click on " OK" to
confirm.
As a safety measure, the driver must carry
out these operations when stationary.
"MEM" button
This button allows you to select a speed setting
to be used with the speed limiter or cruise
control.
Refer to the corresponding section.
Speed limiter
The system prevents the vehicle
from exceeding the speed setting
programmed by the driver.
The programmed speed remains in the system
memory when the ignition is switched off.
The speed limiter is a driving aid only.
It does not exempt the driver from the
need to obser ve speed limits or to remain
vigilant at all times.
The speed limiter is switched on
manually.
The minimum programmed speed is 19 mph
(30 km/h).
06
Driving

153

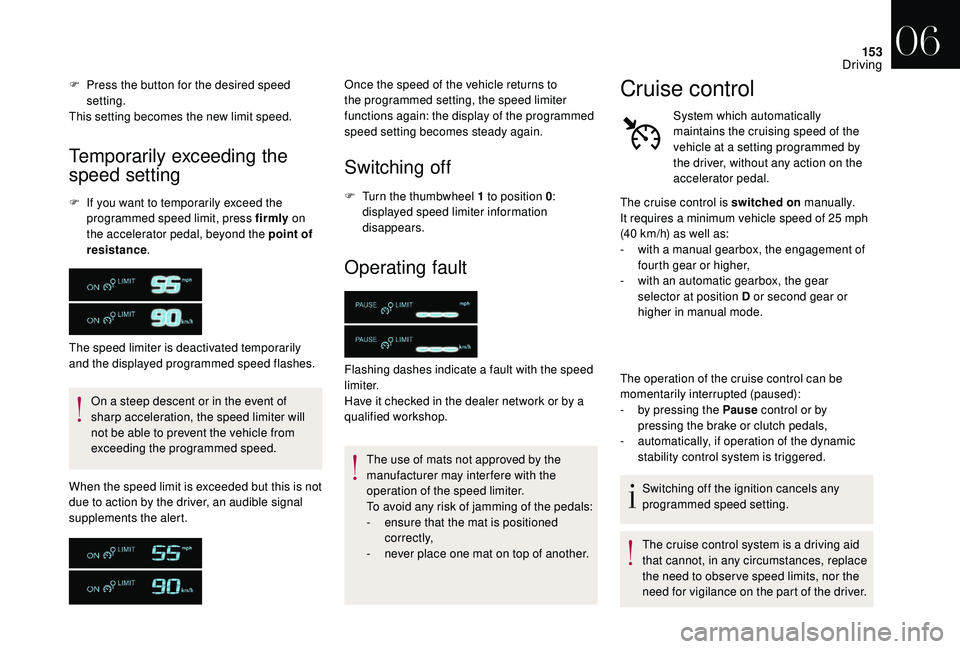

F Press the button for the desired speed setting.
This setting becomes the new limit speed.
Temporarily exceeding the
speed setting
F If you want to temporarily exceed the programmed speed limit, press firmly on
the accelerator pedal, beyond the point of
resistance .
On a steep descent or in the event of
sharp acceleration, the speed limiter will
not be able to prevent the vehicle from
exceeding the programmed speed.
Switching off
F Turn the thumbwheel 1 to position 0 :
displayed speed limiter information
disappears.
Operating fault
The use of mats not approved by the
manufacturer may interfere with the
operation of the speed limiter.
To avoid any risk of jamming of the pedals:
-

e
nsure that the mat is positioned
c o r r e c t l y,
-

n
ever place one mat on top of another.
When the speed limit is exceeded but this is not
due to action by the driver, an audible signal
supplements the alert.
Cruise control
System which automatically
maintains the cruising speed of the
vehicle at a setting programmed by
the driver, without any action on the
accelerator pedal.
The cruise control is switched on manually.
It requires a minimum vehicle speed of 25 mph
(40 km/h) as well as:
-

w

ith a manual gearbox, the engagement of
fourth gear or higher,
-

w

ith an automatic gearbox, the gear
selector at position D or second gear or
higher in manual mode.
The operation of the cruise control can be
momentarily interrupted (paused):
-

b

y pressing the Pause control or by
pressing the brake or clutch pedals,
-

a

utomatically, if operation of the dynamic
stability control system is triggered.
Switching off the ignition cancels any
programmed speed setting.
The cruise control system is a driving aid
that cannot, in any circumstances, replace
the need to obser ve speed limits, nor the
need for vigilance on the part of the driver.
The speed limiter is deactivated temporarily
and the displayed programmed speed flashes. Once the speed of the vehicle returns to
the programmed setting, the speed limiter
functions again: the display of the programmed
speed setting becomes steady again.
Flashing dashes indicate a fault with the speed
limiter.
Have it checked in the dealer network or by a
qualified workshop.
06
Driving

154

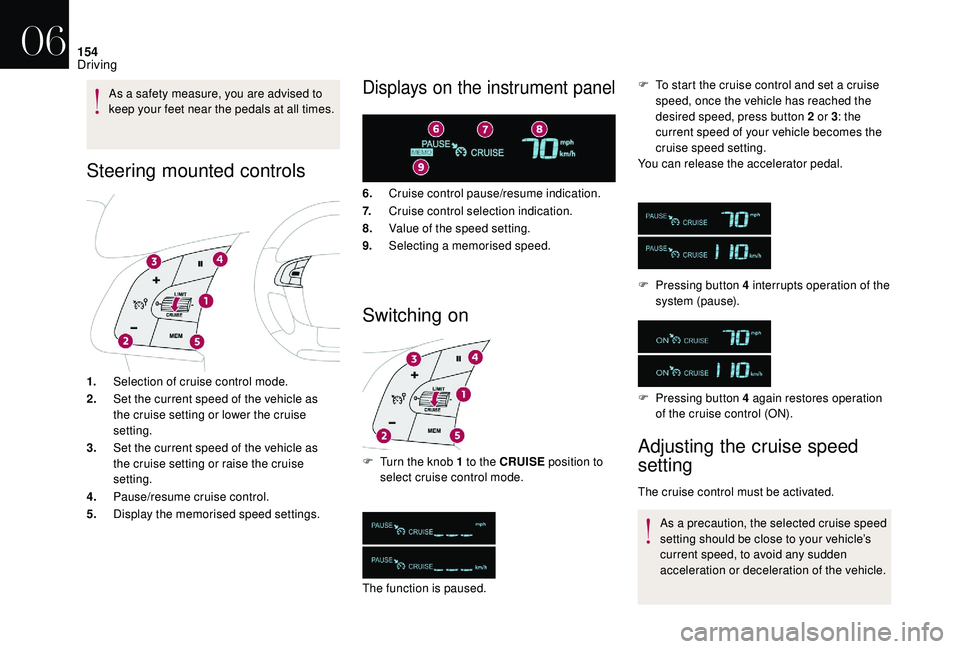

As a safety measure, you are advised to
keep your feet near the pedals at all times.
Steering mounted controls
1.Selection of cruise control mode.
2. Set the current speed of the vehicle as
the cruise setting or lower the cruise
setting.
3. Set the current speed of the vehicle as
the cruise setting or raise the cruise
setting.
4. Pause/resume cruise control.
5. Display the memorised speed settings.
Displays on the instrument panel
6.Cruise control pause/resume indication.
7. Cruise control selection indication.
8. Value of the speed setting.
9. Selecting a memorised speed.
Switching on
F Turn the knob 1 to the CRUISE position to
select cruise control mode.
The function is paused. F

T
o start the cruise control and set a cruise
speed, once the vehicle has reached the
desired speed, press button 2 or 3 : the
current speed of your vehicle becomes the
cruise speed setting.
You can release the accelerator pedal.
F
P
ressing button 4 interrupts operation of the
system (pause).Adjusting the cruise speed
setting
The cruise control must be activated.
As a precaution, the selected cruise speed
setting should be close to your vehicle’s
current speed, to avoid any sudden
acceleration or deceleration of the vehicle.
F

P
ressing button 4 again restores operation
of the cruise control (ON).
06
Driving
