buttons Citroen DS4 RHD 2011.5 1.G User Guide

08
1
2
1
2






AUDIO STREAMING
Streaming allows audio fi les on your telephone to be played via the
vehicle's speakers.
Connect the telephone: see "USING THE TELEPHONE".
Select " Audio" or " All" profi le.
I
f play does not start automatically, it may be necessary to start the audio playback from the telephone.
Control is from the peripheral device or b
y using the audio system buttons.
Once connected in streaming mode, the telephone is considered to bea media source.
It is recommended that
you activate " Repeat" on the Bluetooth
peripheral.

MUSIC MEDIA PLAYERS


CONNECTING APPLE ®
PLAYERS
Connect the Apple ®player to the USB port using a suitable cable(not supplied).
Play starts automatically.
Control is via the audio system.
The classi
fi cations available are those of the portable deviceconnected (artists/albums/genres/playlists/audiobooks/podcasts).
The default classifi cation used is b
y artist. To modify the classifi cationused, return to the fi rst level of the menu then select the desired classifi cation (playlists for example) and confi rm to go down through
the menu to the desired track.
The version of software in the audio s
ystem may not be compatible
with the generation of your Apple ®player.
The list of devices compatible with software versions is available from CITROËN dealers.

04
1
2
3

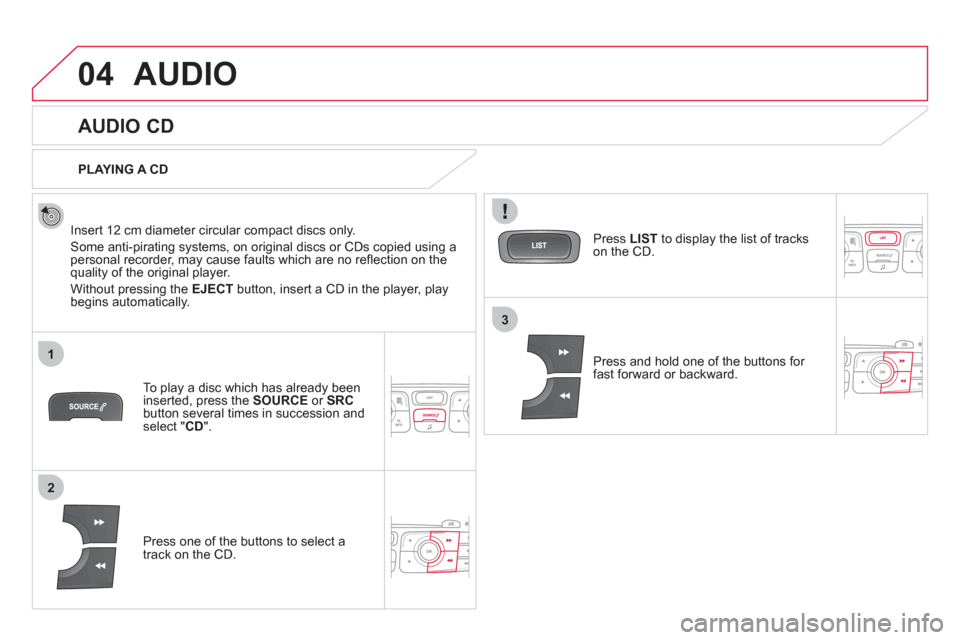

AUDIO






AUDIO CD


Insert 12 cm diameter circular compact discs only.
Some anti-piratin
g systems, on original discs or CDs copied using apersonal recorder, may cause faults which are no refl ection on thequality of the original player.

Without pressing the EJECT
button, insert a CD in the player, playbegins automatically.

To play a disc which has already beeninserted, press the SOURCEor SRCbutton several times in succession and select " CD".

Pr
ess one of the buttons to select a
track on the CD.
PLAYING A CD

Pr
ess LIST
to display the list of trackson the CD.

Pr
ess and hold one of the buttons for fast forward or backward.

04
1
3
2
4
5












CD, USB
AUDIO


PLAYING A COMPILATION

Insert an MP3 compilation in the
CD player or connect a memory stick to the USB port, directly or
via an extension lead.
The s
ystem creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The pla
ylists are updated every time the ignition is switched off or aUSB memory stick is connected.
Pla
y starts automatically after a period which depends on the capacity of the USB memory stick.

At a fi rst connection, the order suggested is by folder.When connecting again, the order previously chosen is retained.

To play a disc or memory stick whichhas already been inserted, press
SOURCE
or SRC
several times insuccession and select " CD" or "USB".
Pr
ess one of the buttons to select the next or previous track.

Pr
ess one of the buttons to select the next or previous folder in the order chosen.

Pr
ess and hold one of the buttons for
fast forwards or backwards.

Press LISTto display the menu of folders in the compilation.

1
2
1
4
2
33
05

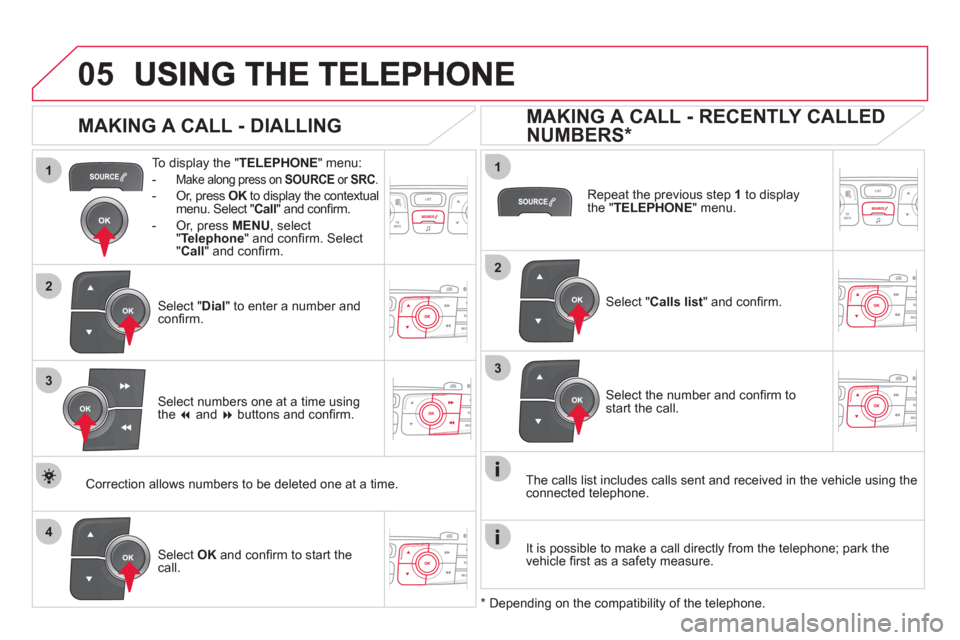

To display the "TELEPHONE
" menu:
-
Make along press on SOURCE
or SRC.
- Or, press OK
to display the contextual Kmenu. Select "Call" and confi rm.
-
Or, press MENU
, select" Telephone" and confi rm. Select
" Call
" and confi rm.


Select "Dial " to enter a number andconfi rm.
Re
peat the previous step 1
to displaythe "TELEPHONE" menu.

Select OKand confi rm to start the call.

Select "Calls list
" and confi rm.


MAKING A CALL - DIALLING

Select numbers one at a time using
the and buttons and confi rm.

MAKING A CALL - RECENTLY CALLED
NUMBERS *

Select the number and confi rm to start the call.

The calls list includes calls sent and received in the vehicle usin
g the connected telephone.

*

Depending on the compatibility of the telephone.
Correction allows numbers to be deleted one at a time.

It is possible to make a call directly
from the telephone; park the
vehicle fi rst as a safety measure.

365
1
2
1
4
2
3

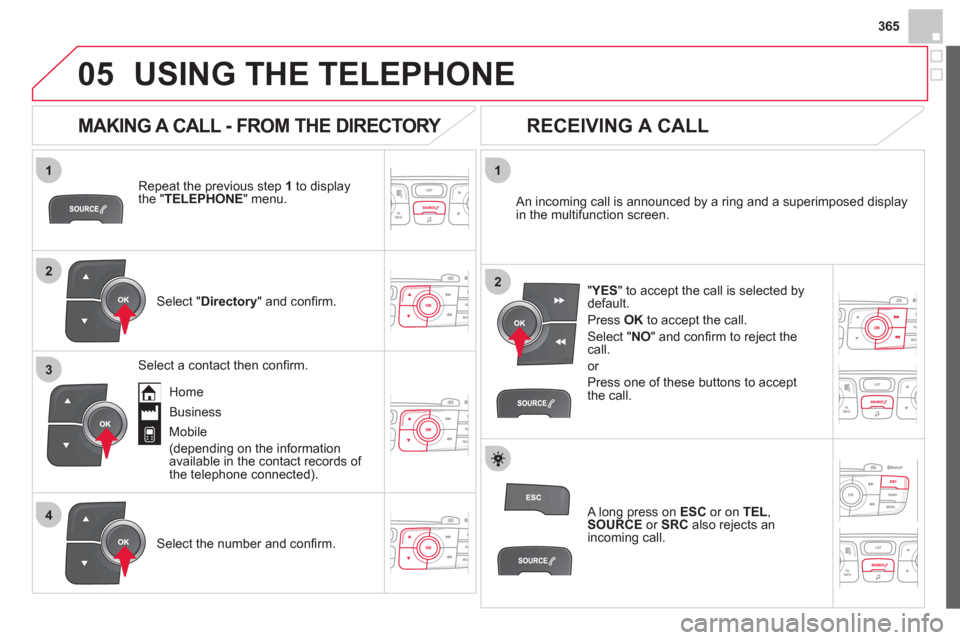

05USING THE TELEPHONE
Repeat the previous step 1to display
the " TELEPHONE" menu.

Select "Directory
" and confi rm.
An incoming call is announced by a ring and a superimposed displayin the multifunction screen.
M
obile
(depending on the informationavailable in the contact records of
the telephone connected).
"YES " to accept the call is selected by default.
Pr
ess OK
to accept the call.

Select " NO
" and confi rm to reject thecall.

or
Press one of these buttons to accept
t
he call.

MAKING A CALL - FROM THE DIRECTORY
Select a contact then confi rm.


RECEIVING A CALL

Select the number and confi rm.
A long press on ESC
or on TEL ,
SOURCEor SRCalso rejects an
incoming call.

Business
Home

1
2a
2b

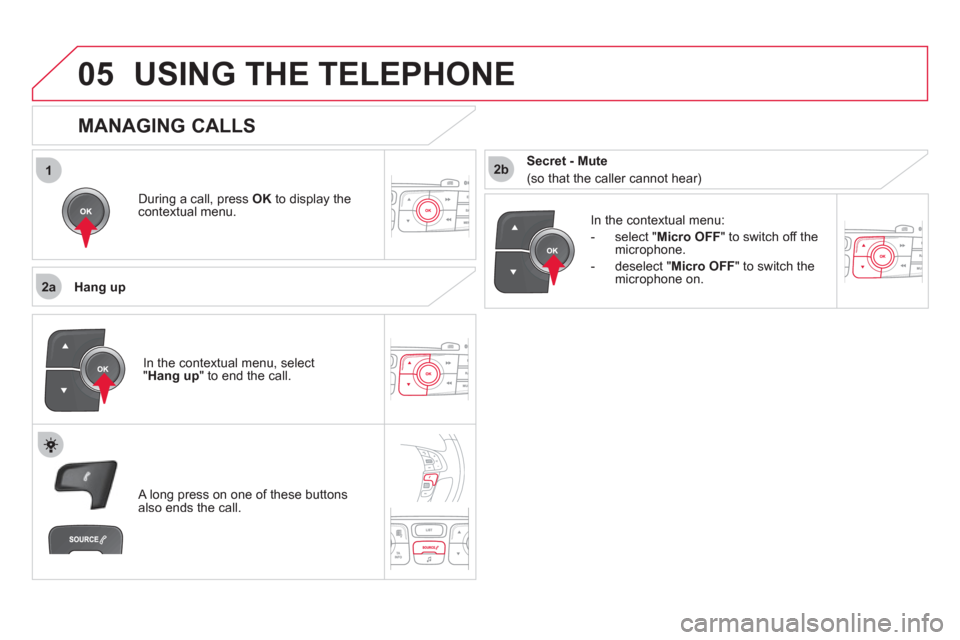

05USING THE TELEPHONE
During a call, press OK
to display the contextual menu.

Han
g upIn th
e contextual menu:
-
select " Micro OFF
" to switch off themicrophone.
-
deselect " Micro OFF" to switch the
microphone on.



MANAGING CALLS


A long press on one of these buttons also ends the call.
In the contextual menu, select " Hang up" to end the call.
Secret - Mute

(so that the caller cannot hear)

Instruments and controls Instrument panels 38 - 42
Warning lamps 43 -53
Indicators 54-56 Manual test 57 Setting buttons 58 - 61
- trip distance recorder
- lighting dimmer/black panel
- customisation of dials and screens
Stop & Star t 212-214 W iper c ontrols 13 3 -137
Trip computer 70 -74
Door mirrors
94-95
Electric windows 116-117
Hazard warnin
g lamps 172-173 Central locking 108 -109
Black panel 60
Adjusting the steering wheel 93
Horn 17
3 Multi
function screens 64- 69 Seat belt and front passenger airbagwarning display screen 18 0-181
Manual gearbox 201-202
6 -speed electronic gearbox
system 203-206
Automatic gearbox 207-210
Parking brake 192-199, 200 Interior mood li
ghting 13 9

R
ear view mirror 96
Emergency or assistance call 173, 293
Courtesy lamps 138
Ventilation 7
8-79
Manual air conditioning 80-81, 86
Digital air conditioning 82-86
Demisting/Defrostingthe rear screen 87
Audio system 347-376
Setting the date/time 370 eMyWay satellite navigation system295-346
Setting the date/time 337 Li
ghting controls 124-128
Adjusting headlamps 130
Dashboard fuses 2
63-266 Memorisin
g speeds 218 Speed limiter 219 -220 Cruise control 221-222
Opening the bonnet 231
