Citroen DS4 RHD 2011.5 1.G Owner's Manual

289Technical data

















Identifi cation markings
Various visible markings for the identification of your vehicle.
A.
Vehicle identification number (VIN) under the bonnet. This number is engraved on the bodywork near
the engine mounting.
B. Vehicle identification number on the
dashboard.
This number is indicated on a self-adhesive
label which is visible through the windscreen.
D. Tyre/paint label.This label is affixed to the driver's front pillar.
Wheels which are fitted with 225/40 R18tyres cannot be fitted with snow chains.For more information, contact a CITROËNdealer or a qualified workshop.

Low tyre pressures increase fuelconsumption.

The tyre pressures must be checked when the tyres are cold, at least oncea month. C. Manufacturer's label
.The VIN is indicated on a self-destroying labelaffixed to the driver's centre pillar. It bears the
following information:


- the tyre pressures, for unladen and ladenconditions,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by themanufacturer,

- the spare tyre inflation pressure,

- the paint colour code.

013
Audio and telematics

293

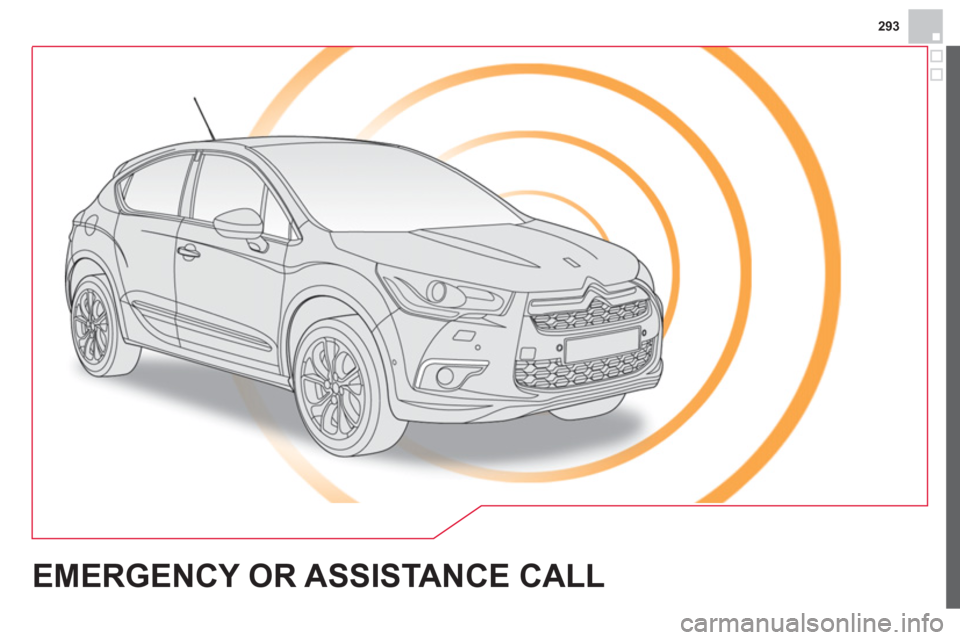

EMERGENCY OR ASSISTANCE CALL

EMERGENCY OR ASSISTANCE CALL







CITROËN LOCALISED EMERGENCY CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice message confi rm that the call has been made to the CITROËN Emergency team * .gg
Pressing this button again immediately cancels the request. The green LED goes off.
A press
(at any time) of more than 8 seconds on this button, cancels the
request.

CITROËN LOCALISED ASSISTANCE CALL


When the ignition is switched on, thegreen LED comes on for 3 seconds
indicating that the system is operating correctly.

If the oran
ge LED fl ashes: there is asystem fault.
If the oran
ge LED is on continuously: thebackup battery must be replaced.
In either case, contact a CITRO
ËN. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made *
.


OPERATION OF THE SYSTEM
The green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.
This call is dealt with b
y the CITROËN Emergency team which receiveslocating information from the vehicle and can send a detailed alert to theappropriate emergency services. In countries in which the team is not
operational, or when the locating service has been expressly declined,
the call is dealt with directl
y by the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag ECU, and independentlyof the deployment of any airbags, an emergency call is made
automatically.


*
These services are subject to conditions and availability.
Consult a CITROËN dealer.If you purchased your vehicle outside the CITROËN dealer network,
we invite
you to have a dealer check the confi guration of these servicesand, if desired, modifi ed to suit your wishes. In a multi-lingual country, confi guration is possible in the offi cial national language of your choice.

For technical reasons, particularl
y to improve the quality of Telematic services to customers, the manufacturer reserves the right to carry out
updates to the vehicle's on-board telematic system.
If you benefi t from the CITROËN eTouch offer, you also have availableadditional services in your MyCITROËN personal space, via the CITROËN y,y
Internet website www.citroen.co.uk.

295

The system is protected in such a way that it will onlyoperate in your vehicle.
eMyWay


01 First steps - Control panel


For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is stationary.
When the en
gine is switched off and to prevent
discharging of the battery, the system switches off following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
296
298
299
301
314
317
327
3
30
3
36
337
3
38
341

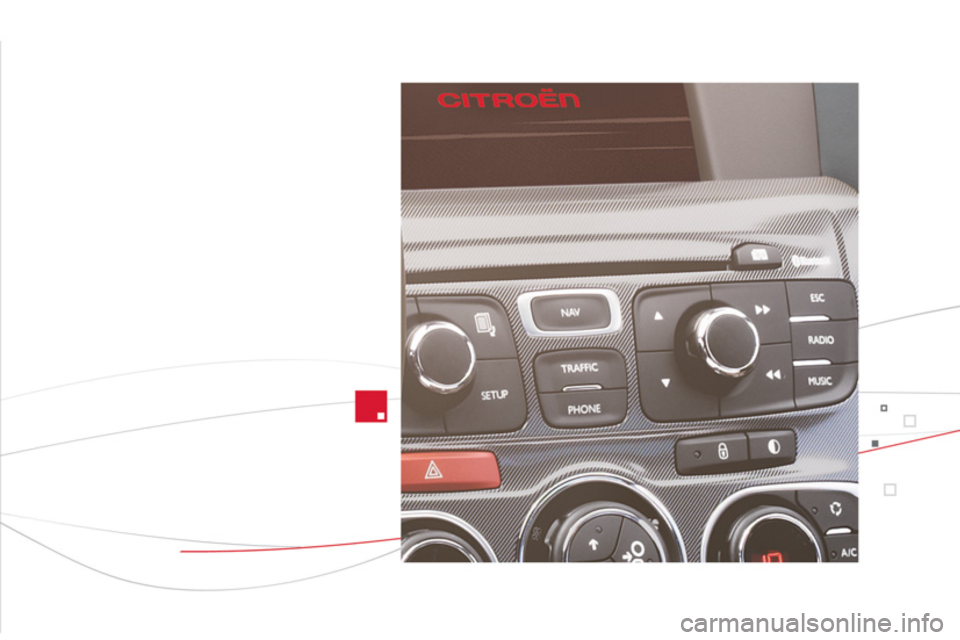

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

01 FIRST STEPS

Access to the "Navigation - guidance" menu and displaythe recent destinations.
Rotating control:
Short press with engine not running: on/off.
Short press with engine running: audio source off/resume.
Rotation: ad
just volume (each source is
independent, including TA messages and
navigation instructions).

Continuous press:
reinitialisation of the system.

Short press: select pre-set
r
adio station.

Long press: pre-set thecurrent station.

MODE
button: Selection of
the type of permanent display.
Long press: black screen(DARK).
Open the "Telephone " menuand display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration" menu.
Lon
g press: access
to the GPS coverage
and the navigationdemonstration mode.
Open the "Traffi c information " menu and display thecurrent traffi c alerts.

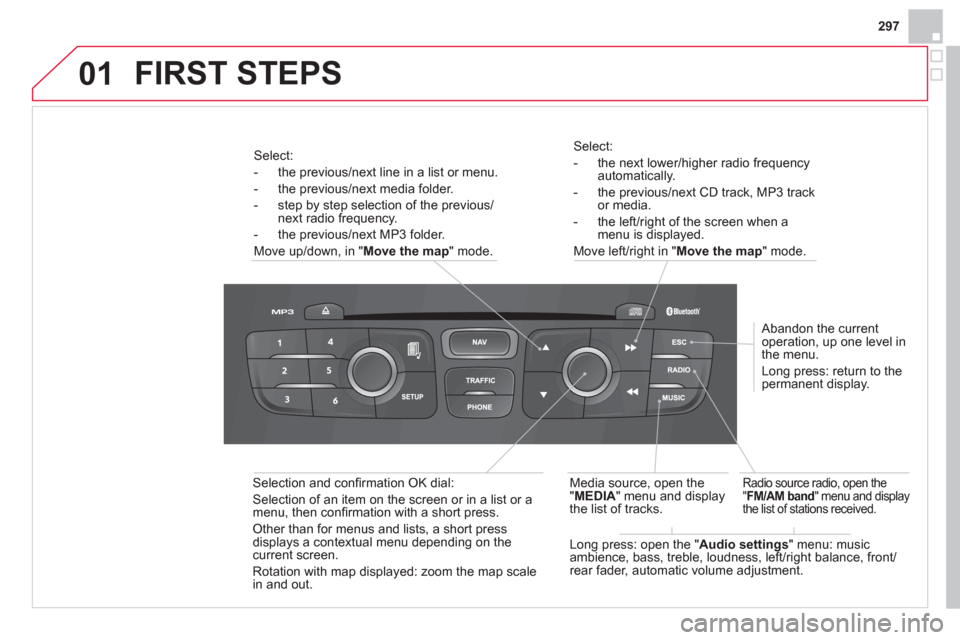

297
01
Select:
- the next lower/hi
gher radio frequencyautomatically.
- the previous/next CD track, MP3 track
or media.
- the le
ft/right of the screen when a menu is displayed.
Move le
ft/right in "Move the map " mode.

Abandon the current
operation, up one level in
the menu.
Long press: return to the
permanent displa
y.
Radio source radio, open the
"FM/AM band" menu and display
the list of stations received.


Long press: open the " Audio settings
" menu: music
ambience, bass, treble, loudness, left/right balance, front/rear fader, automatic volume adjustment.
Media source, o
pen the
"MEDIA" menu and display
the list of tracks.
Selection and confi rmation OK dial:
Selection of an item on the screen or in a list or a
menu, then confi rmation with a short press.
Other than for menus and lists, a short press displays a contextual menu depending on thecurrent screen.
Rotation with map displa
yed: zoom the map scale
in and out.
Select:


- the
previous/next line in a list or menu.

- the previous/next media folder.

- step b
y step selection of the previous/next radio frequency.

- the previous
/next MP3 folder.
Move up
/down, in " Move the map" mode.

FIRST STEPS

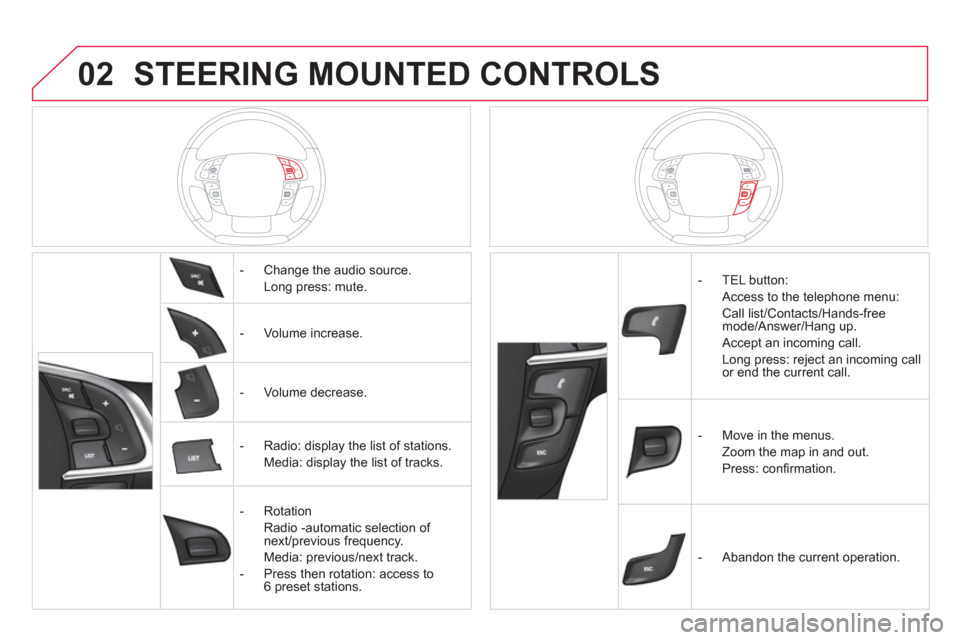

02STEERING MOUNTED CONTROLS



- Change the audio source.
Long press: mute.


-
Volume increase.


- V
olume decrease.


- Radio: displa
y the list of stations.
Media: display the list o
f tracks.


- R
otation
R
adio -automatic selection of next/previous frequency.
Media: previous/next track.

-
Press then rotation: access to 6 preset stations.





- TEL button:
Access to the telephone menu:

Call list/Contacts/Hands-freemode/Answer/Hang up.
Accept an incomin
g call.

Long press: reject an incoming callor end the current call.


-
Move in the menus.

Zoom the map in and out.
Pr
ess: confi rmation.


-
Abandon the current operation.
