Familiarisation

Cruise control/speed limiter controls


Steering wheel with
integrated controls
60
Optional functions controls
219, 221
59
2.
Dashboard lighting dimmer.
298, 349

Audio system controls
298, 349


Bluetooth system or telephonecontrols
1.Black panel (black screen).
40
or
Control of the type 2 instrument panel central screen.
13
8
3. Cour tesy lamp on/off.

223
or
Parking space sensors.

Monitoring

39Monitoring
1. Rev counter (x 1 000 rpm or tr/min). 2.Gear efficiency indicator with manualgearbox or gear lever position and gear for
the electronic gearbox system or automaticgearbox. 3.Speedometer (mph or km/h).4. Central screen.
5. Fuel gauge and associated low fuel level
warning lamp.
Dials and screens
6.
Tr i p m i l e age recorder (miles or km).7.
Ser vice spanner (if a ser vice is due or
missed),
total mileage recorder. (miles or km)




Control buttons




















Customisable colour instrument panel - Type 2
A.Dial COLOUR: customisation of the
background colour of the dials. B. Screen COLOUR: customisation of the
background colour of the screens.C. Dashboard lighting dimmer (in night mode).D.Star t a manual test (procedure for checking
the status of systems and display of vehicle
alerts).
Reset service indicator or trip mileage
recorder.

Warning lampis onCauseAction/Observations
Left-hand
direction indicator

flashing with buzzer. The lighting stalk is pushed down.
Right-handdirection indicator

flashing with buzzer. The lighting stalk is pushed up.



Sidelamps
fixed. The lighting control is in the"Sidelamps" position.
On vehicle where the daytime running lamps are deactivated,
if the lighting control is in the "AUTO" position, the sidelampscome on as a luminous signature of the vehicle.


Dipped beam headlamps
fixed. The lighting stalk is in the "Dipped beam
headlamps" position or in the "AUTO"
position in conditions of low li
ght.



Main beamheadlamps

fixed. The lighting stalk is pulled towards you. Pull the stalk again to return to dipped beam
headlamps.
Front foglamps
fixed. The front foglamps are switched on. Turn the ring on the stalk rear wards twice to switch off
the front foglamps.
Rear foglamps fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the rear foglamps.
Hazard warninglamps flashing with audible
signal. The hazard warning lamps switch, located on the dashboard, has beenoperated. The le
ft-hand and right-hand direction indicators and
their associated indicator lamps flash simultaneously.
Operation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has come into operation.
It may be accompanied by an audible signal and a message on the multifunction screen.

53Monitoring
Passenger'sairbag systemfixed in the instrument panel and/or seat beltand front passenger'sairbag warning lamps
display.
The control switch, located in theglove box, is set to the OFFposition.
The passenger's front airbag is deactivated.
Set the control to the "ON"
position to activate
the passenger's front airbag.
In this case, do not fit a child seat in the rear-facingposition.
Warning lampis onCauseAction/Observations
ESP/ASRfixed. The button, located at the bottom left of the dashboard, is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability programme.
ASR: anti-slip regulation.Pr
ess the button to activate the ESP/ASR. Its indicator lamp goes off.
The ESP/ASR system is activated automatically when
the vehicle is started.
If deactivated, the system is reactivated automatically
from around 30 mph (50 km/h).

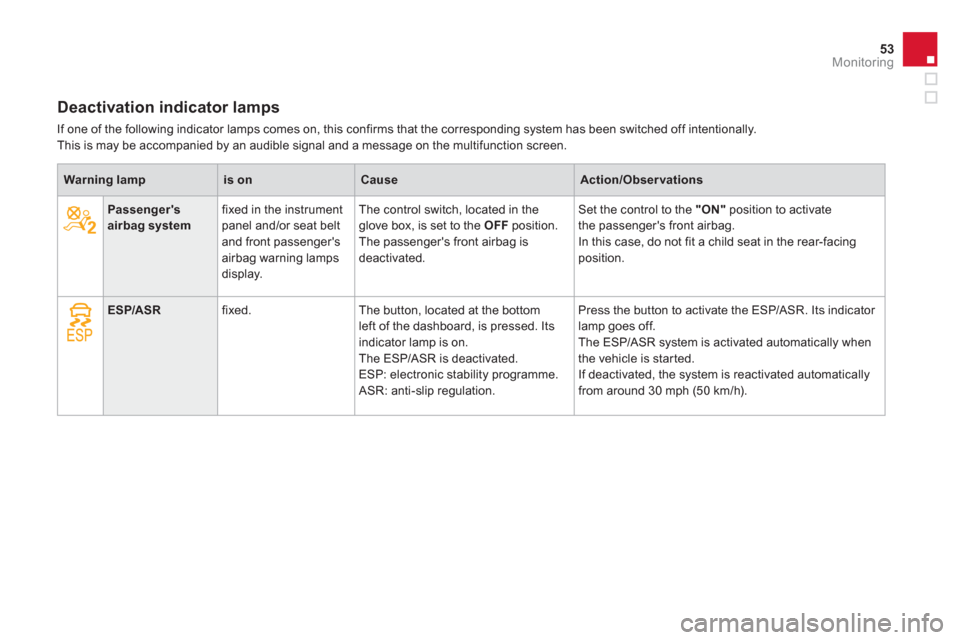

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confirms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.

79Comfort










Recommendations for ventilation and air conditioning


If after an extended stop in sunshine, the interior temperature is veryhigh, first ventilate the passenger compartment for a few moments. Put the air flow control at a setting high enough to quickly change the air in the passenger compartment.
The air conditioning system does notcontain chlorine and does not present any danger to the ozone layer.

In order for these systems to be fully effective, follow the operation and maintenance guidelines below: )
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles located at the base of the windscreen, the nozzles, the vents and the air outlets, as wellas the air extractor located in the boot. )
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation of the digital air conditioning system. )
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a monthto keep it in per fect working order. )
Ensure that the passenger compar tment filter is in good condition and have the filter elements replaced regularly (refer to the "Checks" section). We recommend the use of a combined passenger compartment filter. Thanks to its special active additive, it contributes to the purification of the air breathed by theoccupants and the cleanliness of the passenger compartment (reduction of allergic symptoms, bad odours and greasy deposits).)
To ensure correct operation of the air conditioning system, you are also advised to haveit checked regularly as recommended in the ser vicing booklet.
)
If the system does not produce cold air, switch it off and contact a CITROËN dealer or a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off theair conditioning increases the available engine power and so improves the towing ability.


The condensation created by the air conditioning results in a dischargeof water under the vehicle which is perfectly normal.




Stop & Start
The heating and air conditioning systems only work when the engine is running. To maintaina comfor table temperature in the passenger compartment, you can temporarily deactivatethe Stop & Start system (see "Driving").

105
Access

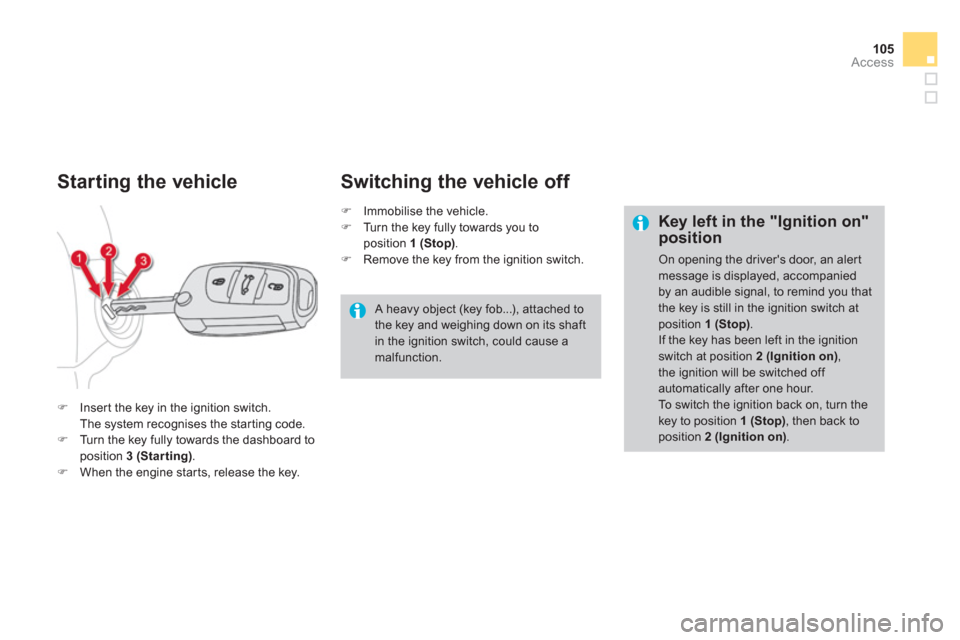

Starting the vehicle
)Inser t the key in the ignition switch.
The system recognises the star ting code. )Turn the key fully towards the dashboard toposition 3 (Starting).)When the engine star ts, release the key.
) Immobilise the vehicle.)
Turn the key fully towards you to
position 1 (Stop).)
Remove the key from the ignition switch.
Switching the vehicle off

A heavy object (key fob...), attached to the key and weighing down on its shaft in the ignition switch, could cause amalfunction.
Key left in the "Ignition on"position
On opening the driver's door, an aler t message is displayed, accompaniedby an audible signal, to remind you that the key is still in the ignition switch atposition 1 (Stop).
If the key has been left in the ignitionswitch at position 2 (Ignition on),the ignition will be switched off automatically after one hour. To switch the ignition back on, turn the key to position 1 (Stop)
, then back toposition 2 (Ignition on).

Visibility








Interior mood lighting The dimmed passenger compar tment lighting improves visibility in the vehicle whenthe light is poor.

At night, the audio system and digital air conditioning illumination, together with the
illumination of the central dashboard storagebox, comes on automatically when the sidelamps are on. The interior mood li
ghting switches off
automatically when the sidelamps areswitched off.
It can be switched off manually by adjusting theinstrument panel lighting dimmer button to one of the lowest settings.
On cer tain versions, three LEDs, located in the rail linking the rear view mirror to the roof come on as well.


Switching on
Switching off

145
Fittings











Illuminated glove
box

Its lid has locations for storing a pen, a pair of glasses, tokens, maps, a cup... )To open the glove box, raise the handle.
It is lit when the lid is opened.
It houses the front passen
ger airbag deactivation switch A.
If the vehicle is fitted with air conditioning,it provides access to the ventilation nozzle B,distributing the same cooled air as the vents in
the passenger compartment.
It gives access to the dashboard
fusebox (see
"Practical information - § Changing a fuse").





Portable ashtray
)
Pull the cover to open the ashtray. )
To empty it, remove the ashtray by pulling
it upwards.
To avoid any problem of interference or risk of over turning, do not placethe ashtray near the gear lever.

169Child safety

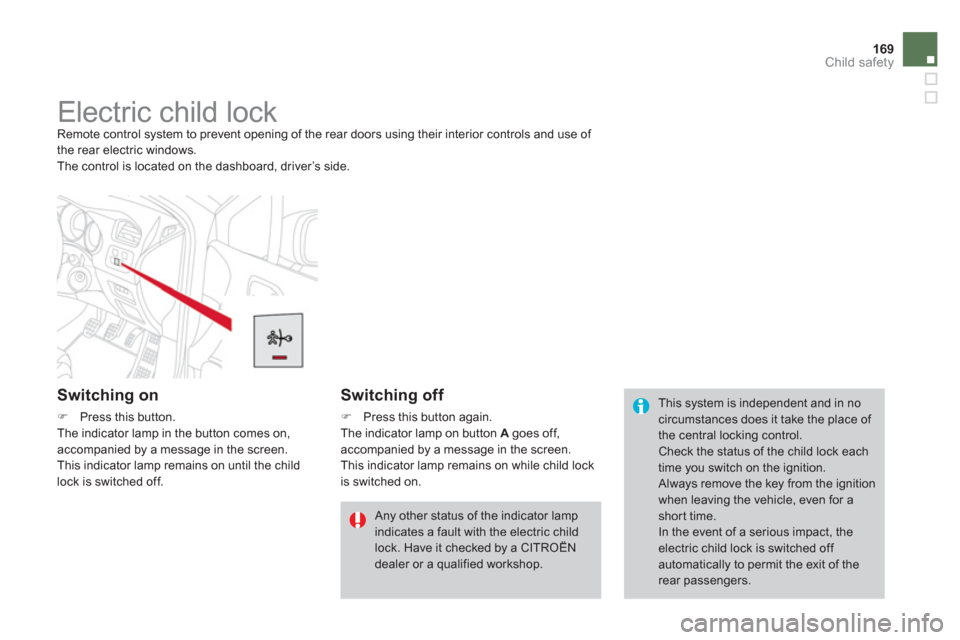

Electric child lock
Remote control system to prevent opening of the rear doors using their interior controls and use of
the rear electric windows.
The control is located on the dashboard, driver
’s side.


Switching on
)Press this button.
The indicator lamp in the button comes on,
accompanied b
y a message in the screen.
This indicator lamp remains on until the child
l
ock is switched off.
Switching off
) Press this button again.
The indicator lamp on button A
goes off,accompanied by a message in the screen.
This indicator lamp remains on while child lock
is switched on.

This system is independent and in nocircumstances does it take the place of the central locking control. Check the status of the child lock eachtime you switch on the ignition.
Always remove the key from the ignition when leaving the vehicle, even for a short time.
In the event of a serious impact, the
electric child lock is switched off automatically to permit the exit of therear passengers.
Any other status of the indicator lamp indicates a fault with the electric child lock. Have it checked by a CITROËNdealer or a qualified workshop.

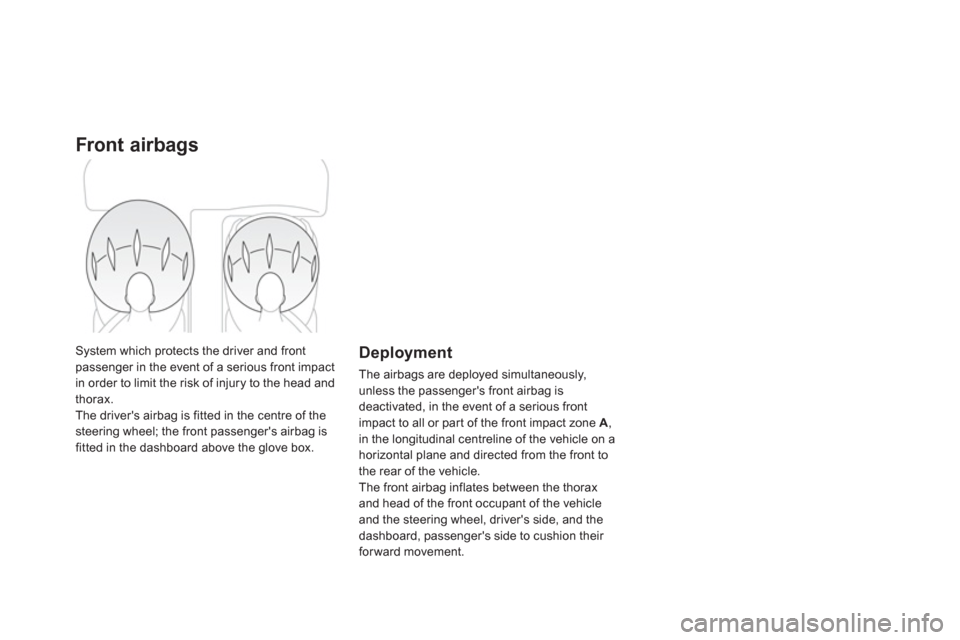

Front airbags
System which protects the driver and frontpassenger in the event of a serious front impact
in order to limit the risk of injury to the head and
thorax.
The driver's airbag is fitted in the centre of the steering wheel; the front passenger's airbag is fitted in the dashboard above the glove box.

Deployment

The airbags are deployed simultaneously,unless the passenger's front airbag is
deactivated, in the event of a serious front
impact to all or par t of the front impact zone A ,
in the longitudinal centreline of the vehicle on a
horizontal plane and directed from the front to
the rear of the vehicle.
The front airbag inflates between the thorax
and head of the front occupant of the vehicle
and the steerin
g wheel, driver's side, and the
dashboard, passenger's side to cushion their
forward movement.
