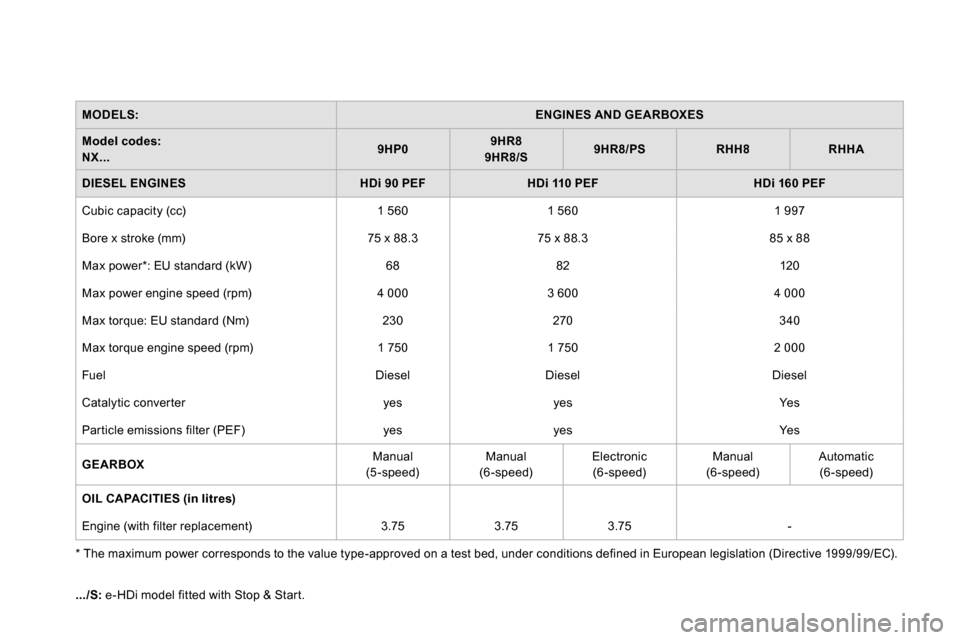

stop start Citroen DS4 RHD 2013.5 1.G Owner's Guide

MODELS:



ENGINES AND GEARBOXES



Model codes:
NX...


9HP0



9HR8

9HR8/S



9HR8/PS



RHH8



RHHA



DIESEL ENGINES


HDi 90 PEF



HDi 110 PEF



HDi 160 PEF


Cubic capacity (cc)
1 560
1 560
1 997
Bore x stroke (mm)
75 x 88.3
75 x 88.3
85 x 88
Max power * : EU standard (kW)
68
82
120
Max power engine speed (rpm)
4 000
3 600
4 000
Max torque: EU standard (Nm)
230
270
340
Max torque engine speed (rpm)
1 750
1 750
2 000
Fuel
Diesel
Diesel
Diesel
Catalytic conver ter
yes
yes
Ye s
Particle emissions filter (PEF)
yes
yes
Ye s

GEARBOX

Manual
(5-speed)
Manual
(6-speed)
Electronic
(6-speed)
Manual
(6-speed)
Automatic
(6-speed)

OIL CAPACITIES (in litres)




Engine (with filter replacement)
3.75
3.75
3.75
-

* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).

.../S:
e-HDi model fitted with Stop & Start.

385

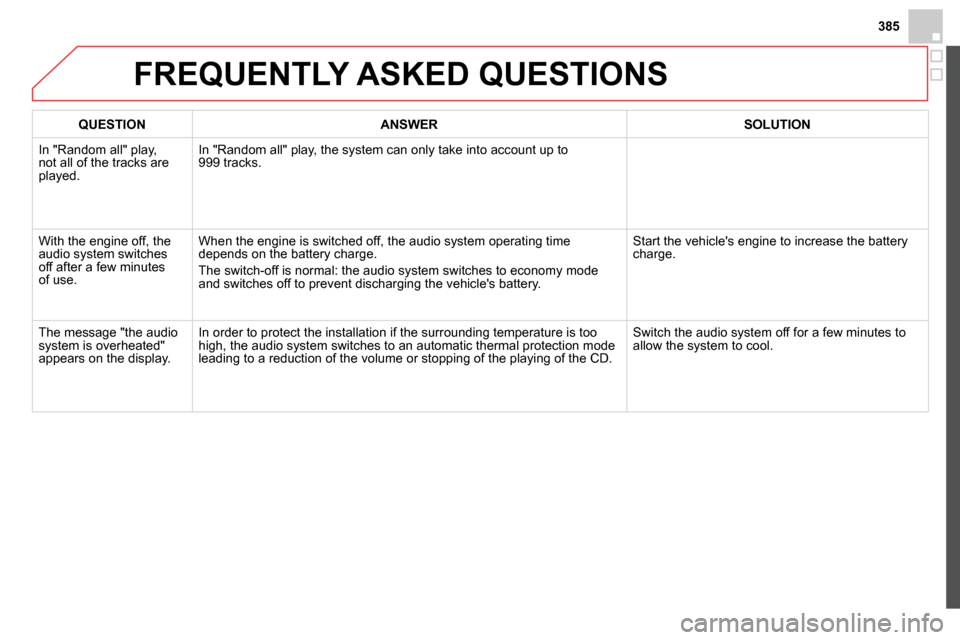

FREQUENTLY ASKED QUESTIONS



QUESTION


ANSWER


SOLUTION

In "Random all" play,
not all of the tracks are
played. In "Random all" play, the system can only take into account up to
999 tracks.
With the engine off, the
audio system switches
off after a few minutes
of use. When the engine is switched off, the audio system operating time
depends on the battery charge.
The switch-off is normal: the audio system switches to economy mode
and switches off to prevent discharging the vehicle's battery. Start the vehicle's engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. In order to protect the installation if the surrounding temperature is too
high, the audio system switches to an automatic thermal protection mode
leading to a reduction of the volume or stopping of the playing of the CD. Switch the audio system off for a few minutes to
allow the system to cool.

Instruments and controls

Instrument panels 38- 42
Warning lamps 43 -53
Indicators 54-56
Manual test 57
Setting buttons 58 - 61


- trip distance recorder

- lighting dimmer / black panel

- customisation of dials and screens


Stop & Start 216 -218
W iper c ontrols 13 3 -137
Trip computer 70 -74

Door mirrors 94-95
Electric windows 116 -117

Hazard warning lamps 176 -177
Central locking 108-109
Black panel 60
Adjusting the steering wheel 93
Horn 177
Multifunction screens 64- 69
Seat belt and front passenger airbag
warning display screen 182-183

Manual gearbox 203
Electronic gearbox 204-207
Automatic gearbox 208 -211
Gear efficiency indicator 213
Parking brake 194-201, 202
Interior mood lighting 139

Rear view mirror 96
Emergency or assistance call 177, 299
Courtesy lamps 138

Ventilation 78-79
Manual air conditioning 80 - 81, 86
Digital air conditioning 82- 86
Demisting / Defrosting
the rear screen 87
Audio system 355 -385
Setting the date / time 67, 69

eMyWay satellite navigation system 301-354
Setting the date / time 67, 69
Lighting c ontrols 124 -128
Adjusting headlamps 130

Dashboard fuses 268 -271
Memorising speeds 222
Speed limiter 223-224
Cruise control 225 -226

Opening the bonnet 235

395Alphabetical index
