As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.



Limit the causes of excess
consumption

Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.

At the end of winter, remove snow tyres and
refit your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.

Have your vehicle ser viced regularly (engine
oil, oil filter, air filter...) and obser ve the
schedule of operations recommended by the
manufacturer.



When refuelling, do not continue after
the third cut-off of the nozzle to avoid any
over flow.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.

Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.

At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.

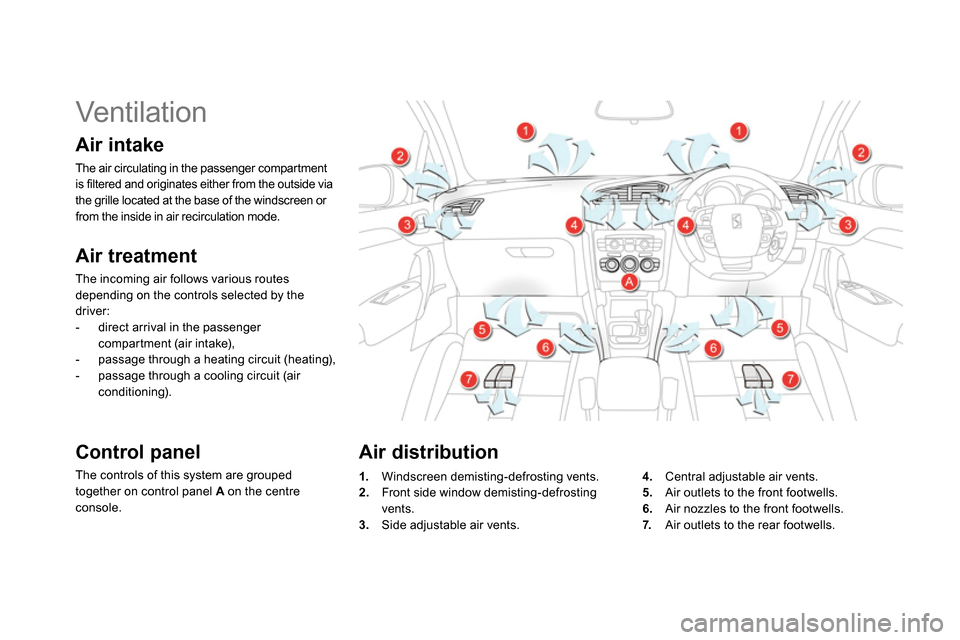

Vent ilat i on


Air intake

The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.


Air treatment

The incoming air follows various routes
depending on the controls selected by the
driver:


- direct arrival in the passenger
compartment (air intake),

- passage through a heating circuit (heating),

- passage through a cooling circuit (air
conditioning).



Control panel

The controls of this system are grouped
together on control panel A
on the centre
console.


Air distribution



1.
Windscreen demisting-defrosting vents.

2.
Front side window demisting-defrosting
vents.

3.
Side adjustable air vents.
4.
Central adjustable air vents.

5.
Air outlets to the front footwells.

6.
Air nozzles to the front footwells.

7.
Air outlets to the rear footwells.

79Comfort










Recommendations for ventilation and air conditioning


If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer. In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:



To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.


Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.


Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.


Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).


To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.


If the system does not produce cold air, switch it off and contact a CITROËN dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.




Stop & Start

The heating and air conditioning systems only work when the engine is running. To maintain
a comfortable temperature in the passenger compartment, you can temporarily deactivate
the Stop & Start system (see the corresponding section).

237Checks

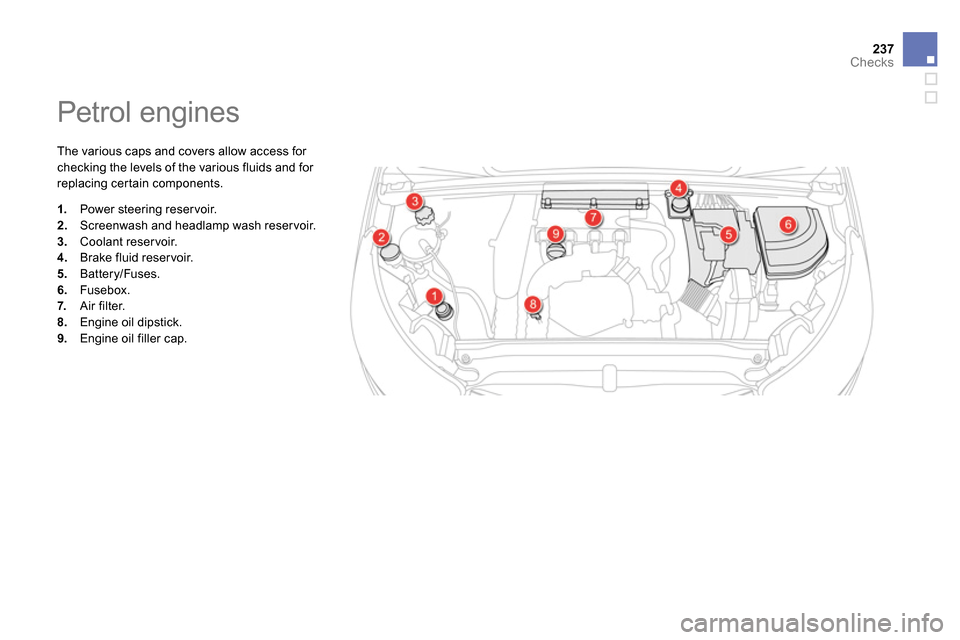

Petrol engines

The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

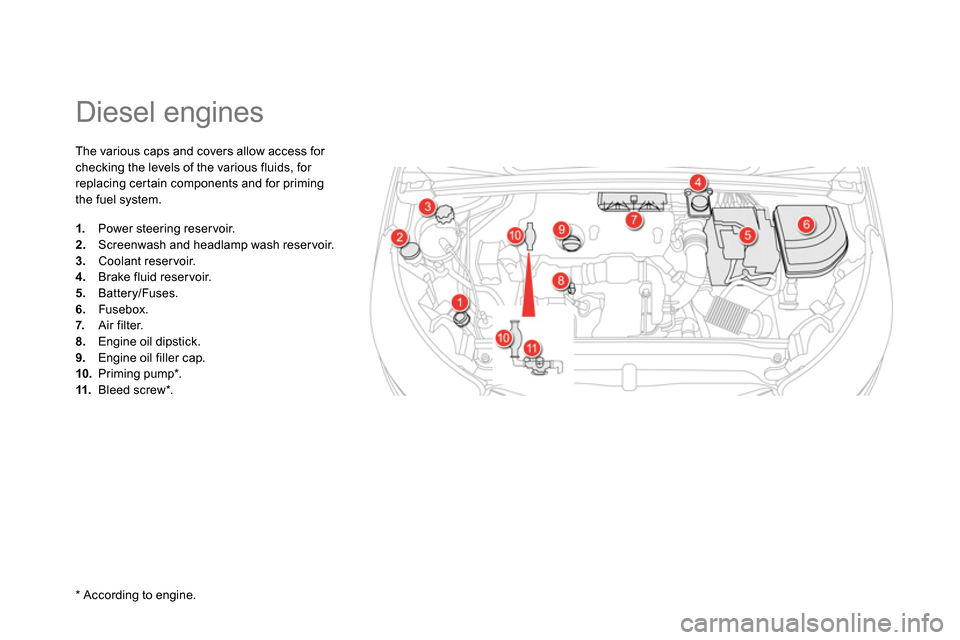

Diesel engines

The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery/Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .

*
According to engine.

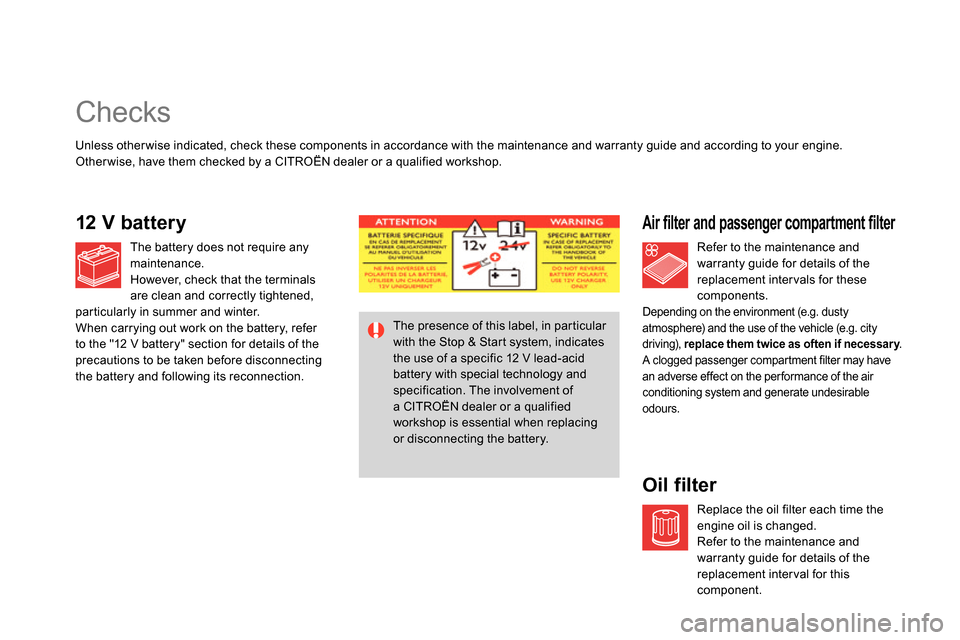

Checks




















Air filter and passenger compartment filter














Oil filter


Unless other wise indicated, check these components in accordance with the maintenance and warranty guide and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.


Refer to the maintenance and
warranty guide for details of the
replacement inter vals for these
components.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle (e.g. city
driving), replace them twice as often if necessar y
.
A clogged passenger compartment filter may have
an adverse effect on the per formance of the air
conditioning system and generate undesirable
odours.


Replace the oil filter each time the
engine oil is changed.
Refer to the maintenance and
warranty guide for details of the
replacement inter val for this
component.





The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specific 12 V lead-acid
battery with special technology and
specification. The involvement of
a CITROËN dealer or a qualified
workshop is essential when replacing
or disconnecting the battery.













12 V battery


The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.

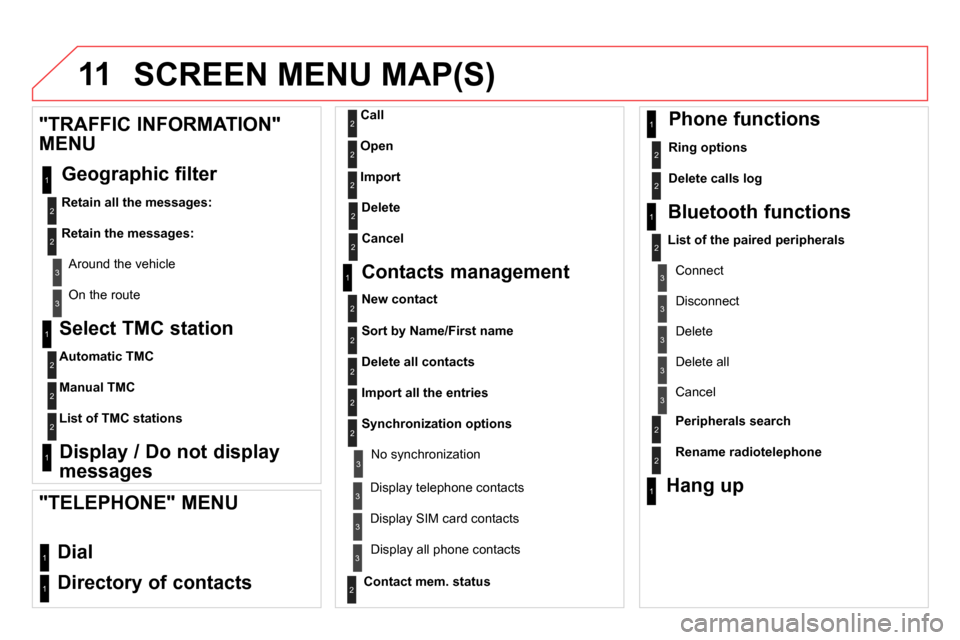

11 SCREEN MENU MAP(S)


Select TMC station



Automatic TMC


Manual TMC


List of TMC stations





Display / Do not display
messages
"TRAFFIC INFORMATION"
MENU
Geographic filter



Retain all the messages:


Retain the messages:


Around the vehicle

On the route


1
2
2
2
1
2
2
3
3
1

Dial
Directory of contacts



Call


Open


Import



"TELEPHONE" MENU
1
2
2
2
1
2
2
2
2
1
2
3
3
3
2
2
2
1
1
1
3
3
3
2
3
2
2
3



List of the paired peripherals


Connect

Disconnect

Delete

Delete all

Contact mem. status





Phone functions



Ring options


Delete calls log





Bluetooth functions


Peripherals search


Rename radiotelephone





Hang up


Display all phone contacts
Delete



Contacts management



New contact


Delete all contacts


Import all the entries


Synchronization options


Display telephone contacts
No synchronization

Display SIM card contacts
2

Cancel



2

Sort by Name/First name

3

Cancel

391Visual search

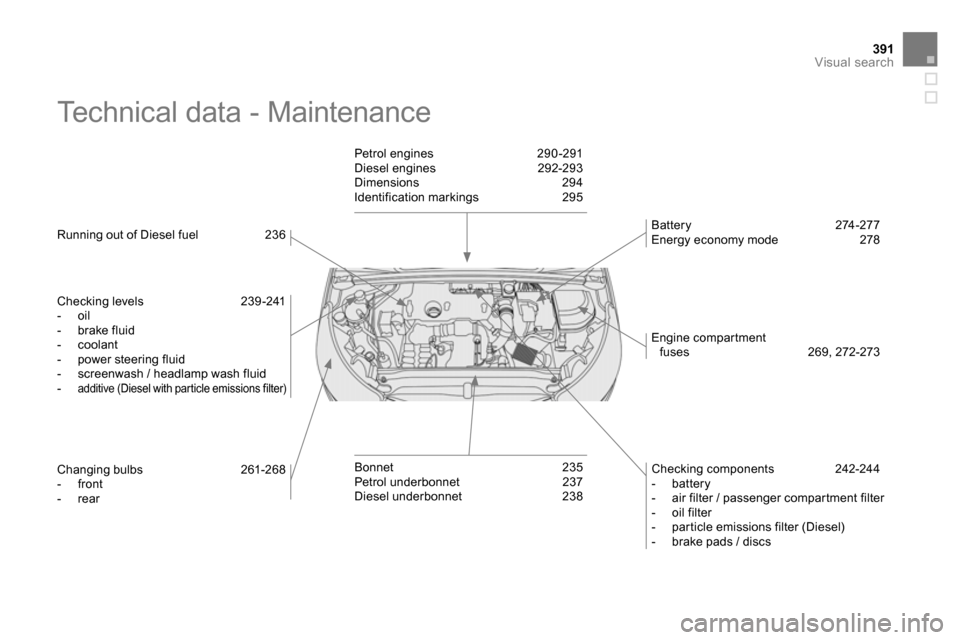

Technical data - Maintenance


Running out of Diesel fuel 236

Checking levels 239-241


- oil

- brake fluid

- coolant

- power steering fluid

- screenwash / headlamp wash fluid

-
additive (Diesel with particle emissions filter)



Changing bulbs 261-268


- front

- rear

Petrol engines 290-291
Diesel engines 292-293
Dimensions 294
Identification markings 295

Bonnet 235
Petrol underbonnet 237
Diesel underbonnet 238
Checking components 242-244


- battery

- air filter / passenger compartment filter

- oil filter

- particle emissions filter (Diesel)

- brake pads / discs


Battery 274-277
Energy economy mode 278

Engine compartment
fuses 269, 272-273

A
ABS and EBFD systems ............................... 178
Accessories .................................................. 285
Accessory socket, 12V ..........146, 147, 150, 156
Adjusting headlamps .................................... 130
Adjusting head restraints ................................ 90
Adjusting seat belt height ..................... 181, 182
Adjusting the steering wheel .......................... 93
Airbags, curtain ..................................... 189, 190
Airbags, front......................................... 186, 190
Airbags, lateral ...................................... 188, 190
Air conditioning ............................................... 34
Air conditioning, automatic ....................... 79, 82
Air conditioning, manual ........................... 79, 80
Air filter .......................................................... 242
Air flow ............................................................ 34
Air vents .......................................................... 78
Alarm ............................................................. 110
Anti-lock braking system
(ABS) .......................................................... 178
Anti-pinch ...................................................... 116
Anti-theft ....................................................... 104
Armrest, front ........................................ 149, 150
Armrest, rear ................................................. 153
Ashtray, portable ........................................... 145
Assistance call .............................. 177, 299, 300
Audible warning ............................................ 177
Audio streaming
(Bluetooth) .................................. 341, 369, 371
Audio system ........................................... 64, 355
Automatic illumination
of headlamps ...................................... 125, 128
Automatic operation of hazard
warning lamps ............................................ 177Automatic rain sensitive windscreen
wipers ................................................. 133, 134
Auxiliary socket .....................................342, 368
Auxiliary sockets ........................................... 146
Backup starting ............................................. 275
Battery ............................................ 242, 274-277
Battery, charging ................................... 276, 277
Battery, remote control ......................... 106, 107
Black panel...................................................... 60
Blind spot sensors ........................................ 219
Bluetooth (hands-free) .......................... 324, 370
Bluetooth (telephone) .................................... 324
Bonnet ........................................................... 235
Bonnet stay ................................................... 235
Boot ............................................................... 115
Boot lamp .............................................. 140, 156
Brake discs .................................................... 244
Brake lamps .................................................. 266
Brake pads .................................................... 244
Brakes ........................................................... 244
Braking assistance system ........................... 178
Capacity, fuel tank ........................................ 118
CD ................................................................. 363
CD MP3 .................................................364, 365
Central locking ...................................... 102, 108Centre console .............................................. 147
Changing a bulb .................................... 261, 266
Changing a fuse ............................................ 268
Changing a wheel ......................................... 253
Changing a wiper blade ........................ 136, 279
Changing the date ..................................... 64, 68
Changing the remote control
battery ......................................................... 106
Changing the time ..................................... 64, 68
CHECK ...................................................... 39, 57
Checking levels ......................................239 -241
Checking the engine oil level .......................... 54
Checking tyre pressures
(using the kit) .............................................. 248
Checks .................................. 237, 238, 242, 244
Child lock ....................................................... 173
Children .......................................... 167, 169 -171
Child seats .................... 160, 161, 165 -167, 172
Child seats, conventional .............................. 166
Cigar lighter ................................................... 146
CITROËN Localised
Assistance Call ........................................... 300
CITROËN Localised
Emergency Call .......................................... 300
Closing the boot .................................... 102, 115
Closing the doors .................................. 102, 113
Cold climate screen ...................................... 279
Colour screen .................................................. 68
Connectors, audio .........................146, 366, 368
Coolant level ................................................. 240
Courtesy lamps ..................................... 129, 138
Cruise control ........................................ 222, 225
Cup holder ..................................................... 147
B
C

395Alphabetical index
Paint colour code .......................................... 295
Parcel shelf, rear ........................................... 155
Parking brake ........................................ 202, 244
Parking brake, electric .......................... 194, 198
Parking lamps ............................................... 127
Parking sensors, front ................................... 230
Parking sensors, rear.................................... 229
Parking space sensor .................................. 227
Particle emission filter .................. 240, 241, 243
Passenger compartment filter ...................... 242
Personalisation ............................................... 60
Player, CD MP3 .....................................364, 365
Port, USB .............................................. 146, 366
Priming the fuel system ................................ 236
Protecting
children .........160, 161, 165, 167, 169 -171, 186
Puncture ........................................................ 248
Radio ............................................ 333, 334, 359
RCA sockets ................................................. 342
Rear screen (demisting) ............................ 87, 94
Recharging the battery ......................... 276, 277
Reduction of electrical load .......................... 278
Regeneration of the particle
emissions filter ............................................ 243
Reinitialising the electric windows ................ 116
Reinitialising the remote control ................... 106
Remote control .............................. 100, 102, 107
Removable screen
(snow shield) ............................................... 279Safety for children ......................................... 173
Satellite navigation system ............................. 68
Screen, colour and
mapping ........................................40, 305, 345
Screen menu map .........................345, 379, 380
Screen, monochrome ............................. 64, 379
Screen, multifunction
(with audio equipment) ...................64, 68, 358
Screenwash, front ......................................... 135
Seat adjustment ........................................ 88, 89
Seat belts .............................. 166, 181, 182, 184
R
S P
Removing a wheel ........................................ 256
Removing the mat ......................................... 151
Repair kit, puncture ....................................... 248
Replacing bulbs .................................... 261, 266
Replacing fuses ............................................ 268
Replacing the air filter ................................... 242
Replacing the oil filter ................................... 242
Replacing the passenger compartment
filter ............................................................. 242
Replacing wiper blades......................... 136, 279
Resetting the ser vice indicator ....................... 56
Resetting the trip recorder .............................. 58
Rev counter ......................................... 38, 39, 42
Reversing lamps ........................................... 266
Risk areas (update) ....................................... 312
Roof bars ....................................................... 280
Routine checks ..................................... 242, 244
Running out of fuel (Diesel) .......................... 236Seat, rear bench ............................................. 92
Seats, electric ................................................. 89
Seats, rear ....................................................... 92
Selector lever,
electronic gearbox system ......................... 204
Serial number, vehicle .................................. 295
Ser vice indicator ....................................... 55, 57
Ser vicing ......................................................... 34
Setting the clock ....................................... 64, 68
Short-cut menus ........................................... 306
Sidelamps ............................. 124, 127, 262, 266
Side repeater ................................................ 264
Ski flap .......................................................... 153
Snow chains .................................................. 260
Spare wheel .................................................. 253
Speed limiter .........................................222, 223
Speedometer ............................................ 38, 39
Spotlamps, side .................................... 129, 265
Start ............................................................... 275
Starting the vehicle .......................105, 204, 208
Steering mounted
controls ...............................................304, 357
Stopping the vehicle .....................105, 204, 208
Stop & Start ........................................ 74, 83, 86,
118, 216, 235, 242, 274
Storage .................. 144, 145, 147, 149, 150, 154
Storage compartments ......................... 144, 147
Storage drawer ............................................. 152
Storage net .................................................... 154
Stowing rings ................................................ 154
Synchronising the remote control ................. 106
Synthesiser, voice ......................................... 318
System, navigation........................................ 308
