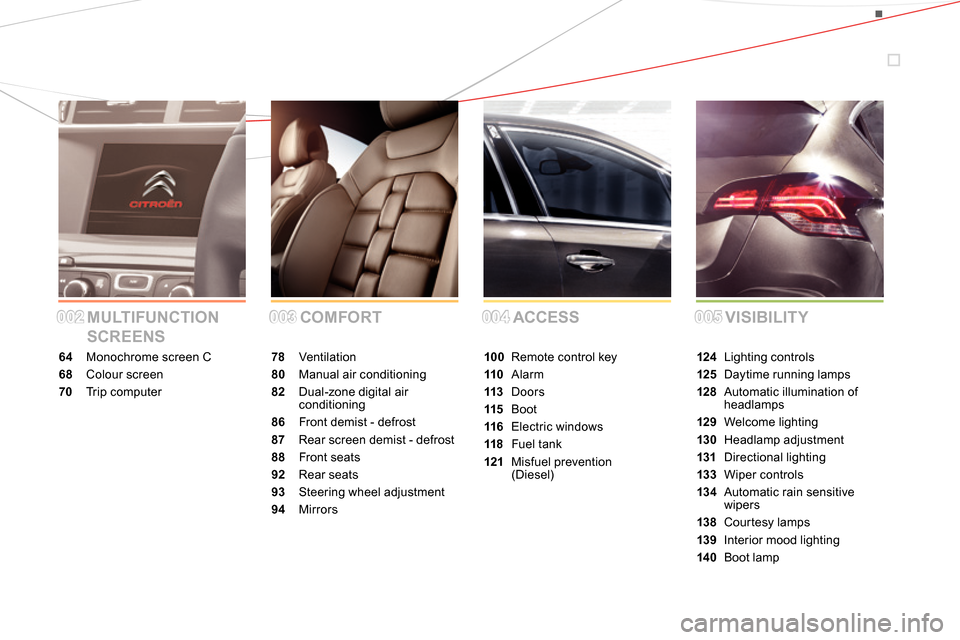

MULTIFUNCTION
SCREENSCOMFORT ACCESS VISIBILITY
64 Monochrome screen C
68 Colour screen
70 Tr i p c o m p u t e r78 Ventilation
80 Manual air conditioning
82 Dual-zone digital air
conditioning
86 Front demist - defrost
87 Rear screen demist - defrost
88 Front seats
92 Rear seats
93 Steering wheel adjustment
94 Mirrors100 Remote control key
110 Alarm
113 Doors
115 Boot
116 Electric windows
118 Fuel tank
121 Misfuel prevention
(Diesel)124 Lighting controls
125 Daytime running lamps
128 Automatic illumination of
headlamps
129 Welcome lighting
130 Headlamp adjustment
131 Directional lighting
133 Wiper controls
13 4 Automatic rain sensitive
wipers
138 Courtesy lamps
139 Interior mood lighting
14 0 Boot lamp
004004005005002002003003
Page 6 of 400

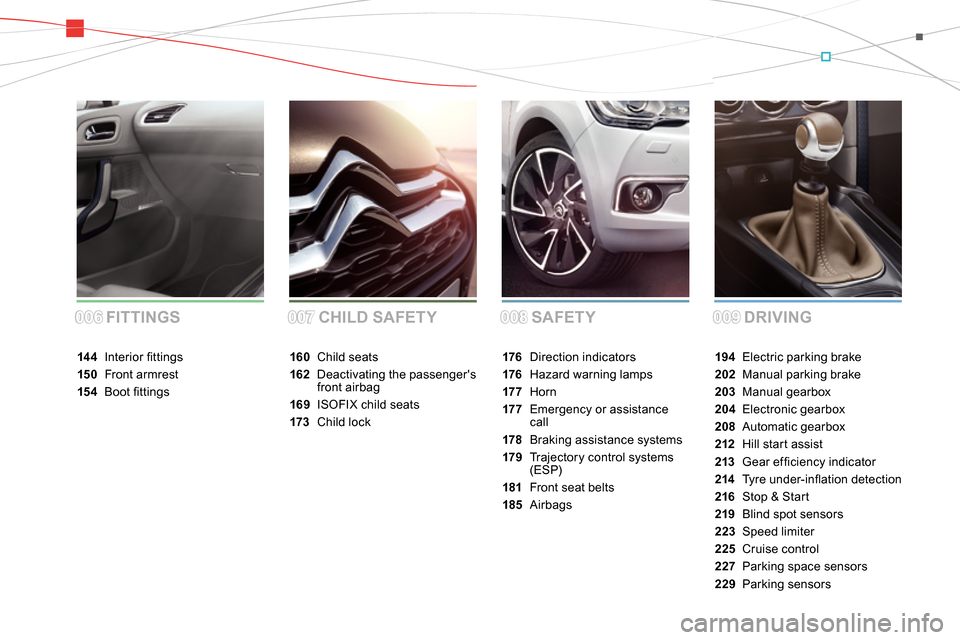

SAFETY DRIVING FITTINGS CHILD SAFETY
194 Electric parking brake
202 Manual parking brake
203 Manual gearbox
204 Electronic gearbox
208 Automatic gearbox
212 Hill start assist
213 Gear effi ciency indicator
214 Ty r e u n d e r- i nfl ation detection
216 Stop & Start
219 Blind spot sensors
223 Speed limiter
225 Cruise control
227 Parking space sensors
229 Parking sensors 176 Direction indicators
176 Hazard warning lamps
17 7 Horn
17 7 Emergency or assistance
call
178 Braking assistance systems
179 Trajectory control systems
(ESP)
181 Front seat belts
185 Airbags 160 Child seats
162 Deactivating the passenger's
front airbag
169 ISOFIX child seats
173 Child lock 14 4 Interior fi ttings
15 0 Front armrest
15 4 Boot fi ttings
008008009009006006007007

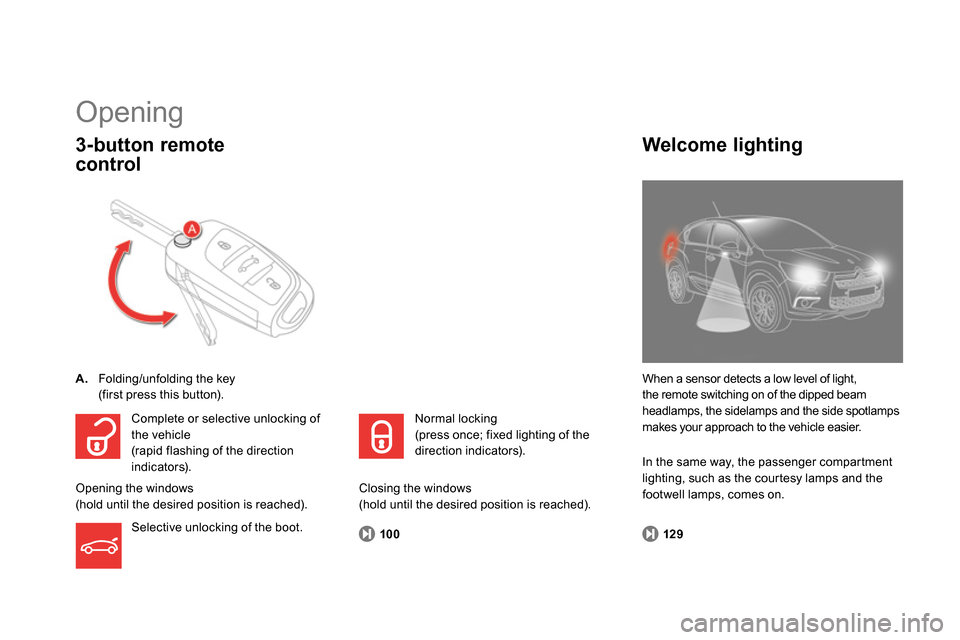

Page 12 of 400
100
Opening
A.
Folding/unfolding the key
(first press this button).
3-button remote
control
When a sensor detects a low level of light,
the remote switching on of the dipped beam
headlamps, the sidelamps and the side spotlamps
makes your approach to the vehicle easier.
Welcome lighting
Complete or selective unlocking of
the vehicle
(rapid flashing of the direction
indicators).
Opening the windows
(hold until the desired position is reached).
Selective unlocking of the boot. Normal locking
(press once; fixed lighting of the
direction indicators).
Closing the windows
(hold until the desired position is reached).
129
In the same way, the passenger compartment
lighting, such as the courtesy lamps and the
footwell lamps, comes on.
Page 13 of 400
11Familiarisation
118 , 12 1
A.
Opening the fuel filler flap.
Capacity of the fuel tank: approximately 60 litres.
Fuel tank
Opening
101, 115
1.
Selective unlocking of the boot.
2.
Opening the boot.
Boot
Page 37 of 400

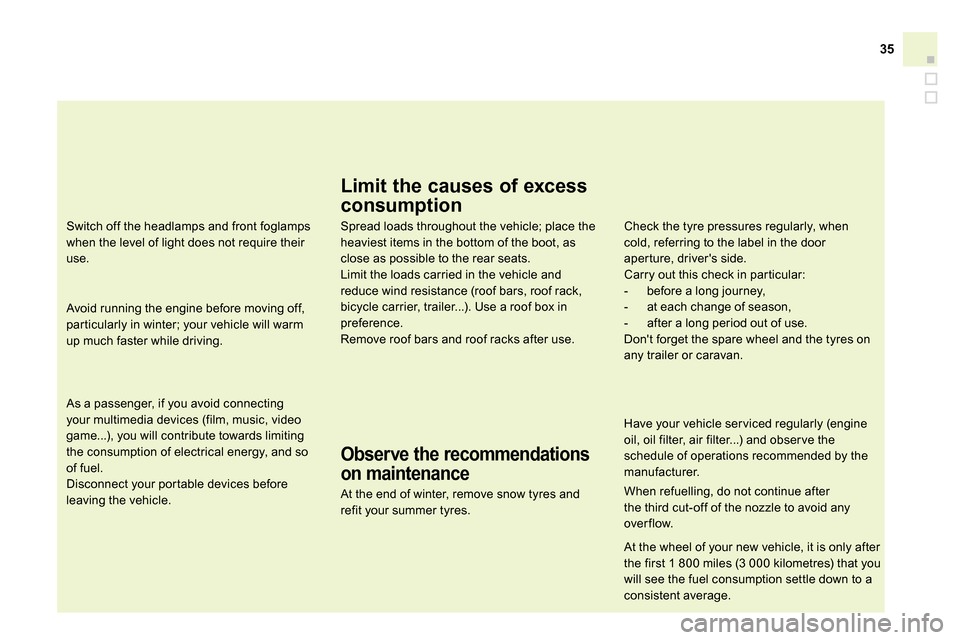

35
As a passenger, if you avoid connecting
your multimedia devices (film, music, video
game...), you will contribute towards limiting
the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before
leaving the vehicle.
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place the
heaviest items in the bottom of the boot, as
close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when
cold, referring to the label in the door
aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle ser viced regularly (engine
oil, oil filter, air filter...) and obser ve the
schedule of operations recommended by the
manufacturer.
When refuelling, do not continue after
the third cut-off of the nozzle to avoid any
over flow.
Switch off the headlamps and front foglamps
when the level of light does not require their
use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm
up much faster while driving.
At the wheel of your new vehicle, it is only after
the first 1 800 miles (3 000 kilometres) that you
will see the fuel consumption settle down to a
consistent average.
Page 43 of 400

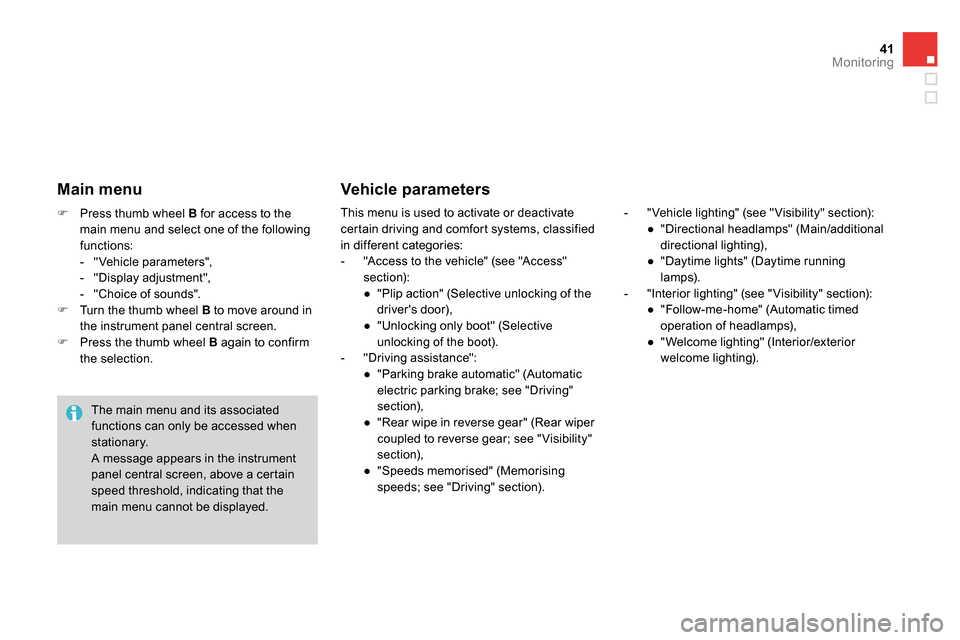

41Monitoring
Press thumb wheel B
for access to the
main menu and select one of the following
functions:
- "Vehicle parameters",
- "Display adjustment",
- "Choice of sounds".
Turn the thumb wheel B
to move around in
the instrument panel central screen.
Press the thumb wheel B
again to confirm
the selection. This menu is used to activate or deactivate
certain driving and comfort systems, classified
in different categories:
- "Access to the vehicle" (see "Access"
section):
●
"Plip action" (Selective unlocking of the
driver's door),
●
"Unlocking only boot" (Selective
unlocking of the boot).
- "Driving assistance":
●
"Parking brake automatic" (Automatic
electric parking brake; see "Driving"
section),
●
"Rear wipe in reverse gear" (Rear wiper
coupled to reverse gear; see " Visibility"
section),
●
"Speeds memorised" (Memorising
speeds; see "Driving" section).
- " Vehicle lighting" (see " Visibility" section):
●
"Directional headlamps" (Main/additional
directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see " Visibility" section):
●
"Follow-me-home" (Automatic timed
operation of headlamps),
●
" Welcome lighting" (Interior/exterior
welcome lighting).
Vehicle parameters
Main menu
The main menu and its associated
functions can only be accessed when
stationary.
A message appears in the instrument
panel central screen, above a certain
speed threshold, indicating that the
main menu cannot be displayed.
Page 48 of 400

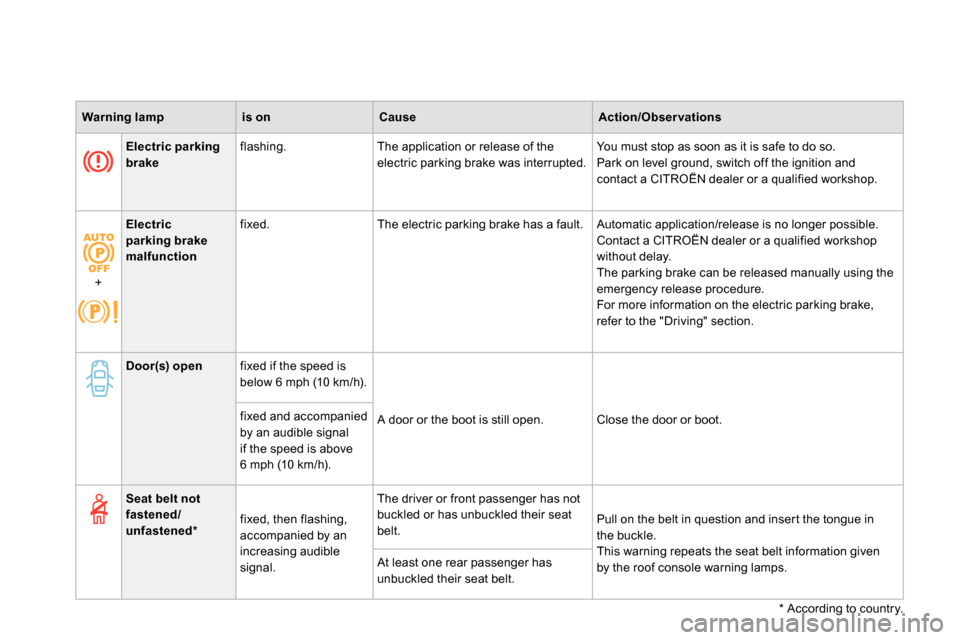

Warning lamp
is on
Cause
Action/Observations
Electric parking
brake
flashing. The application or release of the
electric parking brake was interrupted. You must stop as soon as it is safe to do so.
Park on level ground, switch off the ignition and
contact a CITROËN dealer or a qualified workshop.
+
Electric
parking brake
malfunction
fixed. The electric parking brake has a fault. Automatic application/release is no longer possible.
Contact a CITROËN dealer or a qualified workshop
without delay.
The parking brake can be released manually using the
emergency release procedure.
For more information on the electric parking brake,
refer to the "Driving" section.
Door(s) open
fixed if the speed is
below 6 mph (10 km/h).
A door or the boot is still open. Close the door or boot.
fixed and accompanied
by an audible signal
if the speed is above
6 mph (10 km/h).
* According to country.
Seat belt not
fastened/
unfastened *
fixed, then flashing,
accompanied by an
increasing audible
signal. The driver or front passenger has not
buckled or has unbuckled their seat
belt. Pull on the belt in question and insert the tongue in
the buckle.
This warning repeats the seat belt information given
by the roof console warning lamps. At least one rear passenger has
unbuckled their seat belt.

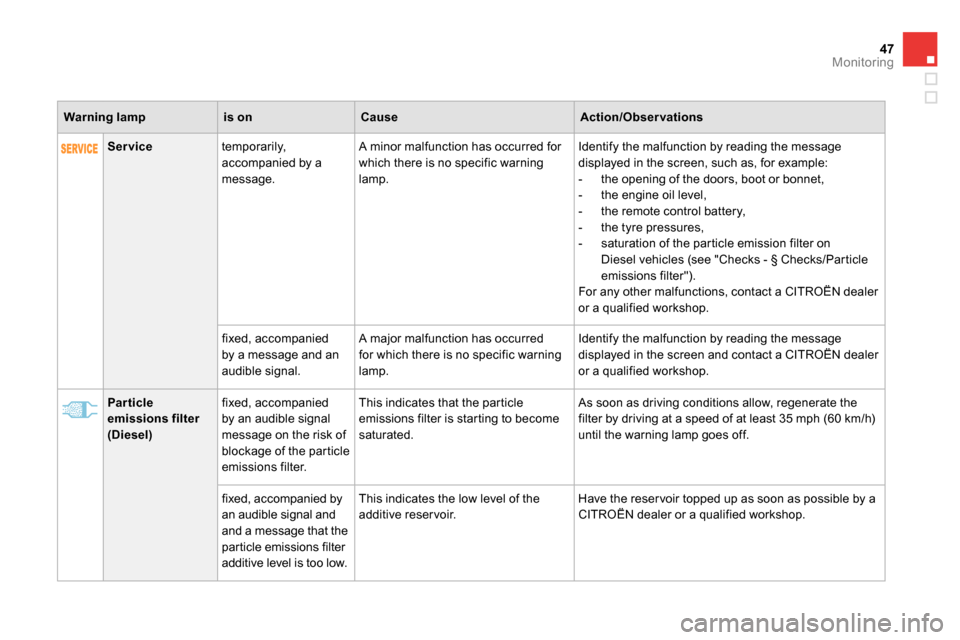

Page 49 of 400
47Monitoring
Service
temporarily,
accompanied by a
message. A minor malfunction has occurred for
which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen, such as, for example:
- the opening of the doors, boot or bonnet,
- the engine oil level,
- the remote control battery,
- the tyre pressures,
- saturation of the particle emission filter on
Diesel vehicles (see "Checks - § Checks/Particle
emissions filter").
For any other malfunctions, contact a CITROËN dealer
or a qualified workshop.
fixed, accompanied
by a message and an
audible signal. A major malfunction has occurred
for which there is no specific warning
lamp. Identify the malfunction by reading the message
displayed in the screen and contact a CITROËN dealer
or a qualified workshop.
Warning lamp
is on
Cause
Action/Observations
Particle
emissions filter
(Diesel)
fixed, accompanied
by an audible signal
message on the risk of
blockage of the particle
emissions filter. This indicates that the particle
emissions filter is starting to become
saturated. As soon as driving conditions allow, regenerate the
filter by driving at a speed of at least 35 mph (60 km/h)
until the warning lamp goes off.
fixed, accompanied by
an audible signal and
and a message that the
particle emissions filter
additive level is too low.
This indicates the low level of the
additive reservoir. Have the reser voir topped up as soon as possible by a
CITROËN dealer or a qualified workshop.
Page 68 of 400
Defi ne the vehicle parameters
- "Driving assistance":
●
"Parking brake automatic" (Automatic
electric parking brake; see the "Driving"
section),
●
"Rear wipe in reverse gear" (Rear
wiper coupled to reverse gear; see the
" Visibility" section),
●
"Speeds memorised" (Memorising
speeds; see the "Driving" section).
- " Vehicle lighting" (see the " Visibility"
section):
●
"Directional headlamps" (Main /
additional directional lighting),
●
"Daytime lights" (Daytime running
lamps).
- "Interior lighting" (see the " Visibility"
section:
●
"Follow-me-home headlamps"
(Automatic operation of headlamps after
switching off the ignition),
●
" Welcome lighting" (Exterior and interior
welcome lighting).
For example: setting of the duration of the
"follow-me-home" lighting
Press the "
" or "
" buttons, to select the
"Define the vehicle parameters" menu,
then the " OK
" button.
Press the "
" or "
" buttons to select the
"Interior lighting" line, then the "OK"
button;
then follow the same procedure to select the
"Follow-me-home headlamps" line. This menu allows you to activate or deactivate
the following equipment, classified in different
categories:
- "Access to the vehicle" (see the "Access"
section):
●
"Plip action" (Selective unlocking of the
driver's door),
●
"Unlocking boot only" (Selective
unlocking of the boot).

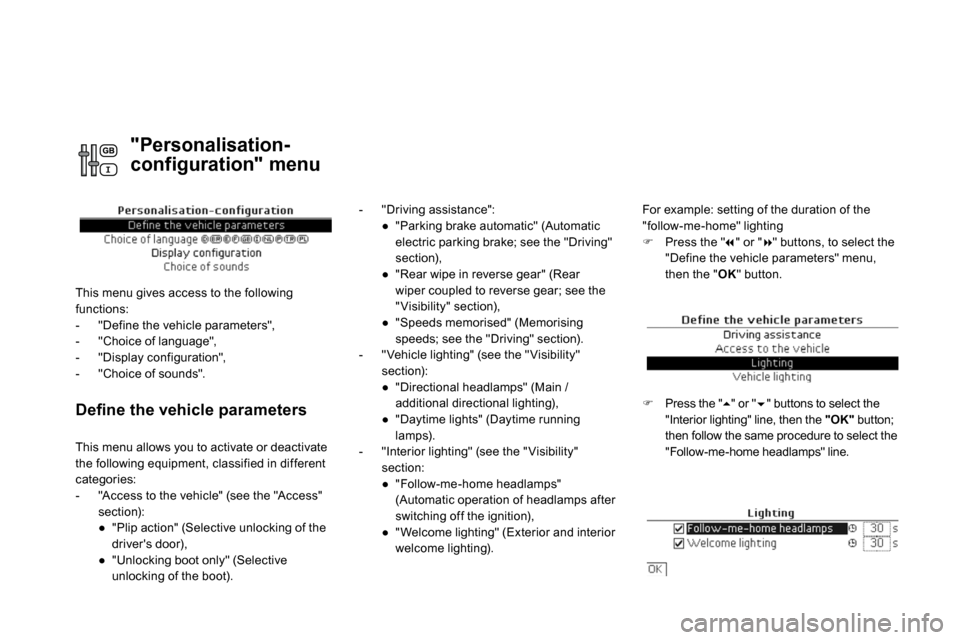

"Personalisation-
configuration" menu
This menu gives access to the following
functions:
- "Define the vehicle parameters",
- "Choice of language",
- "Display configuration",
- "Choice of sounds".
Page 81 of 400

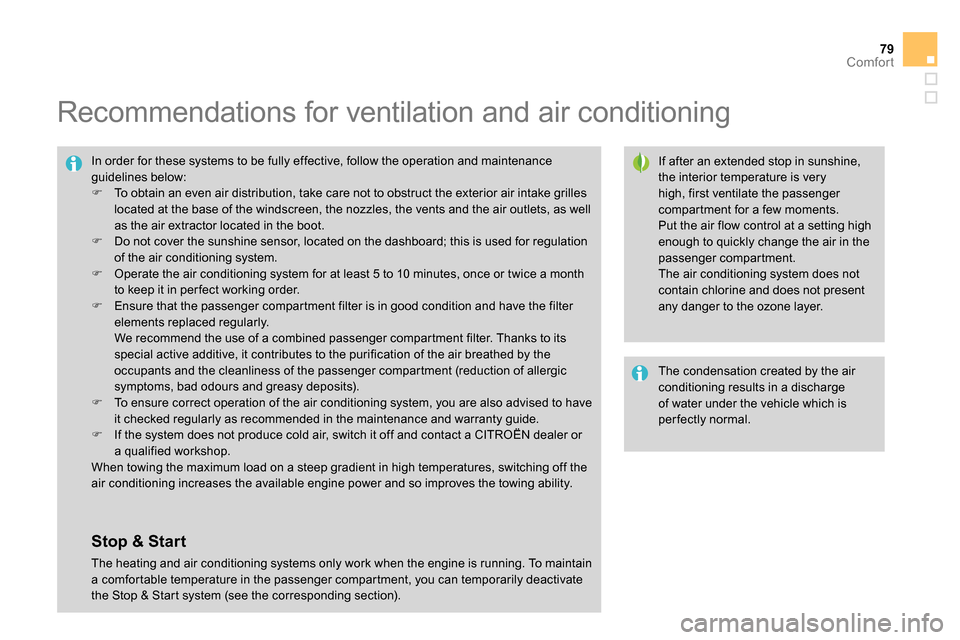

79Comfort
Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer. In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
To obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
Operate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
Ensure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
We recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
To ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the maintenance and warranty guide.
If the system does not produce cold air, switch it off and contact a CITROËN dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
per fectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is running. To maintain
a comfortable temperature in the passenger compartment, you can temporarily deactivate
the Stop & Start system (see the corresponding section).
