15Familiarisation
Instruments and controls




1.
Steering wheel adjustment control.

2.
Steering mounted control paddles for the
electronic gearbox.

3.
Lighting and direction indicator control
stalk.

4.
Speaker (tweeter).

5.
Windscreen demisting vent.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box / Audio/video sockets /
Passenger's airbag deactivation switch /
Fusebox.

9.
Bonnet release.

10.
Heated seat control.

11.
Lumbar massage control.

12 .
Electric parking brake.

13.
Gear lever for a manual gearbox or
selector lever for an electronic or automatic
gearbox.

14 .
Large multifunctional storage unit.

49Monitoring

Power steering
fixed. The power steering has a fault. Drive carefully at reduced speed.
Have it checked by a CITROËN dealer or a qualified
workshop.




Under-inflation


fixed. The pressure in one or more wheels
is too low. Check the pressure of the tyres as soon as possible.
This check should preferably be carried out when the
tyres are cold.

+
flashing then fixed,
accompanied by the
Ser vice warning lamp. The tyre pressure monitoring system
has a fault or no sensor is detected
on one of the wheels. Under-inflation detection is not assured.
Have the system checked by a CITROËN dealer or a
qualified workshop.




Directional
headlamps


flashing. The directional headlamps system
has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

Warning lamp



is on



Cause



Action/Observations






Foot on the brake
pedal


fixed. The brake pedal is not pressed. With an electronic gearbox, press the brake pedal to
start the engine (lever in position N
).
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will remain
on.

flashing. With an electronic gearbox, if you hold
the vehicle on a rising incline using
the accelerator for too long, the clutch
overheats. Use the brake pedal and/or the electric parking brake.




Airbags


temporarily. This lamp comes on for a few
seconds when you turn on the
ignition, then goes off. This lamp should go off when the engine is started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.

fixed. One of the airbag or seat belt
pretensioner systems has a fault. Have it checked by a CITROËN dealer or a qualified
workshop.

215Driving

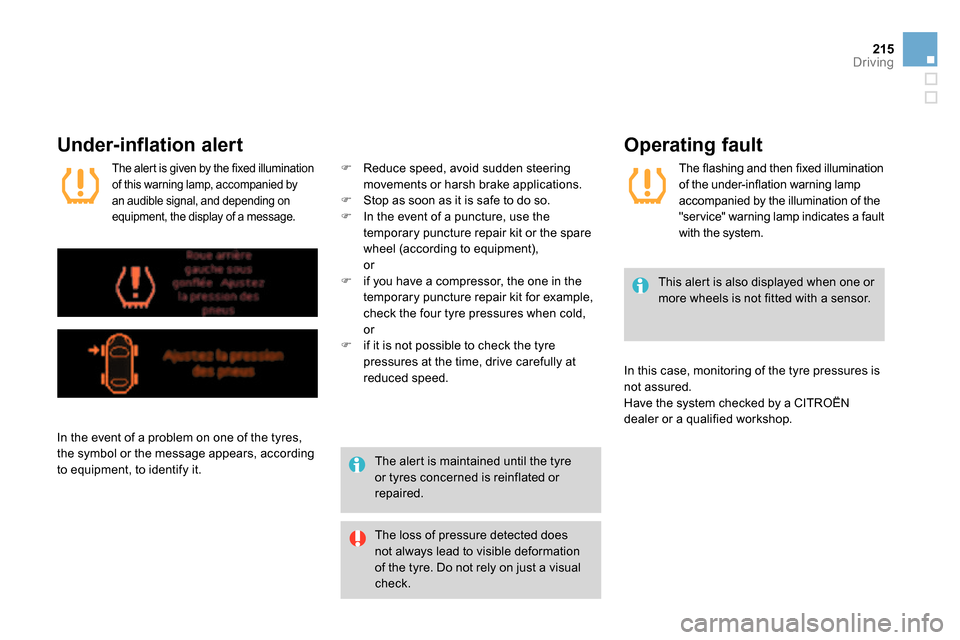

Under-inflation alert


The loss of pressure detected does
not always lead to visible deformation
of the tyre. Do not rely on just a visual
check.

This alert is also displayed when one or
more wheels is not fitted with a sensor.

The alert is maintained until the tyre
or tyres concerned is reinflated or
repaired.

The aler t is given by the fixed illumination
of this warning lamp, accompanied by
an audible signal, and depending on
equipment, the display of a message.
In the event of a problem on one of the tyres,
the symbol or the message appears, according
to equipment, to identify it.


Reduce speed, avoid sudden steering
movements or harsh brake applications.


Stop as soon as it is safe to do so.


In the event of a puncture, use the
temporary puncture repair kit or the spare
wheel (according to equipment),
or


if you have a compressor, the one in the
temporary puncture repair kit for example,
check the four tyre pressures when cold,
or


if it is not possible to check the tyre
pressures at the time, drive carefully at
reduced speed.


Operating fault

The flashing and then fixed illumination
of the under-inflation warning lamp
accompanied by the illumination of the
"ser vice" warning lamp indicates a fault
with the system.
In this case, monitoring of the tyre pressures is
not assured.
Have the system checked by a CITROËN
dealer or a qualified workshop.

The spare wheel is installed in the boot under
the floor.
Depending on version, the spare wheel may be
a standard size steel or alloy wheel, or for some
countries it is the "space saver" type.
For access to the spare wheel, refer to the
paragraph "Access to the tools" on the previous
page.

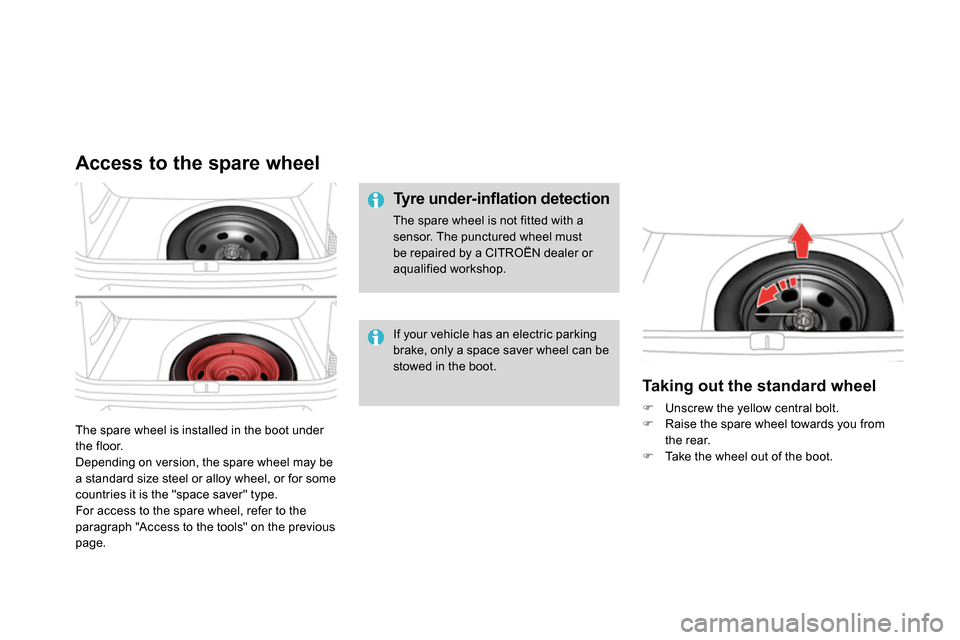

Access to the spare wheel


Ty r e u n d e r - i nfl ation detection

The spare wheel is not fitted with a
sensor. The punctured wheel must
be repaired by a CITROËN dealer or
aqualified workshop.



Taking out the standard wheel




Unscrew the yellow central bolt.


Raise the spare wheel towards you from
the rear.


Take the wheel out of the boot.

If your vehicle has an electric parking
brake, only a space saver wheel can be
stowed in the boot.

Driving advice


Distribution of loads




Distribute the load in the trailer so that the
heaviest items are as close as possible to
the axle and the nose weight approaches the
maximum permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine per formance. Above
1 000 metres, the maximum towed load must
be reduced by 10 % for every 1 000 metres of
altitude.


Side wind




Take into account the increased sensitivity
to side wind.



Cooling

Towing a trailer on a slope increases the
temperature of the coolant.
As the fan is electrically controlled, its cooling
capacity is not dependent on the engine speed.



To lower the engine speed, reduce your
speed.
The maximum towed load on a long incline
depends on the gradient and the ambient
temperature.
In all cases, keep a check on the coolant
temperature.



If the warning lamp and the STOP

warning lamp come on, stop the
vehicle and switch off the engine
as soon as possible.

The rear parking sensors will be
deactivated automatically if a genuine
CITROËN towbar is used.



Braking

Towing a trailer increases the braking distance.
To avoid overheating of the brakes on a long
mountain type of descent, the use of engine
braking is recommended.


Ty r e s




Check the tyre pressures of the towing
vehicle and of the trailer, obser ving the
recommended pressures.



Lighting




Check the electrical lighting and signalling
on the trailer.

Refer to the "Technical data" section for
details of the weights and towed loads
which apply to your vehicle.

Exterior


Remote control 100 -107


- opening / closing

- antitheft protection

- starting

- battery


Lighting c ontrols 124 -128
Headlamp adjustment 130
Guide-me-home lighting 127, 128
Welcome lighting 129
Directional lighting systems 131-132
Changing bulbs 261-265


- front lamps

- front foglamps

- side repeaters

W iper c ontrols 13 3 -137
Changing a wiper blade 279

Door mirrors 94-95
Blind spot sensors 219 -221

D o o r s 113 -114


- opening / closing

- emergency control
Child lock 173
Electric windows 116 -117
A l a r m 11 0 -112

Fuel tank 118 -120
Misfuel prevention 121
Accessories 285-286
Roof bars 280

Braking assistance 178 -179
Trajectory control 179 -180
Tyre under-inflation detection 214-215
Tyre pressures 252, 295
Boot 115
Temporary puncture repair kit 248 -252
Changing a wheel 253 -259


- tools

- removing / refitting
Snow chains 260

Changing bulbs 266 -268


- rear lamps

- 3 rd
brake lamp

- number plate lamp


Parking sensors 229 -230
Parking space sensors 227-228
Towbar 283-284
Towing 281-282

A
ABS and EBFD systems ............................... 178
Accessories .................................................. 285
Accessory socket, 12V ..........146, 147, 150, 156
Adjusting headlamps .................................... 130
Adjusting head restraints ................................ 90
Adjusting seat belt height ..................... 181, 182
Adjusting the steering wheel .......................... 93
Airbags, curtain ..................................... 189, 190
Airbags, front......................................... 186, 190
Airbags, lateral ...................................... 188, 190
Air conditioning ............................................... 34
Air conditioning, automatic ....................... 79, 82
Air conditioning, manual ........................... 79, 80
Air filter .......................................................... 242
Air flow ............................................................ 34
Air vents .......................................................... 78
Alarm ............................................................. 110
Anti-lock braking system
(ABS) .......................................................... 178
Anti-pinch ...................................................... 116
Anti-theft ....................................................... 104
Armrest, front ........................................ 149, 150
Armrest, rear ................................................. 153
Ashtray, portable ........................................... 145
Assistance call .............................. 177, 299, 300
Audible warning ............................................ 177
Audio streaming
(Bluetooth) .................................. 341, 369, 371
Audio system ........................................... 64, 355
Automatic illumination
of headlamps ...................................... 125, 128
Automatic operation of hazard
warning lamps ............................................ 177Automatic rain sensitive windscreen
wipers ................................................. 133, 134
Auxiliary socket .....................................342, 368
Auxiliary sockets ........................................... 146
Backup starting ............................................. 275
Battery ............................................ 242, 274-277
Battery, charging ................................... 276, 277
Battery, remote control ......................... 106, 107
Black panel...................................................... 60
Blind spot sensors ........................................ 219
Bluetooth (hands-free) .......................... 324, 370
Bluetooth (telephone) .................................... 324
Bonnet ........................................................... 235
Bonnet stay ................................................... 235
Boot ............................................................... 115
Boot lamp .............................................. 140, 156
Brake discs .................................................... 244
Brake lamps .................................................. 266
Brake pads .................................................... 244
Brakes ........................................................... 244
Braking assistance system ........................... 178
Capacity, fuel tank ........................................ 118
CD ................................................................. 363
CD MP3 .................................................364, 365
Central locking ...................................... 102, 108Centre console .............................................. 147
Changing a bulb .................................... 261, 266
Changing a fuse ............................................ 268
Changing a wheel ......................................... 253
Changing a wiper blade ........................ 136, 279
Changing the date ..................................... 64, 68
Changing the remote control
battery ......................................................... 106
Changing the time ..................................... 64, 68
CHECK ...................................................... 39, 57
Checking levels ......................................239 -241
Checking the engine oil level .......................... 54
Checking tyre pressures
(using the kit) .............................................. 248
Checks .................................. 237, 238, 242, 244
Child lock ....................................................... 173
Children .......................................... 167, 169 -171
Child seats .................... 160, 161, 165 -167, 172
Child seats, conventional .............................. 166
Cigar lighter ................................................... 146
CITROËN Localised
Assistance Call ........................................... 300
CITROËN Localised
Emergency Call .......................................... 300
Closing the boot .................................... 102, 115
Closing the doors .................................. 102, 113
Cold climate screen ...................................... 279
Colour screen .................................................. 68
Connectors, audio .........................146, 366, 368
Coolant level ................................................. 240
Courtesy lamps ..................................... 129, 138
Cruise control ........................................ 222, 225
Cup holder ..................................................... 147
B
C

395Alphabetical index
Paint colour code .......................................... 295
Parcel shelf, rear ........................................... 155
Parking brake ........................................ 202, 244
Parking brake, electric .......................... 194, 198
Parking lamps ............................................... 127
Parking sensors, front ................................... 230
Parking sensors, rear.................................... 229
Parking space sensor .................................. 227
Particle emission filter .................. 240, 241, 243
Passenger compartment filter ...................... 242
Personalisation ............................................... 60
Player, CD MP3 .....................................364, 365
Port, USB .............................................. 146, 366
Priming the fuel system ................................ 236
Protecting
children .........160, 161, 165, 167, 169 -171, 186
Puncture ........................................................ 248
Radio ............................................ 333, 334, 359
RCA sockets ................................................. 342
Rear screen (demisting) ............................ 87, 94
Recharging the battery ......................... 276, 277
Reduction of electrical load .......................... 278
Regeneration of the particle
emissions filter ............................................ 243
Reinitialising the electric windows ................ 116
Reinitialising the remote control ................... 106
Remote control .............................. 100, 102, 107
Removable screen
(snow shield) ............................................... 279Safety for children ......................................... 173
Satellite navigation system ............................. 68
Screen, colour and
mapping ........................................40, 305, 345
Screen menu map .........................345, 379, 380
Screen, monochrome ............................. 64, 379
Screen, multifunction
(with audio equipment) ...................64, 68, 358
Screenwash, front ......................................... 135
Seat adjustment ........................................ 88, 89
Seat belts .............................. 166, 181, 182, 184
R
S P
Removing a wheel ........................................ 256
Removing the mat ......................................... 151
Repair kit, puncture ....................................... 248
Replacing bulbs .................................... 261, 266
Replacing fuses ............................................ 268
Replacing the air filter ................................... 242
Replacing the oil filter ................................... 242
Replacing the passenger compartment
filter ............................................................. 242
Replacing wiper blades......................... 136, 279
Resetting the ser vice indicator ....................... 56
Resetting the trip recorder .............................. 58
Rev counter ......................................... 38, 39, 42
Reversing lamps ........................................... 266
Risk areas (update) ....................................... 312
Roof bars ....................................................... 280
Routine checks ..................................... 242, 244
Running out of fuel (Diesel) .......................... 236Seat, rear bench ............................................. 92
Seats, electric ................................................. 89
Seats, rear ....................................................... 92
Selector lever,
electronic gearbox system ......................... 204
Serial number, vehicle .................................. 295
Ser vice indicator ....................................... 55, 57
Ser vicing ......................................................... 34
Setting the clock ....................................... 64, 68
Short-cut menus ........................................... 306
Sidelamps ............................. 124, 127, 262, 266
Side repeater ................................................ 264
Ski flap .......................................................... 153
Snow chains .................................................. 260
Spare wheel .................................................. 253
Speed limiter .........................................222, 223
Speedometer ............................................ 38, 39
Spotlamps, side .................................... 129, 265
Start ............................................................... 275
Starting the vehicle .......................105, 204, 208
Steering mounted
controls ...............................................304, 357
Stopping the vehicle .....................105, 204, 208
Stop & Start ........................................ 74, 83, 86,
118, 216, 235, 242, 274
Storage .................. 144, 145, 147, 149, 150, 154
Storage compartments ......................... 144, 147
Storage drawer ............................................. 152
Storage net .................................................... 154
Stowing rings ................................................ 154
Synchronising the remote control ................. 106
Synthesiser, voice ......................................... 318
System, navigation........................................ 308
