navigation system Citroen DS4 RHD 2013.5 1.G Owner's Manual

13Familiarisation
Interior


Electronic gearbox

This system offers driving combining a fully
automatic mode and a manual mode.

Interior mood lighting

This dimmed lighting of the passenger
compartment improves visibility inside the
vehicle when the light is poor.

Audio and communication
systems
These systems benefit from the following
technologies: radio, CD player, USB player,
Bluetooth system, satellite navigation system
with colour screen, auxiliary sockets.

Audio system


204


139



355


301





Electric parking brake

It combines the functions of automatic
application on switching off the engine and
automatic release when moving off.
Manual application and release remain
possible.

194

eMyWay satellite navigation system


Massage function

This system gives a lumbar massage for a
period of 60 minutes. The massage is done in
6 cycles of 10 minutes each.

91

Roof consoles - Centre consoles




A.
Rear view mirror.

B.
Microphone for audio and telematic
system.

C.
Interior mood lighting.

D.
Emergency call / Assistance call.

E.
Courtesy lamp / Map reading lamps.




1.
Central adjustable air vents.

2.
Monochrome screen and seat belt and
front airbag screen or colour and mapping
screen.

3.
Audio system or eMyWay satellite
navigation system.

4.
Central switch panel.

5.
Heating / air conditioning controls.

6.
USB port / auxiliary Jack socket and
cigarette lighter / 12 V accessory socket.

7.
Gear lever or selector.

8.
Manual or electric parking brake

9.
Portable ashtray.

10.
Front armrest.

Type 2 instrument panel central screen and controls




1.
Speed limiter or cruise control settings.

2.
Engine oil level indicator.
Reminder of the servicing information.
These functions are displayed successively
on switching on the ignition, after the
welcome sequence and before display of
the active available functions.
Alert or information messages may be
displayed temporarily.
This group of controls allows:


- when stationary
, configuration of the
vehicle, central screen and instrument
panel parameters (driving and comfort
systems, language, units, sounds...),

- when stationar y and while driving
,
scrolling the active functions available
(trip computer, navigation-guidance...).



Controls

There is a button and a thumb wheel to control
the central screen in the instrument panel:


A.
button on the end of the wiper stalk:
run through the various active functions
available.

B.
thumb wheel on the left of the steering
column,


- rotation (other than menu): scroll through
the list of active functions available,

- press: main menu, confirm the selection,

- rotation (in a menu): move up or down in
the menu.

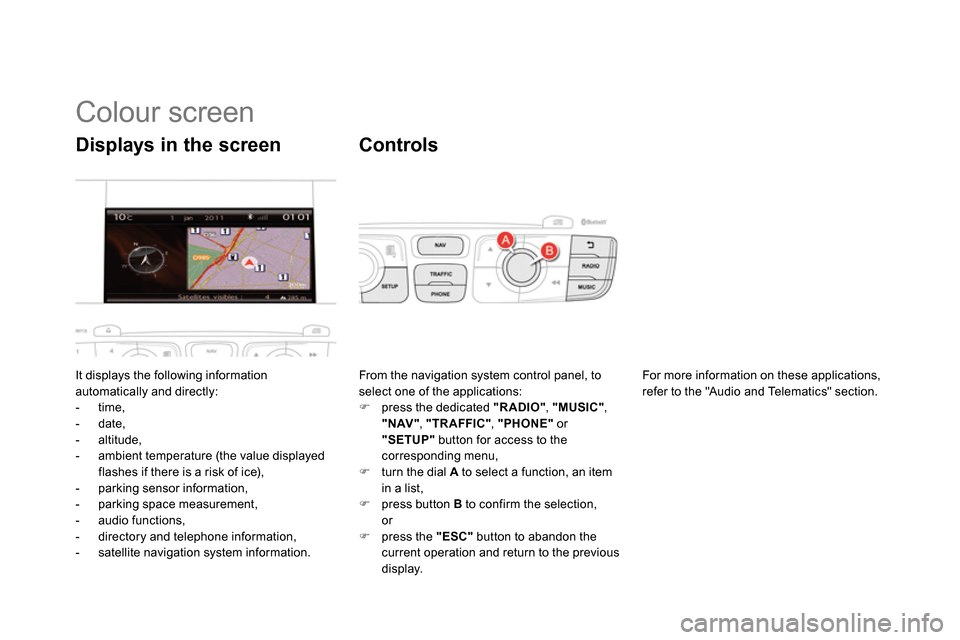

Colour screen

It displays the following information
automatically and directly:


- time,

- date,

- altitude,

- ambient temperature (the value displayed
flashes if there is a risk of ice),

- parking sensor information,

- parking space measurement,

- audio functions,

- directory and telephone information,

- satellite navigation system information.



Displays in the screen

From the navigation system control panel, to
select one of the applications:



press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "PHONE"
or
"SETUP"
button for access to the
corresponding menu,


turn the dial A
to select a function, an item
in a list,


press button B
to confirm the selection,
or


press the "ESC"
button to abandon the
current operation and return to the previous
display.


Controls

For more information on these applications,
refer to the "Audio and Telematics" section.

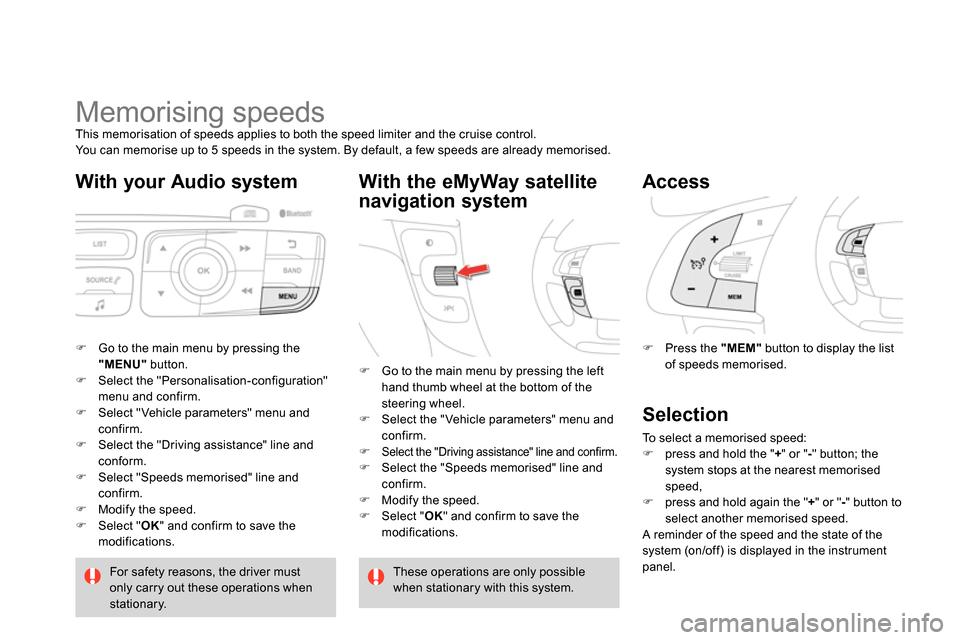

Memorising speeds
This memorisation of speeds applies to both the speed limiter and the cruise control.
You can memorise up to 5 speeds in the system. By default, a few speeds are already memorised.


With your Audio system




Go to the main menu by pressing the
"MENU"
button.


Select the "Personalisation-configuration"
menu and confirm.


Select " Vehicle parameters" menu and
confirm.


Select the "Driving assistance" line and
conform.


Select "Speeds memorised" line and
confirm.


Modify the speed.


Select " OK
" and confirm to save the
modifications.


With the eMyWay satellite
navigation system



Press the "MEM"
button to display the list
of speeds memorised.



Access

For safety reasons, the driver must
only carry out these operations when
stationary.


Go to the main menu by pressing the left
hand thumb wheel at the bottom of the
steering wheel.


Select the " Vehicle parameters" menu and
confirm.



Select the "Driving assistance" line and confirm.


Select the "Speeds memorised" line and
confirm.


Modify the speed.


Select " OK
" and confirm to save the
modifications.
These operations are only possible
when stationary with this system.


Selection

To select a memorised speed:



press and hold the " +
" or " -
" button; the
system stops at the nearest memorised
speed,


press and hold again the " +
" or " -
" button to
select another memorised speed.
A reminder of the speed and the state of the
system (on/off) is displayed in the instrument
panel.

Charging the battery using
a battery charger



Disconnect the battery from the vehicle.


Follow the instructions for use provided by
the manufacturer of the charger.


Connect the battery starting with the
negative terminal (-).


Check that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.

With Stop & Start, the battery does not
have to be disconnected for charging.


Reinitialisation after
reconnection

After any reconnection of the battery, switch on
the ignition and wait at least one minute before
starting, to allow time for the initialisation of the
electronic systems.
By referring to the corresponding sections, you
should set or initialise the following systems
yourself:


- one-touch electric windows,

- time and date,

- audio and navigation system settings.
Check that no alert message or
warning lamp comes on after switching
on the ignition.
However, if minor problems persist
after carrying out these operations,
contact a CITROËN dealer or a
qualified workshop.



Position the open clamp E
of the cable on
the positive post (+) of the battery.


Press down on the clamp to position it
correctly on the battery post.


Lock the clamp by lowering the lever D
.


Reconnecting the (+)
terminal
Disconnecting the (+)
terminal



Raise the lever D
fully to release the clamp E
.


Do not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.

Energy economy mode
System which manages the period of use of certain functions to conser ve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of thirty
minutes.
This period may be greatly reduced if
the battery is not fully charged.
A flat battery prevents the engine from
starting (refer to the corresponding
paragraph). If the telephone is being used at the
same time on the navigation system,
it will be interrupted after 10 minutes.


Switching to economy mode

Once this period has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.

Exiting economy mode

These functions are reactivated automatically
the next time the vehicle is driven.



In order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.








Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.

"Multimedia":

audio systems, steering mounted audio
controls, speakers, Hi-Fi module, Bluetooth
hands-free system, portable satellite navigation
system, semi-integral support bracket for
portable navigation system, mapping update
CD, driving assistant, portable video screen,
portable video support bracket,
230 V/50 Hz socket, 230 V/12 V adaptor,
iPhone
® compatible mobile phone charger,
mobile phone/smartphone bracket, Wi-Fi on
board...
By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...



Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.

Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle, breathalyzers and
spare bulbs and fuses available in the
vehicle.

301

The system is protected in such a way that it will only
operate in your vehicle.






eMyWay


01 First steps - Control panel


For safety reasons, the driver must only carry out
operations which require prolonged attention while
the vehicle is stationary.
When the engine is switched off and to prevent
discharging of the battery, the system switches off
following the activation of the energy economy mode.



CONTENTS

02 Steering mounted controls

03 General operation

04 Navigation - Guidance

05 Traffic information

06 Using the telephone

07 Radio

08 Music media players

09 Audio settings

10 Configuration

11 Screen menu map

Frequently asked questions p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
p.
304
306
307
309
322
325
335
339
345
346
347
351

SATELLITE NAVIGATION SYSTEM
MULTIMEDIA BLUETOOTH
TELEPHONE AUDIO SYSTEM

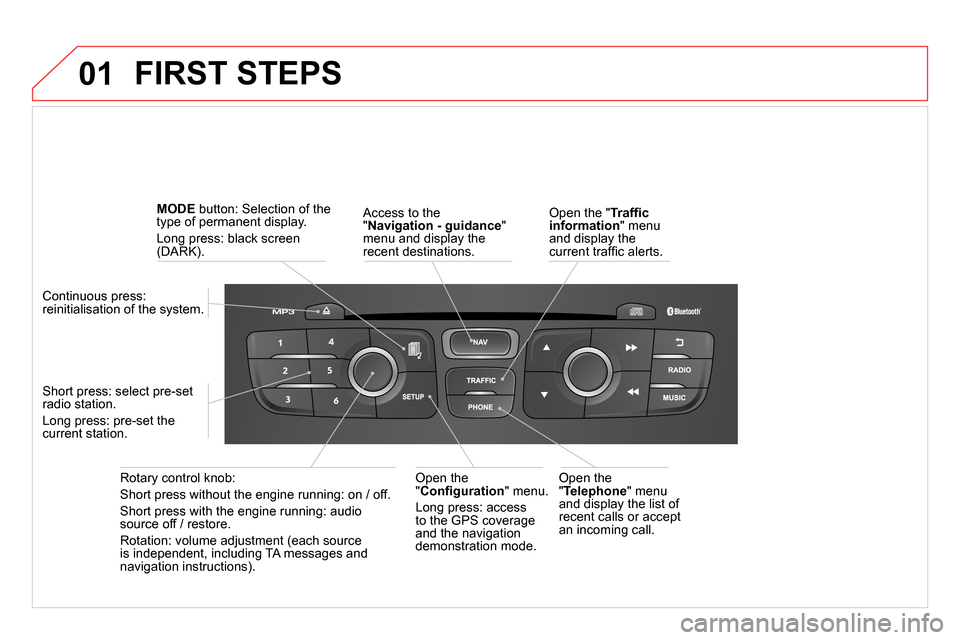

01 FIRST STEPS


Access to the
" Navigation - guidance
"
menu and display the
recent destinations.

Rotary control knob:
Short press without the engine running: on / off.
Short press with the engine running: audio
source off / restore.
Rotation: volume adjustment (each source
is independent, including TA messages and
navigation instructions).
Continuous press:
reinitialisation of the system.

Short press: select pre-set
radio station.
Long press: pre-set the
current station.


MODE
button: Selection of the
type of permanent display.
Long press: black screen
(DARK).

Open the
" Telephone
" menu
and display the list of
recent calls or accept
an incoming call.
Open the
" Confi guration
" menu.
Long press: access
to the GPS coverage
and the navigation
demonstration mode.
Open the " Traffi c
information
" menu
and display the
current traffi c alerts.
