parking sensors Citroen DS4 RHD 2013.5 1.G Owner's Manual

SAFETY DRIVING FITTINGS CHILD SAFETY
194 Electric parking brake
202 Manual parking brake
203 Manual gearbox
204 Electronic gearbox
208 Automatic gearbox
212 Hill start assist
213 Gear effi ciency indicator
214 Ty r e u n d e r- i nfl ation detection
216 Stop & Start
219 Blind spot sensors
223 Speed limiter
225 Cruise control
227 Parking space sensors
229 Parking sensors 176 Direction indicators
176 Hazard warning lamps
17 7 Horn
17 7 Emergency or assistance
call
178 Braking assistance systems
179 Trajectory control systems
(ESP)
181 Front seat belts
185 Airbags 160 Child seats
162 Deactivating the passenger's
front airbag
169 ISOFIX child seats
173 Child lock 14 4 Interior fi ttings
15 0 Front armrest
15 4 Boot fi ttings
008008009009006006007007

Exterior


Parking sensors

This system measures the size of a free
parking space between two vehicles or
obstacles.

Stop & Start system

This system puts the engine temporarily into standby during
stops in the traffic (traffic lights, traffic jams, etc...). The engine
restarts automatically as soon as you want to move off. The
Stop & Start system reduces fuel consumption and exhaust
emissions, as well as noise levels when stationary.

227


216




Directional lighting

This lighting automatically provides
additional visibility when cornering.

131




Panoramic windscreen

This large glazed area provides
incomparable visibility and light in the
passenger compartment.

12




Cornering lighting

At low speed, this lighting comes on
automatically to improve vision when
cornering, at intersections, when parking...
making use of the front foglamp on the side
in question.

132

Sitting comfortably


Door mirrors


Adjustment



A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the mirror in
the four directions.

C.
De-selection of the mirror.

94




Other functions available...

Folding / Unfolding.
Automatic tilting of the mirror in reverse
gear for parking.
Blind spot sensors.



Rear view mirror


Manual day/night model



1.
Selection of the "day" position of the mirror.

2.
Adjustment of the mirror.



Automatic day/night model


96




A.
Brightness detection in automatic day/night
mode.

B.
Adjustment of the mirror.


1.
Fastening the buckle.

2.
Height adjustment.


Front seat belts


181

Monitoring

Illumination of the warning lamp indicates the
state of the system.

Side switch panel

180


B.
Deactivate the parking sensors.
230

C.
Deactivate the Stop & Start system.
217


D.
Activate blind spot monitoring.
219

E.
Activate the electric child lock.
173


F.
Deactivate the volumetric alarm protection.
111




A.
Deactivate the ESP/ASR system.

25Familiarisation

Cruise control / speed limiter
controls

Steering wheel with
integrated controls
60



Optional functions controls


223, 225


59

2.
Dashboard lighting dimmer.
304, 357




Audio system controls


304, 357





Bluetooth system or telephone
controls


1.
Black panel (black screen).
40
or
Control of the type 2 instrument panel
central screen.
138

3.
Courtesy lamp on / off.
227


or
Parking space sensors.

Monitoring

Driving safely




Activate the function by pressing control
switch A
; the button's warning lamp
comes on.


Blind spot sensors


219

The warning lamp located in the door mirror
comes on to warn you that a vehicle has arrived
in the blind spot detection zone.


Select the function by pressing control
switch B
; the corresponding warning lamp
comes on in the instrument panel.


Operate the direction indicators on the side
with the space to be measured; a message
appears to confirm measurement is in
progress.


Drive at a speed below 12 mph (20 km/h)
during measurement.


Parking space sensors

One of these messages appears to indicate
the level of difficulty of the manouevre:


- Parking possible.


227


- Parking difficult.



- Parking not advised.

Lighting dimmer


fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.



Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.





Automatic wiping


fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fixed. When the vehicle stops (red lights,
traffic jams,...) the Stop & Start
system has put the engine into STOP
mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.


Parking space
sensors


fixed. The parking space sensors function
is selected. To start measurement, operate the direction indicator
on the side of the space to be measured, and do not
exceed 12 mph (20 km/h). A message is displayed
once the measurement has been completed.

227Driving

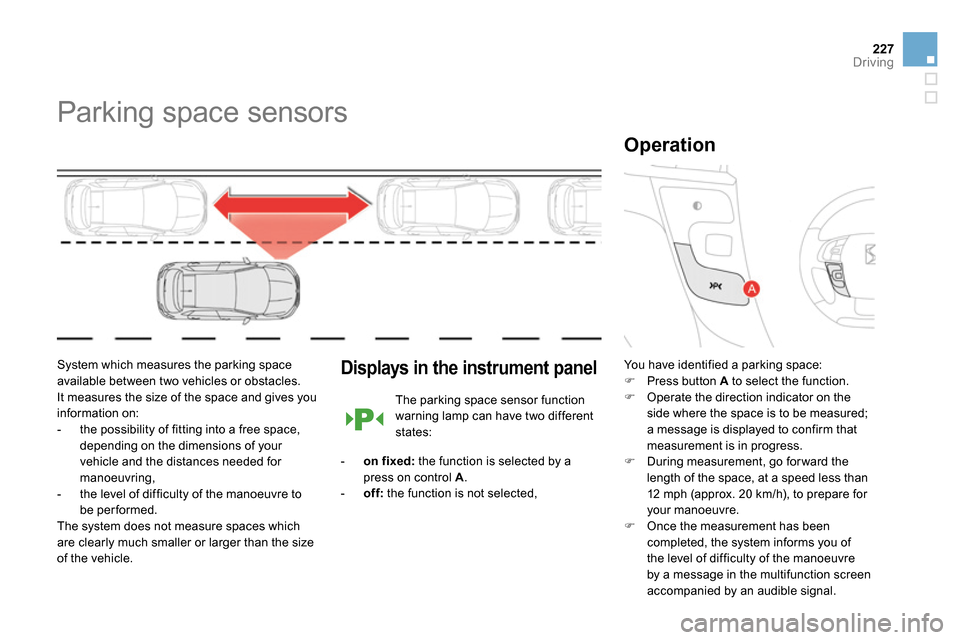

Parking space sensors


System which measures the parking space
available between two vehicles or obstacles.
It measures the size of the space and gives you
information on:


- the possibility of fitting into a free space,
depending on the dimensions of your
vehicle and the distances needed for
manoeuvring,

- the level of difficulty of the manoeuvre to
be performed.
The system does not measure spaces which
are clearly much smaller or larger than the size
of the vehicle.

Displays in the instrument panel
You have identified a parking space:



Press button A
to select the function.


Operate the direction indicator on the
side where the space is to be measured;
a message is displayed to confirm that
measurement is in progress.


During measurement, go for ward the
length of the space, at a speed less than
12 mph (approx. 20 km/h), to prepare for
your manoeuvre.


Once the measurement has been
completed, the system informs you of
the level of difficulty of the manoeuvre
by a message in the multifunction screen
accompanied by an audible signal.


Operation

The parking space sensor function
warning lamp can have two different
states:


- on fixed:
the function is selected by a
press on control A
.

- off:
the function is not selected,

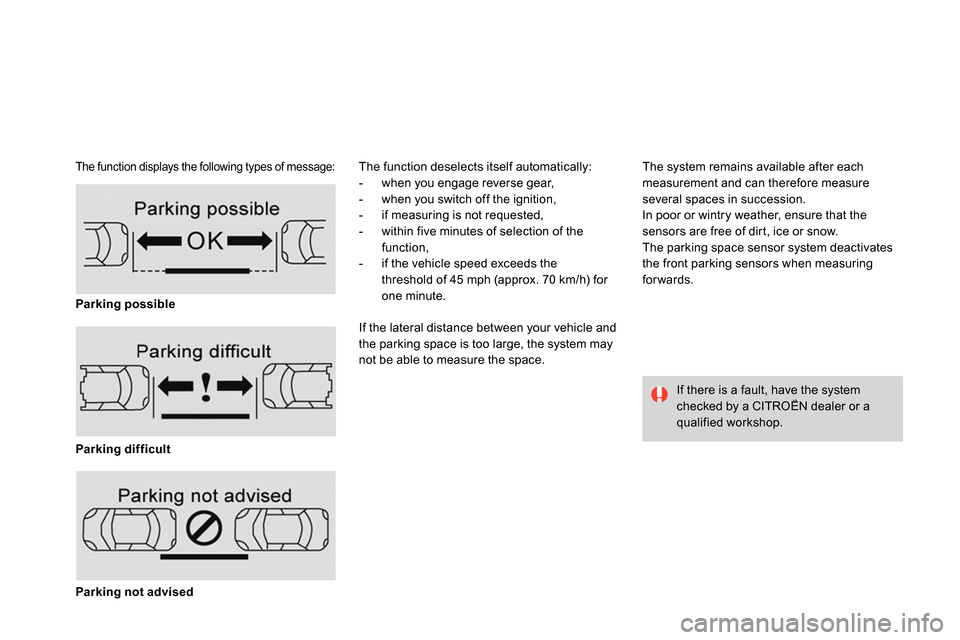

The function displays the following types of message:
The function deselects itself automatically:


- when you engage reverse gear,

- when you switch off the ignition,

- if measuring is not requested,

- within five minutes of selection of the
function,

- if the vehicle speed exceeds the
threshold of 45 mph (approx. 70 km/h) for
one minute.

If the lateral distance between your vehicle and
the parking space is too large, the system may
not be able to measure the space.
The system remains available after each
measurement and can therefore measure
several spaces in succession.
In poor or wintry weather, ensure that the
sensors are free of dirt, ice or snow.
The parking space sensor system deactivates
the front parking sensors when measuring
forwards.

Parking possible


Parking difficult


Parking not advised

If there is a fault, have the system
checked by a CITROËN dealer or a
qualified workshop.

229Driving

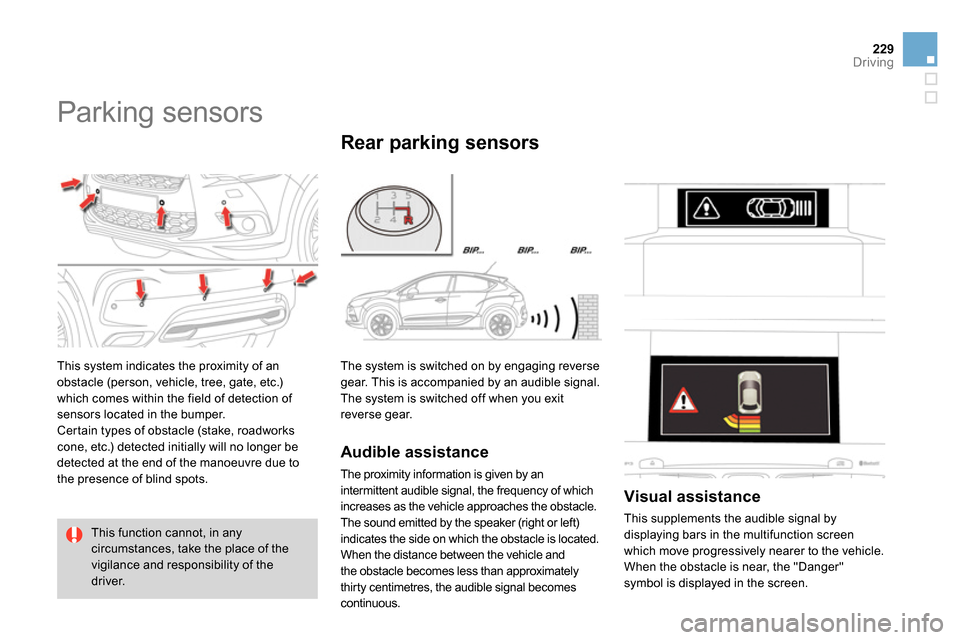

Parking sensors

This system indicates the proximity of an
obstacle (person, vehicle, tree, gate, etc.)
which comes within the field of detection of
sensors located in the bumper.
Certain types of obstacle (stake, roadworks
cone, etc.) detected initially will no longer be
detected at the end of the manoeuvre due to
the presence of blind spots.

This function cannot, in any
circumstances, take the place of the
vigilance and responsibility of the
driver.
The system is switched on by engaging reverse
gear. This is accompanied by an audible signal.
The system is switched off when you exit
reverse gear.

Rear parking sensors


Audible assistance

The proximity information is given by an
intermittent audible signal, the frequency of which
increases as the vehicle approaches the obstacle.
The sound emitted by the speaker (right or left)
indicates the side on which the obstacle is located.
When the distance between the vehicle and
the obstacle becomes less than approximately
thirty centimetres, the audible signal becomes
continuous.




Visual assistance

This supplements the audible signal by
displaying bars in the multifunction screen
which move progressively nearer to the vehicle.
When the obstacle is near, the "Danger"
symbol is displayed in the screen.
