Exterior


Parking sensors

This system measures the size of a free
parking space between two vehicles or
obstacles.

Stop & Start system

This system puts the engine temporarily into standby during
stops in the traffic (traffic lights, traffic jams, etc...). The engine
restarts automatically as soon as you want to move off. The
Stop & Start system reduces fuel consumption and exhaust
emissions, as well as noise levels when stationary.

227


216




Directional lighting

This lighting automatically provides
additional visibility when cornering.

131




Panoramic windscreen

This large glazed area provides
incomparable visibility and light in the
passenger compartment.

12




Cornering lighting

At low speed, this lighting comes on
automatically to improve vision when
cornering, at intersections, when parking...
making use of the front foglamp on the side
in question.

132

Monitoring

Illumination of the warning lamp indicates the
state of the system.

Side switch panel

180


B.
Deactivate the parking sensors.
230

C.
Deactivate the Stop & Start system.
217


D.
Activate blind spot monitoring.
219

E.
Activate the electric child lock.
173


F.
Deactivate the volumetric alarm protection.
111




A.
Deactivate the ESP/ASR system.

27Familiarisation

105



1.
Stop
position.

2.
Ignition on
position.

3.
Starting
position.


Ignition switch

When switching the ignition on and off, the
speedometer needle, and the rev counter and
fuel gauge bars go to the extent of their travel
and then return to 0.
Starting

Your vehicle is fitted with a system which
holds your vehicle stationary momentarily,
the time to move your foot from the brake to
the accelerator, to help with moving off on a
gradient.
This function is only active when:


- the vehicle is completely stationary with
your foot on the brake pedal,

- certain conditions of gradient are met,

- the driver's door is closed.

212

Do not get out of the vehicle during
the hill start assist temporary holding
phase.

Hill start assist

31Familiarisation

Stop & Start


Engine going into STOP mode


216

The "ECO"
warning lamp comes on in
the instrument panel and the engine is
automatically put into standby:


- with a manual gearbox;
at speeds below
12 mph (20 km/h), when you put the gear
lever into neutral and release the clutch
pedal,

- with an electronic gearbox;
at speeds
below 5 mph (8 km/h), when you press
the brake pedal or put the gear lever in
position N
.


Engine going into START mode

Deactivation / Reactivation

You can deactivate the system at any time by
pressing the "ECO OFF"
button; the button's
warning lamp comes on.

217



217


The system is reactivated automatically
every time you start the engine with
the key.
Before refuelling or doing anything
under the bonnet, you must switch off
the ignition with the key. The "ECO"
warning lamp goes off
and the engine restarts automatically:


- with a manual gearbox;
when you fully
depress the clutch pedal,

- with an electronic gearbox;



●
with the gear lever in position A
or M
,
when you release the brake pedal,

●
or gear lever in position N
and brake
pedal released, when you change to
position A
or M
,

●
or when you engage reverse.

In certain circumstances the STOP mode may
not be available; the "ECO"
warning lamp
flashes for a few seconds then goes off. In certain condition, START mode may engage
automatically; the "ECO"
warning lamp flashes
then goes off.
Driving safely

45Monitoring


Warning lamp



is on



Cause



Action/Observations






Battery charge


fixed. The battery charging circuit has a fault
(dirty or loose terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine is
started.
If it does not go off, contact a CITROËN dealer or a
qualified workshop.




Braking


fixed, associated with
the STOP warning
lamp. The braking system fluid level has
dropped significantly. You must stop as soon as it is safe to do so.
Top up with brake fluid recommended by CITROËN.
If the problem persists, have the system checked by a
CITROËN dealer or a qualified workshop.

+
fixed, associated with
the electric parking
brake malfunction
warning lamp, if the
parking brake is
released. The braking system has a fault. You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a CITROËN
dealer or a qualified workshop.

+
fixed, associated with
the STOP and ABS
warning lamps. The electronic brake force distribution
(EBFD) system has a fault. You must stop as soon as it is safe to do so.
Have it checked by a CITROËN dealer or a qualified
workshop.

Lighting dimmer


fixed. The lighting dimmer is making an
adjustment. You can adjust the level of illumination of the
instruments between 1 and 16.



Passenger's
airbag system
fixed in the seat belt
and passenger's front
airbag warning lamps
display.
The control switch, located in the glove
box, has been placed in the "ON"
position.
The passenger's front airbag is activated.
In this case, do not install a "rear facing"
child seat. Move the control switch to the "OFF"
position
to deactivate the passenger's front airbag.
In this case, you can install a "rear facing" child seat.





Automatic wiping


fixed. The wiper control is pushed
downwards. Automatic front wiping is activated.
To deactivate automatic wiping, operate the control
stalk downwards or put the stalk into another position.

Warning lamp



is on



Cause



Action/Observations




Stop & Start


fixed. When the vehicle stops (red lights,
traffic jams,...) the Stop & Start
system has put the engine into STOP
mode. The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.

flashes for a few
seconds, then goes
off. STOP mode is temporarily
unavailable.
or
START mode is invoked
automatically. For more information on special cases with STOP
mode and START mode, refer to the "Stop & Start"
section.


Parking space
sensors


fixed. The parking space sensors function
is selected. To start measurement, operate the direction indicator
on the side of the space to be measured, and do not
exceed 12 mph (20 km/h). A message is displayed
once the measurement has been completed.

71Multifunction screens


- the current information tab with:


●
the range,

●
the current fuel consumption,

●
the Stop & Start time counter.



- the trip "1"
tab with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the first trip.



- the trip "2"
tab with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.





Trip zero reset




When the trip required is displayed, press
the button on the end of the wiper stalk for
more than two seconds.
Trips "1"
and "2"
are independent but their use
is identical.
For example, trip "1"
can be used for daily
figures, and trip "2"
for monthly figures.

Type 2 central instrument panel screen


Information displays



- Display of instantaneous information with:


●
the range,

●
the current fuel consumption,

●
Stop & Start time counter,



- Display of trip "1"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the first trip.



- Display of trip "2"
with:


●
the distance travelled,

●
the average fuel consumption,

●
the average speed,
for the second trip.



●
information on the current audio source,

●
black screen,

●
navigation-guidance messages.



Press the button, located at the end of the
wiper stalk

or


turn the thumb wheel, located on the left of
the steering wheel
,
to display the following information in turn:


●
reminder of the speed,

●
instantaneous information,

●
trip "1"
,

●
trip "2"
,

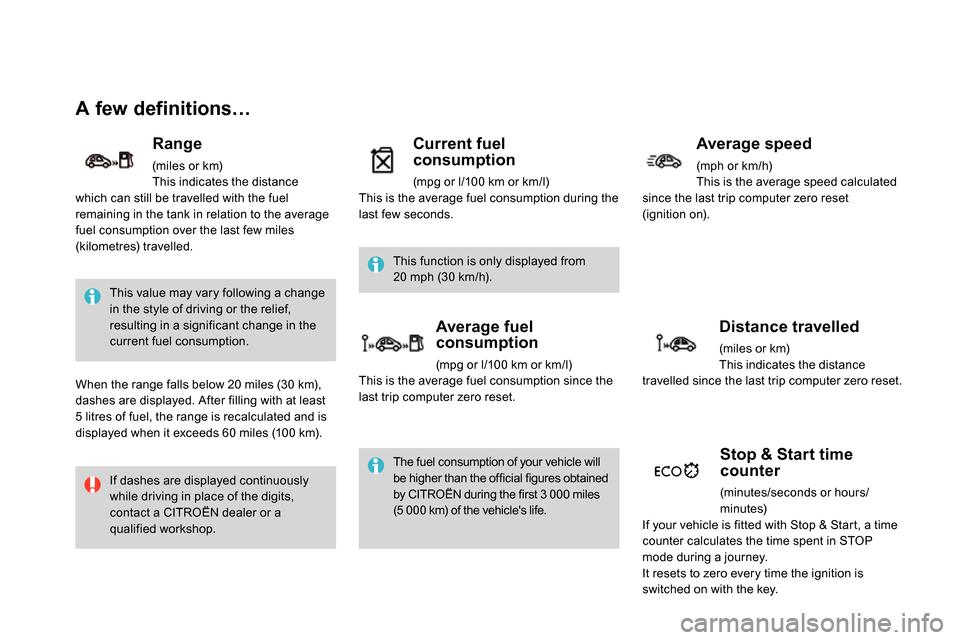

A few definitions…

This value may vary following a change
in the style of driving or the relief,
resulting in a significant change in the
current fuel consumption.
If dashes are displayed continuously
while driving in place of the digits,
contact a CITROËN dealer or a
qualified workshop. This function is only displayed from
20 mph (30 km/h).
The fuel consumption of your vehicle will
be higher than the official figures obtained
by CITROËN during the first 3 000 miles
(5 000 km) of the vehicle's life.


Range

(miles or km)
This indicates the distance
which can still be travelled with the fuel
remaining in the tank in relation to the average
fuel consumption over the last few miles
(kilometres) travelled.
When the range falls below 20 miles (30 km),
dashes are displayed. After filling with at least
5 litres of fuel, the range is recalculated and is
displayed when it exceeds 60 miles (100 km).

Current fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption during the
last few seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel consumption since the
last trip computer zero reset.

Average speed

(mph or km/h)
This is the average speed calculated
since the last trip computer zero reset
(ignition on).


Distance travelled

(miles or km)
This indicates the distance
travelled since the last trip computer zero reset.









Stop & Start time
counter
(minutes/seconds or hours/
minutes)
If your vehicle is fitted with Stop & Start, a time
counter calculates the time spent in STOP
mode during a journey.
It resets to zero every time the ignition is
switched on with the key.
