Energy economy modeSystem which manages the period of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio equipment, windscreen
wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum combined period of
thirty
m
inutes.
This period may be greatly reduced if
the battery is not fully charged.
A flat battery prevents the engine from
starting (refer to the corresponding
paragraph).
If the telephone is being used at the
same time on the navigation system,
it will be interrupted after 10 minutes.
Switching to economy mode
Once this period has elapsed, a message
appears in the screen indicating that the
vehicle has switched to economy mode and the
active functions are put on standby.
Exiting economy mode
These functions are reactivated automatically
the next time the vehicle is driven.
F
I
n order to resume the use of these
functions immediately, start the engine and
let it run for a few minutes.
The time available to you will then be double
the period for which the engine is left running.
However, this period will always be between
five and thirty minutes.
Load reduction modeSystem which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
The deactivated functions are reactivated
automatically as soon as conditions permit.
Page 297 of 444
295

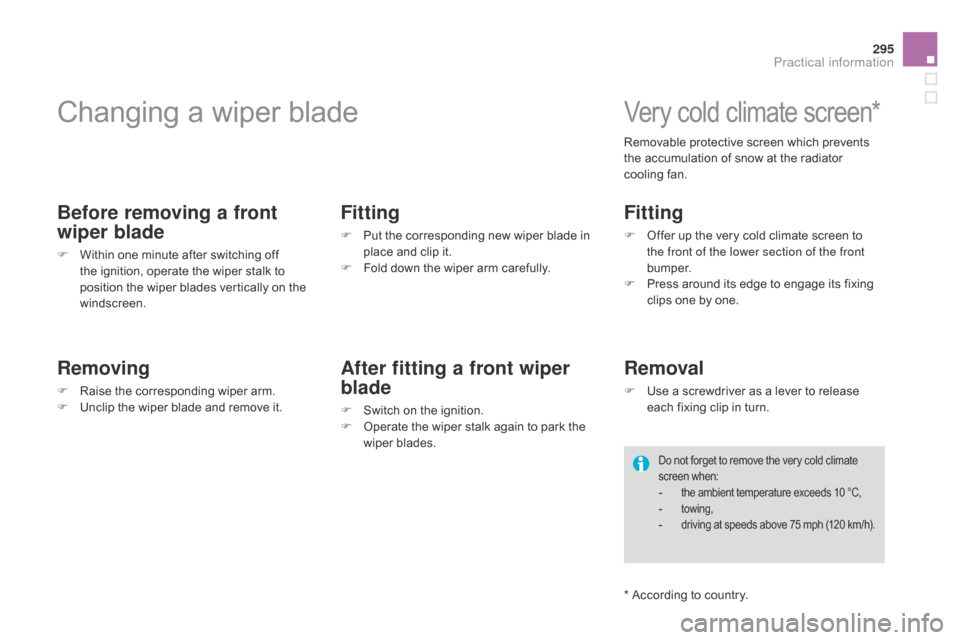

Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F
F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Very cold climate screen*
Fitting
F Offer up the very cold climate screen to the front of the lower section of the front
b u m p e r.
F
P
ress around its edge to engage its fixing
clips one by one.
Removal
F Use a screwdriver as a lever to release each fixing clip in turn.
* According to country.
Do not forget to remove the very cold climate
screen when:
- the ambient temperature exceeds 10 °C,- towing,- driving at speeds above 75 mph (120 km/h).
Removable protective screen which prevents
the accumulation of snow at the radiator
cooling fan.
Practical information
Page 312 of 444
Petrol engines and gearboxes
Petrol engineV Ti 120PureTech 130 S&S THP 15 0
Gearbox Manual
(5 - speed) Manual
(6- speed) Automatic
(6- speed)
Model code:
NX... 5FS0
5FS0/1 HNYM/S
HNYM/1S
HNYM/2S 5FEA
Cubic capacity (cc) 1 5981 1991 598
Bore x stroke (mm) 77 x 85.875 x 90.577 x 85.8
Max power*: EU standard (kW) 889611 0
Max power engine speed (rpm) 6 0005 5006 050
Max torque: EU standard (Nm) 160230 240
Max torque engine speed (rpm) 4 2501 7501 400
Fuel UnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe s
Engine oil capacity (in litres) 4.253.54.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Page 313 of 444
3 11
Petrol engineTHP 160THP 165 S&S THP 200
Gearbox Automatic
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed)
Model code:
NX... 5FMA5GZT/S
5GZ T/1S 5FU8
5FU8/1
Cubic capacity (cc) 1 5981 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.877 x 85.8
Max power*: EU standard (kW) 120121147
Max power engine speed (rpm) 6 0006 000 5 500
Max torque: EU standard (Nm) 240240 275
Max torque engine speed (rpm) 1 4001 400 1 700
Fuel UnleadedUnleadedUnleaded
Catalytic converter Ye sYe sYe s
Engine oil capacity (in litres) 4.254.254.25
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Technical data
Page 316 of 444
Diesel engine and gearboxes
Diesel engineHDi 90e-HDi 115 BlueHDi 115
Gearbox Manual
(6- speed) Manual
(6- speed) ETG6
electronic (6- speed) Manual
(6- speed) E AT 6
automatic (6- speed)
Model code:
NX... 9HP0
9HD8/6
9HD8 /1S 9HD8/PS BHXM/S
BHXM/1S -/2S -/3S BHX T/1S
BHX T/2S
Cubic capacity (cc) 1 5601 560 1 560
Bore x stroke (mm) 75 x 88.375 x 88.3 75 x 88.3
Max power*: EU standard (kW) 6884 85
Max power engine speed (rpm) 4 0003 600 3 500
Max torque: EU standard (Nm) 230270 300
Max torque engine speed (rpm) 1 7501 750 1 750
Fuel DieselDiesel Diesel
Catalytic converter Ye sYe s Ye s
Particle filter (FAP) Ye sYe s Ye s
Engine oil capacity (in litres) 3.753.75 3.75
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Page 317 of 444
315
Diesel engineBlueHDi 120HDi 135BlueHDi 150
Gearbox Manual
(6- speed) EAT6 automatic
(6- speed) Manual
(6- speed) Manual
(6- speed)
Model code:
NX... BHZM/S
BHZM/1S -/2S -/3S BHZT/SRHD8
RHD8/1 AHRM/S
AHRM/1S
AHRM/2S
Cubic capacity (cc) 1 5601 9971 997
Bore x stroke (mm) 75 x 88.385 x 8885 x 88
Max power*: EU standard (kW) 8810 011 0
Max power engine speed (rpm) 3 5004 0004 000
Max torque: EU standard (Nm) 300320370
Max torque engine speed (rpm) 1 7502 0002 000
Fuel DieselDieselDiesel
Catalytic converter Ye sYe sYe s
Particle filter (FAP) Ye sYe sYe s
Engine oil capacity (in litres) 3.75-6 .1
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Technical data
Page 318 of 444
Diesel engineHDi 160BlueHDi 180
Gearbox Manual
(6- speed) Automatic
(6- speed) EAT6 automatic
(6-speed automatic)
Model code:
NX... RHH8
RHH8/1 RHHAAHW T/S
AHW T/1S
AHW T/2S
Cubic capacity (cc) 1 9971 997
Bore x stroke (mm) 85 x 8885 x 88
Max power*: EU standard (kW) 120132
Max power engine speed (rpm) 3 7503 750
Max torque: EU standard (Nm) 340400
Max torque engine speed (rpm) 2 0002 000
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter (FAP) Ye sYe s
Engine oil capacity (in litres) 5.255 .1
.../S: model fitted with Stop & Start.
.../1: model fitted with low rolling resistance tyres.
.../2: model fitted with very low rolling resistance tyres.
* The maximum power corresponds to the value type-approved on a test bed, under conditions defined in European legislation (Directive 1999/99/EC).
Page 342 of 444

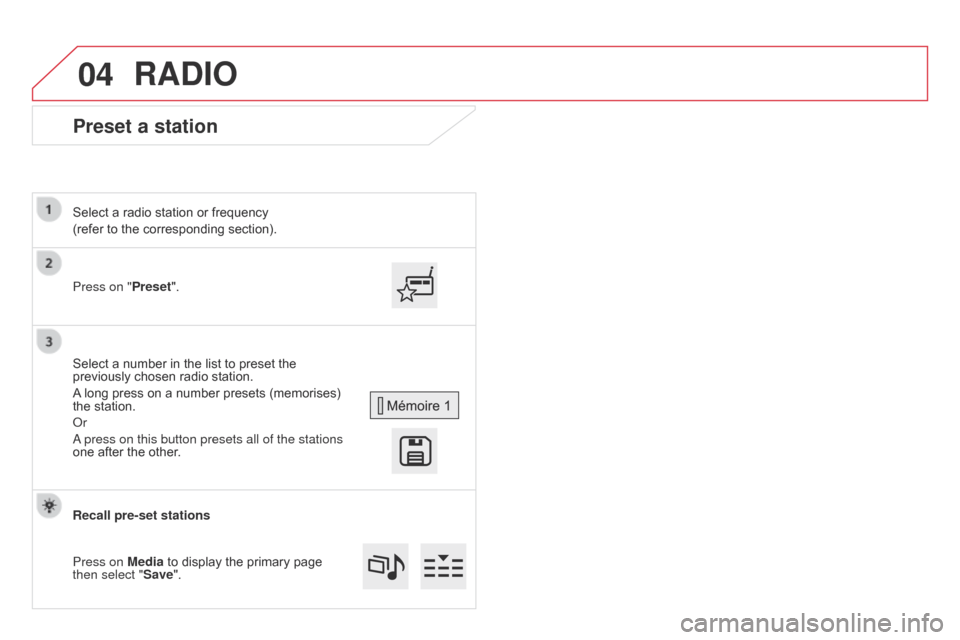

04
Preset a station
Press on "Preset".
Select a radio station or frequency
(refer to the corresponding section).
Select a number in the list to preset the
previously chosen radio station.
A long press on a number presets (memorises)
the station.
Or
A press on this button presets all of the stations
one after the other.
Recall pre-set stations
Press on Media to display the primary page
then select "Save".
RADIO
Page 345 of 444
04
343
RADIO

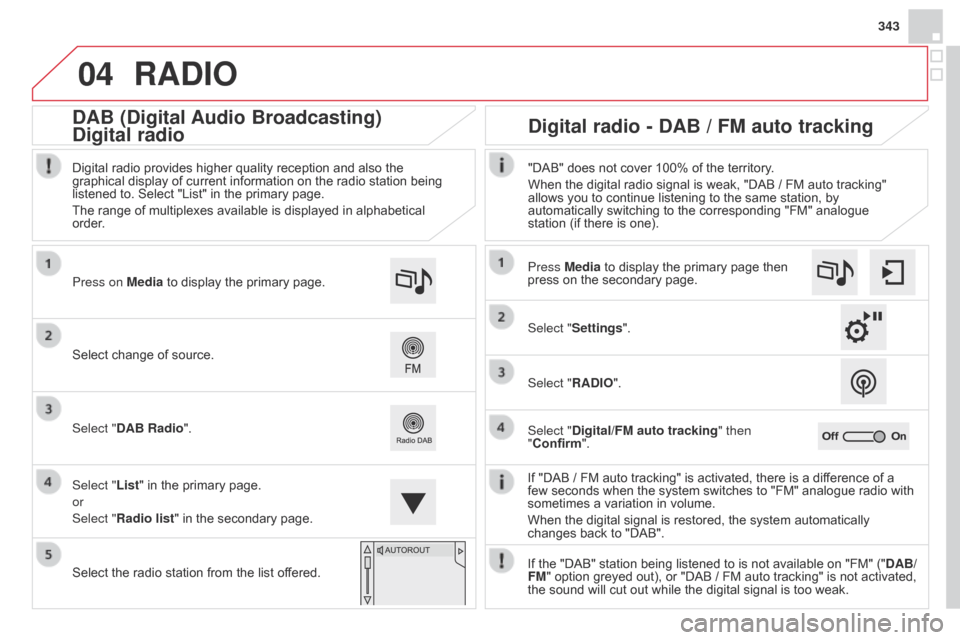

If "DAB / FM auto tracking" is activated, there is a difference of a
few seconds when the system switches to "FM" analogue radio with
sometimes a variation in volume.
When the digital signal is restored, the system automatically
changes back to "DAB".
Select change of source. Press on
Media to display the primary page.
Select "DAB Radio".
Select "List" in the primary page.
or
Select "Radio list" in the secondary page.
Select the radio station from the list offered. Digital radio provides higher quality reception and also the
graphical display of current information on the radio station being
listened to. Select "List" in the primary page.
The range of multiplexes available is displayed in alphabetical
order. Press Media to display the primary page then
press on the secondary page.
Select "Settings".
Select "RADIO".
Select "Digital/FM auto tracking" then
"Confirm". "DAB" does not cover 100% of the territory.
When the digital radio signal is weak, "DAB / FM auto tracking"
allows you to continue listening to the same station, by
automatically switching to the corresponding "FM" analogue
station (if there is one).
If the "DAB" station being listened to is not available on "FM" (" DAB/
FM" option greyed out), or "DAB
/ FM auto tracking" is not activated,
the sound will cut out while the digital signal is too weak.
Digital radio - DAB / FM auto tracking
DAB (Digital Audio Broadcasting)
Digital radio
Page 405 of 444
04
403

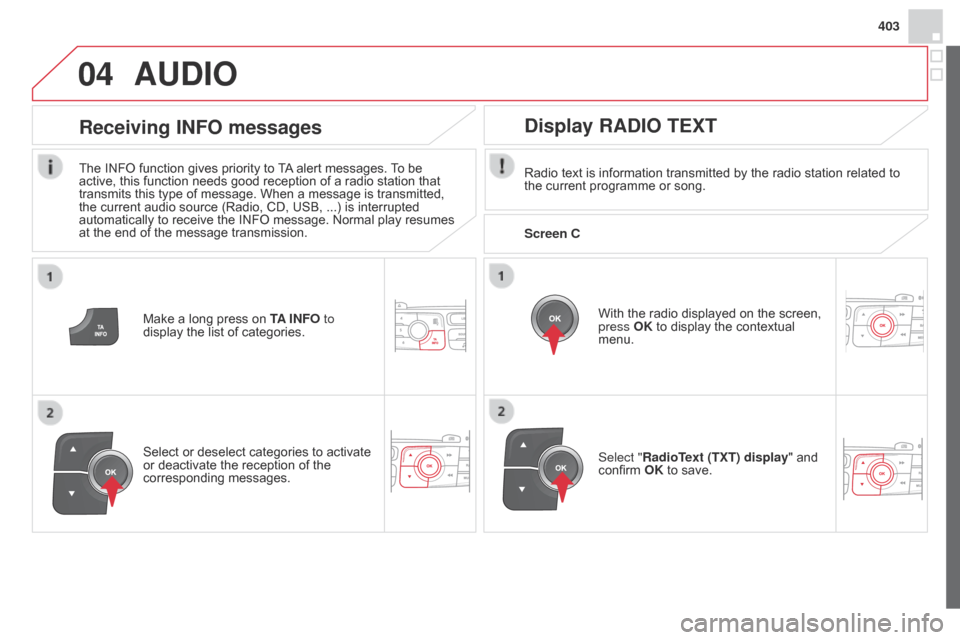

Make a long press on TA INFO to
display the list of categories.
Receiving INFO messages
The INFO function gives priority to TA alert messages. To be
active, this function needs good reception of a radio station that
transmits this type of message. When a message is transmitted,
the current audio source (Radio, CD, USB,
...) is interrupted
automatically to receive the INFO message. Normal play resumes
at the end of the message transmission.
Select or deselect categories to activate
or deactivate the reception of the
corresponding messages.
AUDIO
Radio text is information transmitted by the radio station related to
the current programme or song.
With the radio displayed on the screen,
press OK to display the contextual
menu.
Select "RadioText (TXT) display" and
confirm OK to save.
Display RADIO TEXT
