wiper blades Citroen DS4 RHD 2014.5 1.G Owner's Manual

To maintain the effectiveness of the flat
wiper blades, it is advisable to:
-
h
andle them with care,
-

c
lean them regularly using soapy
water,
-

a
void using them to retain
cardboard on the windscreen,
-

r
eplace them at the first signs of
w e a r.

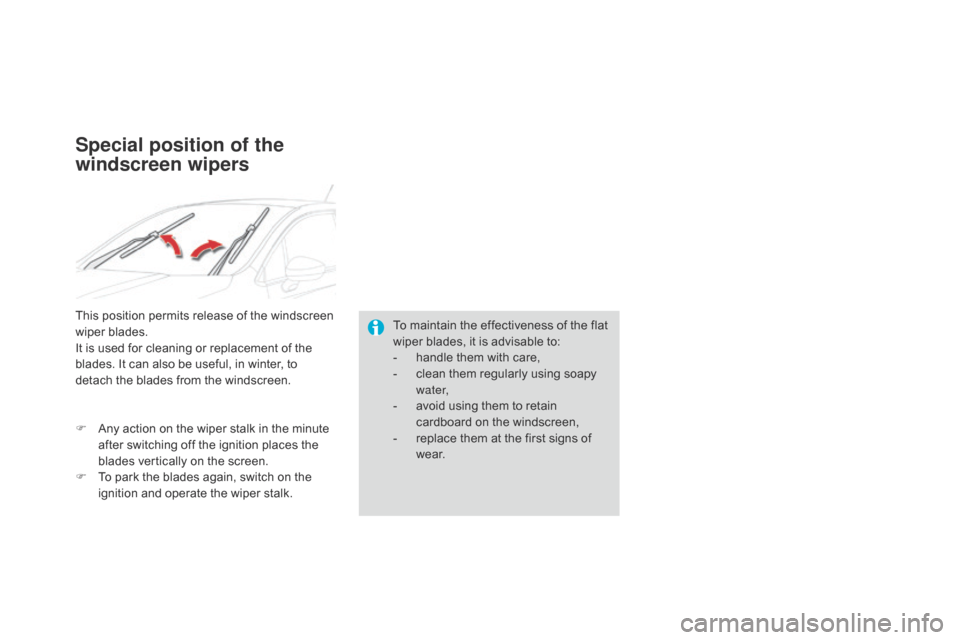

This position permits release of the windscreen
wiper blades.
It is used for cleaning or replacement of the
blades. It can also be useful, in winter, to
detach the blades from the windscreen.
Special position of the
windscreen wipers
F Any action on the wiper stalk in the minute
after switching off the ignition places the
blades vertically on the screen.
F

T
o park the blades again, switch on the
ignition and operate the wiper stalk.

295
Changing a wiper blade
Before removing a front
wiper blade
F Within one minute after switching off the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.
Removing
F Raise the corresponding wiper arm.
F U nclip the wiper blade and remove it.
Fitting
F Put the corresponding new wiper blade in place and clip it.
F

F
old down the wiper arm carefully.
After fitting a front wiper
blade
F Switch on the ignition.
F O perate the wiper stalk again to park the
wiper blades.
Very cold climate screen*
Fitting
F Offer up the very cold climate screen to the front of the lower section of the front
b u m p e r.
F

P
ress around its edge to engage its fixing
clips one by one.
Removal
F Use a screwdriver as a lever to release each fixing clip in turn.
* According to country.
Do not forget to remove the very cold climate
screen when:
- the ambient temperature exceeds 10 °C,- towing,- driving at speeds above 75 mph (120 km/h).
Removable protective screen which prevents
the accumulation of snow at the radiator
cooling fan.
