Checks
Air filter and passenger compartment filter
Oil filter
Unless other wise indicated, check these components in accordance with the manufacturer's service schedule and according to your engine.
Other wise, have them checked by a CITROËN dealer or a qualified workshop.Refer to the manufacturer's
service schedule for details of the
replacement intervals for these
components.
Replace the oil filter each time the
engine oil is changed.
Refer to the manufacturer's
service schedule for details of
the replacement interval for this
component.
The presence of this label, in particular
with the Stop & Start system, indicates
the use of a specific 12 V lead-acid
battery with special technology and
specification. The involvement of
a CITROËN dealer or a qualified
workshop is essential when replacing
or disconnecting the battery.
12 V battery
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.
The battery does not require any maintenance.
However, check that the terminals are clean
and correctly tightened, particularly in summer
and winter.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours.
Checks

291
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank
is empty.
Range indicators
Once the AdBlue® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of simultaneous system fault and
low AdBlue
® level, the shortest range figure is
the one displayed.
In the event of the risk of non-starting related to a lack of AdBlue®
Range greater than 1 500 miles (2 400 km)
When the ignition is switched on, no
information on range is displayed automatically
in the instrument panel.
With the type 2 instrument panel,
pressing this button temporarily
displays the driving range.
Above 3 000 miles (5 000 km), the value is not
specified.
Type 1 instrument panel
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the UREA
warning lamp comes on, accompanied by an
audible signal and the temporary display in
the instrument panel of "NO START IN" and
a distance, indicating the remaining range
expressed in miles or kilometres before engine
starting is prevented - (For example "NO
START IN 900 miles" means that "Starting will
be prevented in 900 miles).
When driving, this display appears every
150
miles (300 km) until the additive tank has
been topped-up.
Go to a dealer CITROËN or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Checks

293
Type 2 instrument panel
When switching on the ignition, the
UREA warning lamp comes on, accompanied
by an audible signal and the display of a
message (e.g.: "Top up emissions additive:
Starting prevented in 900 miles") indicating
the remaining range expressed in miles or
kilometres.
When driving, the message is displayed every
200 miles (300 km) until the additive tank has
been topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
For more information on topping-up the
AdBlue
® additive, refer to the corresponding
section.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of a message (e.g. "Top
up emissions additive: Starting prevented in
350 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the additive tank has been
topped-up.
Go to a CITROËN dealer or a qualified
workshop to have the AdBlue
® tank topped-up.
You can also top-up the tank yourself.
Other wise you will not be able to restart your
engine. When switching on the ignition, the SERVICE
warning lamp comes on and the UREA warning
lamp flashes, accompanied by an audible
signal and the display of the message "Top up
emissions additive: Starting prevented".
The AdBlue
® tank is empty: the system required
by regulations prevents engine starting.
To be able to start the engine,
we recommend that you call on
a CITROËN dealer or a qualified
workshop for the top-up required.
If you carry out the top-up yourself, it
is essential to add at least 3.8 litres of
AdBlue
® to the tank.
Remaining range between 0 and 350 miles (0 and 600 km)Breakdown related to a lack of AdBlue® additive
For more information on topping-up the
AdBlue® additive, refer to the corresponding
section.
Checks

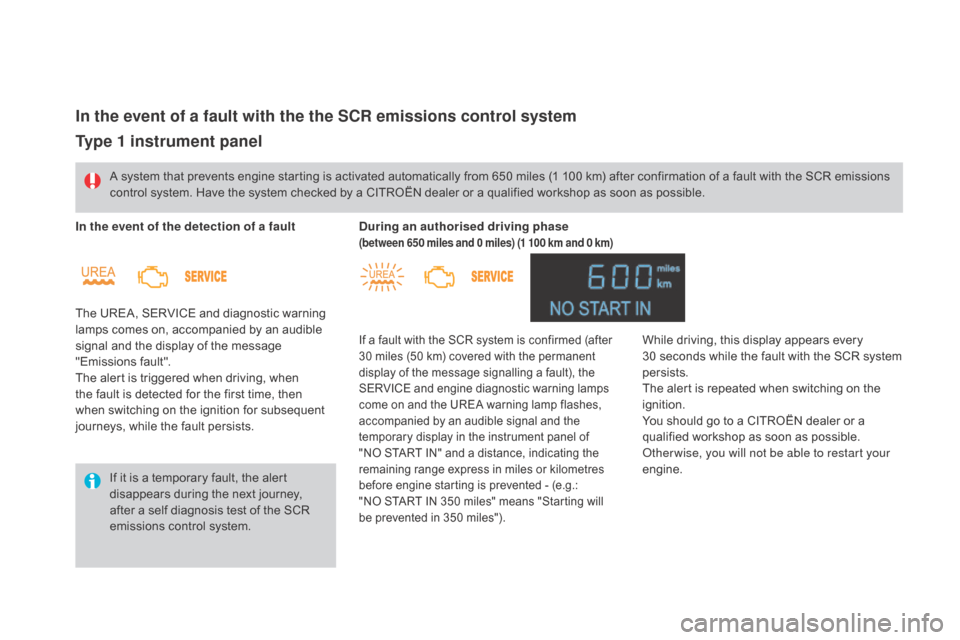

In the event of a fault with the the SCR emissions control system
A system that prevents engine starting is activated automatically from 650 miles (1 100 km) after confirmation of a fault with the SCR emissions
control system. Have the system checked by a CITROËN dealer or a qualified workshop as soon as possible.
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving, when
the fault is detected for the first time, then
when switching on the ignition for subsequent
journeys, while the fault persists. In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey,
after a self diagnosis test of the SCR
emissions control system.
If a fault with the SCR system is confirmed (after
30 miles (50 km) covered with the permanent
display of the message signalling a fault), the
SERVICE and engine diagnostic warning lamps
come on and the UREA warning lamp flashes,
accompanied by an audible signal and the
temporary display in the instrument panel of
"NO START IN" and a distance, indicating the
remaining range express in miles or kilometres
before engine starting is prevented - (e.g.:
"NO START IN 350 miles" means "Starting will
be prevented in 350 miles").
during an authorised driving phase (between 650 miles and 0 miles) (1 100 km and 0 km)
While driving, this display appears every
30 seconds while the fault with the SCR system
persists.
The alert is repeated when switching on the
ignition.
You should go to a CITROËN dealer or a
qualified workshop as soon as possible.
Other wise, you will not be able to restart your
engine.
Type 1 instrument panel

295
Starting preventedYou have exceeded the authorised
driving limit: the starting prevention
system inhibits engine starting.
Every time the ignition is switched on, the
SERVICE and engine diagnostic warning
lamps come on and the UREA warning lamp
flashes, accompanied by the temporary display
of "NO START IN" and 0 miles or kilometres
-
("NO START IN 0 miles" means "Starting
prevented").
To be able to start the engine, you must call on
a CITROËN dealer or a qualified workshop.Type 2 instrument panel
A system that prevents engine
starting is activated automatically
from 650
miles (1 100 km) after
confirmation of a fault with the SCR
emissions control system. Have the
system checked by a CITROËN dealer
or a qualified workshop as soon as
possible.
In the event of a fault with the SCR emissions control system
The UREA, SERVICE and diagnostic warning
lamps comes on, accompanied by an audible
signal and the display of the message
"Emissions fault".
The alert is triggered when driving when the
fault is detected for the first time, then when
switching on the ignition for subsequent
journeys, while the fault persists. In the event of the detection of a fault
If it is a temporary fault, the alert
disappears during the next journey,
after self-diagnosis of the SCR system.
Checks

299
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your
dealer.
Important: if your vehicle's
AdBlue
® tank is completely empty -
w
hich is confirmed by the alert displays
and the impossibility of starting the
engine - you must add at least 3.8 litres
(so two 1.89 litre bottles). If any additive is split or splashed, wash
immediately with cold water or wipe
with a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
Important:
in the event of a top-
up after a breakdown because of
a lack of additive , you must wait
around 5 minutes before switching
on the ignition, without opening the
driver's door, locking the vehicle,
introducing the key into the ignition
switch, or introducing the key of the
"Keyless Entr y and Star ting" system
into the passenger compartment .
Switch on the ignition, then, after
10 seconds, start the engine.
F

O

btain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank. F
A
fter emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
F
R
efit the blue cap to the tank and turn it a
6
th of a turn clockwise, to its stop.
F
R
efit the black plastic blanking plug,
clipping it in on the flap.
F

D

etach the cord from the parcel shelf
support and lower the boot floor.
Checks

QUESTIOnAnSWERSOLUTIOn
T

here is a difference in
sound quality between the
different audio sources. For optimum sound quality, the audio settings for Volume, Bass,
Treble, Equalizer and Loudness can be adapted to the different
sound sources, which may result in audible differences when
changing source. Check that the audio settings for (Volume, Bass,
Treble, Equalizer, Loudness) are adapted to the
sources listened to. It is advisable to set the
Audio functions (Bass, Treble, Fr-Re balance,
Le-Ri balance) to the middle position, select the
"Linear", musical ambience and set the loudness
correction to the "Active" position in CD mode or
to the "Inactive" position in radio mode.
With the engine off, the
system switches off after a
few minutes of use. When the engine is switched off, the system's operating time
depends on the state of charge of the battery.
The switch-off is normal: the system switches to economy mode
and switches off to prevent discharging of the vehicle's battery. Start the vehicle's engine to increase the battery
charge.

A
ABS and EBFD systems ...............................16 6
Accessories .............................. ....................270
Accessory position
....................................... 18

9
AdBlue
® ............................... ............28, 290, 297
Adjusting headlamps .................................... 13
2
Adjusting head restraints

................................ 90
A

djusting seats
.......................................... 8
8, 89
Adjusting the date

..................................... 4
6, 51
Adjusting the height and reach of the steering wheel

.................................... 93
A

djusting the seat belt
height
...............

................................... 169, 170
Adjusting the time

..................................... 4
6, 51
Advice on driving

..............................
....182, 183
Airbags
...............

......................................27, 173
Airbags, curtain
...................................... 17

7, 178
Airbags, front.......................................... 174, 178
Airbags, lateral
...................................... 17

6 , 178
Air conditioning
...............................

................14
Air conditioning, digital
.............................................. 9

8, 99, 102
Air conditioning, manual
...............

.................................... 9 8 -10 0
Air vents
..............................

............................97
Alarm
............................................................... 77
A

nti-lock braking
system (ABS)

.............................................. 16

6
Anti-pinch
........................................................ 8

2
Anti-theft
..............................

................... 74, 184
Armrest, front

......................................... 11

5 , 11 6
Armrest, rear

................................................. 11

9
Ashtray, portable
............................................ 111
A

ssistance call
...............................
....... 165, 314
Audible warning
............................................ 16

5
Audio streaming (Bluetooth)
......................... 3

46, 348, 398, 401
Audio system

...............................
............ 43, 387
Auxiliary
........................................ 1

12, 346, 398Battery
...............................

............ 255 -258, 287
Battery, charging
...............................
.... 257, 258
Battery, remote control ........................ 6 6, 72-74
Black panel ...................................................... 42
Blanking screen (snow shield)
...............................

................260
Blind
.............................................................. 11

3
Blind spot sensors

........................................2

10
BlueHDi
...............................

.................... 39, 290
Bluetooth (hands-free)

.......................... 3
74, 400
Bluetooth (telephone)
............................ 3

74, 400
Bonnet
...............

............................................280
Boot
........

.........................................................84
Brake discs

....................................................28

9
Brake lamps

...............................
...................246
Brakes
........................................................... 28

9
Braking assistance system

................
.........................................166
Braking, dynamic emergency
....................... 19

3
Bulbs (changing)
...............................

.....240 -248
Cable, audio

..........................................3
46, 398
Capacity, fuel tank

..............................
..........275
CarPlay connection ............................... 367, 368
CD
..............................

...........................346, 395
CD, MP3

....................................... 3
46, 395, 396
Central locking

.............................. 6
2, 68, 69, 75
Centre console
.............................................. 11

4
Changing a bulb
..................................... 24

0 -248
Changing a fuse
.................................... 24

9 -254
Changing a wheel

...............................
...231-238
C
Changing a wiper
blade ............... .................................... 138, 260
Changing the remote control battery ................................... 66, 72, 73
CHECK
................

............................................ 39
Checking the engine oil level
...............

................................... 35, 283
Checking the levels

...............................28

3-286
Checking tyre pressures (using the kit)

..............................
................226
Checks
...............

................... 281, 282, 287, 289
Checks, routine

..................................... 2
87, 289
Child lock

...............................
........................160
Children (safety)
..................... 1

46 -160, 172, 175
Child seats

..............................
..............14 4 -15 9
Child seats, conventional

..............................15

2
Child seats, ISOFIX

...................................... 15

6
Cigarette lighter............................................. 112
C
ITROËN
L
ocalised
Emergency Call
.......................................... 3

14
Closing the boot

...............................
......... 62, 84
Closing the doors

..........................6
2, 68, 69, 83
Configuration, vehicle
............................... 4

5, 50
Connected services
..............................3

58, 360
Connection, Bluetooth
.......................... 3

74, 400
Connection, MirrorLink
................................. 3

62
Connection, Wi-Fi network

...........................36

0
Control, electric windows

................................81
C

ontrol, emergency
boot release
...............................

...................85
Control, emergency door
.......................... 6

5, 71
Control, heated seats

...................................... 90
C

ontrols, steering mounted
.................. 3
20, 389
Control stalk, lighting

.............................1

2 6 -132
Control stalk, wipers

..............................13

5 -13 9
Courtesy lamps

..................................... 1
31, 140
Cruise control
........................................ 21

3, 218
Cup holder

...............................
......................114
B

Key not recognised .......................................18 8
Key with remote control
............................................. 6

0, 62, 184
Kit, hands-free
...................................... 3

74, 400
Kit, temporary puncture repair
...............................

............................226
M
Load reduction
mode ........................................................... 25
9
Localised Assistance Call

.............................3

14
Locating your vehicle

................................ 6
4, 70
Locking
...................................................... 6

2, 67
Locking from the inside

..............................
........................75
Long objects, transporting
..............................

..................11 9
Low fuel level

..............................
............ 26, 275
Luggage retaining strap

................................12

0
Maintenance, routine
...................................... 14
M

ap reading
lamps
..............................

............................140
Markings, identification
................................. 3

11
Massage function

...............................
............91
Mat
.......

......................................................... 117
Memorising a speed

............................... 4
9, 213
Menu (touch screen tablet)

...3
17, 321, 322, 324,
328, 336, 338, 340,
350, 352, 354, 370, 372
Menu, main

..............................
.....................390
Menus (audio)

.............................. 3
36, 338, 340
Mirror, rear view
........

....................................................... 96
Mirrors, door...................................... 94, 95, 210
Misfuel prevention
...............................

..........278
Mountings, Isofix
...............................

............155
MP3 CD

................
........................ 346, 395, 396
Labels, identification
.....................................
3

11
Lamp, boot

...............................

............. 122, 142
Lamps, parking
............................................. 12

9
Level, AdBlue
®
additive ............... ........................................ 290
Level, brake fluid

........................................... 28

4
Level, Diesel additive
...............

........................................ 286
Level, engine coolant
...............

......................................... 285
Level, engine oil

...............................
....... 35, 283
Level, power steering fluid
...............

.............................................. 284
Levels and checks

..............................
...281-286
Lighting, dashboard
........................................ 41
L

ighting dimmer
..............................
.... 18, 19, 41
Lighting, directional
............................... 13

3, 13 4
Lighting, guide-me home
...............................

.................... 129, 130
Lighting, interior
.................................... 14

0, 141
Lighting, mood
..............................

................141
Lighting, welcome

......................................... 13

1
Loading
..............................

..................... 14, 261
L
Jack ............................................................... 231
Jukebox ............... .......................................... 349
Jump starting

..............................
..................256
J
K
Key ............................................................. 6 0 -74
Keyless Entry and Starting ................6 7, 74, 187
Ignition on...................................... 186, 187, 189
Immobiliser, electronic
............................ 7

4, 184
Indicator, engine oil level
...............
..................................... 35, 39
Indicator lamps, operation
........................
3
0-34
Indicators, direction
...................... 1
64, 242, 246
Inflating tyres
..............................
............ 14, 311
Inflating tyres and accessories (using the kit)
..............................
................
230
Input, auxiliary
............................... 1
12, 346, 398
Instrument panels
...............................
.18 -20, 39
Intelligent Traction
Control
........................................................ 16
7
Internet browser
............................................ 3
59
ISOFIX
...............
....................................
155 -15 8
Isofix mountings
...............................
.............
155
I
