tailgate Citroen DS4 RHD 2015.5 1.G Owner's Manual

67
"Keyless Entry and Starting"
System which permits the unlocking, locking
and starting of the vehicle while keeping the
electronic key on your person.The electronic key can also be used as
a remote control.
For more information, refer to the "Key /
remote control" section. The direction indicators flash for a few
seconds.
Depending on version, the door mirrors
unfold, the welcome lighting comes on,
the alarm is deactivated.
Unlocking the vehicle
The vehicle or just the driver's door is unlocked,
depending on the setting.
Complete unlocking
F With the electronic key on your person and in the recognition zone A , pass your hand
behind the door handle of one of the front
doors to unlock the vehicle or press the
tailgate opening control.
Selective unlocking
F To unlock only the drivers door, with the electronic key on your person, pass your
hand behind the driver's door handle.
F

T
o unlock the complete vehicle, pass your
hand behind one of the door handle of the
front passenger door with the electronic
key close to the passenger door, or
press the tailgate opening control with
the electronic key close to the rear of the
vehicle.
Activation or deactivation of the selective
unlocking is done in the "
dr

iving" menu, then
" Vehicle settings ".
By default, complete unlocking is activated.
Access

Boot
The vehicle or just the boot is unlocked,
depending on the setting.Selective unlocking
By default, complete unlocking is activated.
This setting is done in the "driving" menu,
then "Vehicle settings" and "Vehicle
access" .
When unlocking of the boot only is activated:
F

W
ith the electronic key on your person and
in the recognition zone A , press the boot
unlocking control to unlock just the boot,
then raise the tailgate.
Use this button for access to
additional information. F

L
ower the tailgate using one of the interior
grab handles.
Closing
Opening
Complete unlocking
F After unlocking the vehicle or the boot with
the Keyless Entry and Starting system
electronic key on your person in the
recognition zone A , press the boot opening
control then raise the tailgate. If the boot is not closed correctly:
-
w
ith the engine running or the
vehicle moving (speed below
6 mph (10 km/h)), this warning
lamp comes on, accompanied by
the display of an alert message
for a few seconds.
-
w
ith the vehicle moving (speed above
6 mph (10 km/h)), in addition to the warning
lamp and alert message, there is an an
audible signal for a few seconds.
Unlocking is signalled by rapid flashing of the
direction indicators for a few seconds.

85
System allowing the mechanical unlocking
of the boot in the event of a battery or central
locking system malfunction.
Tailgate release
Unlocking
F Fold back the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of the
lock to unlock the tailgate.
F

M
ove the latch to the left.
Locking after closing
If the fault persists after closing again, the boot
will remain locked.
Access

139
B. Rear wiper selection ring: turn the ring to place the desired symbol against the
marking.
If a significant accumulation of snow or
ice is present, or when using a tailgate
bicycle carrier, deactivate the automatic
rear wiper via the vehicle configuration
menu. Park.
Intermittent wipe.
Wash-wipe.
Turn the ring to its stop/the rear
screen wash, then the rear wiper
operates for a set duration.
Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation if the windscreen
wipers are operating.
Programming
Rear wiper
The function is activated or
deactivated via the vehicle
configuration menu.
This function is activated by default.
Visibility

1. Brake lamps (P21/5W).
2. Sidelamps (LE d s)*.
3.
di

rection indicators (PY21W amber).
4.
R

eversing lamp (P21W).
5.
R

ear foglamps (P21W).
Rear lamps
Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
o n l y.
Changing stop lamp, reversing lamp and direction indicator bulbs
These three bulbs are changed from inside the boot:
F
o
pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside, F

r
emove the foam seal,
F

u
nclip the two small secondary connectors,
F

s
pread the two tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the
lamp.
* LED: light-emitting diodes.

247

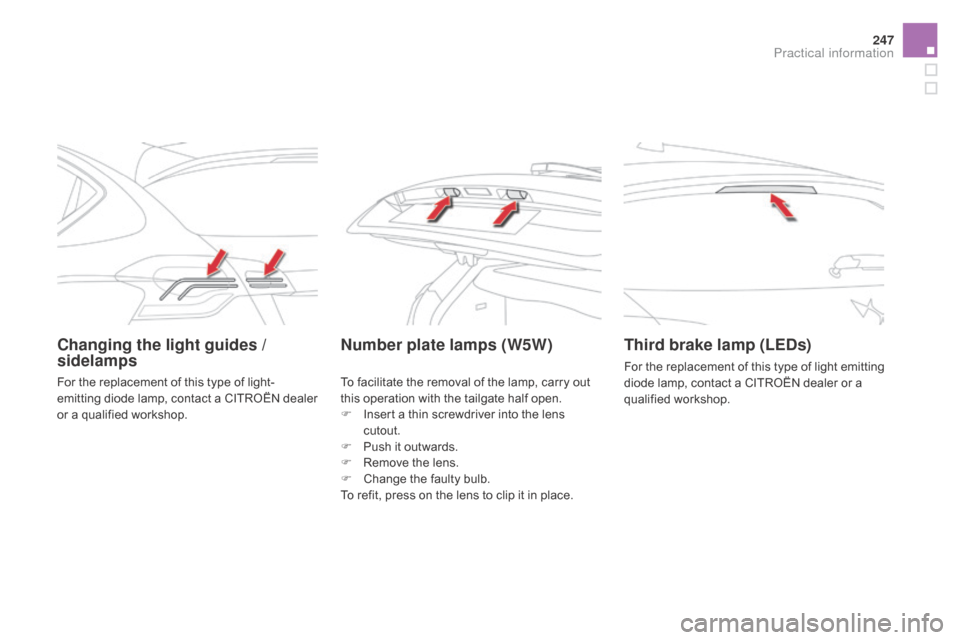

Changing the light guides /
sidelampsnumber plate lamps (W5W)Third brake lamp (LEds )
For the replacement of this type of light emitting
diode lamp, contact a CITROËN dealer or a
qualified workshop.
For the replacement of this type of light-
emitting diode lamp, contact a CITROËN dealer
or a qualified workshop. To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F

I

nsert a thin screwdriver into the lens
cutout.
F

P

ush it outwards.
F

R

emove the lens.
F

C

hange the faulty bulb.
To refit, press on the lens to clip it in place.
Practical information
