6 FA M I L I A R I SAT I O N
33
4 ALPHABETICAL
INDEX
339 VISUAL
SEARCH
Key
sa
fety warning
additional information
contributes to the protection of the environment
programming a function with the configuration menu
re
fer to the page indicated

001001002002003003004004 COMFORT ACCESS MONITORINGDRIVING
Instrument panel
29 Indicator and warning lamps
38 Gauges and indicators
42 Adjustment buttons
43 Clock
44Tr i p c o m p u ter
48Electronic key - remote control
56 Boot
57 Alarm
59 Electric windows
61 Cockpit glass roof
63 Fuel tank
64 Misfuel prevention (Diesel)
68 Front seats
73 Rear seats
76Mirrors
77 Steering wheel adjustment
78 Interior fi ttings
82Boot fi ttings
83Tr i a ngle (stowing)
84Heating and Ventilation
86 Dual-zone digital air conditioning
90 Rear screen demist - defrost
94 Starting-switching off theengine97Electric parking brake105 Hill start assist106 Manual gearbox107 Gear shift indicator
108Automatic gearbox112 6-speed electronic gearboxsystem116 Stop & Start119Lane departure warning system120 Head-up display123 Speed limiter125 Cruise control127 Parking sensors129Reversing camera

Electronic key: Keyless Entryand Starting
This system allows you to unlock, lock and star t
your vehicle while keeping the key on your person and in the defined zone around the vehicle.
48, 94
Exterior

Stop & Start

This system puts the engine temporarily into standby during stops
in the traffic (red lights, traffic jams, etc...). The engine restarts
automatically as soon as you want to move off. The Stop & Start
system reduces fuel consumption and exhaust emissions, and offers
the comfor t of complete silence when stationary.
116

Directional lighting

This lighting automatically provides additional forward visibility when cornering.
14
1

Daytime running lamps
This lighting, switched on automatically when
starting the engine, makes your vehicle more
visible to other road users.
135

Access
1.
Opening the fuel filler flap.
Ta n k c a p a c i ty: approximately 60 litres.


Fuel t ank
63


Unlocking

With the electronic key on your person and in
the defined zone A around the vehicle, passAyour hand behind the door handle to unlock the
vehicle, then pull on the handle to open the door.

Locking

With the electronic key in the defined zone Aaround the vehicle, press with a finger on
the door handle (at the markings) to lock
the vehicle.
Electronic key
48
A.Unlocking the vehicle.B.Normal locking of the vehicle .C.Unlocking the boot.


Keyless Entry and Starting
49


Boot
1.
Unlocking the boot (maintain pressure until
the boot is heard to unlock).
5
6

14 . Controls for electric windows/electric child lock/central locking.
15. eMyWay controls.
16.Gear lever.
17. Heating/air conditioning controls.
18
. Audio system.
19.Hazard warning lamps.
20.Multifunction screen.21. Central adjustable air vents. 22.Clock.
23.Star ting with the STA R T/STOP button.
24.Electronic key reader.
25. Wiper/screenwash/trip computer stalk.
26. Audio equipment steering wheel controls.

Instruments and controls
1.
Bonnet release lever.2.
Headlamp height adjustment. 3.
Side adjustable air vents.4.
Front door window demisting/defrosting
vents.
5. Quarter light demisting windows.
6.Head-up display.7. Windscreen demisting/defrosting vent.8.Passenger's airbag. 9.
Glove box/Passenger's airbag deactivationinside.10.12 V accessory socket. 11.
Rear electric window controls.12.Central armrest with storage.
USB por t /auxiliary socket.13.Electric parking brake.
27. Driver's airbag.
Horn. 28. Cruise control/speed limiter controls.29.
Switch panel (see previous page).30.
Door mirror adjustment.
31.Lighting and direction indicator stalk32.
Instrument panel. 33.
Seat belt and airbag warning lamps. 34.Courtesy lamp. 35.Head-up display controls. 36.Controls for glass roof panel blind.37.CITROËNLocalised Emergency Call -
CITROËNLocalised Assistance Call.

Passenger safety
1.
Open the glove box.2.
Inser t the key (integral with the electronic key).3.Select position:
"ON"
(activation), with front passenger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.4.
Remove the key keeping the switch in the new position.
Front passenger's airbag
174


Front seat belts and
passenger's front airbag
A.
Left hand front seat belt not fastened or unfastened warning lamp.B.
Right hand front seat belt not fastened or unfastened warning lamp.C.
Right hand rear seat belt not fastened or unfastened warning lamp.D.Centre rear seat belt not fastened or unfastened warning lamp.
171
E.
Left hand rear seat belt not fastened or
unfastened warning lamp. F.Front passenger's airbag deactivatedwarning lamp.G. Front passenger's airbag activated warninglamp.

31Monitoring



Rear foglamps

fixed. The rear foglamps are switched on. Turn the ring on the stalk rear wards to switch off the
rear foglamps.
Warning/indicator lampStateCauseAction/Observations



Diesel engine pre-heating fixed. The STA R T/STOP
starting buttonhas been pressed (ignition on). Wait until the warning lamp goes off before star ting *
.
The period of illumination of the warning lamp is
determined by the climatic conditions (up to about
thirty seconds in extreme climatic conditions).
If the engine does not star t, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.

Electric parking brake
fixed. The electric parking brake is applied. Release the electric parking brake to switch off the
warning lamp: with your foot on the brake pedal, pull
the electric brake control lever.
Obser ve the safety recommendations.
For more information on the electric parking brake,
refer to the "Driving" section.

Deactivation of the automatic functions of the electric parkingbrake


fixed. The "automatic application" (on switching off the engine) and
"automatic release" functions aredeactivated or faulty.
Activate the function (according to country) via the
vehicle configuration menu or contact a CITROËN
dealer or a qualified workshop if automatic application/
re
lease is not possible.
The parking brake can be released manually using the emergency release procedure.
For more in
formation on the electric parking brake,
refer to the "Driving" section.

*

If your vehicle is fitted with Keyless Entry and Starting, the warning lamp goes off immediately. If not, keep your foot on the brake pedal until
it goes off
.

Monitoring

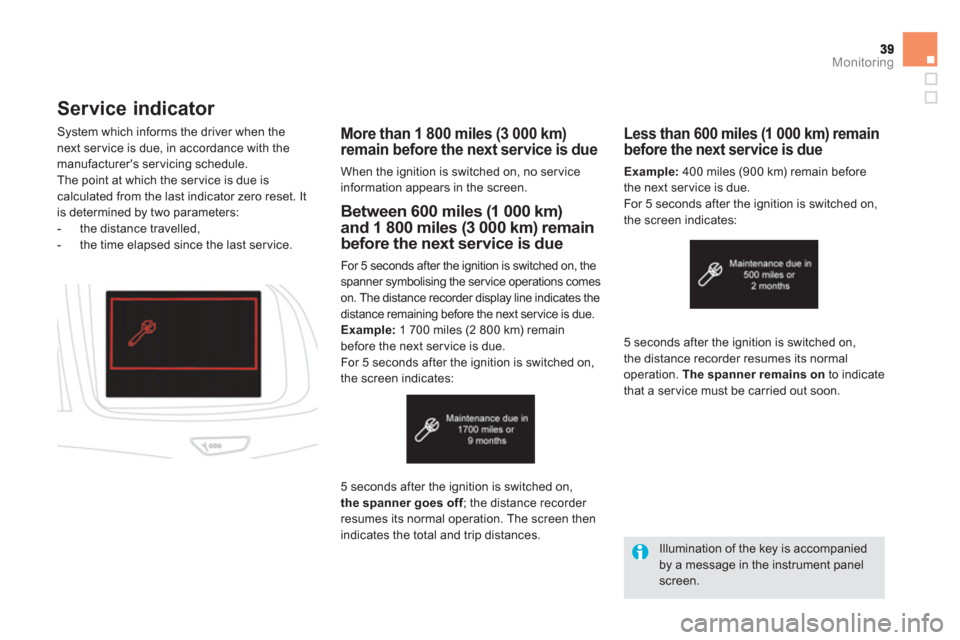

Service indicator
More than 1 800 miles (3 000 km)remain before the next service is due
When the ignition is switched on, no ser vice information appears in the screen. S
ystem which informs the driver when the next ser vice is due, in accordance with themanufacturer's servicing schedule.
The point at which the ser vice is due is calculated from the last indicator zero reset. Itis determined by two parameters:


- the distance travelled,

- the time elapsed since the last ser vice.
Between 600 miles (1 000 km) and 1 800 miles (3 000 km) remain before the next service is due
For 5 seconds after the ignition is switched on, the
spanner symbolising the ser vice operations comes
on. The distance recorder displa
y line indicates the
distance remaining before the next ser vice is due.
Example:
1 700 miles (2 800 km) remain before the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds a
fter the ignition is switched on,the spanner goes off; the distance recorder fresumes its normal operation. The screen thenindicates the total and trip distances.
Less than 600 miles (1 000 km) remainbefore the next service is due
Example:
400 miles (900 km) remain before
the next service is due.
For 5 seconds after the ignition is switched on,
the screen indicates:
5 seconds after the i
gnition is switched on,
the distance recorder resumes its normal
operation. The spanner remains onto indicate
that a service must be carried out soon.


Illumination of the key is accompaniedby a message in the instrument panel screen.

Electronic key
remote control
Unlocking the vehicle
Complete unlocking
Selective unlockin
g Unlocking the boot
System which permits central unlocking or
locking of the vehicle using the lock or from adistance. It is also used to locate and start thevehicle, as well as providing protection against
theft.
This settin
g is done in the configuration menu.
Complete unlocking is activated bydefault.


Unlocking is confirmed by rapid flashing of the direction indicators for around two seconds.
At the same time, depending onversion, the door mirrors unfold.

Locking the vehicle


Locking is confirmed by fixed lighting of the direction indicators for approximately two seconds.
The door mirrors fold at the same time.
)To unlock only the driver's door,press the open padlock once.
)
To unlock the other doors and the boot,press the open padlock again.
)
Press the closed padlock to lock
the vehicle completely.
Hold the button down until the
windows close completely.

)
Press this button until you hear
th
e boot unlock.

Be aware of children when operatingthe windows.
)
Press the open padlock tounlock the vehicle.

Access
Unlocking the vehicle




















"Keyless Entry and Starting" system


System that allows the opening, closingand star ting of the vehicle while keeping theelectronic key on your person.
It can also be used as a remote control; see the"Remote control" section.
Complete unlocking
)
With the electronic key on your personand in the defined zone A
, pass your hand behind the door handle to unlock thevehicle, then pull on the handle to open the door.
Yo u r p a s s e ngers can also open their doors,
as soon as the electronic key is in the defined zone around the vehicle.



Selective unlocking
This setting is done via the configuration menu.
By default, complete unlocking is activated.
)
To unlock only the drivers door, with the electronic key on your person, pass your hand behind the driver's door handle thenpull on the door handle to open.)
To unlock the complete vehicle, pass your hand behind one of the passenger door handles on the same side of the vehicle asthe electronic key is located, then pull on
the door handle to open.



Unlocking is confirmed by rapidflashing of the direction indicators for approximately two seconds.
The door mirrors unfold at the sametime.
If the alarm is on, the audible warningwhen opening a door with the key(integral with the remote control), willstop on star ting the engine.
