Page 71 of 348
Comfort
Switch on the ignition or star t the engine if the vehicle has gone into economy mode.
The electric functions of the driver's seat are active for about45 seconds after opening the front door. They are deactivated about45 seconds after switching off the ignition and in economy mode.
To reactivate them, switch on the ignition.
Electric
1.Adjustment of the seat cushion angleand height, and for wards-backwards adjustment )Raise or lower the front of the control to adjust the seat cushion angle. )Raise or lower the rear of the control to raise or lower the seat. )Simultaneously raise or lower the frontand rear of the control in order to raise or lower the entire seat. 2.Adjustment of the backrest angle Move the control forwards or backwards to adjust the backrest angle. 3.Adjustment of driver's lumbar support Press the control switches to obtain the
desired level of lumbar suppor t.
4. Manual adjustment of the cushion
Pull on the grip to adjust the length of thecushion.
Page 174 of 348

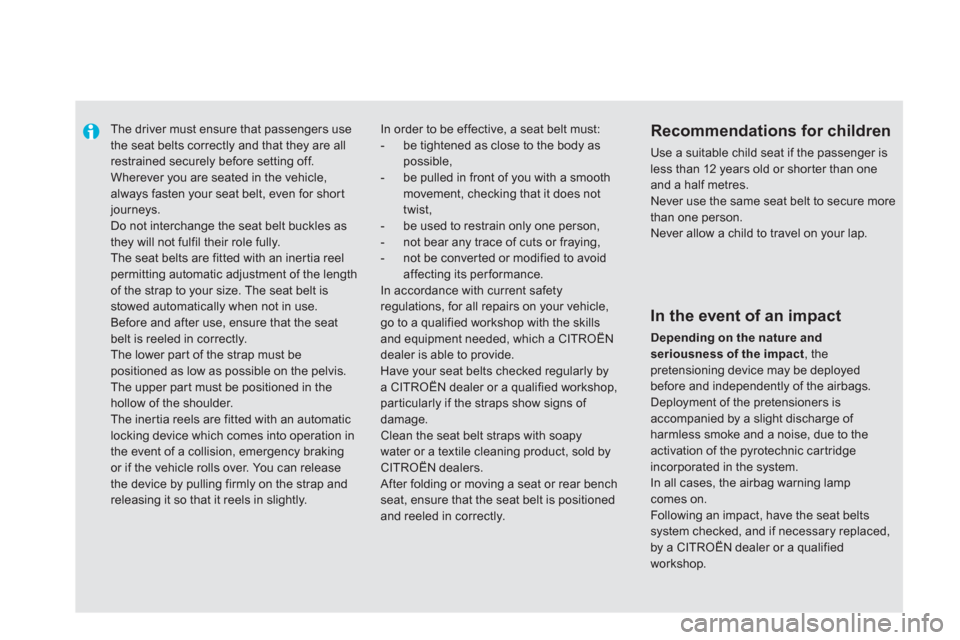

The driver must ensure that passengers usethe seat belts correctly and that they are allrestrained securely before setting off. Wherever you are seated in the vehicle, always fasten your seat belt, even for short journeys.
Do not interchange the seat belt buckles as they will not fulfil their role fully.
The seat belts are fitted with an inertia reel permitting automatic adjustment of the length of the strap to your size. The seat belt isstowed automatically when not in use.
Before and after use, ensure that the seatbelt is reeled in correctly.
The lower part of the strap must be positioned as low as possible on the pelvis.
The upper par t must be positioned in the hollow of the shoulder.
The inertia reels are fitted with an automatic locking device which comes into operation inthe event of a collision, emergency braking or if the vehicle rolls over. You can release the device by pulling firmly on the strap and releasing it so that it reels in slightly.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shor ter than one and a half metres.Never use the same seat belt to secure more than one person. Never allow a child to travel on your lap.
In order to be effective, a seat belt must:
- be tightened as close to the body as possible,
- be pulled in front of you with a smooth movement, checking that it does nottwist,
- be used to restrain only one person,
- not bear any trace of cuts or fraying,
- not be converted or modified to avoidaffecting its per formance.
In accordance with current safetyregulations, for all repairs on your vehicle, go to a qualified workshop with the skills and equipment needed, which a CITROËN dealer is able to provide.
Have your seat belts checked regularly by a CITROËN dealer or a qualified workshop, particularly if the straps show signs of damage. Clean the seat belt straps with soapywater or a textile cleaning product, sold by CITROËN dealers.
After folding or moving a seat or rear benchseat, ensure that the seat belt is positioned and reeled in correctly.
In the event of an impact
Depending on the nature and seriousness of the impact
, thepretensioning device may be deployedbefore and independently of the airbags.Deployment of the pretensioners isaccompanied by a slight discharge of harmless smoke and a noise, due to theactivation of the pyrotechnic car tridge incorporated in the system. In all cases, the airbag warning lampcomes on.Following an impact, have the seat belts system checked, and if necessary replaced,
by a CITROËN dealer or a qualified workshop.
Page 298 of 348
FREQUENTLY ASKED QUESTIONS
QUESTIONANSWER SOLUTION
Some characters in the media information are not
displayed correctly while playing.
The audio system does not display some types of characters. Use standard characters to name tracks and folders.
Playing of streaming fi les does not start. The peripheral device connected does not support automatic play. Start the playback from the device.
The names of tracks andthe track length are not
displayed on the screen
when streamin
g audio.
The Bluetooth profi le does not allow the transfer of this information.
The quality of reception of
the radio station listened
to gradually deterioratesor the stored stations donot function (no sound,87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listened to or
there is no transmitter in the geographical area through which the vehicle is
travelling.
Activate the "RDS" function by means of the short-cut menu to enable the system to check
whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate
a fault with the audio system.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park). Have the aerial checked by a CITROÀN dealer.
The station is not received
or its name has changed
in the list.I
cannot fi nd some radio stations in the list of stations received.
Some radio stations send other information in place of their name (the title
of the song for example).
The system interprets this information as the name of the station. The name of the radio station changes.
