Direction indicators





Lower the lighting control stalk fully when
moving to the left.


Raise the lighting control stalk fully when
moving to the right.

Three fl ashes

Move the stalk briefly upwards or downwards,
without going beyond the point of resistance;
the corresponding direction indicators will flash
3 times.
If you forget to cancel the direction
indicators for more than twenty
seconds, the volume of the audible
signal will increase if the speed is above
40 mph (60 km/h).



Hazard warning lamps


Press the button, the direction indicators flash.
They can operate with the ignition off.













Automatic operation
of hazard warning lamps
When braking in an emergency, depending on
the rate of deceleration, as well as when the
ABS regulation is invoked or in the event of an
impact, the hazard warning lamps come on
automatically.
They switch off automatically the first time you
accelerate.



You can also switch them off by pressing
the button.

This function can be used at any speed,
but it is particularly useful for changing
lane on fast roads.

183Safety






Intelligent traction control
system ("Snow motion")
Your vehicle has a system to help driving on
snow: intelligent traction control.

This system detects situations of difficult
sur face adhesion that could make it difficult to
move off or make progress on deep fresh snow
or compacted snow.
In these situations, the intelligent traction
control
limits the amount of wheel slip to
provide the best traction and trajectory control
for your vehicle.
In extremely severe conditions (deep snow,
mud, ...), when it proves impossible to move off,
it may be useful to temporarily deactivate the
ESP/ASR systems to allow the wheels to spin
freely and so allow movement of the vehicle.

Operation


Anti-lock braking system (ABS)
and electronic brake force
distribution (EBFD)


In emergency braking, press
ver y firmly without releasing the
pressure.



When changing wheels (tyres and rims),
make sure that these are approved for
your vehicle.
Normal operation of the ABS may make
itself felt by slight vibrations of the brake
pedal. When this warning lamp comes on,
accompanied by an audible signal
and a message, it indicates that
there is a fault with the ABS, which
could cause loss of control of the vehicle when
braking.

When this warning lamp comes on,
coupled with the STOP
warning
lamp, accompanied by an audible
signal and a message, it indicates
that there is a fault with the electronic brake
force distribution (EBFD), which could cause
loss of control of the vehicle when braking.

You must stop as soon as it is safe to do so.

In both cases, contact a CITROËN dealer or a
qualified workshop.
The use of snow tyres is strongly
recommended on sur faces offering low levels
of adhesion.

187Safety









Front seat belt height adjustment




To adjust the anchorage point, squeeze the
control and slide it until you find a notch.



From approximately 12 mph
(20 km/h), the warning lamp(s) flash
for two minutes accompanied by
an audible signal. Once these two
minutes have elapsed, the warning lamp(s)
remain on until the driver or one or more
passengers fasten their seat belt.











Seat belt not fastened /
unfastened warning lamps *



1.
Front and/or rear seat belts not fastened /
unfastened warning lamp in the instrument
panel.

2.
Front left seat belt warning lamp.

3.
Front right seat belt warning lamp.

4.
Rear right seat belt warning lamp.

5.
Rear centre seat belt warning lamp.

6.
Rear left seat belt warning lamp.



Front seat belt warning lamps

On switching on the ignition, warning
lamp 1
comes on in the instrument
panel and the corresponding warning
lamp 2
and/or 3
come(s) on in red
in the passenger's seat belt and front airbag
warning lamp display if the corresponding seat
belt is not fastened or is unfastened.


Rear seat belt warning lamps


On switching on the ignition, the
corresponding warning lamps 4
,
5
and 6
come on in red for about
30 seconds if a seat belt is not
fastened.
Above 12 mph (20 km/h), the corresponding
warning lamps 4
, 5
or 6
comes on in red,
accompanied by an audible signal and a
message in the instrument panel screen, when
a rear passenger has unbuckled their seat belt.


* According to version and/or country of sale.

191Safety






Lateral airbags


Deployment

The lateral airbags are deployed unilaterally in
the event of a serious side impact applied to all
or part of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The lateral airbag inflates between the hip and
shoulder of the front occupant of the vehicle
and the corresponding door trim panel. System which protects the driver and front
passenger in the event of a serious side impact
in order to limit the risk of injury to the chest,
between the hip and the shoulder.
Each lateral airbag is fitted in the seat backrest
frame, door side.

Impact detection zones



A.
Front impact zone.

B.
Side impact zone.









Curtain airbags

System which protects the driver and
passengers (with the exception of the rear
centre passenger) in the event of a serious side
impact in order to limit the risk of injury to the
side of the head.
Each curtain airbag is built into the pillars and
the upper passenger compartment area. In the event of a minor impact or bump
on the side of the vehicle or if the
vehicle rolls over, the airbag may not be
deployed.
In the event of a rear or front collision,
the curtain airbag is not deployed.



Deployment

The curtain airbag is deployed at the same
time as the corresponding lateral airbag in the
event of a serious side impact applied to all or
part of the side impact zone B
, perpendicular
to the longitudinal centreline of the vehicle on a
horizontal plane and directed from the outside
towards the inside of the vehicle.
The curtain airbag inflates between the front or
rear occupant of the vehicle and the windows.
If this warning lamp comes on in the
instrument panel, accompanied by an
audible signal and a message in the
instrument panel screen, contact a
CITROËN dealer or a qualified workshop to have
the system checked. The airbags may no longer
be deployed in the event of a serious impact.

Operating fault

219Practical information




















Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:



remove the cover completely,


remove the tweezer.



Access to tooling

Before changing a fuse, the cause
of the failure must be identified and
rectified.



Identify the failed fuse by checking
the condition of its filament.


Changing a fuse


Good

Failed




Use the special tweezer to extract the fuse
from its housing.


Always replace the failed fuse with a fuse
of the same rating.


Check that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.



Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer
or a qualified workshop.

221Practical information

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses




Unclip the cover.


Change the fuse (see corresponding
paragraph).


When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.


Fuse
N°

Rating
(A)


Functions




F20



15

Front / rear screenwash pump.


F21



20

Headlamp wash pump.


F22



15

Horn.


F23



15

Right-hand main beam headlamp.


F24



15

Left-hand main beam headlamp.


F27



5

Left hand lamp mask.


F28



5

Right hand lamp mask.

The batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance
with regulations and must not, in any
circumstances, be discarded with household
waste.
Take used remote control batteries and
vehicle batteries to a special collection point.


It is advisable to disconnect the battery
if the vehicle is to be left unused for
more than one month.









Do not push the vehicle to start the
engine if you have an electronic or
automatic gearbox.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Do not try to charge a frozen battery;
the battery must first be thawed out to
avoid the risk of explosion. If the battery
has been frozen, before charging have
it checked by a CITROËN dealer or a
qualified workshop who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.
Do not reverse the polarity and use only
a 12 V charger.
Do not disconnect the terminals while
the engine is running.
Do not charge the batteries without
disconnecting the terminals first.
Wash your hands after wards.








Before disconnecting the battery

Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.


Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a CITROËN dealer or a
qualified workshop.
Referring to the corresponding section,
you must yourself reinitialise (depending on
version):


- the remote control key,

- the electric blind(s),

- ...


Some functions are not available if the
battery is not sufficiently charged.

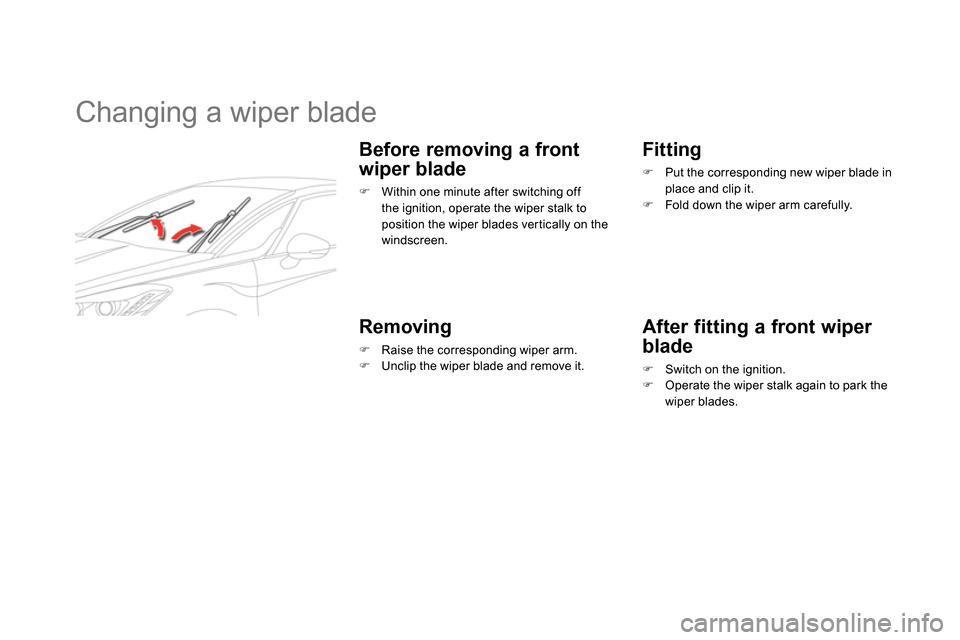

Changing a wiper blade


Before removing a front
wiper blade



Within one minute after switching off
the ignition, operate the wiper stalk to
position the wiper blades vertically on the
windscreen.



Removing




Raise the corresponding wiper arm.


Unclip the wiper blade and remove it.



Fitting




Put the corresponding new wiper blade in
place and clip it.


Fold down the wiper arm carefully.



After fitting a front wiper
blade



Switch on the ignition.


Operate the wiper stalk again to park the
wiper blades.

On vehicle fitted with HDi engines, the fuel
system must be primed if you run out of fuel;
refer to the corresponding engine compartment
view.











Running out of fuel (Diesel)


If the tank on your vehicle is fitted with
a misfuel prevention device, refer to the
"Misfuel prevention (Diesel)" section.


Fill the fuel tank with at least five litres
of diesel.


Open the bonnet.


If necessary, unclip the styling cover for
access to the priming pump.


Squeeze and release the priming pump
repeatedly until resistance is felt (there
may be resistance at the first press).


Operate the starter until the engine starts
(if the engine does not start at the first
attempt, wait around 15 seconds before
trying again).


If the engine does not start after a few
attempts, operate the priming pump again
then start the engine.


Clip the styling cover back in place.


Close the bonnet.



1.6 litre HDi engine




Fill the fuel tank with at least five litres of
Diesel.


Open the bonnet.


If necessary, unclip the style cover for
access to the priming pump.


Slacken the bleed screw.


Squeeze and release the priming pump
repeatedly until fuel appears in the
transparent pipe.


Tighten the bleed screw.


Operate the starter until the engine starts
(if the engine fails to start at the first
attempt, wait around 15 seconds before
trying again).


If the engine fails to start after a few
attempts, operate the priming pump again,
then the starter.


Put the style cover back in position and
clip it in place, ensuring that it has clipped
correctly.


Close the bonnet.








2 litre HDi engine


If the engine does not start first time,
don't keep trying but start the procedure
again from the beginning.

241Checks






Checking levels


Take care when working under the bonnet, as certain areas of the engine may be extremely hot (risk of burns) and the cooling fan could start at
any time (even with the ignition off).




















Engine oil level


The check is carried out either when
the ignition is switched on using the
oil level indicator in the instrument
panel for vehicles with and electric oil
level gauge, or using the dipstick.

It is normal to top up the oil level between
two ser vices (or oil changes). CITROËN
recommends that you check the level, and top
up if necessary, every 3 000 miles (5 000 kms).
To ensure that the reading is correct,
your vehicle must be on level ground
and the engine has been off for more
than 30 minutes.
Check all of these levels regularly, in line with the maintenance and warranty guide. Top them up if necessary, unless other wise indicated.
If a level drops significantly, have the corresponding system checked by a CITROËN dealer or a qualified workshop.

Checking using the dipstick

Refer to the "Petrol engine" or "Diesel engine"
section for the location of the dipstick in the
engine compartment of your vehicle.


- Take the dipstick by its coloured grip and
remove it completely.

- Wipe the end of the dipstick using a clean
non-fluffy cloth.

- Refit the dipstick and push fully down, then
pull it out again to make the visual check:
the correct level is between the marks A

and B
.


A
= MA X


B
= MIN

If you find that the level is above the A
mark or
below the B
mark, do not star t the engine
.


- If the level is above the MAX
mark (risk
of damage to the engine), contact a
CITROËN dealer or a qualified workshop.

- If the level is below the MIN
mark, you
must top up the engine oil.
