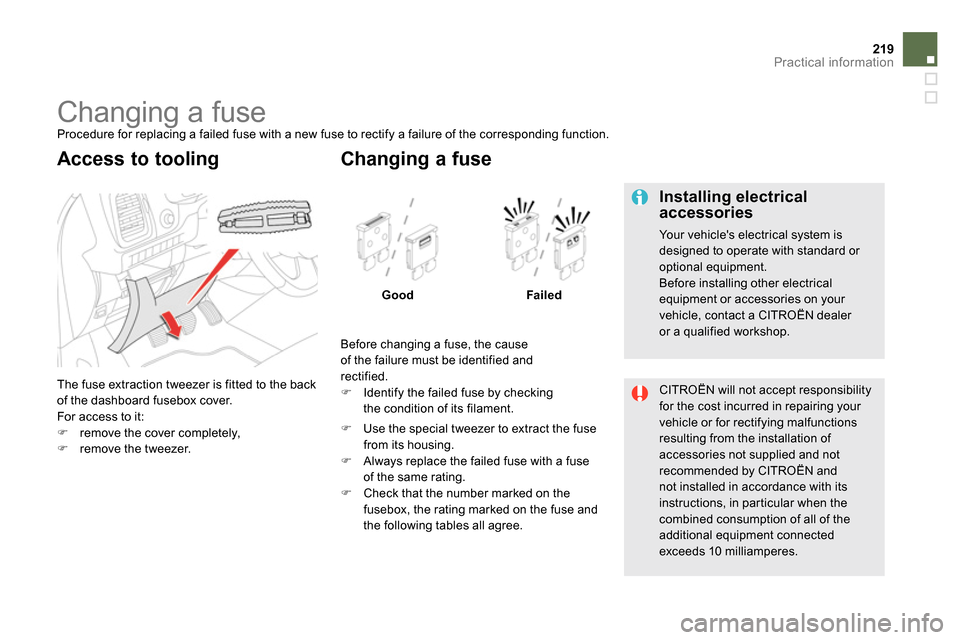

Changing a fuse
Procedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:



remove the cover completely,


remove the tweezer.



Access to tooling

Before changing a fuse, the cause
of the failure must be identified and
rectified.



Identify the failed fuse by checking
the condition of its filament.


Changing a fuse


Good

Failed




Use the special tweezer to extract the fuse
from its housing.


Always replace the failed fuse with a fuse
of the same rating.


Check that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.



Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer
or a qualified workshop.

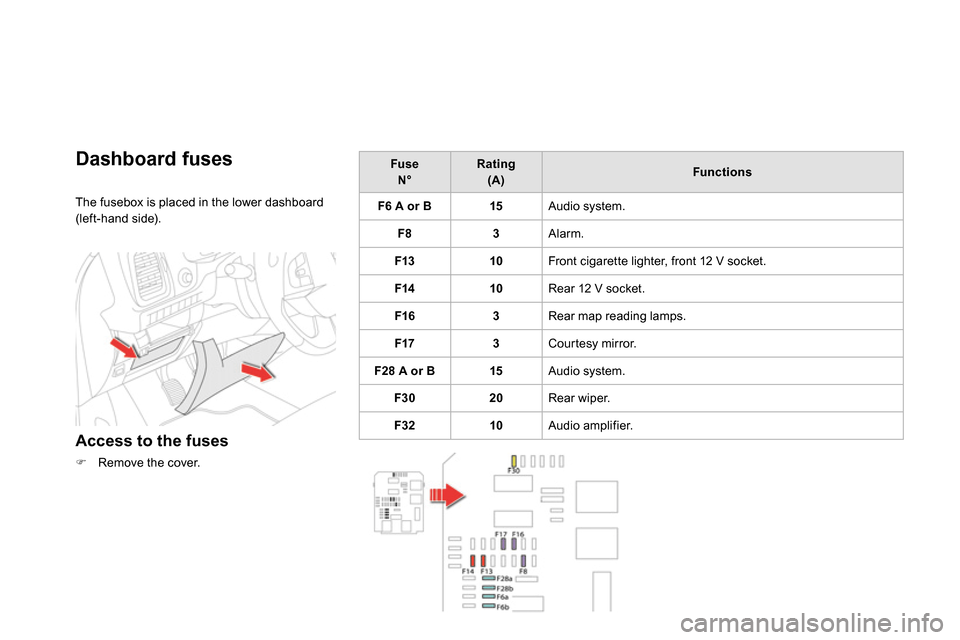

Dashboard fuses

The fusebox is placed in the lower dashboard
(left-hand side).

Access to the fuses




Remove the cover.


Fuse
N°

Rating
(A)


Functions




F6 A or B



15

Audio system.


F8



3

Alarm.


F13



10

Front cigarette lighter, front 12 V socket.


F14



10

Rear 12 V socket.


F16



3

Rear map reading lamps.


F17



3

Courtesy mirror.


F28 A or B



15

Audio system.


F30



20

Rear wiper.


F32



10

Audio amplifier.

221Practical information

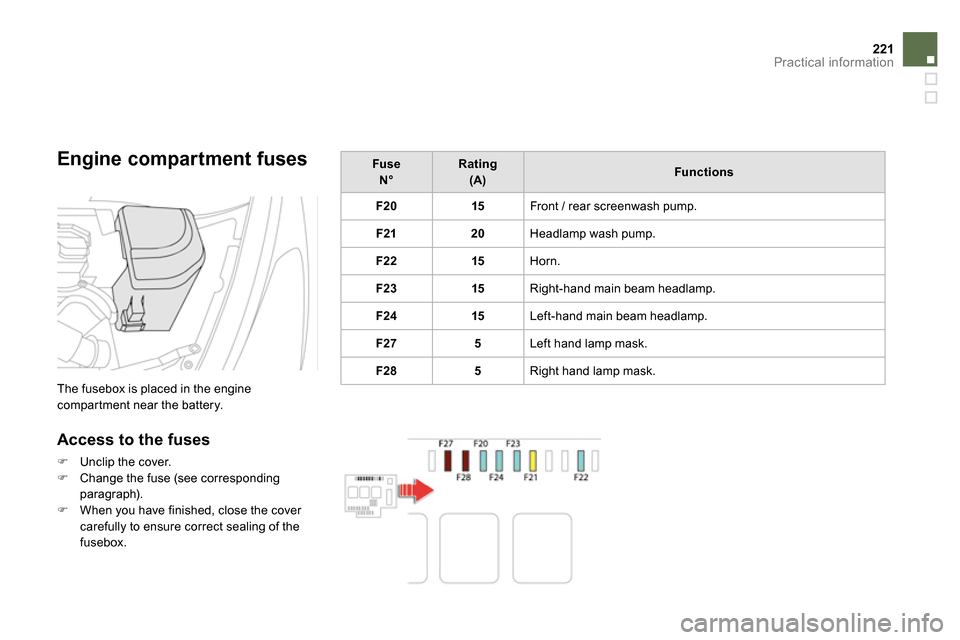

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery.

Access to the fuses




Unclip the cover.


Change the fuse (see corresponding
paragraph).


When you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.


Fuse
N°

Rating
(A)


Functions




F20



15

Front / rear screenwash pump.


F21



20

Headlamp wash pump.


F22



15

Horn.


F23



15

Right-hand main beam headlamp.


F24



15

Left-hand main beam headlamp.


F27



5

Left hand lamp mask.


F28



5

Right hand lamp mask.

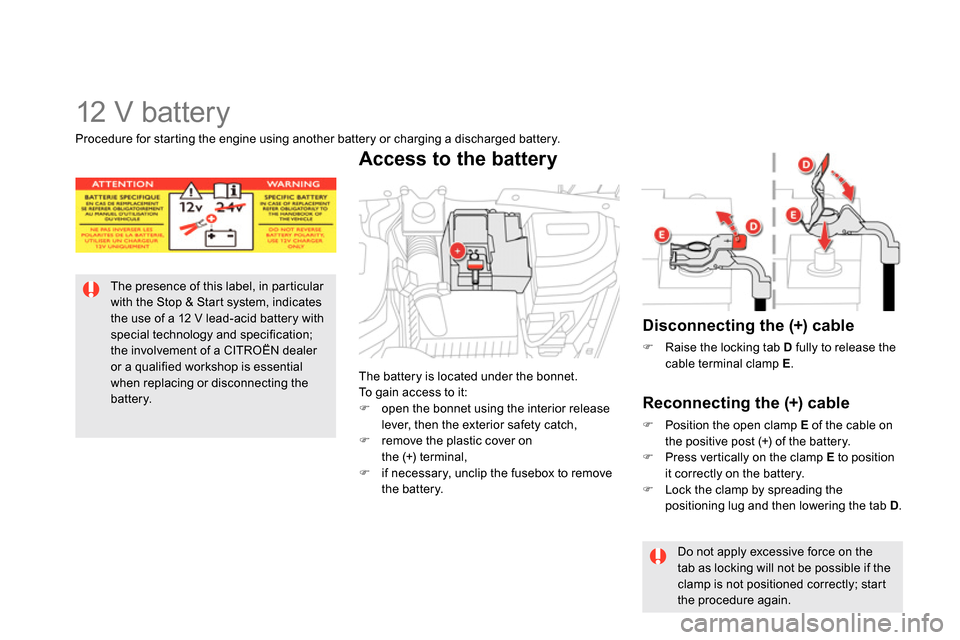

12 V battery







The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer
or a qualified workshop is essential
when replacing or disconnecting the
battery. The battery is located under the bonnet.
To gain access to it:



open the bonnet using the interior release
lever, then the exterior safety catch,


remove the plastic cover on
the (+) terminal,


if necessary, unclip the fusebox to remove
the battery.








Access to the battery



Disconnecting the (+) cable




Raise the locking tab D
fully to release the
cable terminal clamp E
.



Reconnecting the (+) cable




Position the open clamp E
of the cable on
the positive post (+) of the battery.


Press vertically on the clamp E
to position
it correctly on the battery.


Lock the clamp by spreading the
positioning lug and then lowering the tab D
.
Do not apply excessive force on the
tab as locking will not be possible if the
clamp is not positioned correctly; start
the procedure again.

Procedure for starting the engine using another battery or charging a discharged battery.

The fitting of electrical equipment
or accessories which are not
recommended by CITROËN may result
in a failure of your vehicle's electronic
system and excessive electrical
consumption.
Please note this precaution. You
are advised to contact a CITROËN
representative to be shown the range
of recommended equipment and
accessories.


Installation of radio
communication
transmitters
Before installing any after-market radio
communication transmitter, you can
contact a CITROËN dealer for the
specification of transmitters which can
be fitted (frequency, maximum power,
aerial position, specific installation
requirements), in line with the Vehicle
Electromagnetic Compatibility Directive
(2004/104/EC).


Depending on the legislation in force in
the country, certain safety equipment
may be compulsory: high visibility
safety vests, warning triangles,
breathalyzers, spare bulbs, spare fuses,
a fire extinguisher, a first aid kit, mud
flaps at the rear of the vehicle.
By visiting a CITROËN dealer you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products in the "TECHNATURE" range,
products for topping up (screenwash...), paint
touch-up pens and aerosols for the exact
colour of your vehicle, refills (sealant cartridge
for the temporary puncture repair kit...), ...



"Multimedia":

Bluetooth hands-free system, portable satellite
navigation system, mapping update CD, driving
assistance systems, portable video screen,
portable video support bracket, multimedia
system support, 230 V/50 Hz socket,
230 V/12 V adaptor, mobile phone charger
compatible with iPhone
® , Wi-Fi on board...

The various caps and covers allow access for
checking the levels of the various fluids and for
replacing certain components.














Petrol engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

THP 155 6- SPEED AUTO


THP 200 6- SPEED MANUAL

239Checks
The various caps and covers allow access for
checking the levels of the various fluids, for
replacing certain components and for priming
the fuel system.

*
According to engine.















Diesel engines



1.
Power steering reservoir.

2.
Screenwash and headlamp wash reser voir.

3.
Coolant reservoir.

4.
Brake fluid reser voir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air filter.

8.
Engine oil dipstick.

9.
Engine oil filler cap.

10.
Priming pump * .

11.
Bleed screw * .

e- HDi 115 6- SPEED ELECTRONIC


HDi 160 PEF 6- SPEED MANUAL / HDi 160 PEF 6- SPEED AUTO

A
ABS ............................................................. 182
Accessories ........................................ 105, 231
Accessory position ..................................... 105
Accessory socket, 12V ...........................88, 89
Adjusting headlamps .................................. 152
Adjusting head restraints ........................ 78, 81
Adjusting seat belt height ........................... 187
Adjusting the steering wheel ........................ 87
Airbags .................................................. 41, 189
Airbags, curtain ................................... 191, 192
Airbags, front....................................... 189, 192
Airbags, lateral .................................... 191, 192
Air conditioning ............................................. 25
Air conditioning, automatic .....................95, 96
Air filter ........................................................ 246
Air flow .......................................................... 94
Air vents ........................................................ 94
Alarm ............................................................. 65
Anti-lock braking system
(ABS) ........................................................ 182
Anti-pinch ................................................ 69, 71
Anti-theft ..................................................... 105
Armrest .......................................................... 88
Armrest, front ................................................ 90
Armrest, rear ................................................. 91
Ashtray, removable ....................................... 88
ASR ............................................................. 182
Assistance call ............................ 181, 264, 265
Assistance, emergency braking ................. 182
Audible warning .......................................... 181
Audio streaming
(Bluetooth) ............................... 308, 336, 338
Audio system ............................................... 323
Automatic headlamp dipping ................ 32, 149Automatic illumination of headlamps ... 145, 148
Automatic operation
of hazard warning lamps .......................... 180
Automatic rain sensitive windscreen
wipers ............................................... 155, 157
Auxiliary socket ............................ 90, 305, 335
Battery ......................................... 222-224, 245
Battery, charging .................................223, 224
Battery, remote control ........................... 60, 61
Black panel.................................................... 47
Bluetooth (hands-free) ........................290, 337
Bluetooth (telephone) ..........................290, 337
Boot ............................................................... 64
Boot (opening) ............................................... 55
Brake discs .................................................. 247
Brake lamps ................................................ 216
Brake pads .................................................. 247
Brakes ......................................................... 247
Capacity, fuel tank ........................................ 72
CD ...................................................... 305, 330
CD MP3 .......................................305, 331, 332
B
C
Central locking .............................................. 55
Changing a bulb ................................... 211-218
Changing a fuse ...................................219 -221
Changing a wheel ............................... 202-209
Changing a wiper blade ......................158, 226
Changing the date ................... 48, 49, 315, 347
Changing the remote
control battery............................................. 60
Changing the time ................... 48, 49, 315, 347
Checking levels .................................... 241-244
Checking the engine
oil level ................................................ 45, 241
Checking tyre pressures
(using the kit) ............................................ 201
Checks ................................................ 238 -247
Children ................................ 162-177, 188, 190
Child lock ..................................................... 177
Child seats .......................................... 164-176
Child seats, conventional .................... 170, 171
Cigarette lighter............................................. 89
CITROËN Localised Assistance
Call ............................................................ 265
CITROËN Localised Emergency
Call ............................................................ 265
Clock ....................................... 48, 49, 315, 347
Closing the boot ............................................ 64
Closing the doors ....................................55, 57
Connectors, audio ................ 90, 305, 333, 335
Coolant level ......................................... 42, 243
Coolant temperature
indicator ...................................................... 42
Courtesy lamps ........................................... 159
Cruise control ...................................... 133, 136
Cup holder ..................................................... 88

357Alphabetical index
DAB (Digital Audio Broadcasting) ..............303
Date (setting) .......................... 48, 49 , 315, 347
Daytime running lamps ................211, 214, 215
Deactivating DSC........................................ 184
Deactivating the passenger airbag ............. 190
Deadlocking ............................................58, 59
Defrosting ..............................................86, 100
Demisting ..............................................86, 100
Diesel ............................................................ 33
Diesel additive level .................................... 244
Diesel engine pre-heat warning lamp .......... 33
Dimensions ................................................. 259
Dipped beam ......................... 32, 144, 211, 212
Dipstick .................................................. 45, 241
Directional lighting .............................. 153, 154
Direction indicators ............. 180, 211, 214, 216
Doors emergency control ............................. 62
Driving economically..................................... 25
Driving positions (memorising) ..................... 80
Dynamic emergency braking ...................... 110
Dynamic stability control
(DSC) ..........................................39, 182, 184
Filling with fuel ......................................... 72-74
Fitting a wheel ............................................. 208
Fitting roof bars ........................................... 230
Fittings, boot ................................................. 92
Flashing indicators .............................. 150, 180
Foglamps, front ................... 146, 154, 211, 215
Foglamps, rear ............................ 146, 216, 217
Folding/unfolding the door mirrors ............... 86
Front seats .............................................. 78 - 80
Fuel.......................................................... 25, 74
Fuel consumption .......................................... 25 EBA (Emergency braking assistance) ........ 182
EBFD ........................................................... 182
Eco-driving ................................................... 25
Economy mode ........................................... 225
Electronic brake force distribution
(EBFD) ...................................................... 182Gearbox, automatic .....114, 116, 127, 224, 246
Gearbox, manual ................. 114, 115, 127, 246
Gear lever, automatic gearbox ................... 116
Gear lever, manual gearbox ....................... 115
Gear shift indicator ..................................... 124
G.P.S. .......................................................... 273
Guide-me-home .................................. 148, 150
Halogen headlamps ............................ 211, 213
Hands-free kit .....................................290, 337
Hazard warning lamps .......................... 93, 180
Headlamp adjustment ................................. 152
Headlamps, directional ....................... 153, 211
Headlamp wash .................................. 156, 243
D
F
EG
H
Electronic engine immobiliser............... 61, 105
Electronic gearbox
system ................. 25, 114, 120, 127, 224, 246
Emergency boot release ............................... 64
Emergency call ........................... 181, 264, 265
Emergency starting ..................................... 223
Emergency warning lamps ......................... 180
eMyWay ................................................ 47, 267
Energy economy mode ............................... 225
Engine compartment ..........................238, 239
Engine compartment fusebox ..................... 219
Engine, Diesel .......................74, 239, 240, 253
Engine oil level indicator ....................... 45, 241
Engine, petrol ................................74, 238, 250
Engines ...............................................250, 253
Environment ..... 25, 60, 95, 100, 125, 224, 244Fuel filler cap ................................................. 72
Fuel filler flap ................................................. 72
Fuel gauge .................................................... 72
Fuel tank.................................................. 72, 73
Fusebox, dashboard ................................... 220
Fuses ........................................................... 219
